Tauranga Trough West 2 Details
| Property | Value |
|---|---|
| Rupture Count | 52 |
| Ruptures Above Sect Min Mag | 51 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.99, 7.69] |
| Length Range | [24, 114] km |
| Total Rate | 6.419538E-5 /yr |
| Multi-Fault Rate | 3.4301444E-5 /yr (53.43%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

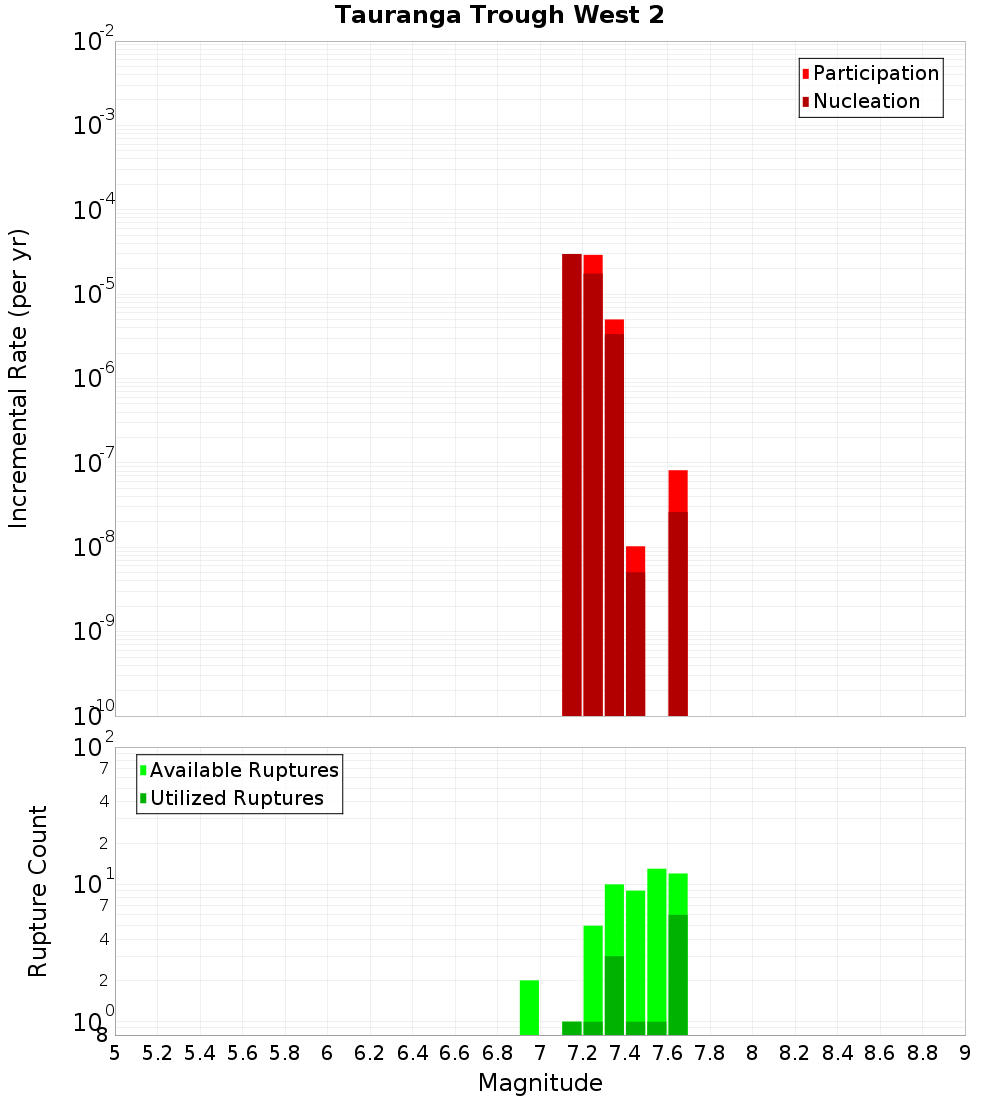

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

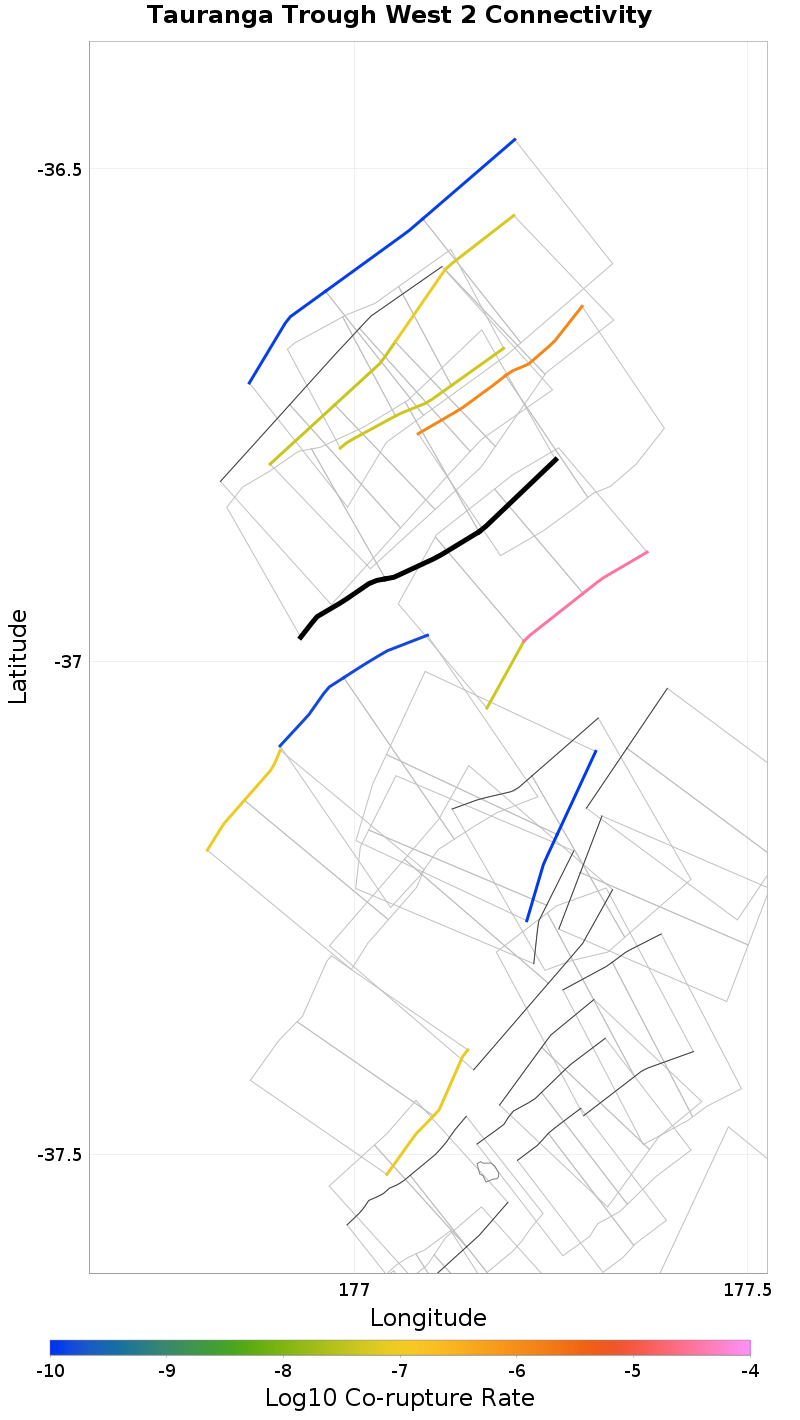

Connectivity
 |  |
|---|
Nearby Sections
Ohena 3, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMzAuMDJxVGI1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Ohena 2, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMzAuMDJxVGI1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 29 |
| Co-rupture Rate | 9.172344E-8 |
Ngatoro South 2, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMzAuMDJxVGI1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.2575538E-6 |
Ohena 4, 0.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMzAuMDJxVGI1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 1.2637053E-10 |
Tuakana 7, 6.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMzAuMDJxVGI1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.515552E-10 |
Tauranga Trough East 2, 9.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMzAuMDJxVGI1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 3.299067E-5 |
Ngatoro South 5, 10.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMzAuMDJxVGI1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 4.2825796E-8 |
Tuakana 6, 12.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMzAuMDJxVGI1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 9.2116906E-8 |
