Waimana: North Details

PropertyValue
Rupture Count20,290
Ruptures Above Sect Min Mag20,282
Ruptures w/ Nonzero Rates37
Magnitude Range[6.87, 8.71]
Length Range[18, 1,132] km
Total Rate3.9586631E-4 /yr
Multi-Fault Rate1.944431E-4 /yr (49.12%)
Directly-Connected Faults9
All Co-Rupturing Faults124

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

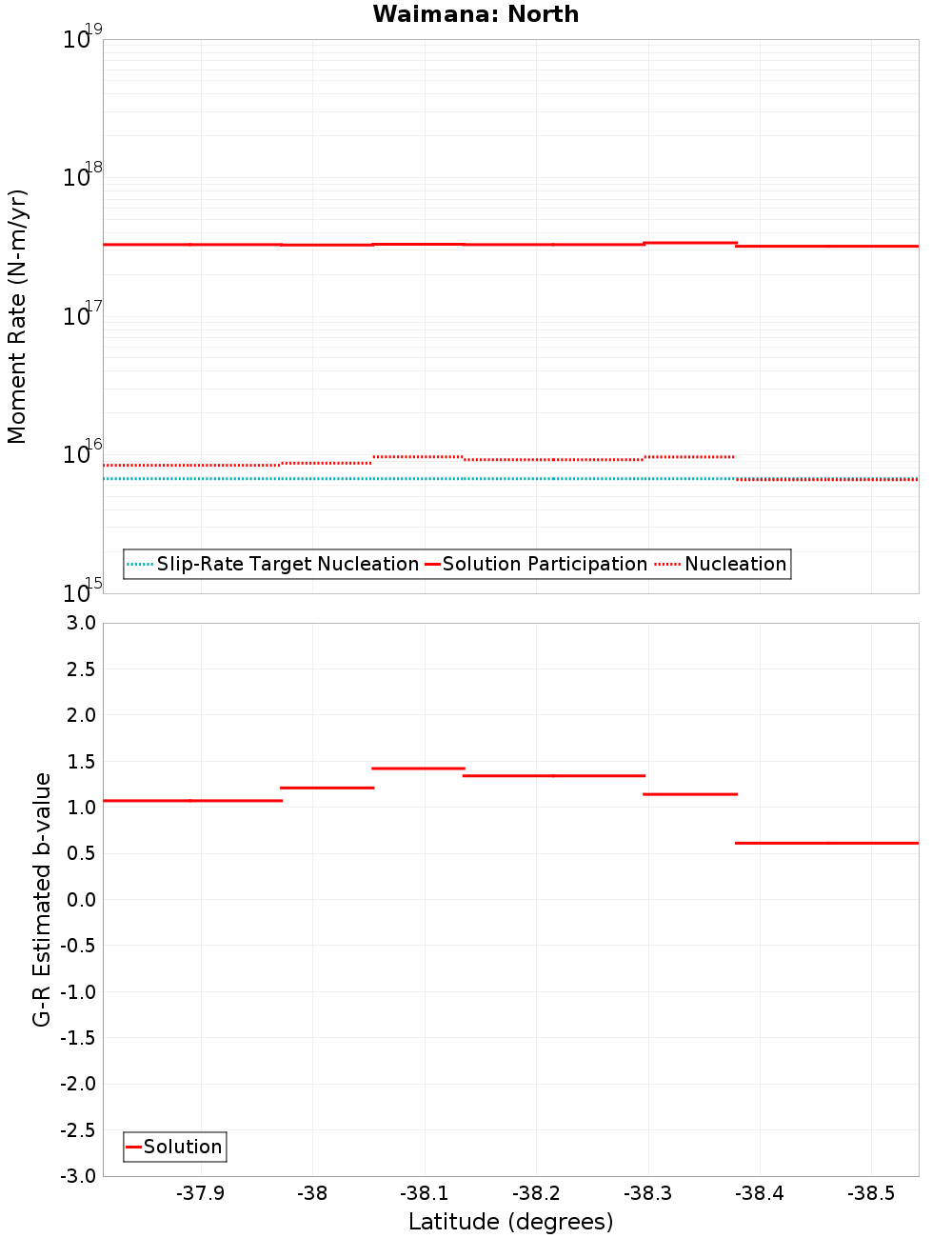

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waimana: South, 0 km awayOhiwa 1, 8.65 km away
Waimanawa - Waikaremoana, 0.33 km awayKeepa, 9.02 km away
Waiotahi: North, 1.8 km awayRangitaiki 2, 9.4 km away
Waiotahi: South, 2.4 km awayOhae 1, 9.51 km away
Whakatane: South, 5.63 km awayRangitaiki 1, 10.53 km away
White Island 2, 6.76 km awayOpotiki 2, 12.2 km away
White Island 1, 7.11 km awayWairata, 12.84 km away
Whakatane: North, 7.34 km awayRaukumara 9, 14.07 km away
Otakiri, 8.24 km awayTirohanga, 14.35 km away
Opotiki 3, 8.43 km awayMatata, 14.4 km away

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?true
Co-rupture Count17,662
Co-rupture Rate9.1056E-5

Waimanawa - Waikaremoana, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?true
Co-rupture Count172
Co-rupture Rate0.0

Waiotahi: North, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?true
Co-rupture Count157
Co-rupture Rate3.9827073E-6

Waiotahi: South, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?true
Co-rupture Count2,191
Co-rupture Rate6.7823916E-5

Whakatane: South, 5.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate0.0

White Island 2, 6.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?false
Co-rupture Count472
Co-rupture Rate2.9822637E-5

White Island 1, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?true
Co-rupture Count7,238
Co-rupture Rate8.536342E-5

Whakatane: North, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Otakiri, 8.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?true
Co-rupture Count3,224
Co-rupture Rate5.9080117E-5

Opotiki 3, 8.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Ohiwa 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?false
Co-rupture Count351
Co-rupture Rate2.8909872E-5

Keepa, 9.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?true
Co-rupture Count5,052
Co-rupture Rate8.2909246E-5

Rangitaiki 2, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 9.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?false
Co-rupture Count754
Co-rupture Rate6.2648505E-6

Opotiki 2, 12.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Wairata, 12.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?true
Co-rupture Count153
Co-rupture Rate5.8209804E-5

Raukumara 9, 14.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?true
Co-rupture Count161
Co-rupture Rate0.0

Tirohanga, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Matata, 14.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyNzcuMFVRWXRu
Connected?true
Directly Connected?false
Co-rupture Count6,877
Co-rupture Rate8.2909246E-5
