Flaxmore - Waimea - Tahunanui Details

PropertyValue
Rupture Count9,537
Ruptures Above Sect Min Mag9,528
Ruptures w/ Nonzero Rates33
Magnitude Range[6.85, 8.46]
Length Range[23, 971] km
Total Rate1.8600446E-4 /yr
Multi-Fault Rate3.5203964E-5 /yr (18.93%)
Directly-Connected Faults7
All Co-Rupturing Faults71

Table Of Contents

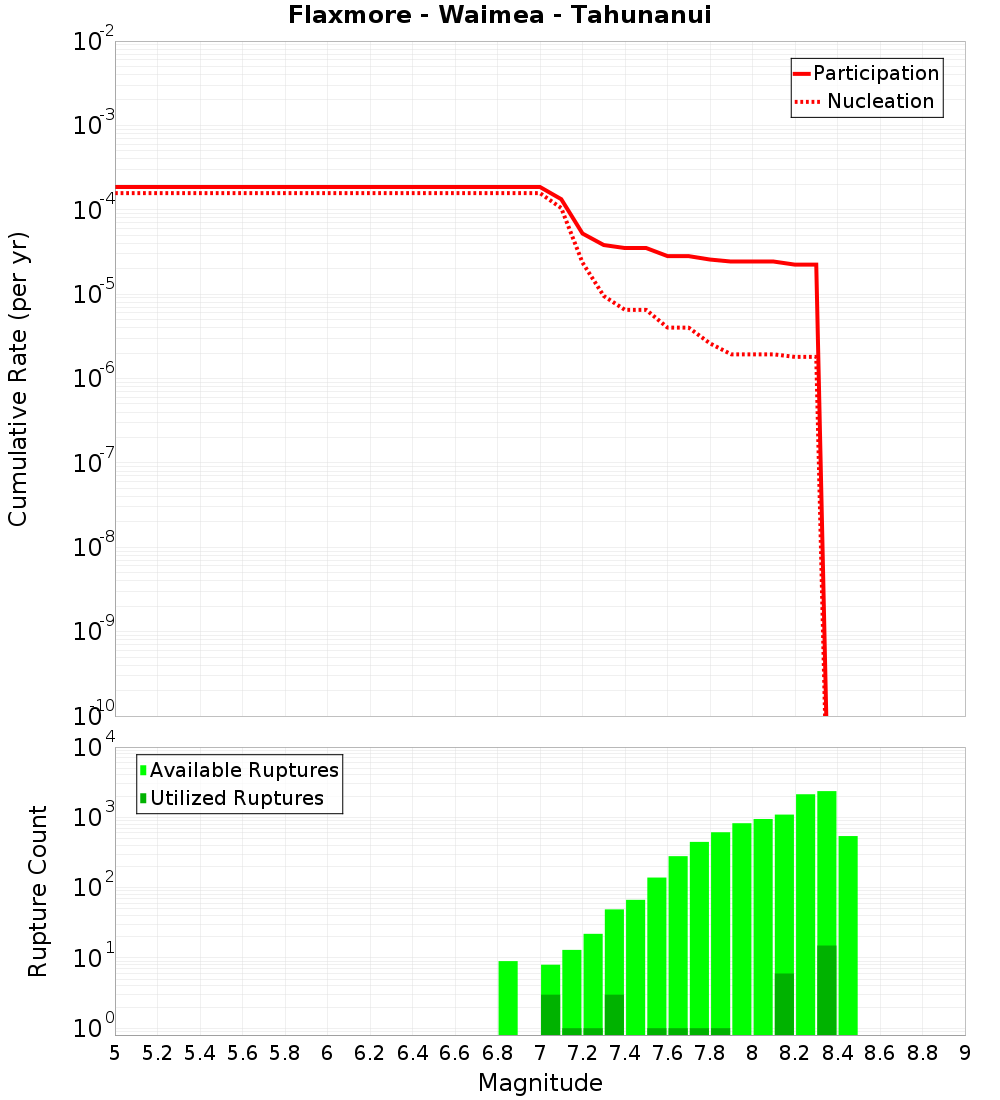

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

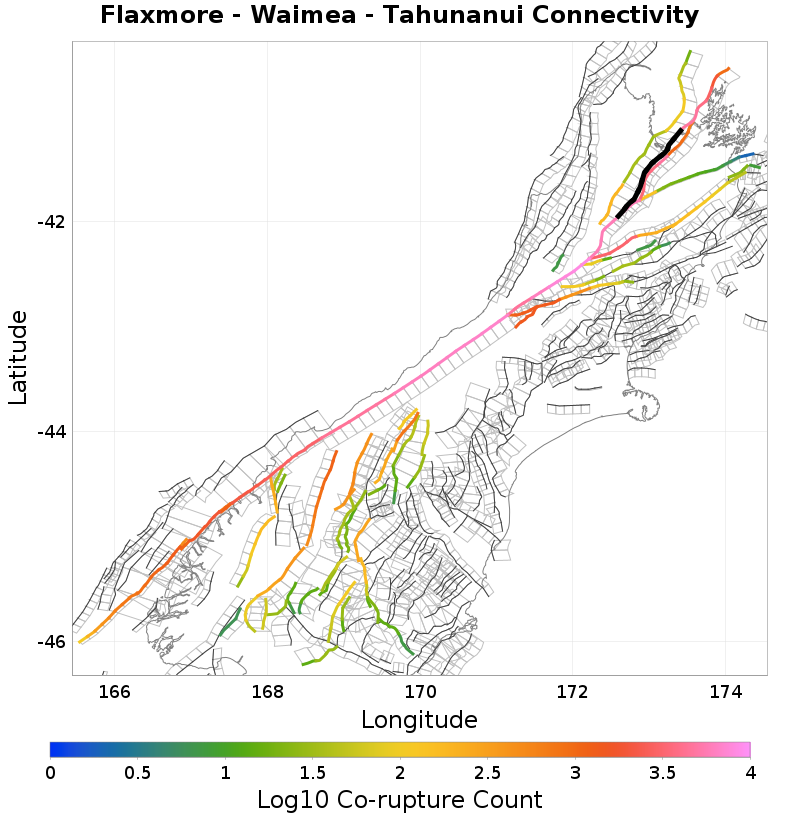

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.45 km away
Whangamoa, 2.28 km away
Tutaki, 2.49 km away
Surville, 8.79 km away
Ruby Bay - Moutere, 9.4 km away
Awatere: Southwest, 12.08 km away

Waimea Offshore, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?true
Co-rupture Count4,756
Co-rupture Rate0.0

Wairau, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?true
Co-rupture Count136
Co-rupture Rate1.3585807E-9

Alpine: Springs Junction to Tophouse, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?true
Co-rupture Count5,883
Co-rupture Rate2.4574212E-5

Whangamoa, 2.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?true
Co-rupture Count4,716
Co-rupture Rate4.5969806E-8

Tutaki, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?true
Co-rupture Count191
Co-rupture Rate0.0

Surville, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?false
Co-rupture Count130
Co-rupture Rate0.0

Ruby Bay - Moutere, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate0.0

Awatere: Southwest, 12.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?true
Co-rupture Count3,354
Co-rupture Rate2.0045445E-5
