Mid Dome Details

PropertyValue
Rupture Count1,874
Ruptures Above Sect Min Mag1,873
Ruptures w/ Nonzero Rates15
Magnitude Range[6.98, 8.43]
Length Range[23, 806] km
Total Rate1.3939109E-5 /yr
Multi-Fault Rate1.3939109E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults58

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

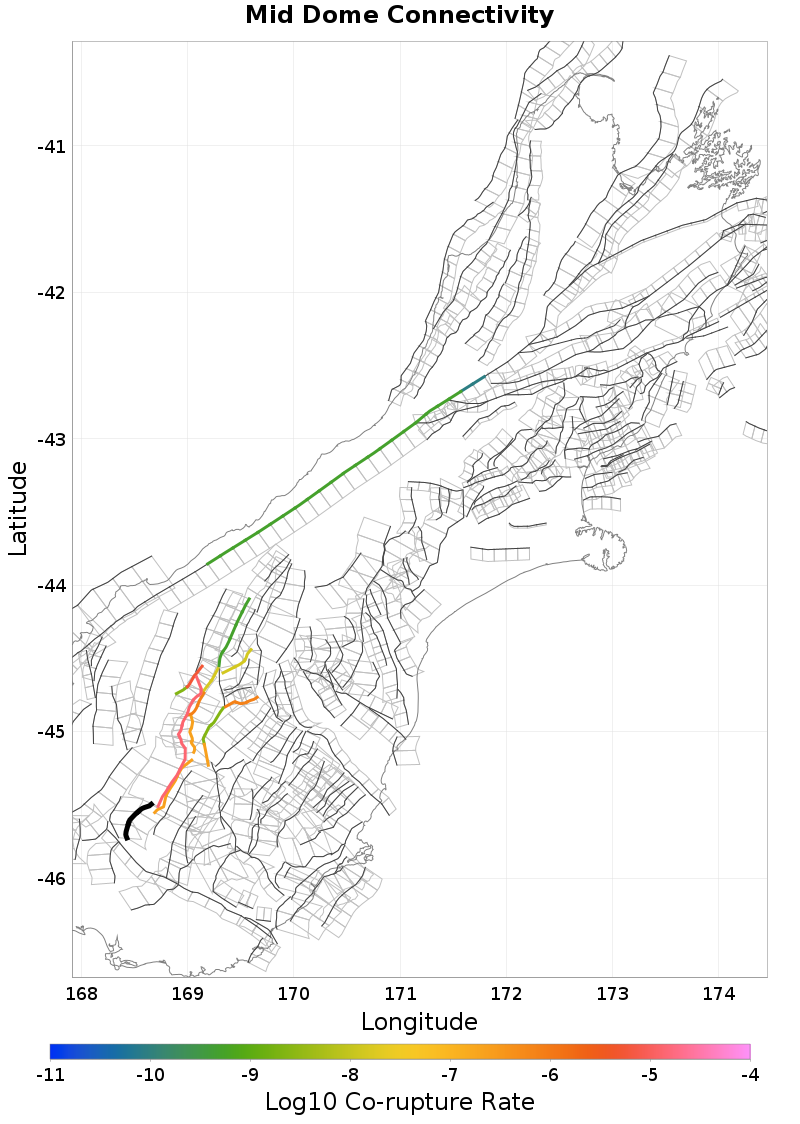

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Nevis, 0.85 km away
Acton, 3.19 km away
Roaring Lion, 5.36 km away
Hokonui, 6.47 km away
White Hill, 6.67 km away
Garvie, 11.14 km away
Waikaka, 12.5 km away
Old Man, 13.05 km away
Mossburn, 14.2 km away

Nevis, 0.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?true
Co-rupture Count1,283
Co-rupture Rate1.37133875E-5

Acton, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Roaring Lion, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?true
Co-rupture Count1,359
Co-rupture Rate2.2777364E-7

Hokonui, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?true
Directly Connected?true
Co-rupture Count314
Co-rupture Rate0.0

White Hill, 6.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 11.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikaka, 12.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Old Man, 13.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mossburn, 14.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
