Ohae 3 Details

Property	Value
Rupture Count	10
Ruptures Above Sect Min Mag	9
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.45, 7.74]
Length Range	[8, 175] km
Total Rate	1.36128065E-5 /yr
Multi-Fault Rate	1.36128065E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

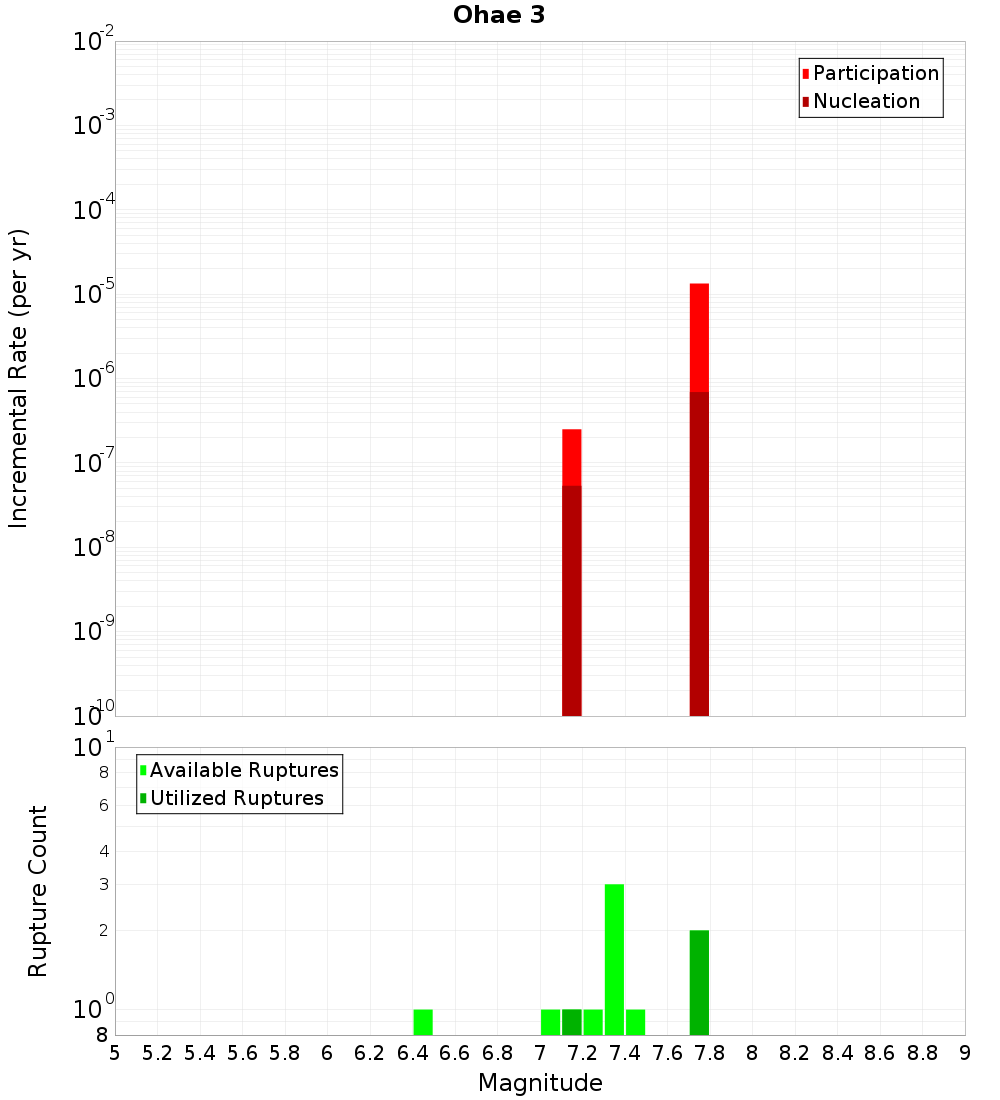

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

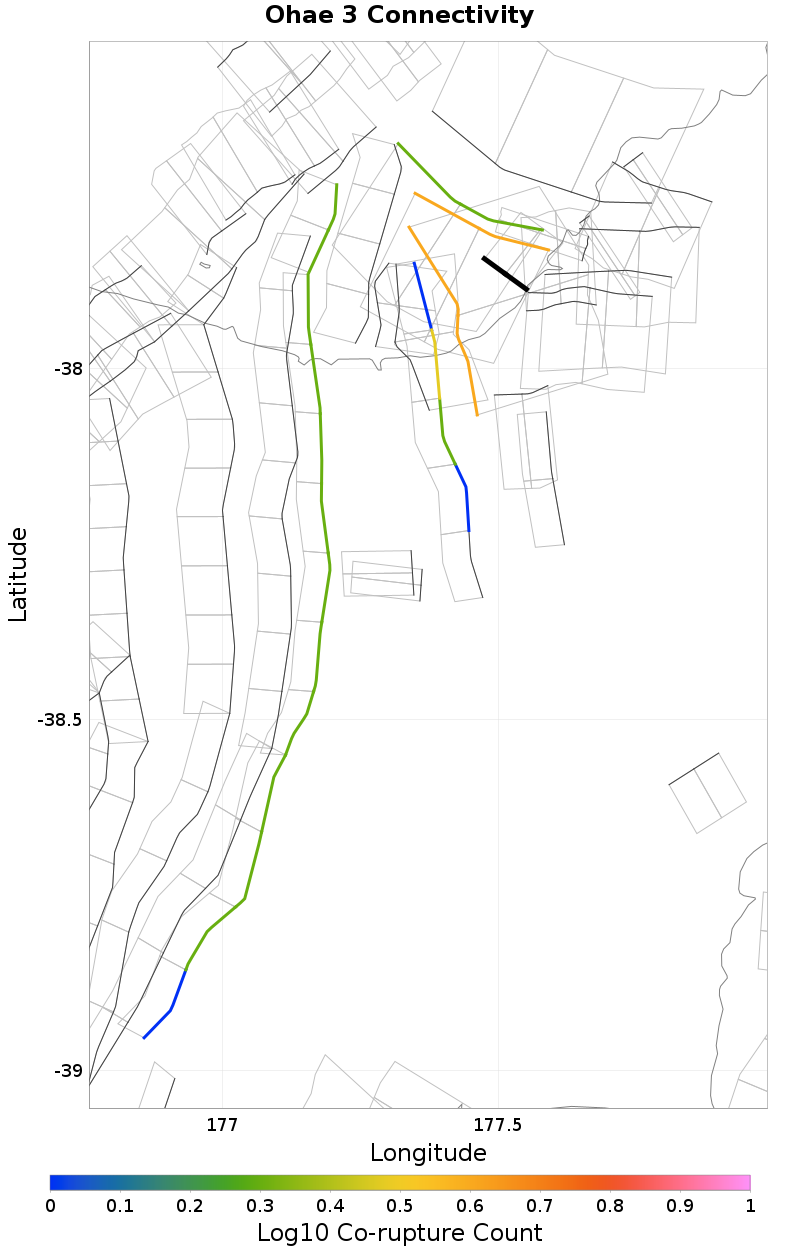

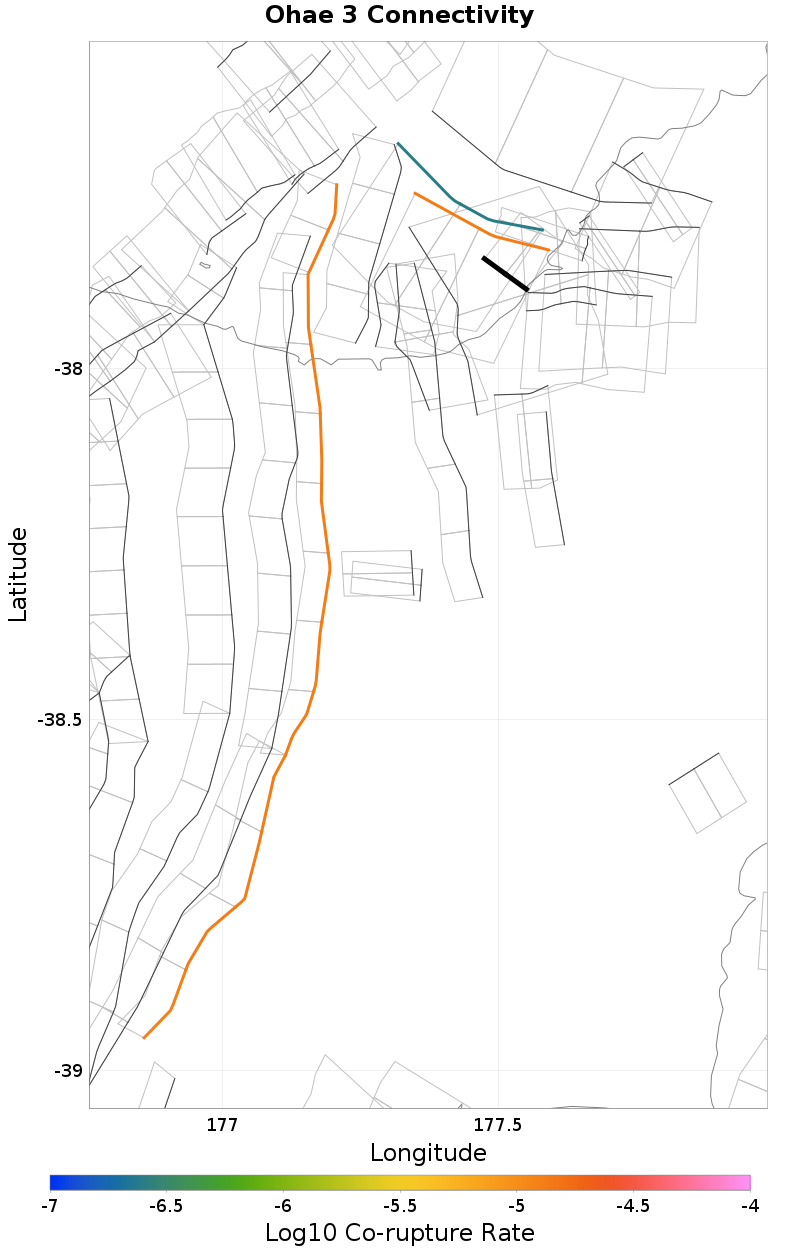

Connectivity

Nearby Sections

Fault Section
Opape 1, 0.13 km away
Raukumara 20, 0.15 km away
Raukumara 17, 0.15 km away
Ohae 2, 0.18 km away
Ohae 1, 0.3 km away
Raukumara 18, 0.62 km away
Kereu, 2.13 km away
Motu River, 2.14 km away
Raukumara 21, 5.47 km away
Raukumara 25, 9.42 km away
Kotare - Moutuhora, 10.99 km away
Tirohanga, 11.89 km away
Hariki, 13.58 km away
Opotiki 2, 13.74 km away

Opape 1, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	0.0

Raukumara 20, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 17, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 2, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	1.3362618E-5

Ohae 1, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	2.5018764E-7

Raukumara 18, 0.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kereu, 2.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motu River, 2.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 21, 5.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 25, 9.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kotare - Moutuhora, 10.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Tirohanga, 11.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hariki, 13.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 2, 13.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTEuME05d0xr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
