Keepa Details

Property	Value
Rupture Count	5,238
Ruptures Above Sect Min Mag	5,236
Ruptures w/ Nonzero Rates	72
Magnitude Range	[6.42, 8.27]
Length Range	[11, 645] km
Total Rate	2.1584236E-4 /yr
Multi-Fault Rate	2.1584236E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	73

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

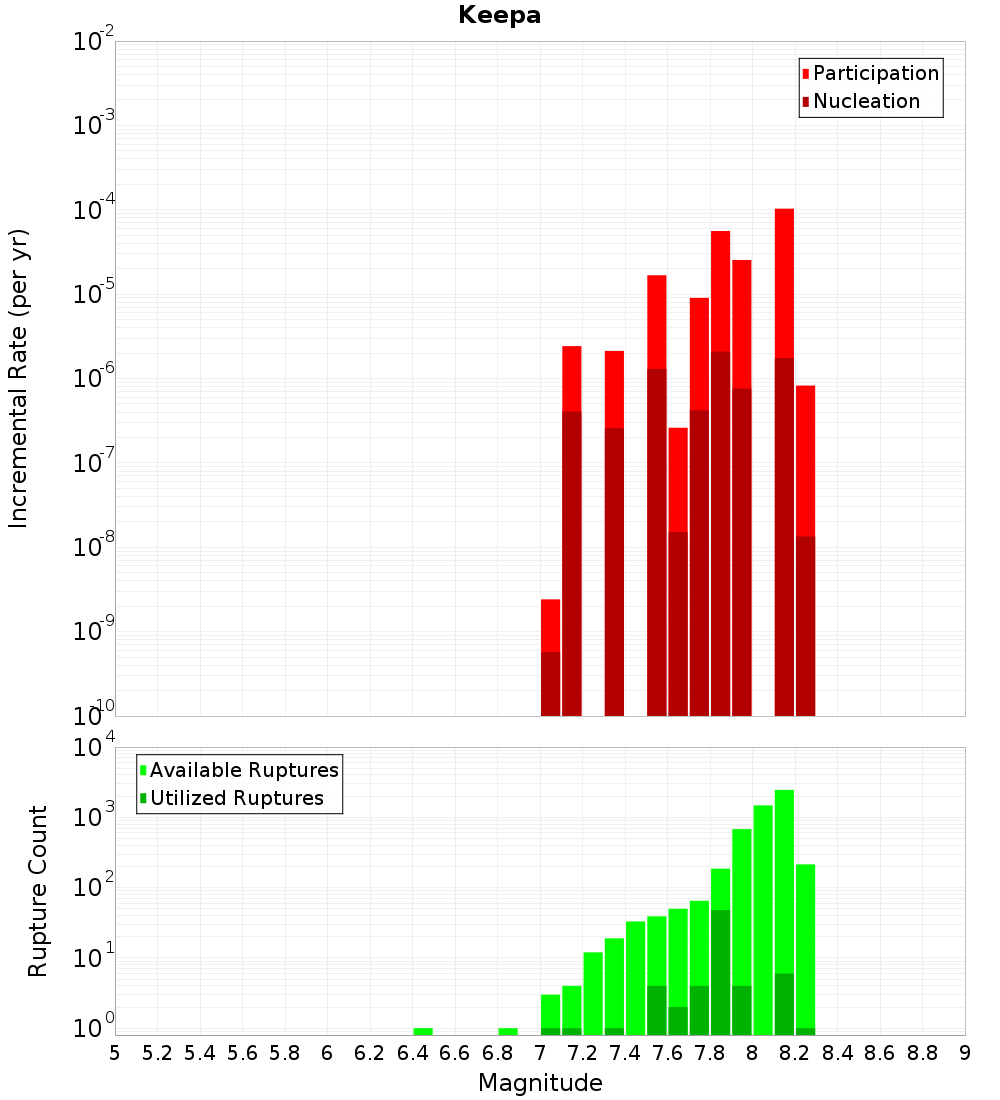

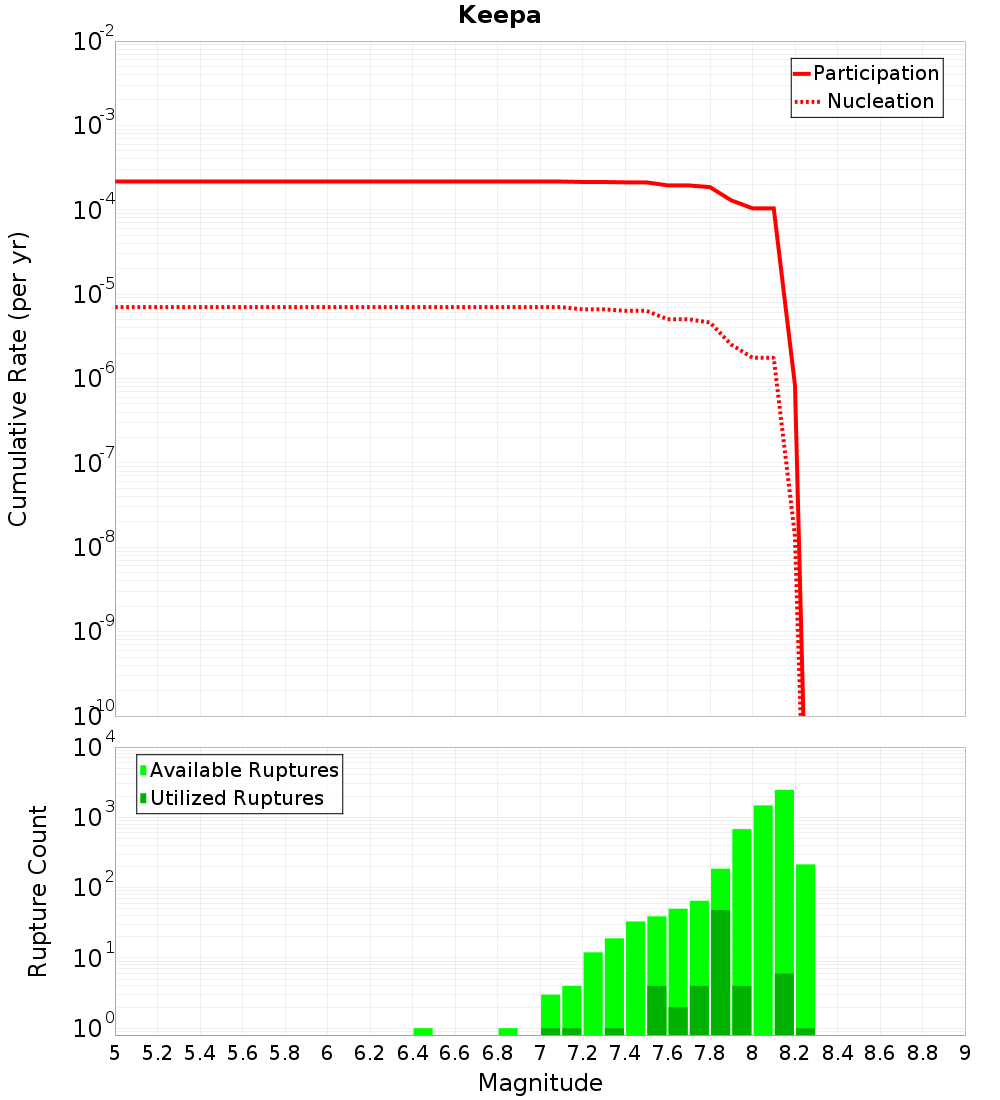

Magnitude-Frequency Distribution

Incremental	Cumulative

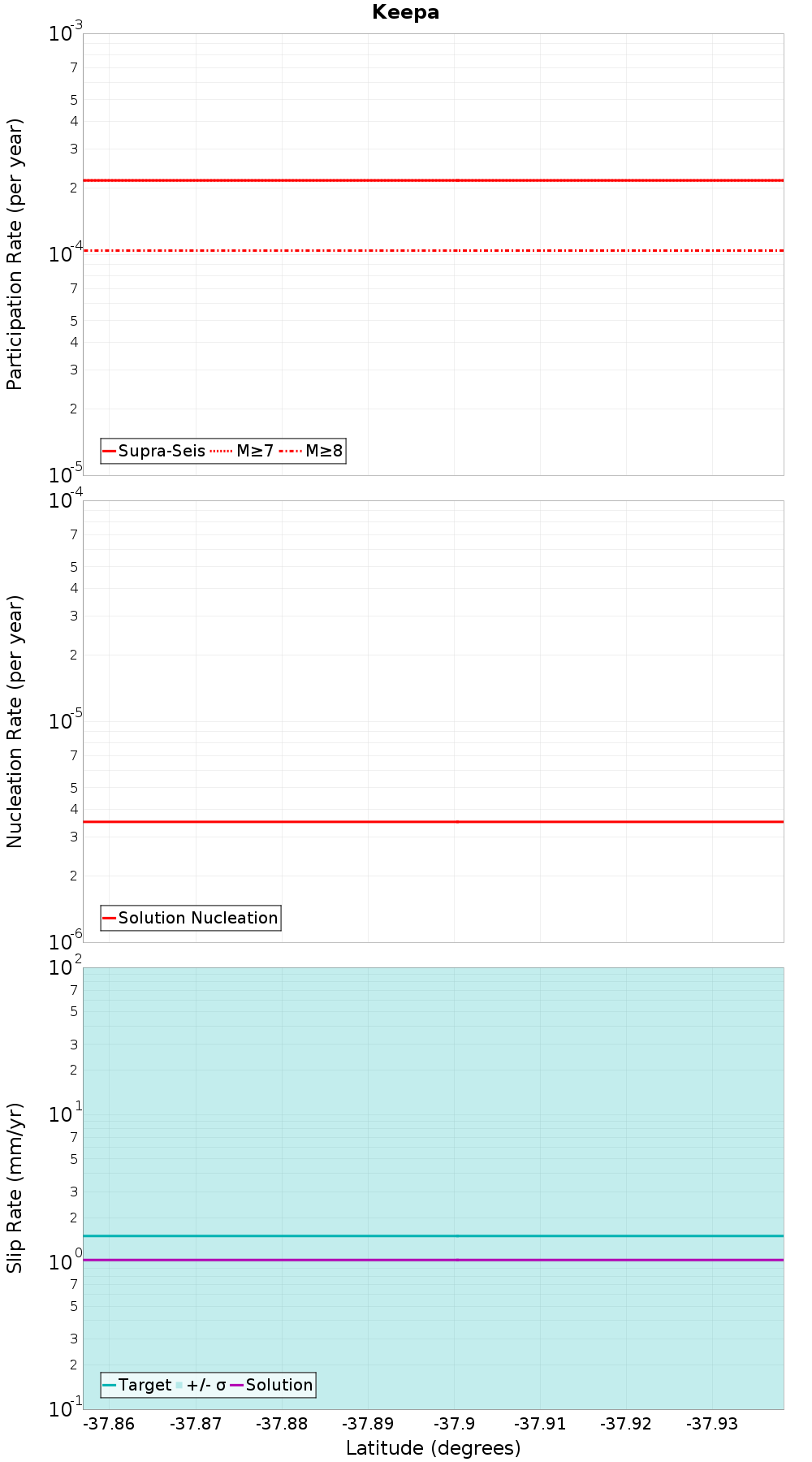

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Whakatane: North, 0 km away
White Island 1, 0.61 km away
Matata, 0.66 km away
Otakiri, 2.9 km away
Edgecumbe Coastal, 3.06 km away
Rangitaiki 1, 4.87 km away
Rangitaiki 2, 7.49 km away
Edgecumbe 1987, 8.09 km away
Waimana: North, 9.02 km away
Waimanawa - Waikaremoana, 10.55 km away
Braemar, 10.56 km away
Waiotahi: North, 11.27 km away

Whakatane: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 0.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	true
Directly Connected?	false
Co-rupture Count	2,788
Co-rupture Rate	1.8715498E-4

Matata, 0.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	true
Directly Connected?	true
Co-rupture Count	4,955
Co-rupture Rate	2.1584236E-4

Otakiri, 2.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	true
Directly Connected?	false
Co-rupture Count	1,077
Co-rupture Rate	5.9113365E-5

Edgecumbe Coastal, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	true
Directly Connected?	false
Co-rupture Count	530
Co-rupture Rate	6.96413E-6

Rangitaiki 1, 4.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	true
Directly Connected?	false
Co-rupture Count	364
Co-rupture Rate	1.2477732E-5

Rangitaiki 2, 7.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	5.980619E-10

Edgecumbe 1987, 8.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	true
Directly Connected?	false
Co-rupture Count	900
Co-rupture Rate	1.0605478E-5

Waimana: North, 9.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,052
Co-rupture Rate	2.006597E-4

Waimanawa - Waikaremoana, 10.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Braemar, 10.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	true
Directly Connected?	false
Co-rupture Count	612
Co-rupture Rate	7.394349E-5

Waiotahi: North, 11.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyOTMuMFdueWR3
Connected?	true
Directly Connected?	false
Co-rupture Count	32
Co-rupture Rate	1.8323592E-6
