Nukumuru - Waitotara 1-6 Details

Property	Value
Rupture Count	12
Ruptures Above Sect Min Mag	10
Ruptures w/ Nonzero Rates	5
Magnitude Range	[7.00, 7.49]
Length Range	[25, 78] km
Total Rate	5.0617866E-5 /yr
Multi-Fault Rate	3.2063574E-5 /yr (63.34%)
Directly-Connected Faults	2
All Co-Rupturing Faults	2

Table Of Contents

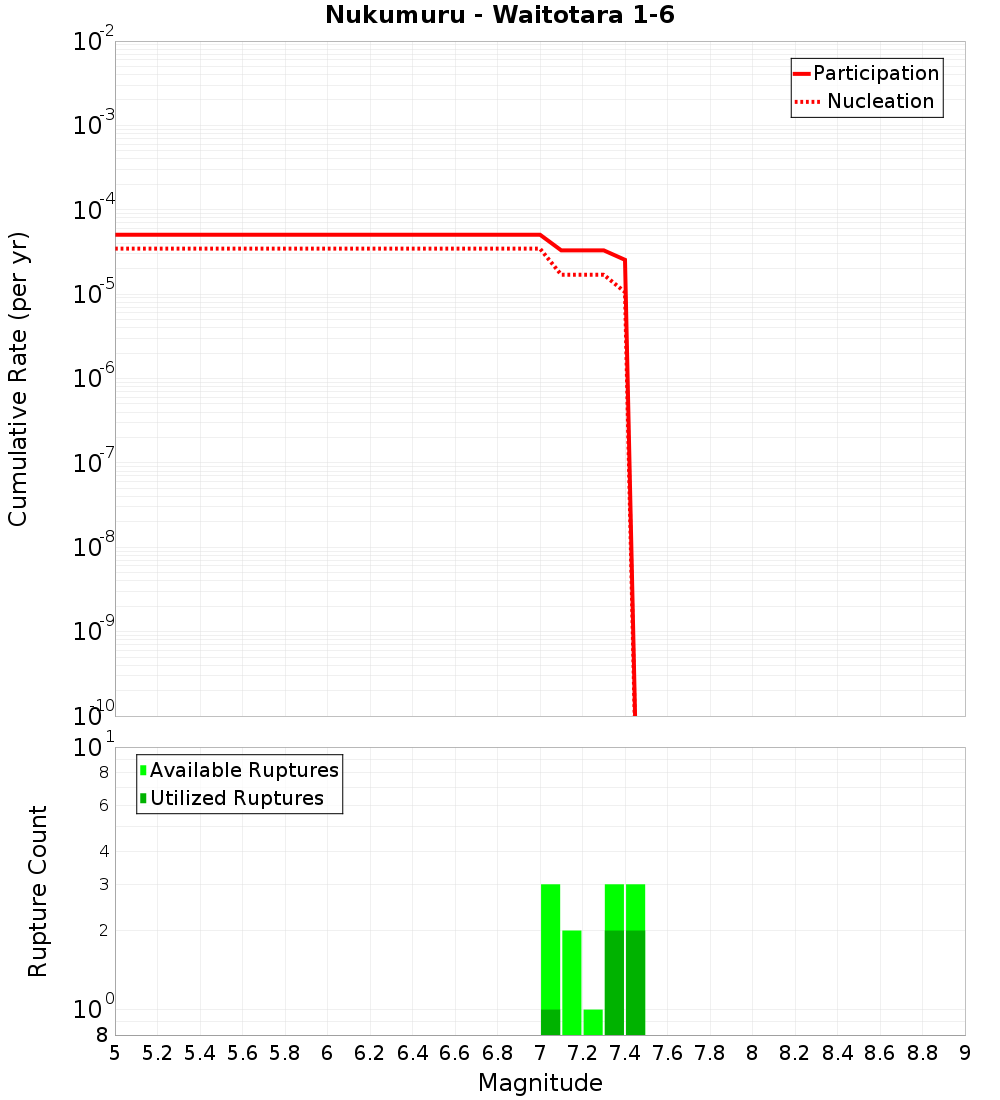

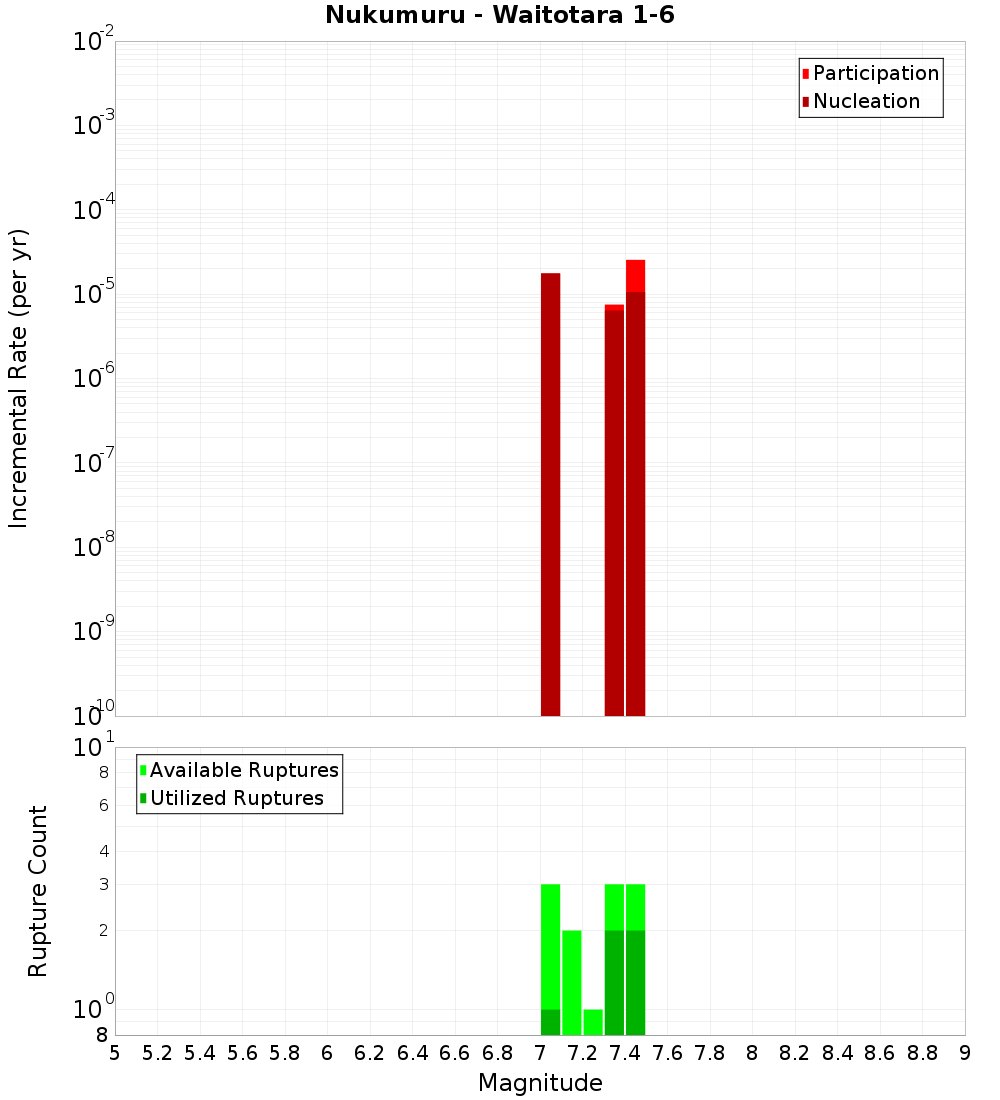

Magnitude-Frequency Distribution

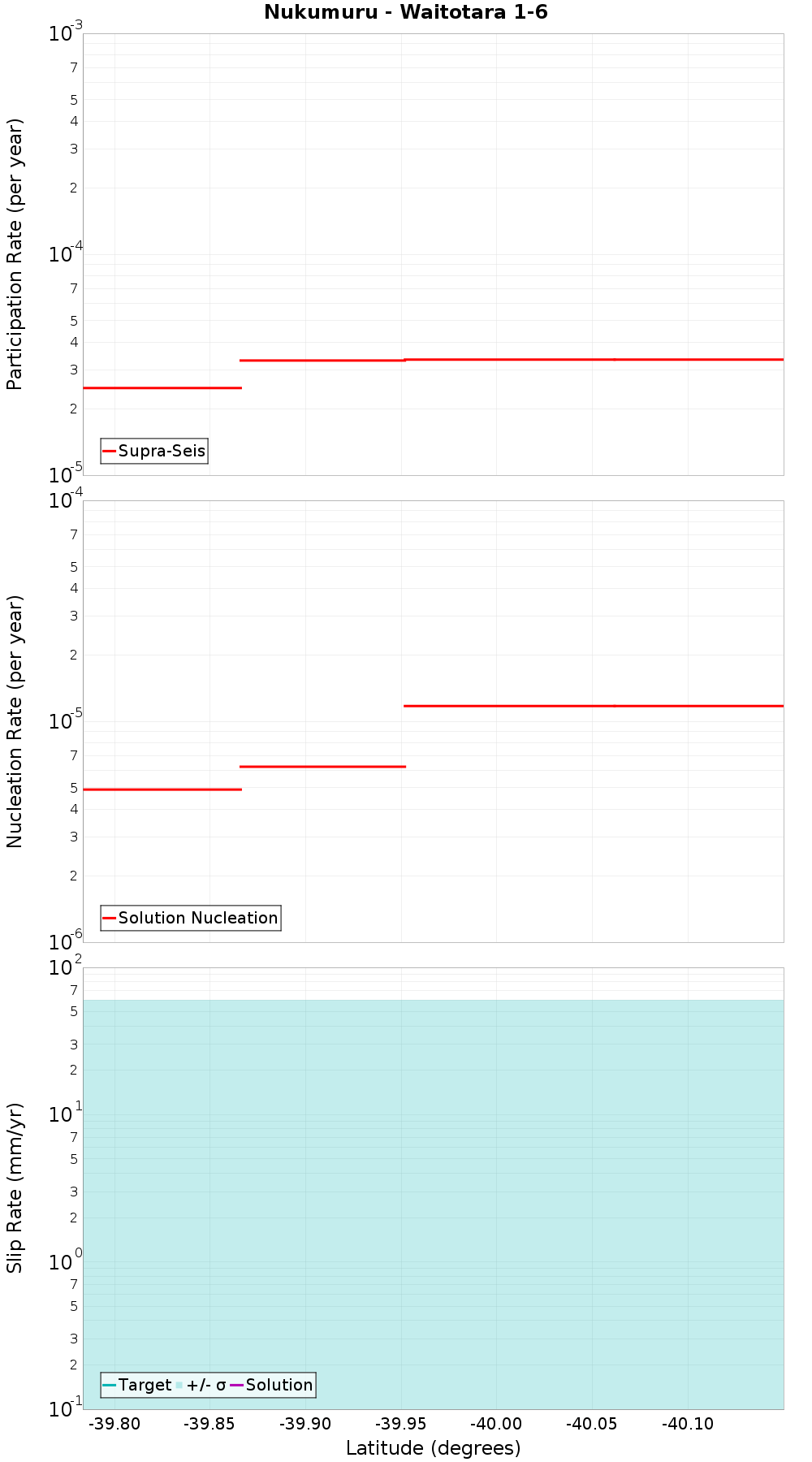

Along-Strike Values
- Moment-Rates and b-Values

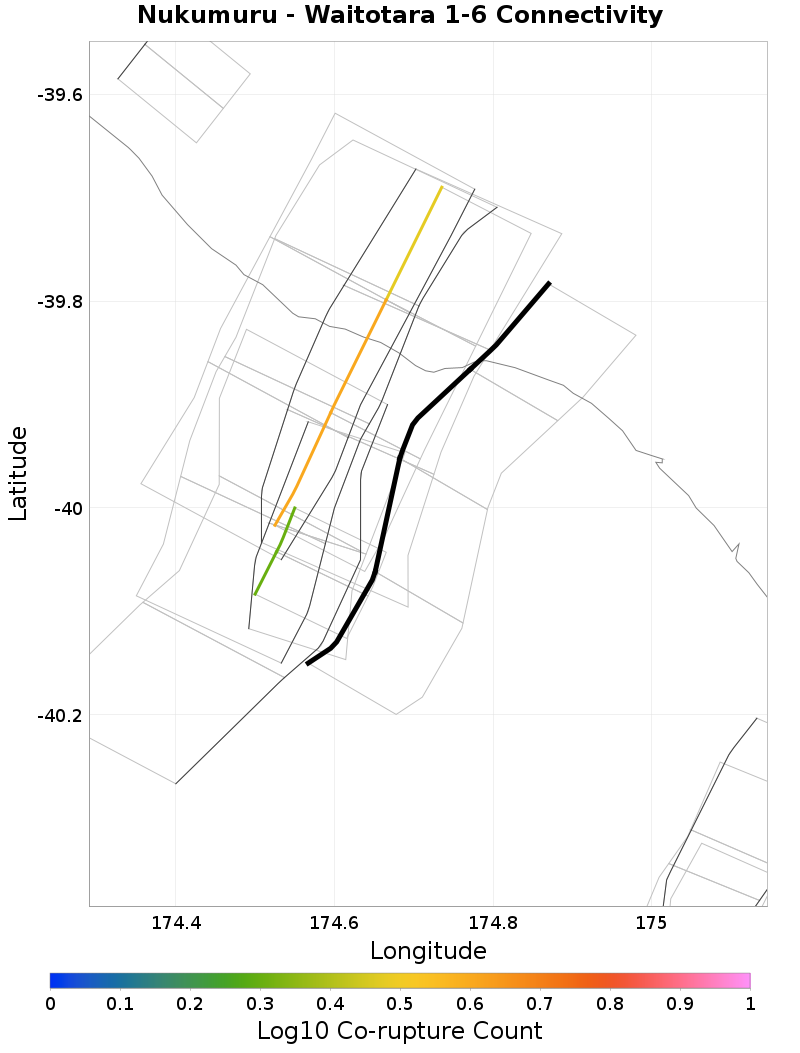

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waitotara 8 & 9, 0.51 km away
Waitotara 10 & 11, 2.59 km away
Waverley - Okaia 1, 5.72 km away
Ridge Road - Okaia 2, 5.96 km away
Okaia 5, 6.97 km away
Moumahaki - Okaia 4, 7.97 km away
Okaia 3, 8.91 km away

Waitotara 8 & 9, 0.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMDYuMHdGeUpy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitotara 10 & 11, 2.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMDYuMHdGeUpy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waverley - Okaia 1, 5.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMDYuMHdGeUpy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ridge Road - Okaia 2, 5.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMDYuMHdGeUpy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okaia 5, 6.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMDYuMHdGeUpy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Moumahaki - Okaia 4, 7.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMDYuMHdGeUpy
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	2.5493586E-5

Okaia 3, 8.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMDYuMHdGeUpy
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	6.569987E-6
