Ruahine: North Details

PropertyValue
Rupture Count34,593
Ruptures Above Sect Min Mag34,590
Ruptures w/ Nonzero Rates60
Magnitude Range[6.97, 8.61]
Length Range[24, 1,129] km
Total Rate6.1388616E-4 /yr
Multi-Fault Rate2.3208282E-4 /yr (37.81%)
Directly-Connected Faults6
All Co-Rupturing Faults133

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

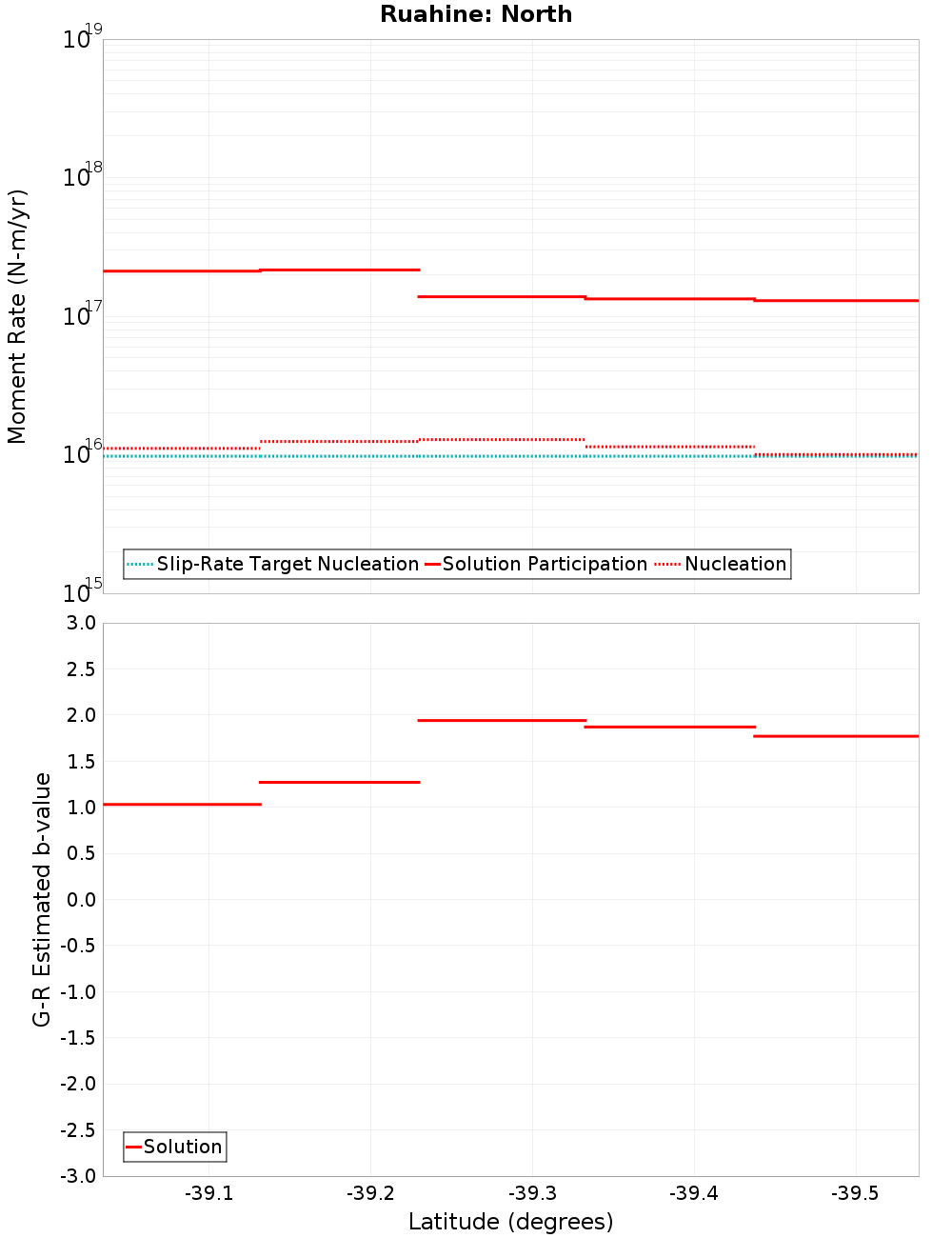

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.68 km away
Wakarara, 4 km away
Mohaka: South, 4.35 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTIuMFBocjlT
Connected?true
Directly Connected?true
Co-rupture Count14,944
Co-rupture Rate1.496911E-4

Ruahine: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTIuMFBocjlT
Connected?true
Directly Connected?true
Co-rupture Count21,826
Co-rupture Rate1.129622E-4

Kaweka, 1.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTIuMFBocjlT
Connected?true
Directly Connected?true
Co-rupture Count190
Co-rupture Rate1.1772689E-4

Wheao: South, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTIuMFBocjlT
Connected?true
Directly Connected?true
Co-rupture Count13,426
Co-rupture Rate3.8109367E-5

Wakarara, 4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTIuMFBocjlT
Connected?true
Directly Connected?true
Co-rupture Count1,485
Co-rupture Rate0.0

Mohaka: South, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTIuMFBocjlT
Connected?true
Directly Connected?true
Co-rupture Count19,141
Co-rupture Rate2.2314605E-5

Mohaka: North, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTIuMFBocjlT
Connected?true
Directly Connected?false
Co-rupture Count206
Co-rupture Rate0.0

Patoka - Rangiora, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTIuMFBocjlT
Connected?true
Directly Connected?false
Co-rupture Count94
Co-rupture Rate0.0

Te Whaiti South, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTIuMFBocjlT
Connected?true
Directly Connected?false
Co-rupture Count7,110
Co-rupture Rate7.687267E-5

Whakatane: South, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTIuMFBocjlT
Connected?true
Directly Connected?false
Co-rupture Count1,106
Co-rupture Rate0.0

Waimana: South, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTIuMFBocjlT
Connected?true
Directly Connected?false
Co-rupture Count244
Co-rupture Rate0.0
