Ohena 4 Details

PropertyValue
Rupture Count15
Ruptures Above Sect Min Mag14
Ruptures w/ Nonzero Rates2
Magnitude Range[7.08, 7.68]
Length Range[27, 108] km
Total Rate2.4441294E-7 /yr
Multi-Fault Rate2.4441294E-7 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults6

Table Of Contents

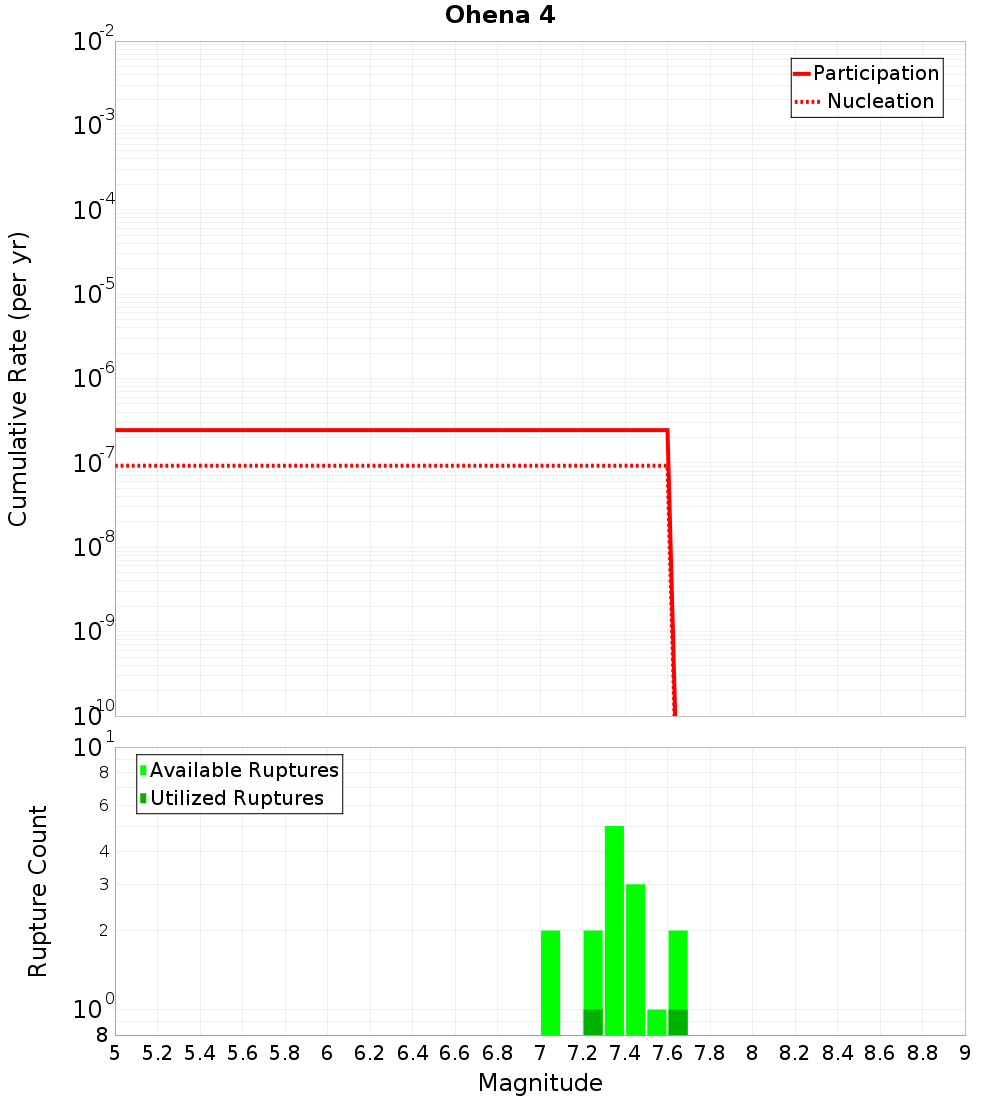

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

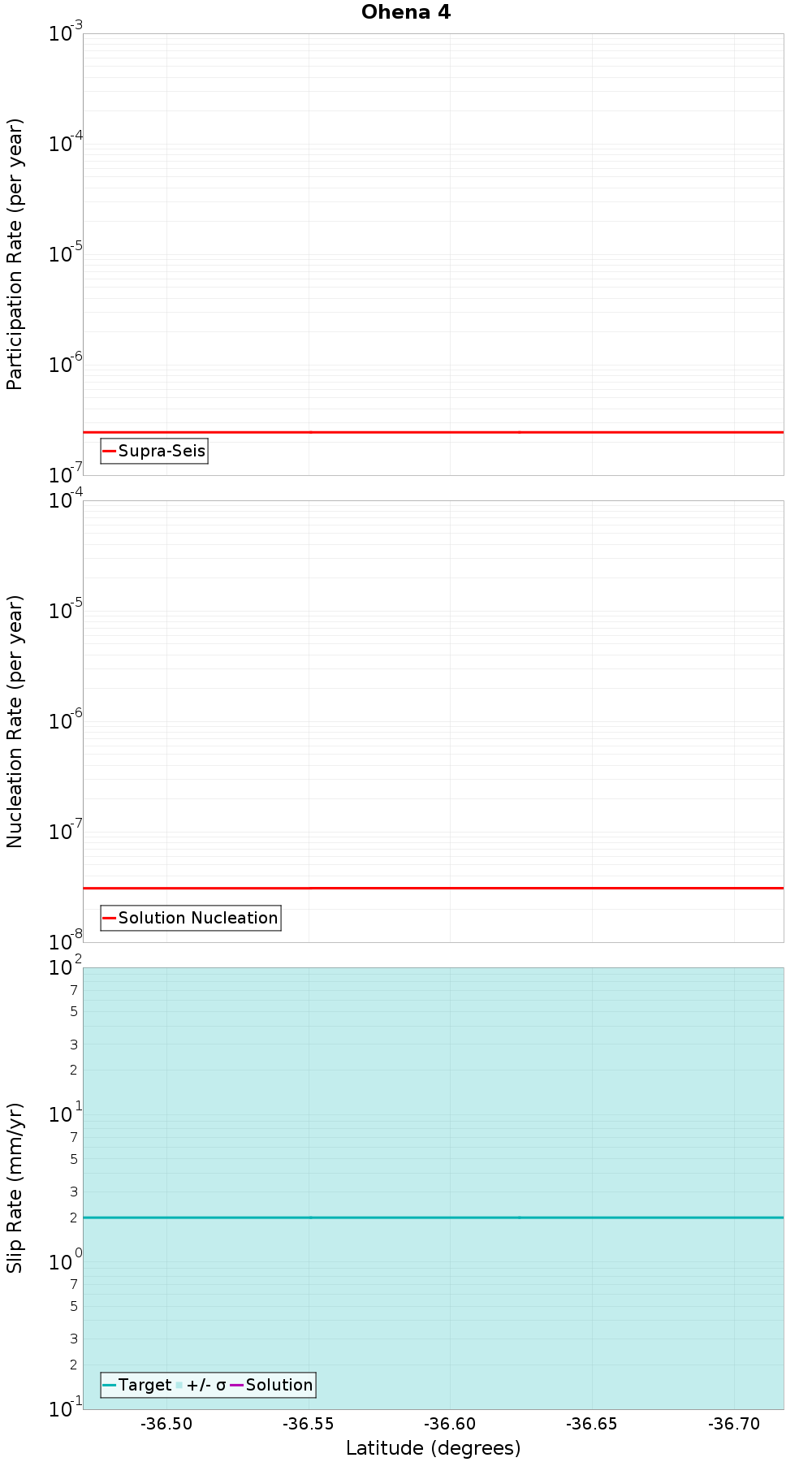

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

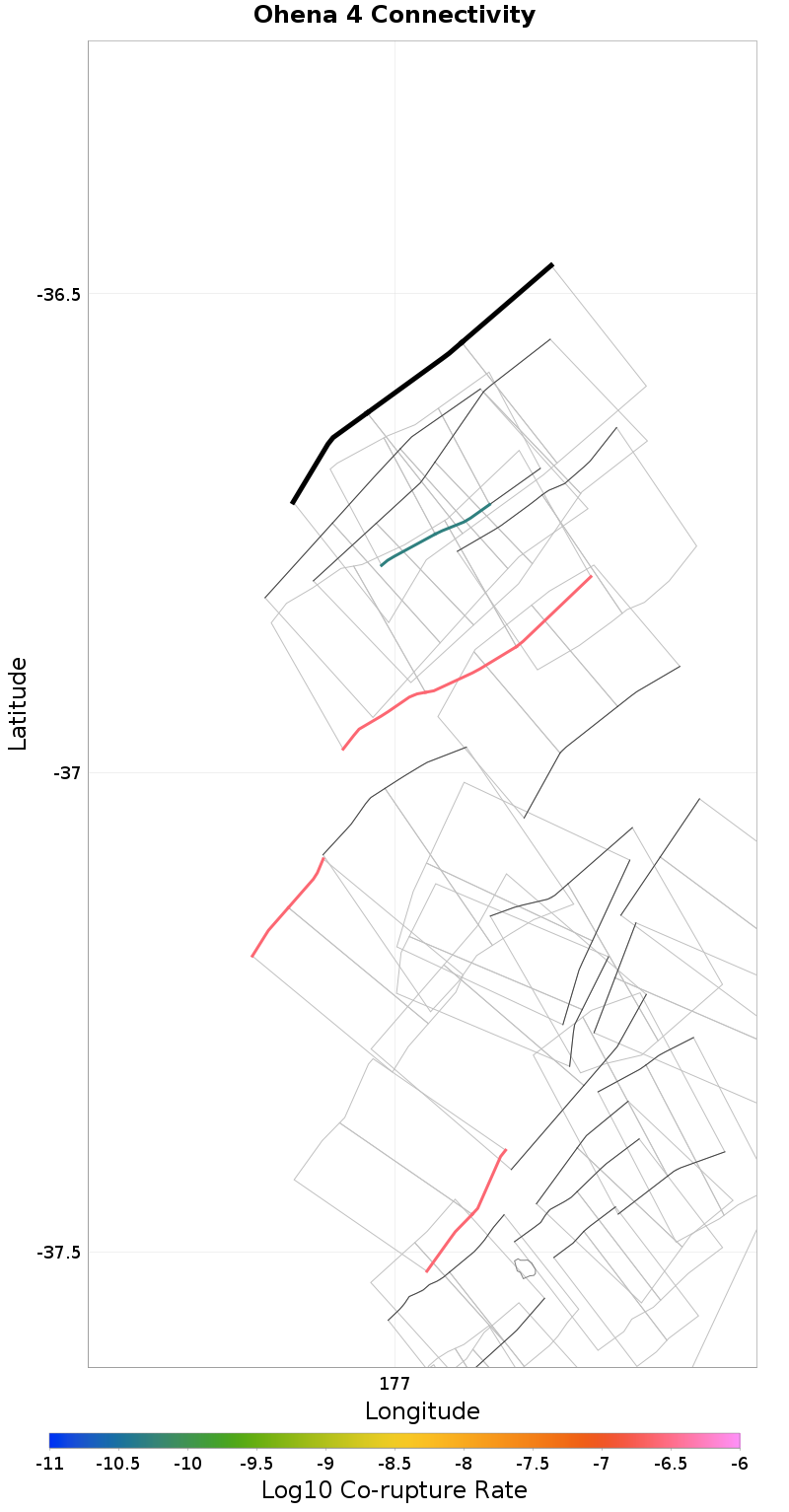

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ngatoro South 5, 0.16 km away
Tauranga Trough West 2, 0.39 km away
Ohena 3, 3.91 km away
Ohena 2, 4.59 km away
Tauranga Trough East 2, 10.64 km away
Ngatoro South 2, 14.7 km away

Ngatoro South 5, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate5.1081802E-11

Tauranga Trough West 2, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate2.4436187E-7

Ohena 3, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Ohena 2, 4.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate0.0

Tauranga Trough East 2, 10.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ngatoro South 2, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
