Waipukaka Details

Property	Value
Rupture Count	1,394
Ruptures Above Sect Min Mag	1,391
Ruptures w/ Nonzero Rates	18
Magnitude Range	[6.59, 8.20]
Length Range	[14, 467] km
Total Rate	2.2617856E-4 /yr
Multi-Fault Rate	2.2617856E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	59

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

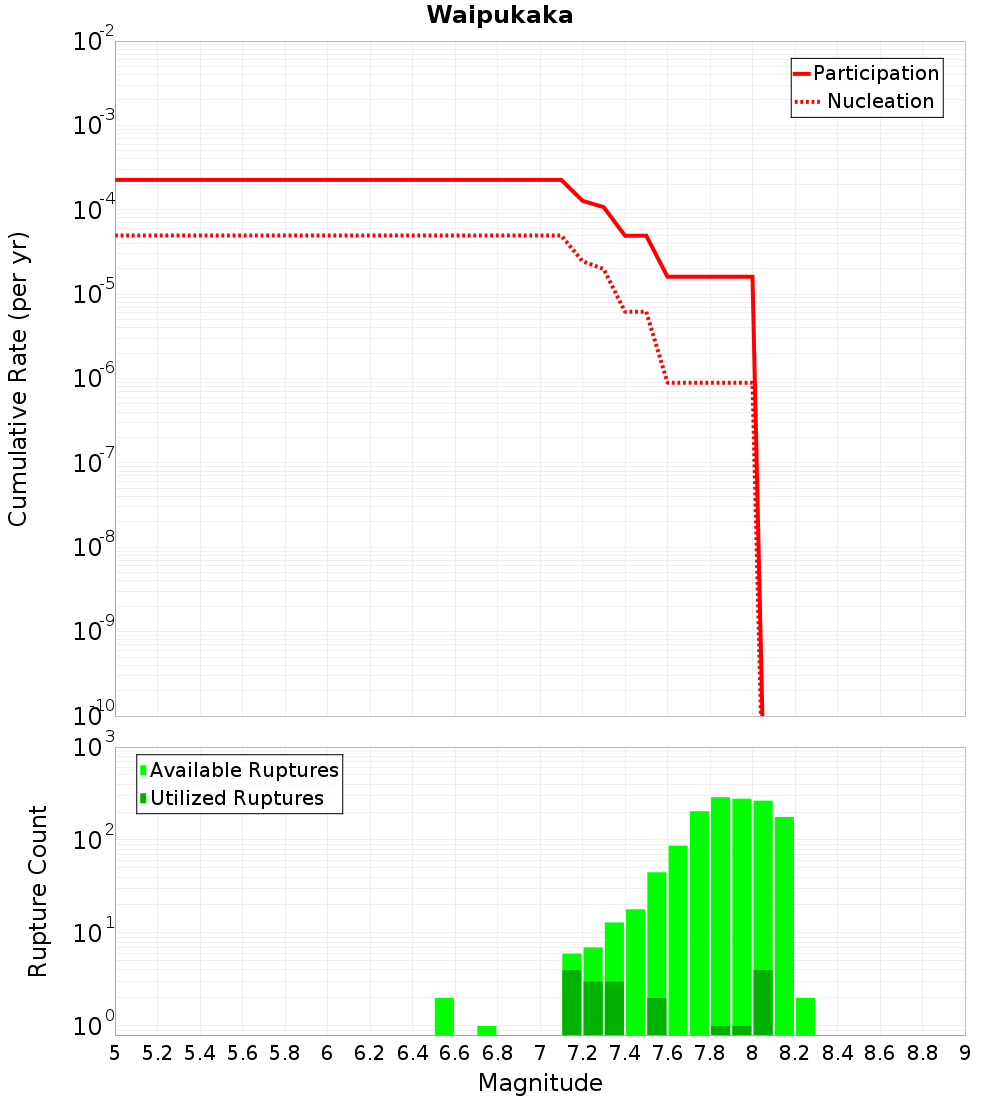

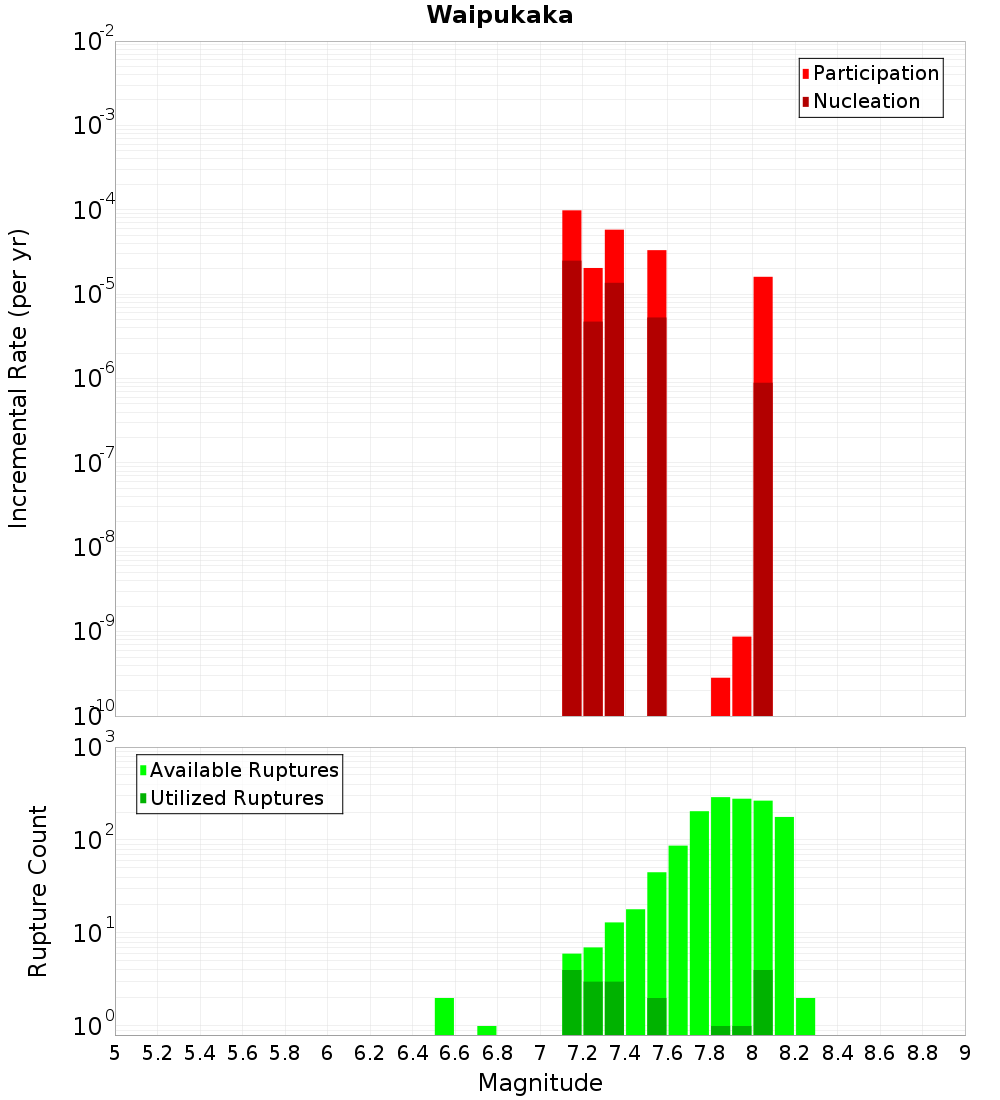

Magnitude-Frequency Distribution

Incremental	Cumulative

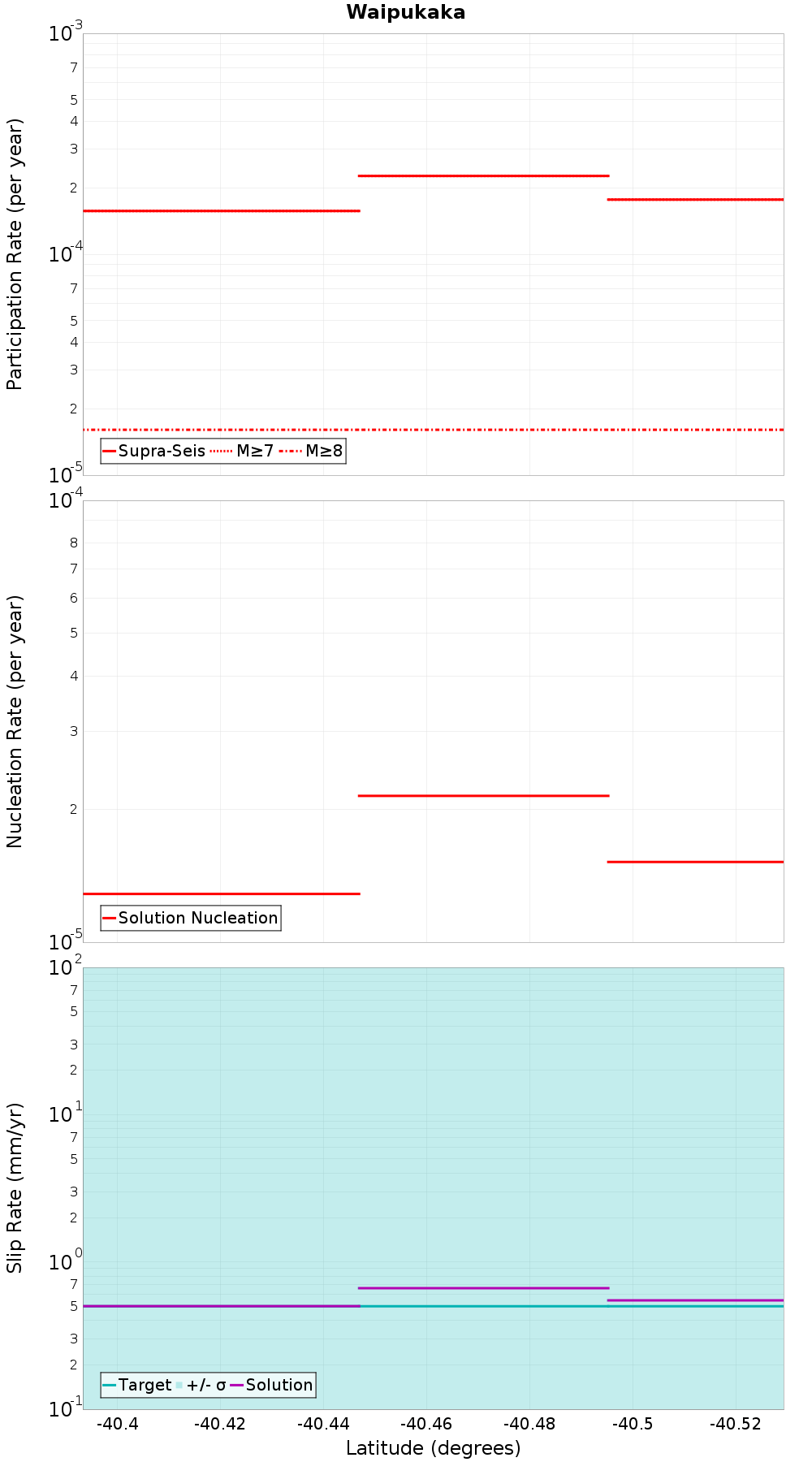

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Saunders Road, 0.29 km away
Pongaroa - Weber, 2.27 km away
Makuri - Waewaepa, 8.28 km away
Clear Hills - Waikopiro, 10.24 km away
Waitawhiti, 10.86 km away
Waewaepa, 10.91 km away
Oruawharo - Mangatoro, 12.74 km away

Saunders Road, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?	true
Directly Connected?	true
Co-rupture Count	1,377
Co-rupture Rate	1.7665685E-4

Pongaroa - Weber, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Makuri - Waewaepa, 8.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clear Hills - Waikopiro, 10.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?	true
Directly Connected?	false
Co-rupture Count	212
Co-rupture Rate	1.6051243E-5

Waitawhiti, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 10.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	0.0

Oruawharo - Mangatoro, 12.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMTMuMHlHSGJG
Connected?	true
Directly Connected?	true
Co-rupture Count	661
Co-rupture Rate	9.877553E-5
