Beacon Hill Details

PropertyValue
Rupture Count5,286
Ruptures Above Sect Min Mag5,286
Ruptures w/ Nonzero Rates17
Magnitude Range[6.99, 8.28]
Length Range[20, 396] km
Total Rate1.2254242E-5 /yr
Multi-Fault Rate1.2254242E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults69

Table Of Contents

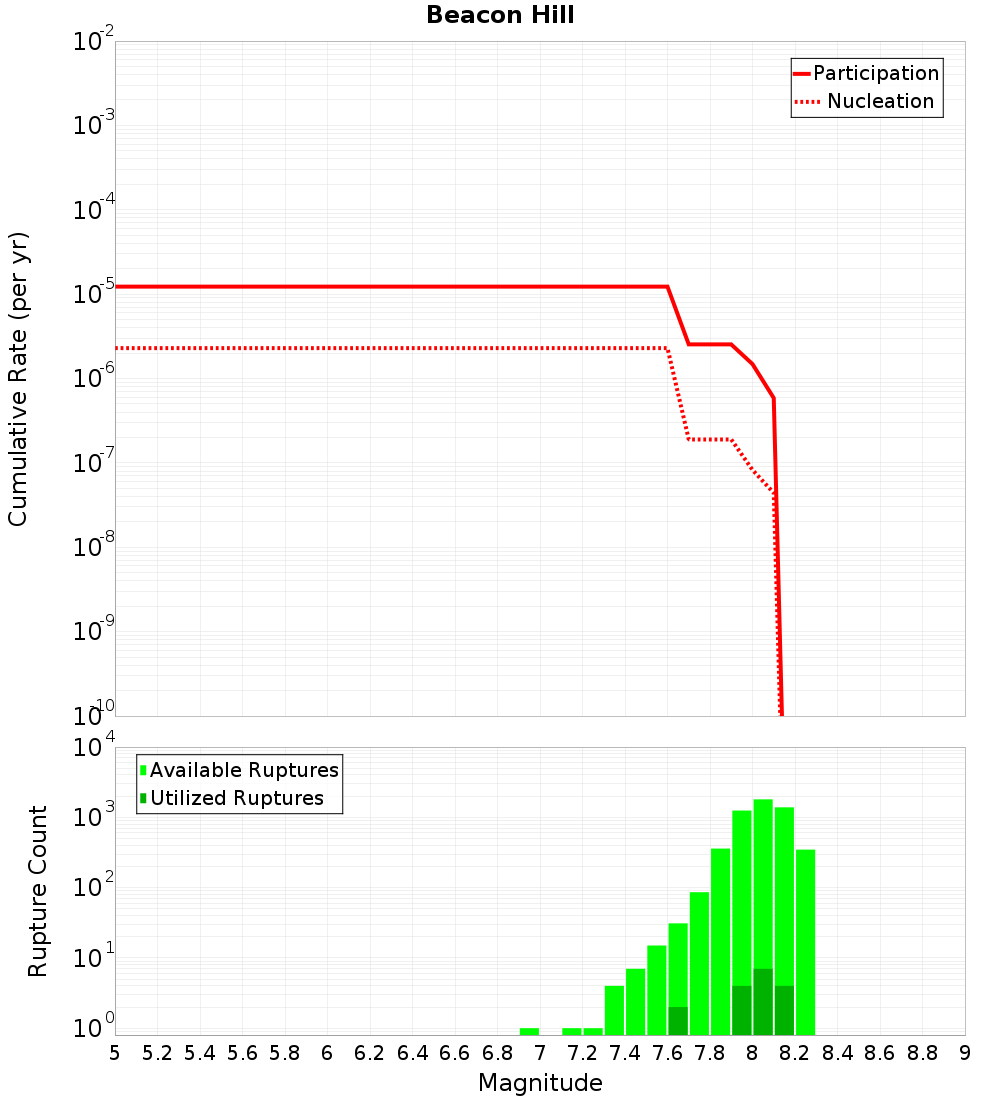

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

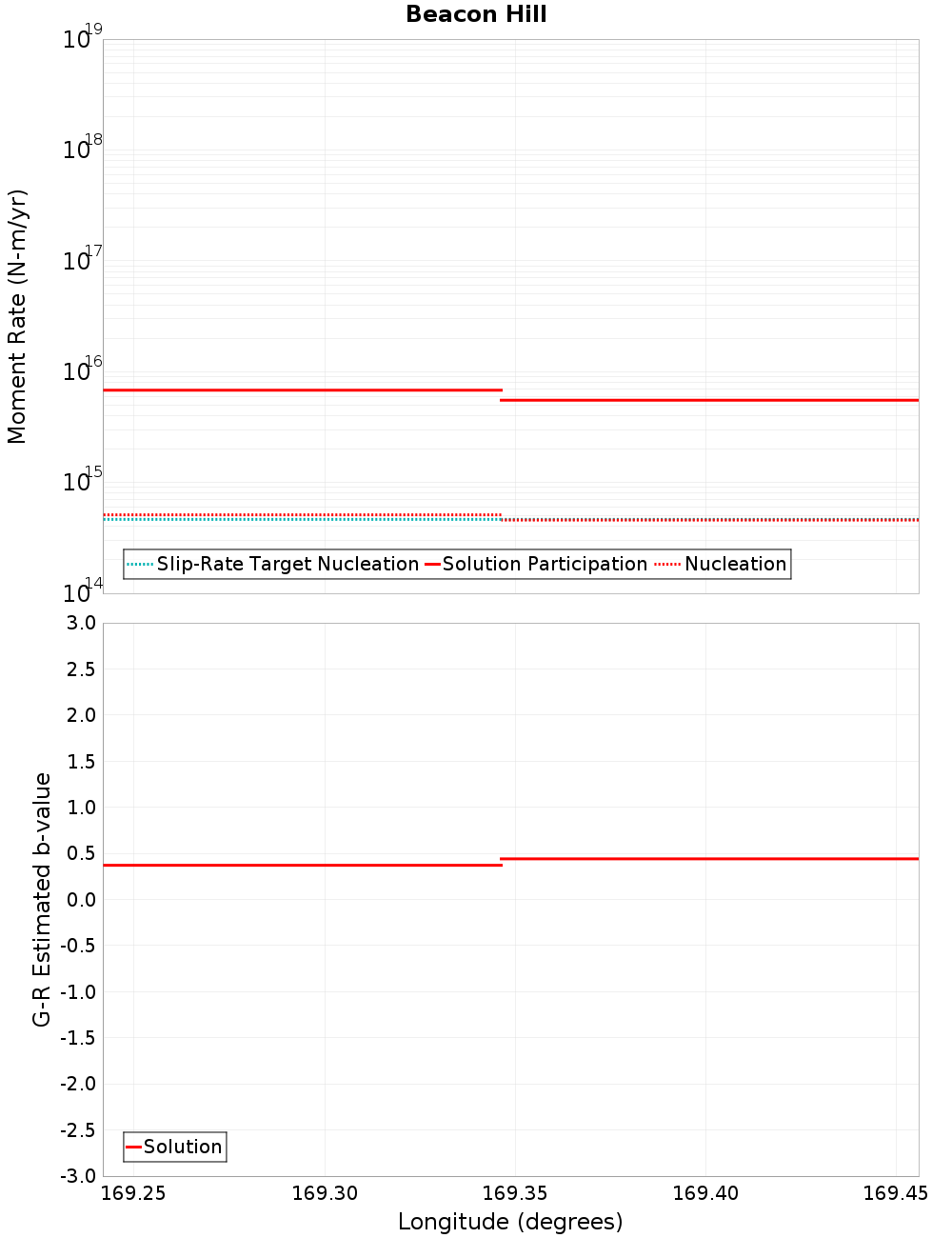

Moment-Rates and b-Values

(top)

Along-strike plot

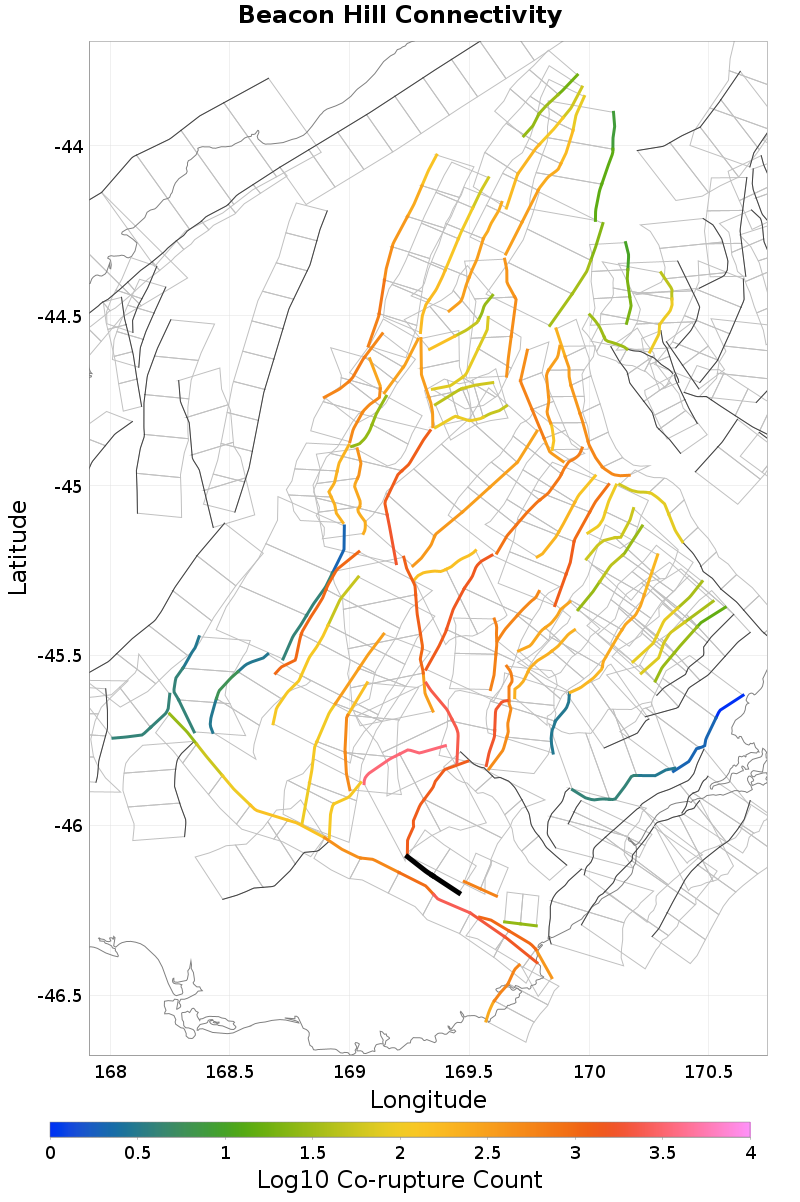

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Blue Mountain, 0.18 km away
Spylaw, 0.19 km away
Clifton, 3.64 km away
Hillfoot, 4.04 km away
Little Hillfoot, 10.39 km away
Otanomomo, 13.03 km away
Wendon Valley, 13.85 km away
Tuapeka, 14.81 km away

Blue Mountain, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjMuMGVDTkxT
Connected?true
Directly Connected?true
Co-rupture Count1,317
Co-rupture Rate2.2889085E-6

Spylaw, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjMuMGVDTkxT
Connected?true
Directly Connected?true
Co-rupture Count3,354
Co-rupture Rate9.965333E-6

Clifton, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjMuMGVDTkxT
Connected?true
Directly Connected?true
Co-rupture Count611
Co-rupture Rate0.0

Hillfoot, 4.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjMuMGVDTkxT
Connected?true
Directly Connected?true
Co-rupture Count2,645
Co-rupture Rate1.6297209E-7

Little Hillfoot, 10.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjMuMGVDTkxT
Connected?true
Directly Connected?true
Co-rupture Count1,021
Co-rupture Rate1.1352744E-5

Otanomomo, 13.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjMuMGVDTkxT
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Wendon Valley, 13.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjMuMGVDTkxT
Connected?true
Directly Connected?true
Co-rupture Count510
Co-rupture Rate8.496544E-7

Tuapeka, 14.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjMuMGVDTkxT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
