Ohariu Details

PropertyValue
Rupture Count12,918
Ruptures Above Sect Min Mag12,912
Ruptures w/ Nonzero Rates153
Magnitude Range[6.86, 8.61]
Length Range[21, 1,132] km
Total Rate7.451738E-4 /yr
Multi-Fault Rate7.3403167E-4 /yr (98.50%)
Directly-Connected Faults16
All Co-Rupturing Faults145

Table Of Contents

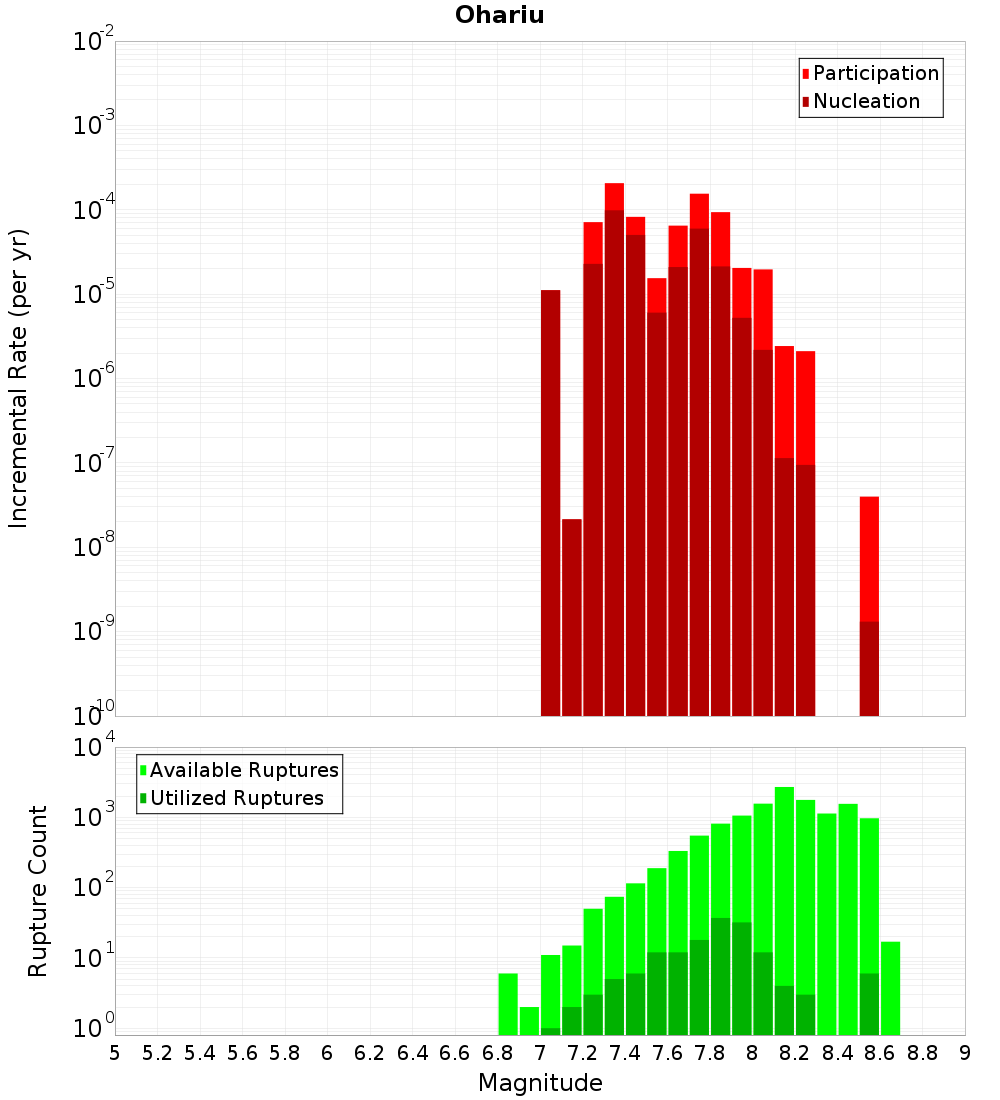

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohariu South 2, 0 km awayAkatarawa, 6.24 km away
Wellington Hutt Valley: 2, 0.3 km awayOhariu South 1, 6.96 km away
Wellington Hutt Valley: 1, 1.65 km awayOtaheke South, 8.6 km away
Moonshine, 2.04 km awayOkupe 1, 9.22 km away
Whitemans Valley, 2.44 km awayWharekauhau, 10.05 km away
Pukerua - Shepherds Gully: 1, 2.91 km awayPoroutawhao, 11.17 km away
Pukerua - Shepherds Gully: 2, 2.91 km awayWairau 3, 11.37 km away
Pukerua - Shepherds Gully: 3, 3.18 km awayOtaki Forks: 2, 11.39 km away
Shepherds Gully - Mana, 3.79 km awayOtaheke North, 11.65 km away
Wellington Hutt Valley: 3, 3.96 km awayWellington Hutt Valley: 5, 12.34 km away
Northern Ohariu, 4.32 km awayWairarapa: 1, 14.45 km away
Wellington Hutt Valley: 4, 4.6 km awayOnepoto, 14.67 km away
Otaki Forks: 1, 5.13 km awayWairarapa: Needles, 14.92 km away
Aotea - Evans Bay, 6 km away

Ohariu South 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count5,741
Co-rupture Rate9.448079E-5

Wellington Hutt Valley: 2, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count831
Co-rupture Rate2.3057143E-4

Wellington Hutt Valley: 1, 1.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count835
Co-rupture Rate2.876825E-4

Moonshine, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count6,155
Co-rupture Rate3.619758E-5

Whitemans Valley, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count177
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 1, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate6.2210966E-5

Pukerua - Shepherds Gully: 2, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count98
Co-rupture Rate4.3392694E-5

Pukerua - Shepherds Gully: 3, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count120
Co-rupture Rate4.3392694E-5

Shepherds Gully - Mana, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count500
Co-rupture Rate4.164365E-5

Wellington Hutt Valley: 3, 3.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count172
Co-rupture Rate2.5321826E-4

Northern Ohariu, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count4,803
Co-rupture Rate2.888188E-4

Wellington Hutt Valley: 4, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count653
Co-rupture Rate3.3155497E-4

Otaki Forks: 1, 5.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count5,994
Co-rupture Rate3.8225735E-5

Aotea - Evans Bay, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count396
Co-rupture Rate2.5154279E-5

Akatarawa, 6.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?false
Co-rupture Count1,174
Co-rupture Rate2.1080384E-6

Ohariu South 1, 6.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count840
Co-rupture Rate1.980982E-6

Otaheke South, 8.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?true
Co-rupture Count470
Co-rupture Rate5.155405E-5

Okupe 1, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?false
Co-rupture Count122
Co-rupture Rate2.082214E-5

Wharekauhau, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?false
Co-rupture Count518
Co-rupture Rate2.360909E-5

Poroutawhao, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?false
Co-rupture Count141
Co-rupture Rate1.4810432E-5

Wairau 3, 11.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 2, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?false
Co-rupture Count5,329
Co-rupture Rate3.61966E-5

Otaheke North, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?false
Co-rupture Count239
Co-rupture Rate3.5713514E-5

Wellington Hutt Valley: 5, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Wairarapa: 1, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?false
Co-rupture Count254
Co-rupture Rate3.3753273E-5

Onepoto, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?false
Co-rupture Count230
Co-rupture Rate6.2635936E-6

Wairarapa: Needles, 14.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?true
Directly Connected?false
Co-rupture Count422
Co-rupture Rate9.365175E-5
