Uruti Point Details

Property	Value
Rupture Count	1,260
Ruptures Above Sect Min Mag	1,250
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.44, 8.17]
Length Range	[12, 450] km
Total Rate	3.946173E-5 /yr
Multi-Fault Rate	3.946173E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	44

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

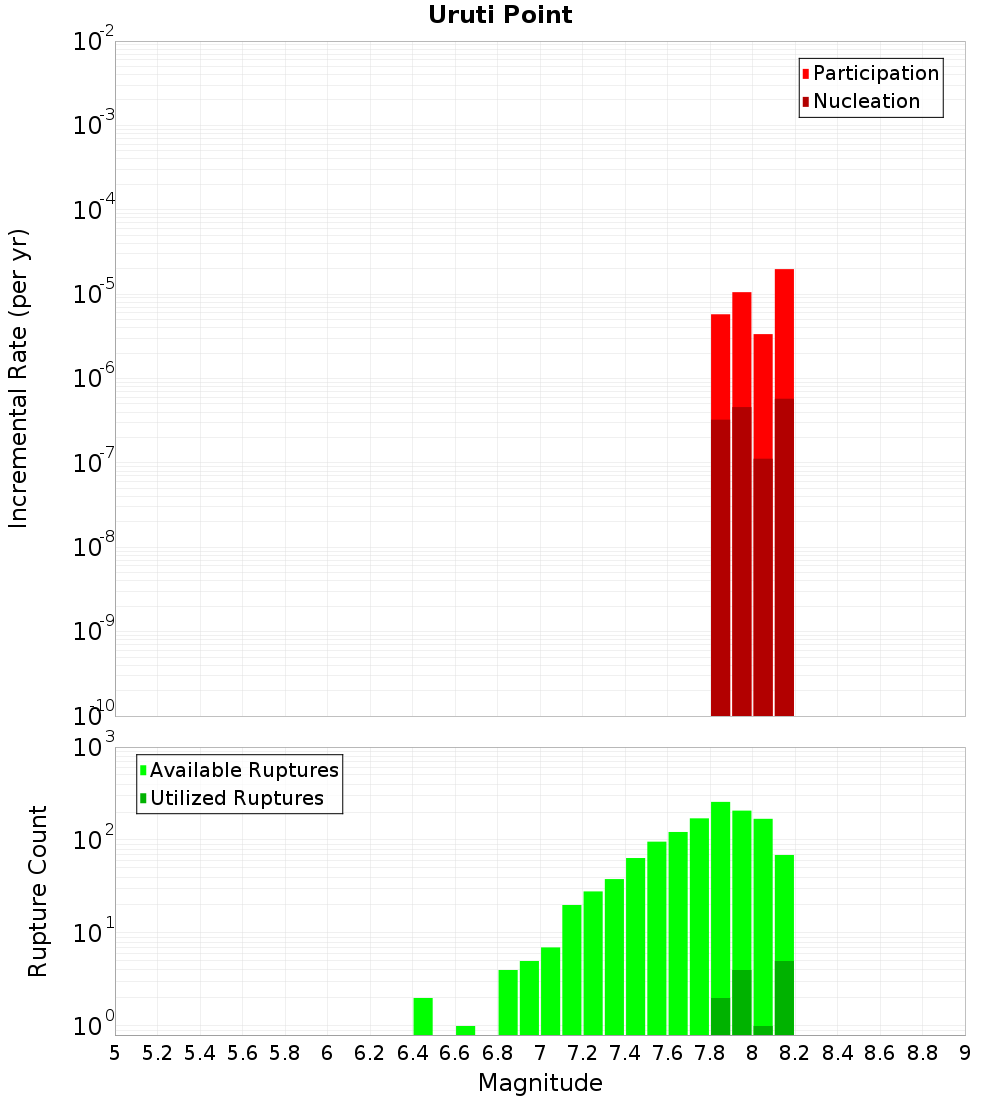

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

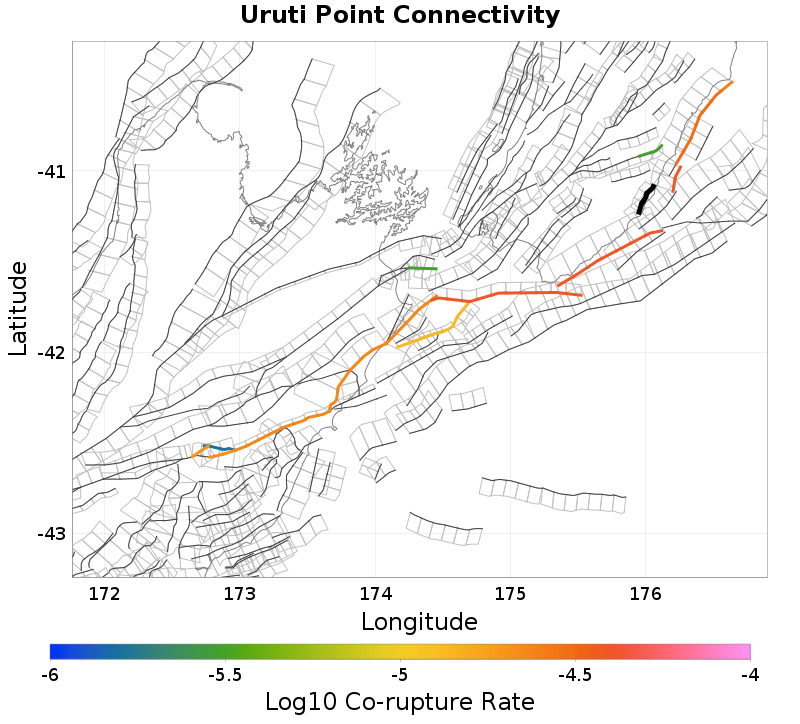

Connectivity

Nearby Sections

Fault Section
Riversdale, 0.2 km away
Riversdale North, 3.13 km away
Palliser - Kaiwhata, 3.6 km away
Kaumingi, 8.98 km away
Honeycomb, 9.04 km away
Mataikona, 11.35 km away
Carterton, 12.06 km away
Whareama Bank, 12.23 km away

Riversdale, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?	true
Directly Connected?	true
Co-rupture Count	47
Co-rupture Rate	0.0

Riversdale North, 3.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?	true
Directly Connected?	true
Co-rupture Count	719
Co-rupture Rate	3.946173E-5

Palliser - Kaiwhata, 3.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?	true
Directly Connected?	true
Co-rupture Count	1,143
Co-rupture Rate	3.946173E-5

Kaumingi, 8.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Honeycomb, 9.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mataikona, 11.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?	true
Directly Connected?	false
Co-rupture Count	688
Co-rupture Rate	3.0331785E-5

Carterton, 12.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?	true
Directly Connected?	true
Co-rupture Count	297
Co-rupture Rate	3.0231133E-6

Whareama Bank, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMjYuME0zdmJk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
