Braemar Details

Property	Value
Rupture Count	3,069
Ruptures Above Sect Min Mag	3,046
Ruptures w/ Nonzero Rates	242
Magnitude Range	[6.59, 8.32]
Length Range	[14, 578] km
Total Rate	7.6746783E-4 /yr
Multi-Fault Rate	7.6746783E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	71

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

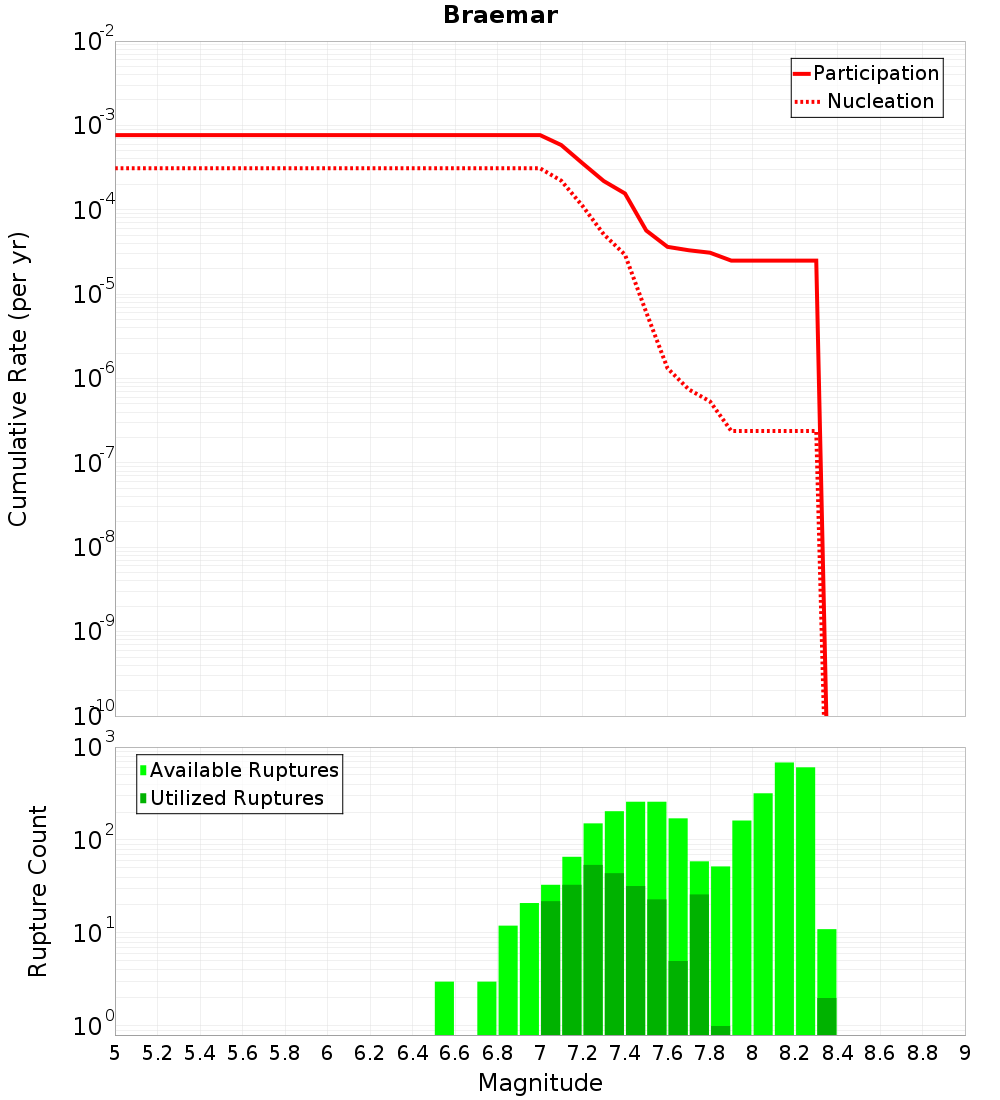

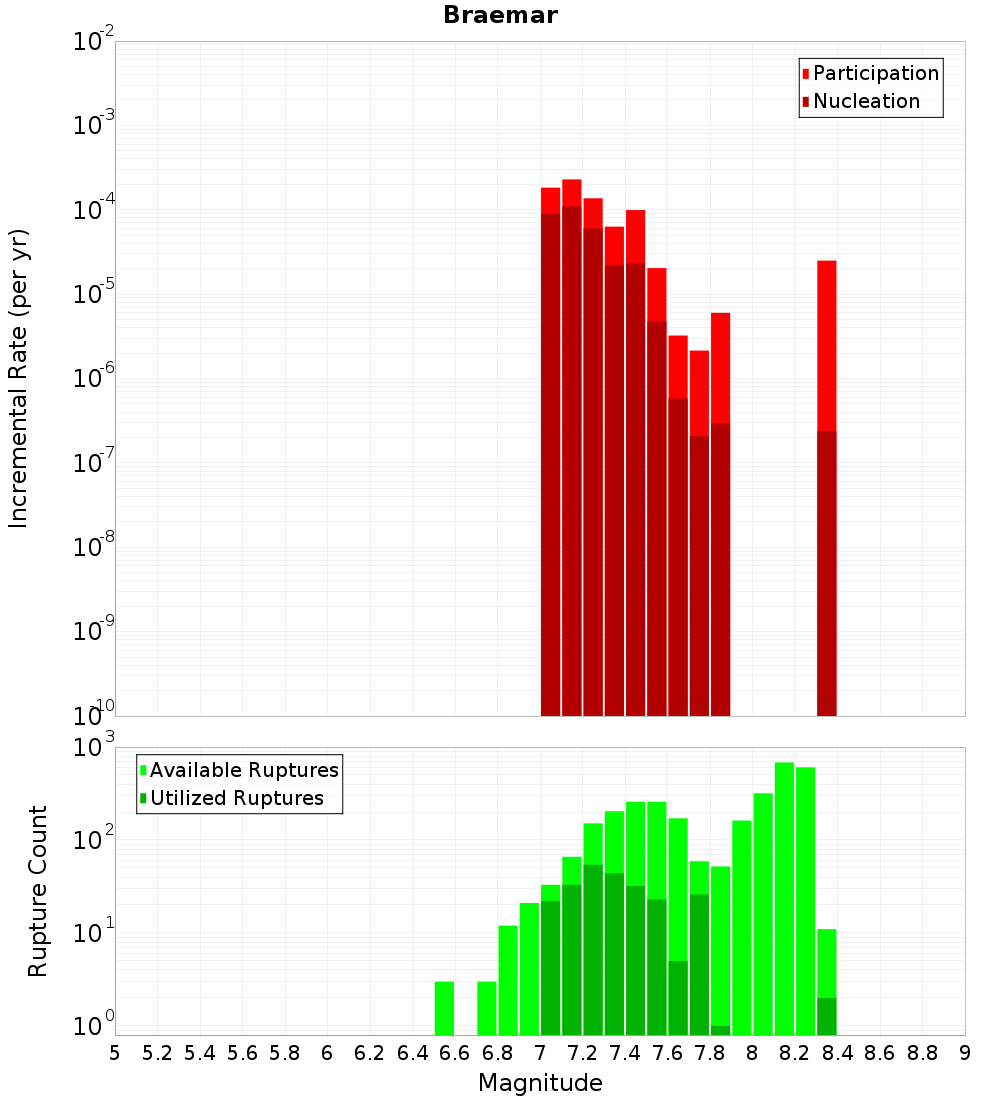

Magnitude-Frequency Distribution

Incremental	Cumulative

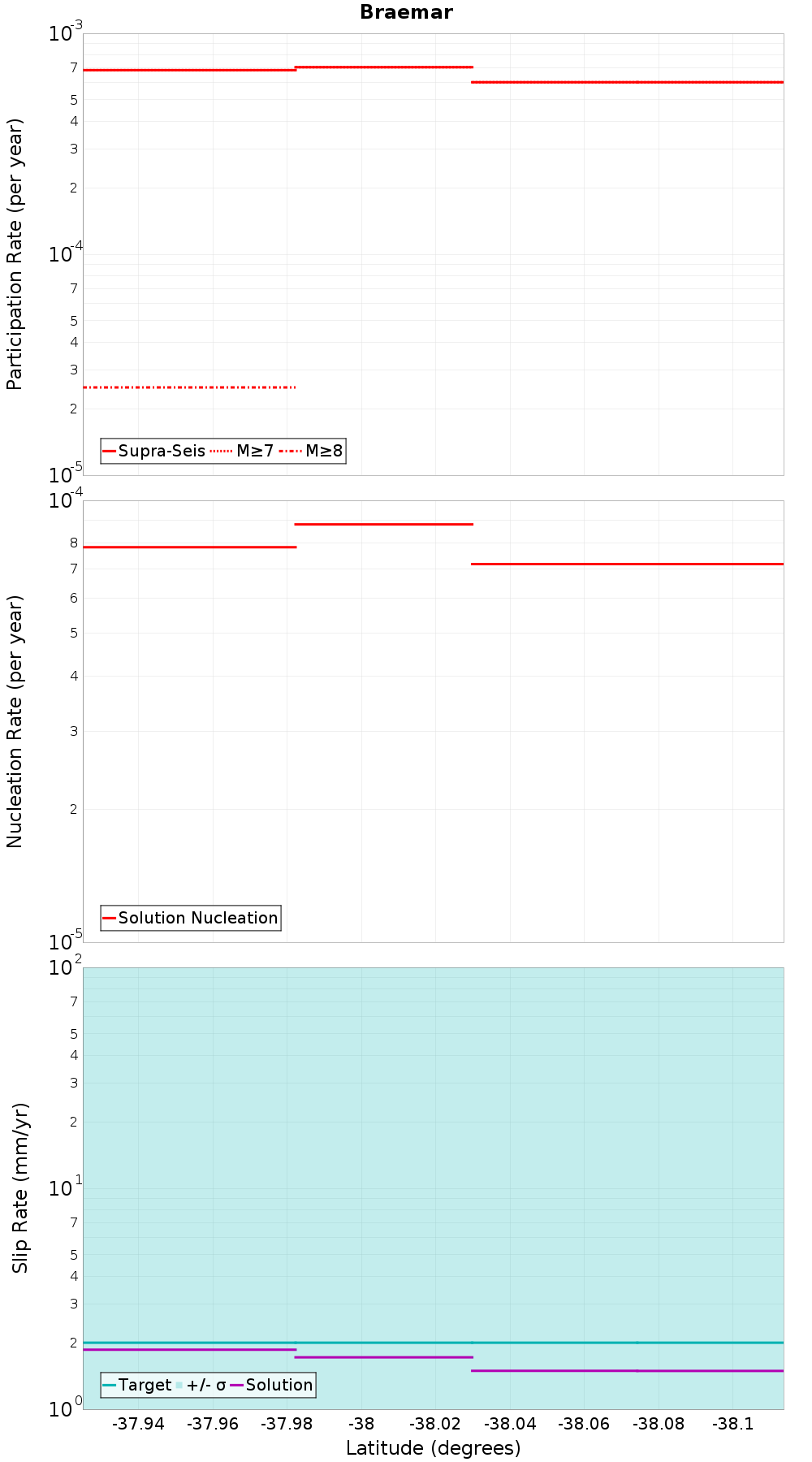

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waiohau: North, 0.22 km away
Otakiri, 0.26 km away
Edgecumbe 1987, 0.32 km away
Matata, 0.98 km away
Edgecumbe Coastal, 4.62 km away
Whakatane: North, 4.83 km away
Keepa, 10.56 km away
White Island 1, 11.21 km away
EarthquakeFlat - Tumunui, 12.8 km away

Waiohau: North, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,167
Co-rupture Rate	1.8974481E-4

Otakiri, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	true
Directly Connected?	true
Co-rupture Count	796
Co-rupture Rate	2.4372723E-4

Edgecumbe 1987, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	true
Directly Connected?	true
Co-rupture Count	181
Co-rupture Rate	5.468188E-5

Matata, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,203
Co-rupture Rate	1.5510689E-4

Edgecumbe Coastal, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	true
Directly Connected?	true
Co-rupture Count	558
Co-rupture Rate	5.0994036E-5

Whakatane: North, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Keepa, 10.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	true
Directly Connected?	false
Co-rupture Count	612
Co-rupture Rate	3.7316422E-5

White Island 1, 11.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	true
Directly Connected?	false
Co-rupture Count	1,603
Co-rupture Rate	1.573397E-4

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	true
Directly Connected?	true
Co-rupture Count	467
Co-rupture Rate	5.571377E-4
