Pihama Details

Property	Value
Rupture Count	11
Ruptures Above Sect Min Mag	9
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.81, 7.44]
Length Range	[17, 69] km
Total Rate	1.2073487E-4 /yr
Multi-Fault Rate	1.2073487E-4 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	1

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

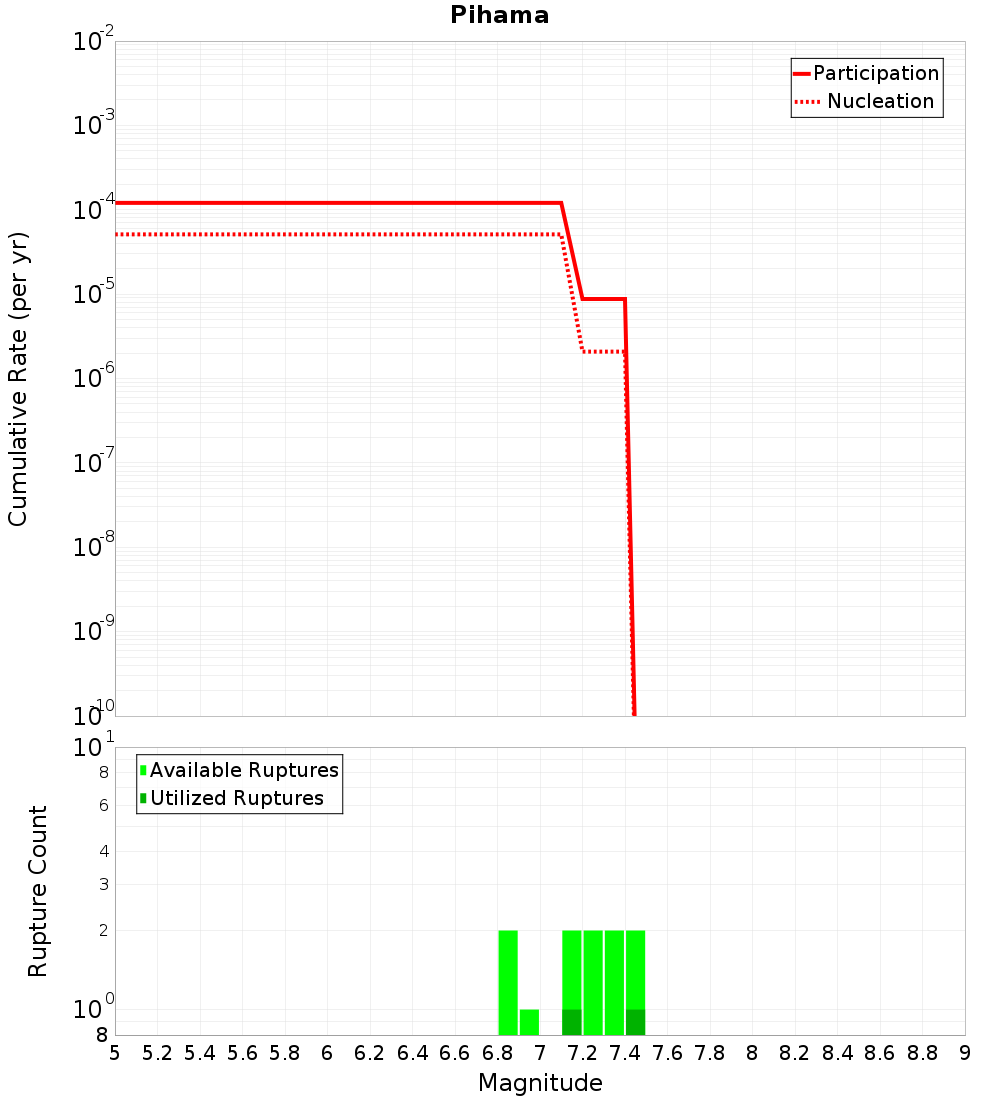

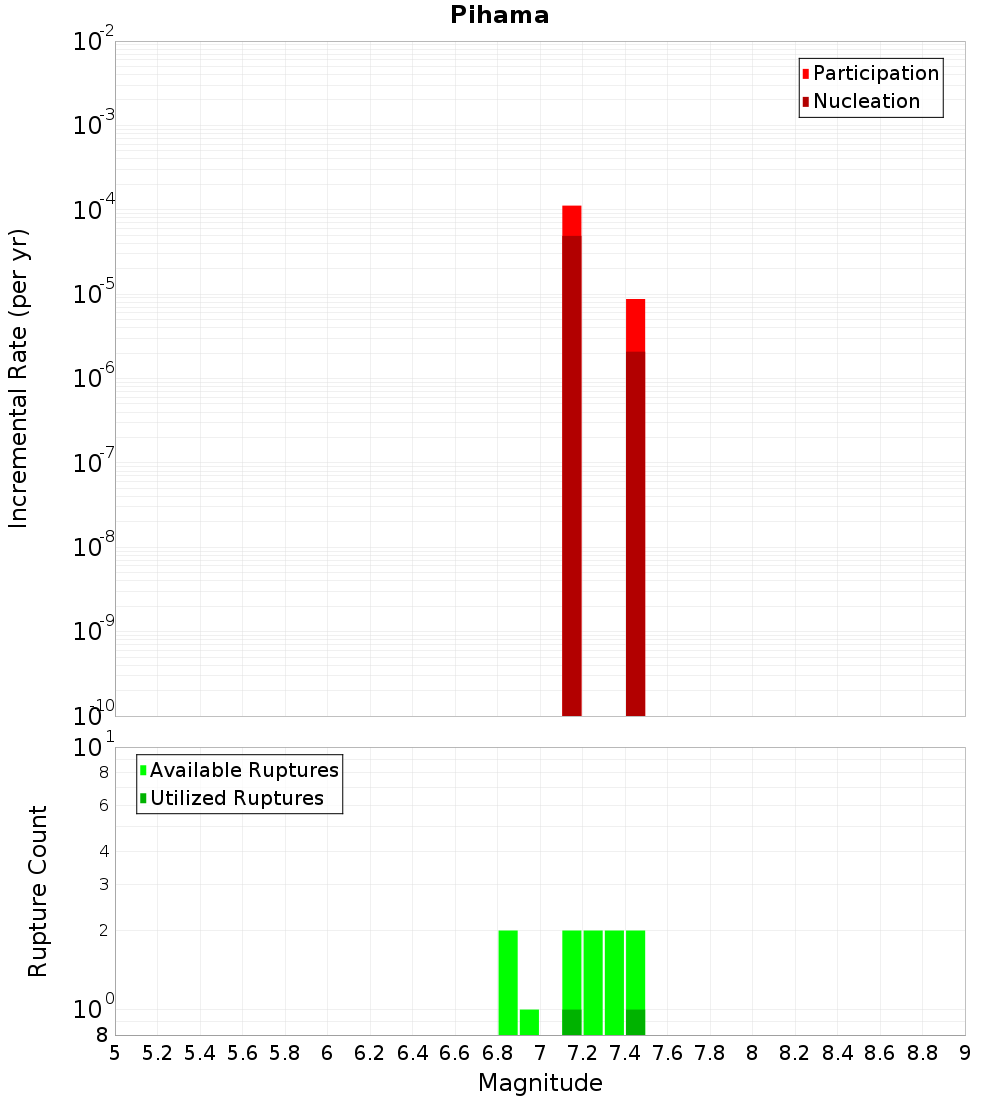

Magnitude-Frequency Distribution

Incremental	Cumulative

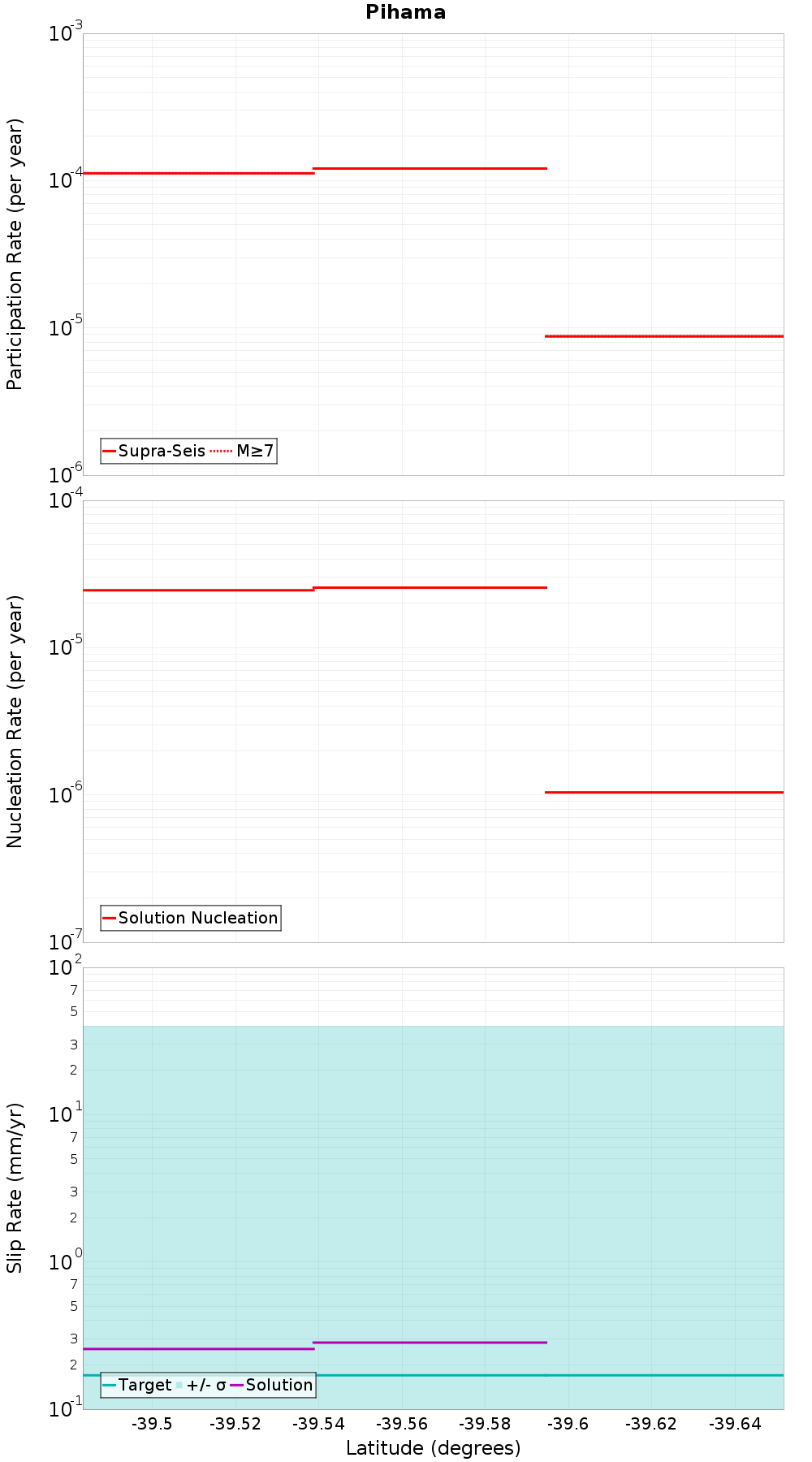

Along-Strike Values

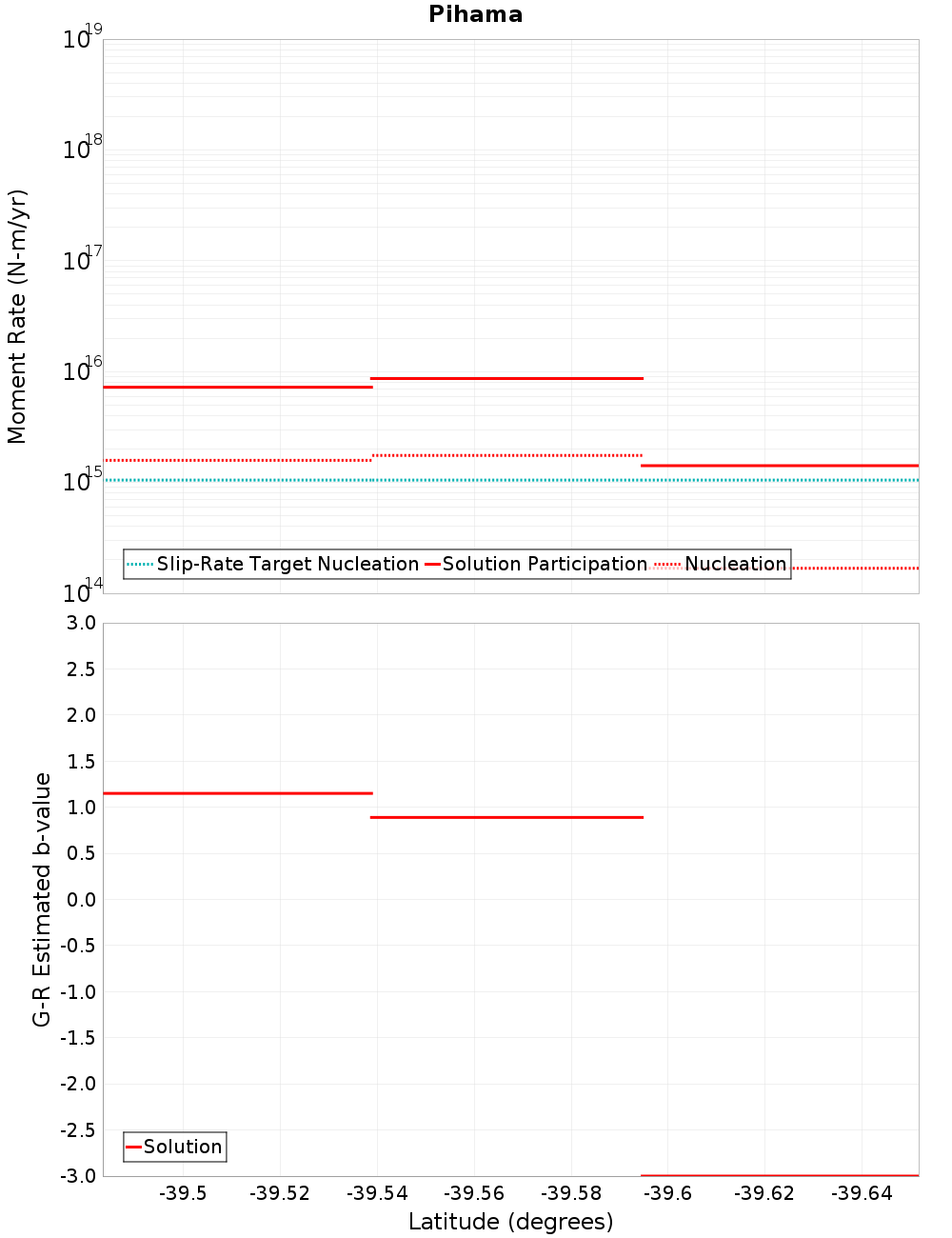

Moment-Rates and b-Values

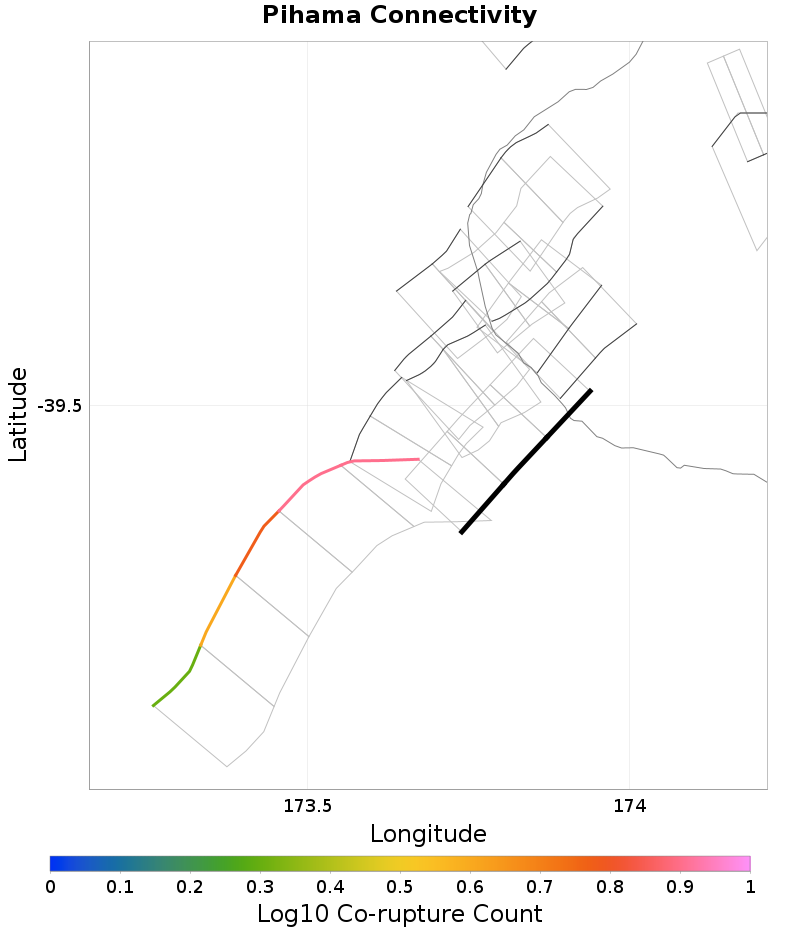

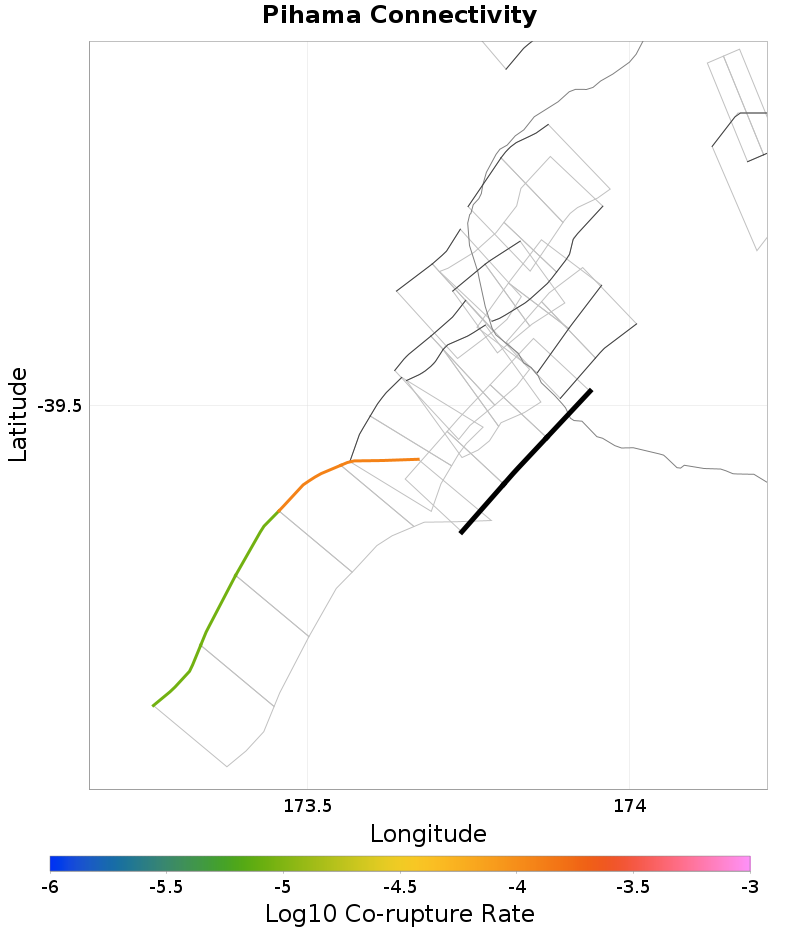

Connectivity

Nearby Sections

Fault Section
Manahi 1, 0.12 km away
Cape Egmont: South, 0.38 km away
Cape Egmont: Central, 0.43 km away
Cape Egmont: North, 0.45 km away
Rahotu, 1.64 km away
Kiri, 2.03 km away
Manahi 2, 4.5 km away
Ihaia, 6.14 km away
Warea, 9.09 km away
Oaonui, 13.29 km away

Manahi 1, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Egmont: South, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	1.2073487E-4

Cape Egmont: Central, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Egmont: North, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rahotu, 1.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kiri, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Manahi 2, 4.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ihaia, 6.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Warea, 9.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Oaonui, 13.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzMzUuMHBMY0R5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
