Ruahine: South Details

Property	Value
Rupture Count	27,147
Ruptures Above Sect Min Mag	27,144
Ruptures w/ Nonzero Rates	99
Magnitude Range	[7.09, 8.71]
Length Range	[24, 1,129] km
Total Rate	1.5945057E-4 /yr
Multi-Fault Rate	1.5945057E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	128

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

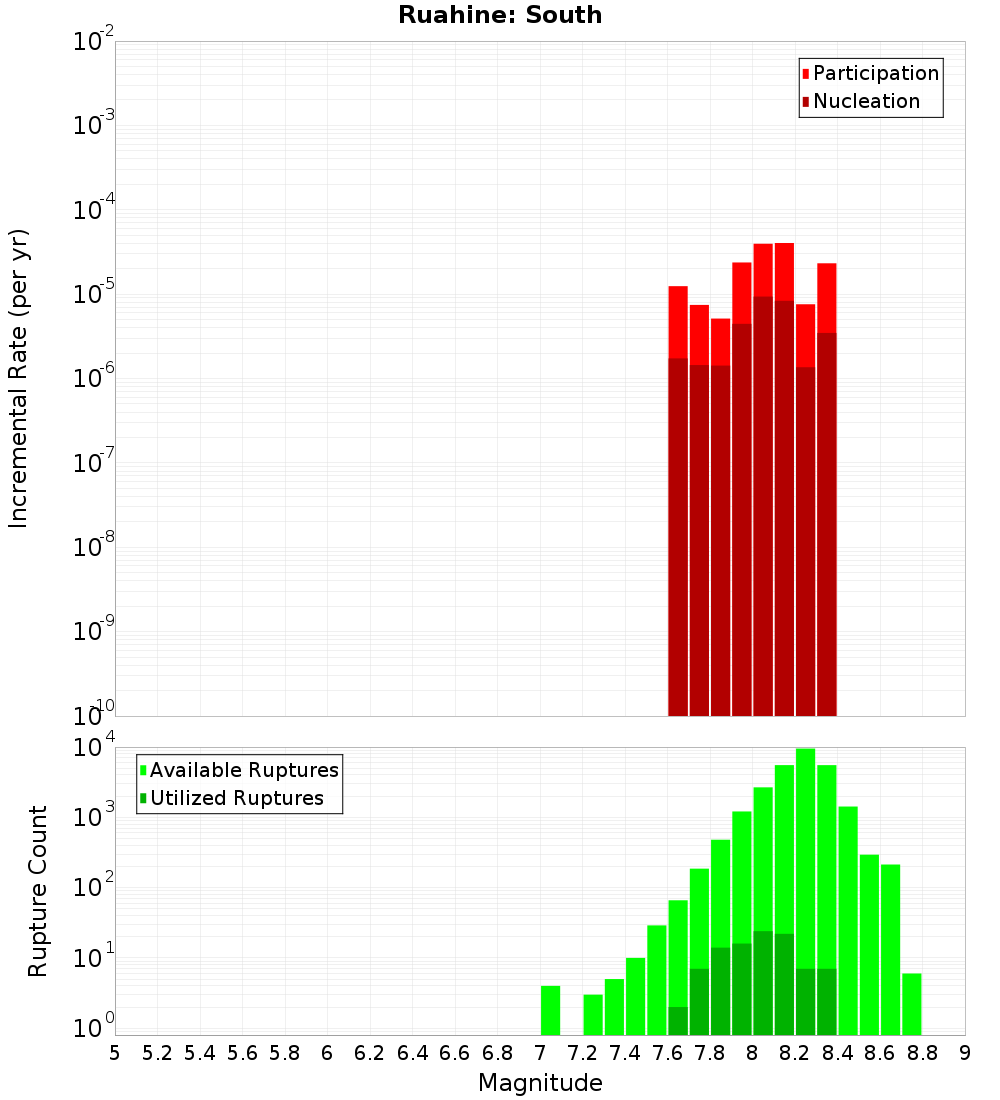

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wellington: Pahiatua, 0 km away
Mohaka: South, 0 km away
Ruahine: Central, 0.16 km away
Rangefront, 0.19 km away
Woodville, 1.31 km away
Pohangina, 5.25 km away
Pahiatua, 5.97 km away
Ruataniwha, 9.87 km away
Maunga, 13.33 km away
Wakarara, 14.13 km away
Tokomaru, 14.38 km away

Wellington: Pahiatua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMFBReWdF
Connected?	true
Directly Connected?	true
Co-rupture Count	24,389
Co-rupture Rate	1.4285905E-4

Mohaka: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMFBReWdF
Connected?	true
Directly Connected?	true
Co-rupture Count	7,982
Co-rupture Rate	3.7838603E-5

Ruahine: Central, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMFBReWdF
Connected?	true
Directly Connected?	true
Co-rupture Count	16,332
Co-rupture Rate	8.52102E-5

Rangefront, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMFBReWdF
Connected?	true
Directly Connected?	true
Co-rupture Count	971
Co-rupture Rate	1.0021278E-6

Woodville, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMFBReWdF
Connected?	true
Directly Connected?	true
Co-rupture Count	82
Co-rupture Rate	0.0

Pohangina, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMFBReWdF
Connected?	true
Directly Connected?	true
Co-rupture Count	973
Co-rupture Rate	1.2656059E-5

Pahiatua, 5.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMFBReWdF
Connected?	true
Directly Connected?	true
Co-rupture Count	734
Co-rupture Rate	3.2285814E-5

Ruataniwha, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMFBReWdF
Connected?	true
Directly Connected?	false
Co-rupture Count	35
Co-rupture Rate	1.275949E-7

Maunga, 13.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMFBReWdF
Connected?	true
Directly Connected?	false
Co-rupture Count	213
Co-rupture Rate	2.4598592E-5

Wakarara, 14.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMFBReWdF
Connected?	true
Directly Connected?	false
Co-rupture Count	402
Co-rupture Rate	2.7283834E-6

Tokomaru, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMFBReWdF
Connected?	true
Directly Connected?	false
Co-rupture Count	90
Co-rupture Rate	0.0
