Waipukurau - Poukawa Details

PropertyValue
Rupture Count1,338
Ruptures Above Sect Min Mag1,333
Ruptures w/ Nonzero Rates45
Magnitude Range[6.88, 8.23]
Length Range[19, 408] km
Total Rate3.5643135E-4 /yr
Multi-Fault Rate2.9131313E-4 /yr (81.73%)
Directly-Connected Faults5
All Co-Rupturing Faults45

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

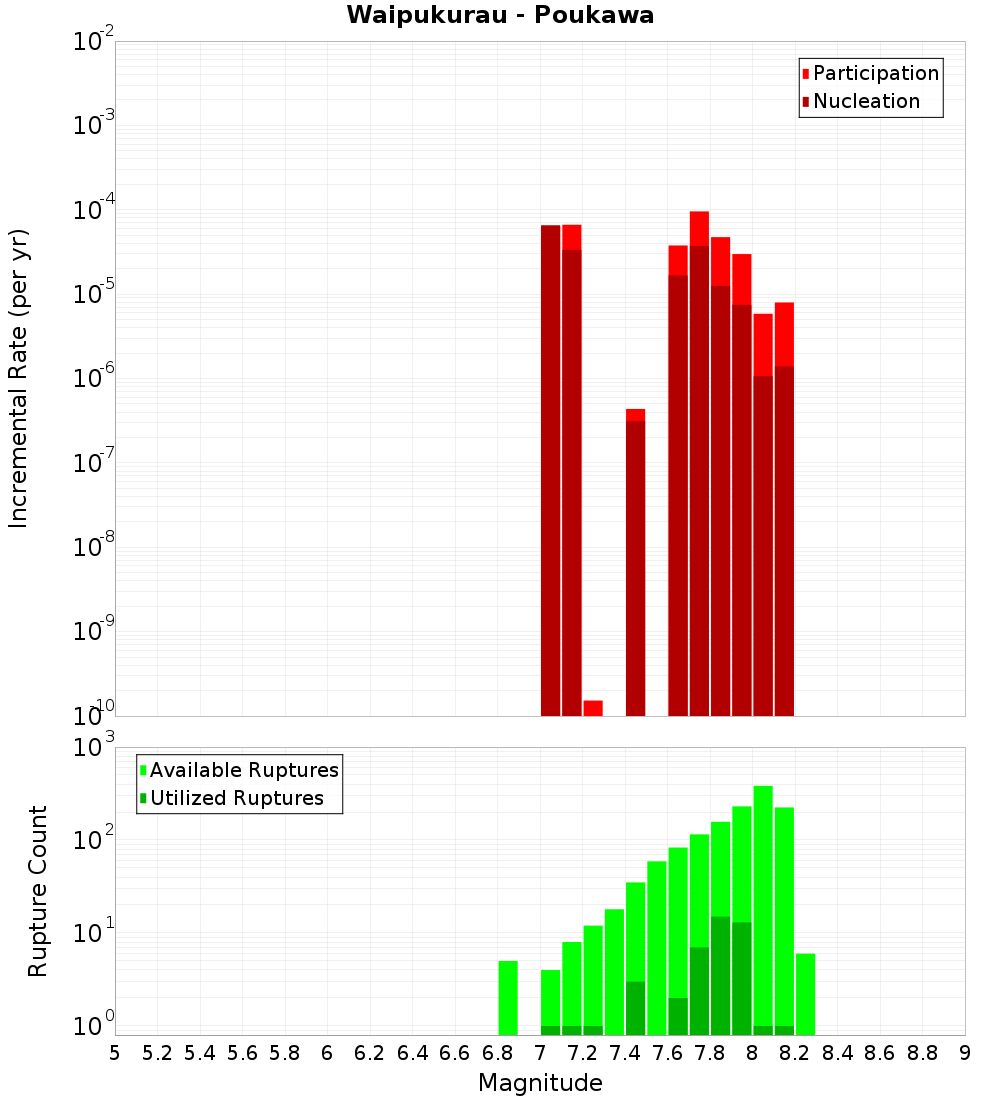

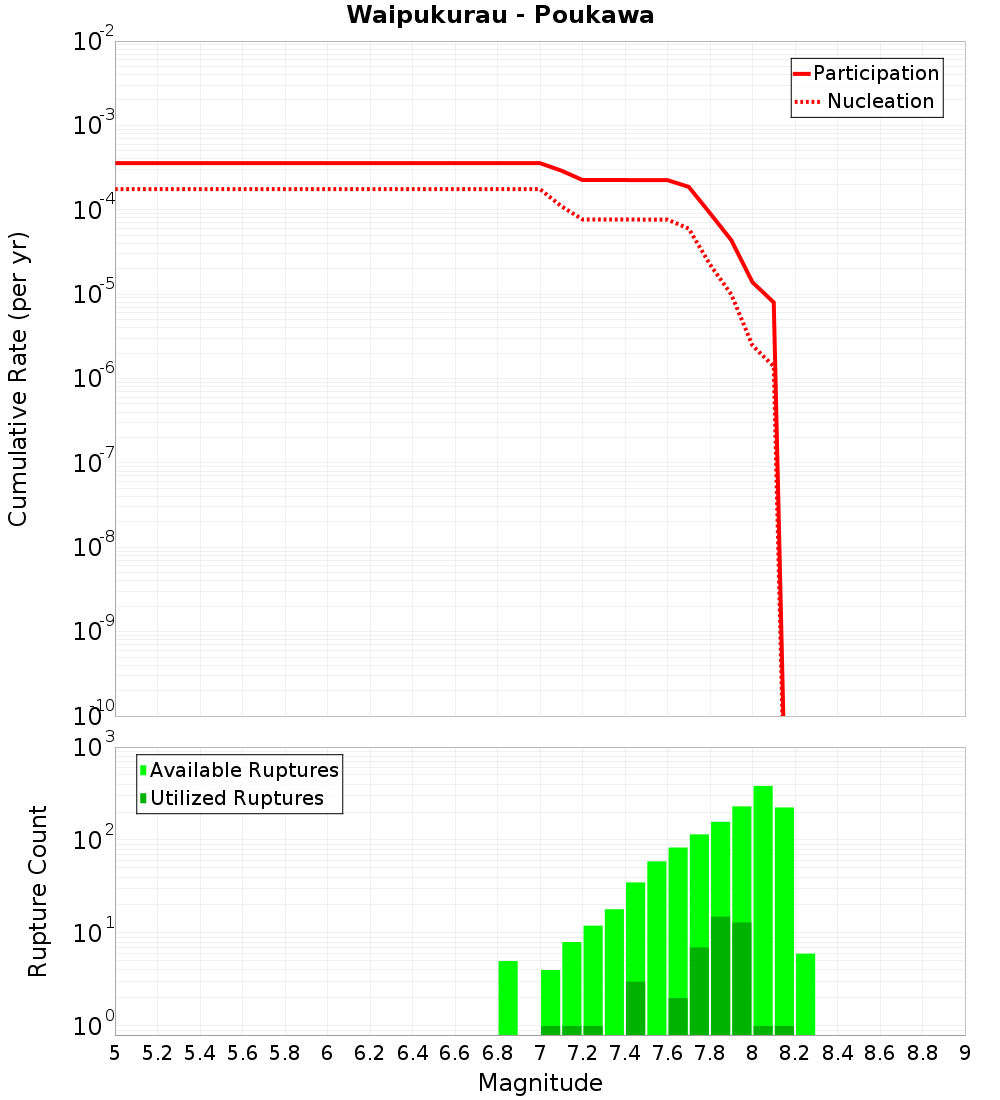

Incremental PlotCumulative Plot

Along-Strike Values

(top)

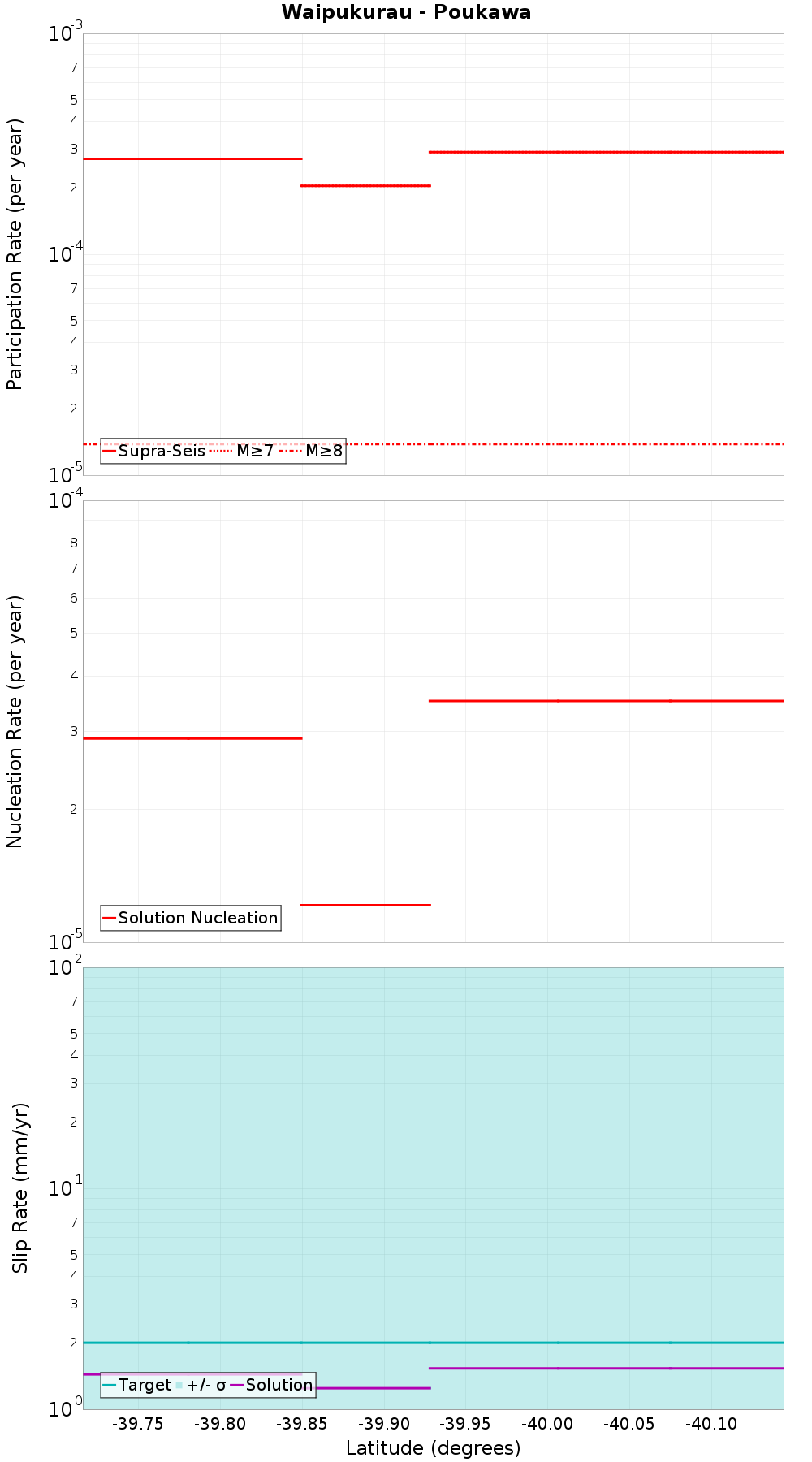

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awanui, 0 km away
Clear Hills - Waikopiro, 0.34 km away
Oruawharo - Mangatoro, 3.21 km away
Tukituki Thrust, 3.57 km away
Te Heka, 5.65 km away
Ruataniwha, 13.21 km away

Awanui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMGFpUHdV
Connected?true
Directly Connected?true
Co-rupture Count1,110
Co-rupture Rate1.659305E-4

Clear Hills - Waikopiro, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMGFpUHdV
Connected?true
Directly Connected?true
Co-rupture Count464
Co-rupture Rate1.5749933E-5

Oruawharo - Mangatoro, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMGFpUHdV
Connected?true
Directly Connected?true
Co-rupture Count464
Co-rupture Rate1.5220788E-4

Tukituki Thrust, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMGFpUHdV
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate1.1692223E-4

Te Heka, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMGFpUHdV
Connected?true
Directly Connected?true
Co-rupture Count138
Co-rupture Rate2.0834153E-5

Ruataniwha, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTYuMGFpUHdV
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate1.3961076E-6
