Lyell South Details

Property	Value
Rupture Count	2,183
Ruptures Above Sect Min Mag	2,178
Ruptures w/ Nonzero Rates	84
Magnitude Range	[6.90, 8.56]
Length Range	[19, 814] km
Total Rate	7.046012E-5 /yr
Multi-Fault Rate	7.0434966E-5 /yr (99.96%)
Directly-Connected Faults	4
All Co-Rupturing Faults	32

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

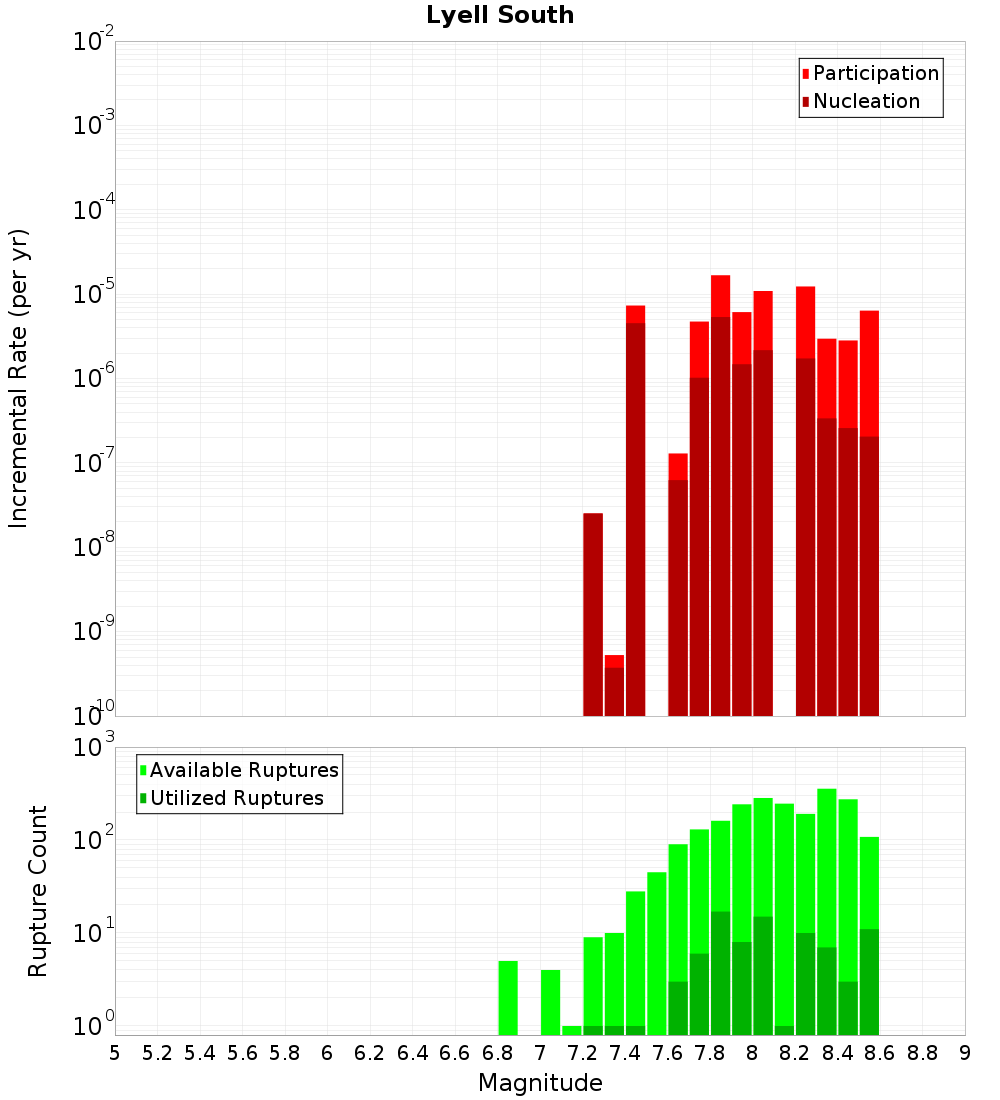

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

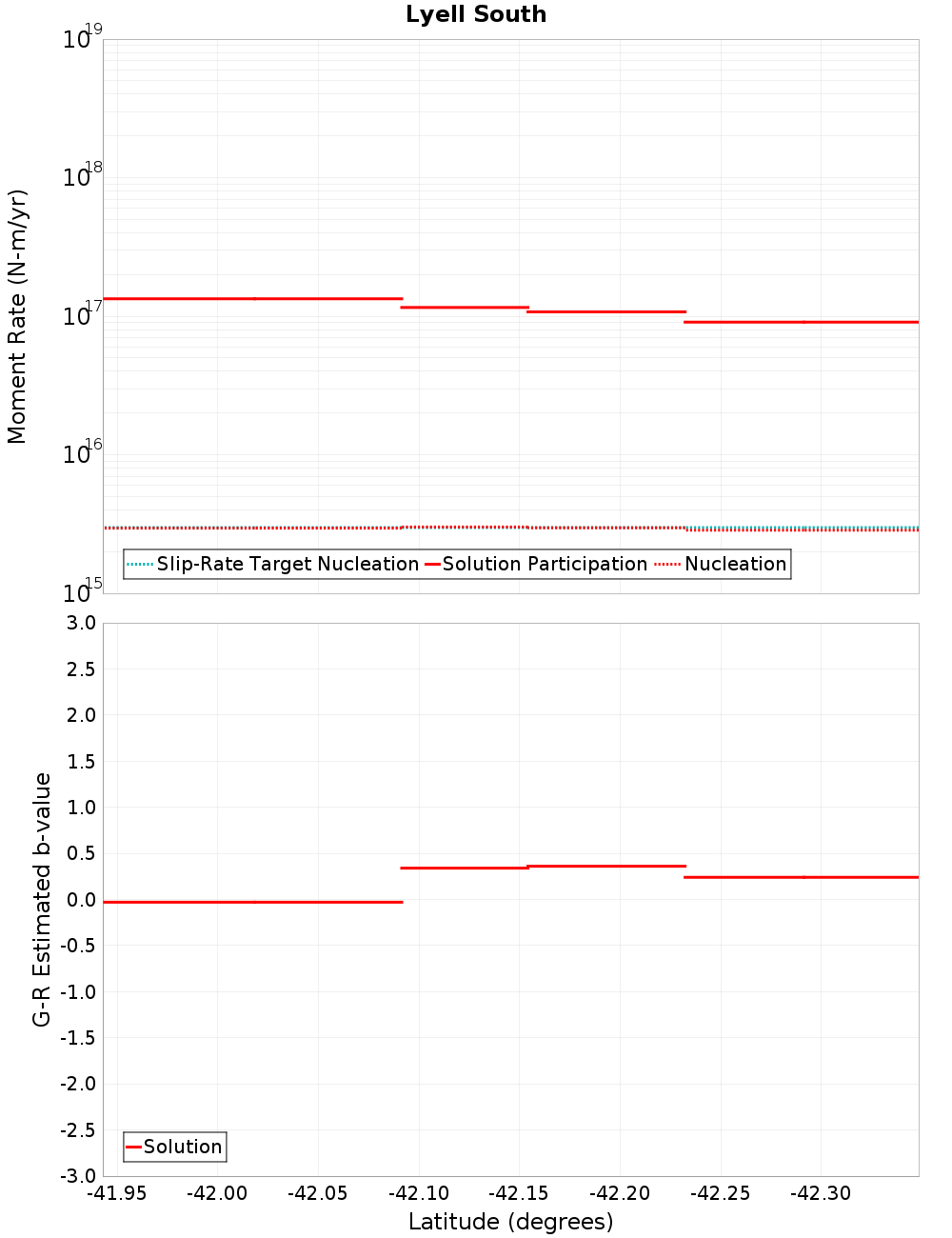

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Lyell, 1.51 km away
White Creek, 6.32 km away
Maimai: North, 7.01 km away
White Creek - buried, 7.39 km away
Inangahua, 9 km away
Maimai, 9.15 km away
Maimai: South, 11.15 km away

Lyell, 1.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTguMFZGUDlH
Connected?	true
Directly Connected?	true
Co-rupture Count	1,377
Co-rupture Rate	5.2142826E-5

White Creek, 6.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTguMFZGUDlH
Connected?	true
Directly Connected?	true
Co-rupture Count	1,891
Co-rupture Rate	5.2714597E-5

Maimai: North, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTguMFZGUDlH
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	1.1047636E-5

White Creek - buried, 7.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTguMFZGUDlH
Connected?	true
Directly Connected?	false
Co-rupture Count	1,318
Co-rupture Rate	3.3155855E-5

Inangahua, 9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTguMFZGUDlH
Connected?	true
Directly Connected?	false
Co-rupture Count	249
Co-rupture Rate	3.7203502E-6

Maimai, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTguMFZGUDlH
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	0.0

Maimai: South, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNTguMFZGUDlH
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	1.1566281E-5
