Lake Heron Details
| Property | Value |
|---|---|
| Rupture Count | 195 |
| Ruptures Above Sect Min Mag | 192 |
| Ruptures w/ Nonzero Rates | 42 |
| Magnitude Range | [6.89, 8.10] |
| Length Range | [18, 260] km |
| Total Rate | 3.022088E-4 /yr |
| Multi-Fault Rate | 1.6685402E-4 /yr (55.21%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 28 |
Table Of Contents

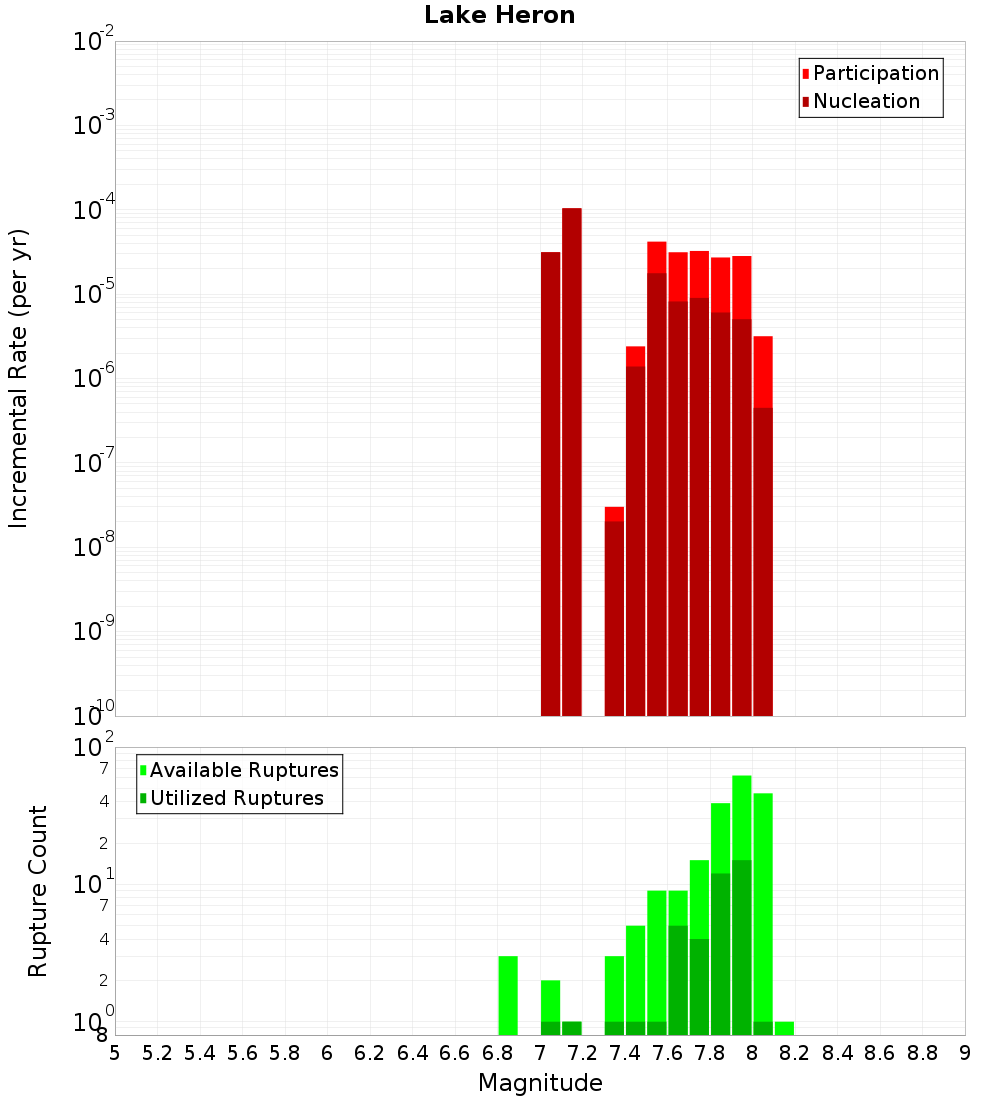

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ben McLeod, 0.47 km away |
| Double Hill, 1.64 km away |
| Klondyke Moor, 3.5 km away |
| Hutt Peel, 12.22 km away |
| Fox Peak, 13.35 km away |
| North Branch, 14.3 km away |
Ben McLeod, 0.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNjIuMEV1b1Uz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 168 |
| Co-rupture Rate | 1.4250235E-4 |
Double Hill, 1.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNjIuMEV1b1Uz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Klondyke Moor, 3.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNjIuMEV1b1Uz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 7.103622E-6 |
Hutt Peel, 12.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNjIuMEV1b1Uz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 19 |
| Co-rupture Rate | 2.1917242E-5 |
Fox Peak, 13.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNjIuMEV1b1Uz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 159 |
| Co-rupture Rate | 9.112988E-5 |
North Branch, 14.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzNjIuMEV1b1Uz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
