Ben McLeod Details

PropertyValue
Rupture Count2,048
Ruptures Above Sect Min Mag2,046
Ruptures w/ Nonzero Rates51
Magnitude Range[6.95, 8.12]
Length Range[23, 457] km
Total Rate3.1856014E-4 /yr
Multi-Fault Rate3.1856014E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults68

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

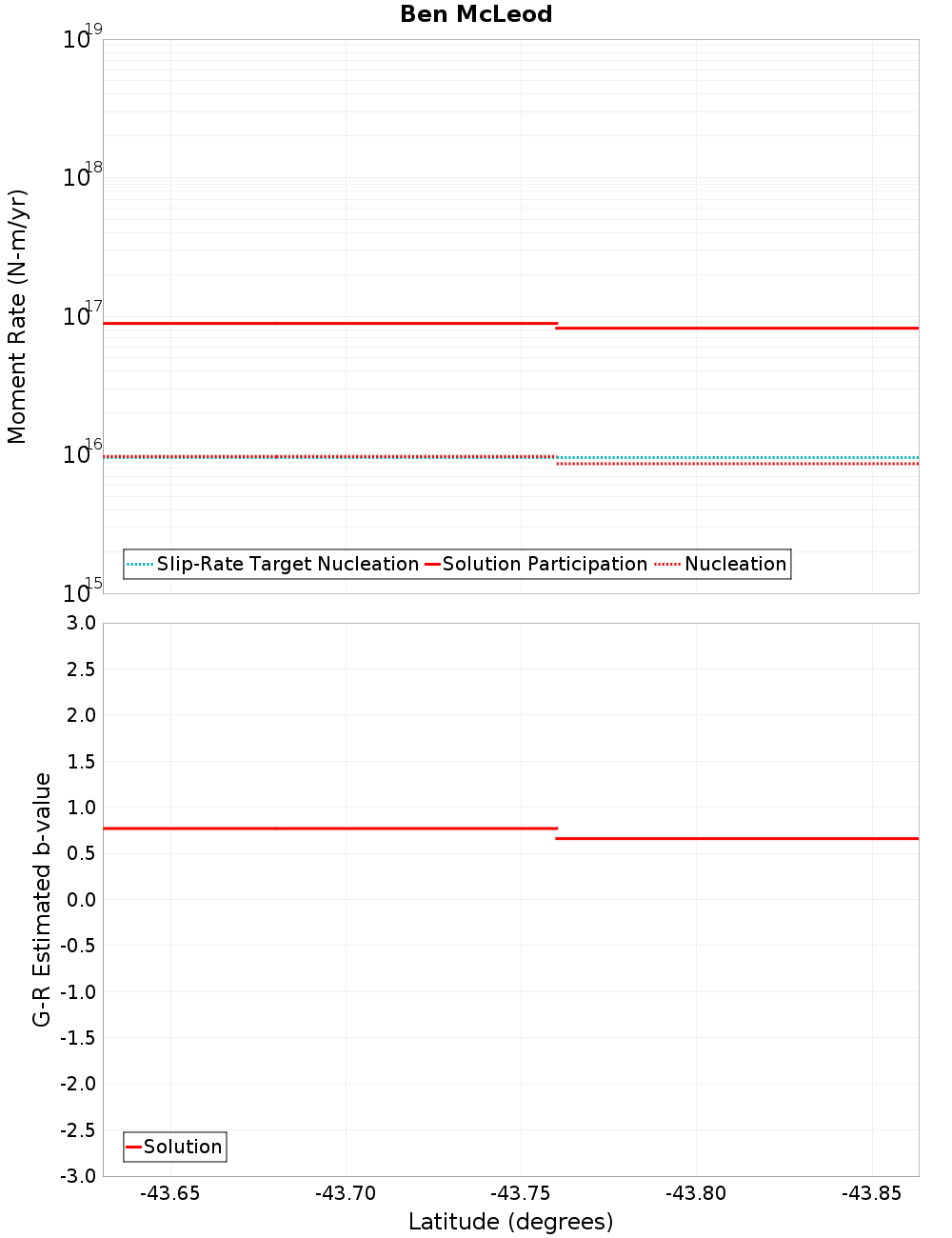

Moment-Rates and b-Values

(top)

Along-strike plot

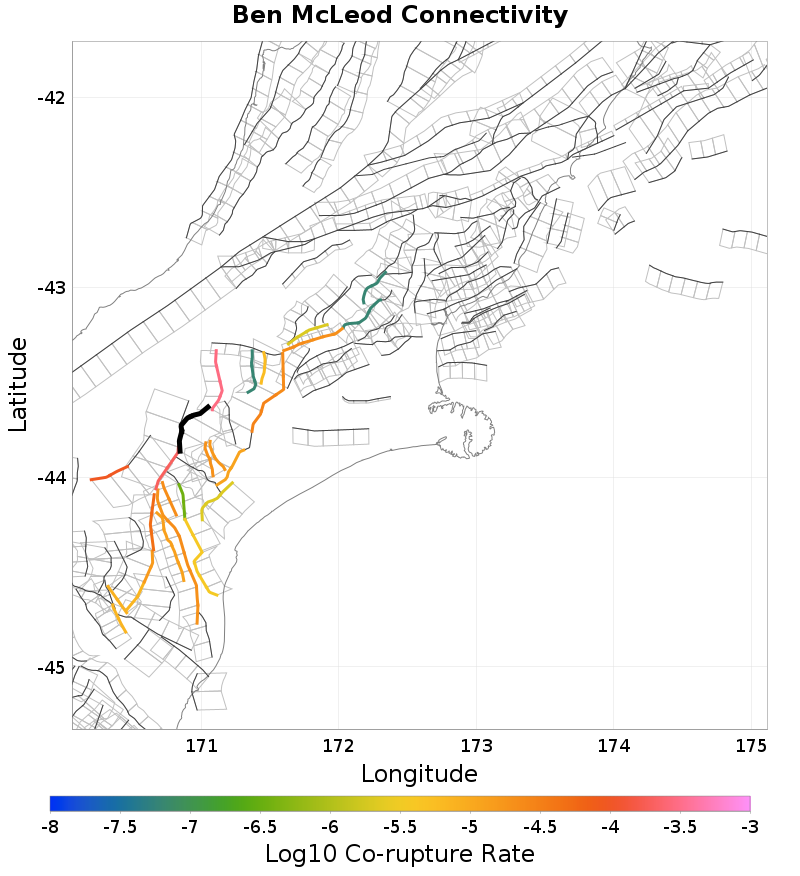

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hutt Peel, 0.04 km away
Klondyke Moor, 0.13 km away
Edith, 0.21 km away
Catherine, 0.22 km away
Fox Peak, 0.38 km away
Lake Heron, 0.47 km away
Sugarloaf, 4.07 km away
Brothers, 8.04 km away
Irishman Creek, 14.47 km away

Hutt Peel, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM
Connected?true
Directly Connected?true
Co-rupture Count1,777
Co-rupture Rate4.0895233E-5

Klondyke Moor, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate0.0

Edith, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM
Connected?true
Directly Connected?true
Co-rupture Count77
Co-rupture Rate1.674772E-5

Catherine, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM
Connected?true
Directly Connected?true
Co-rupture Count195
Co-rupture Rate1.9733388E-5

Fox Peak, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM
Connected?true
Directly Connected?true
Co-rupture Count1,395
Co-rupture Rate1.949863E-4

Lake Heron, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM
Connected?true
Directly Connected?true
Co-rupture Count168
Co-rupture Rate2.8970747E-4

Sugarloaf, 4.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate0.0

Brothers, 8.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM
Connected?true
Directly Connected?false
Co-rupture Count214
Co-rupture Rate4.253888E-6

Irishman Creek, 14.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM
Connected?true
Directly Connected?false
Co-rupture Count299
Co-rupture Rate9.284934E-5
