Kaiwara South Details
| Property | Value |
|---|---|
| Rupture Count | 1,871 |
| Ruptures Above Sect Min Mag | 1,864 |
| Ruptures w/ Nonzero Rates | 77 |
| Magnitude Range | [6.64, 8.04] |
| Length Range | [17, 428] km |
| Total Rate | 1.961238E-4 /yr |
| Multi-Fault Rate | 1.961238E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 45 |
Table Of Contents

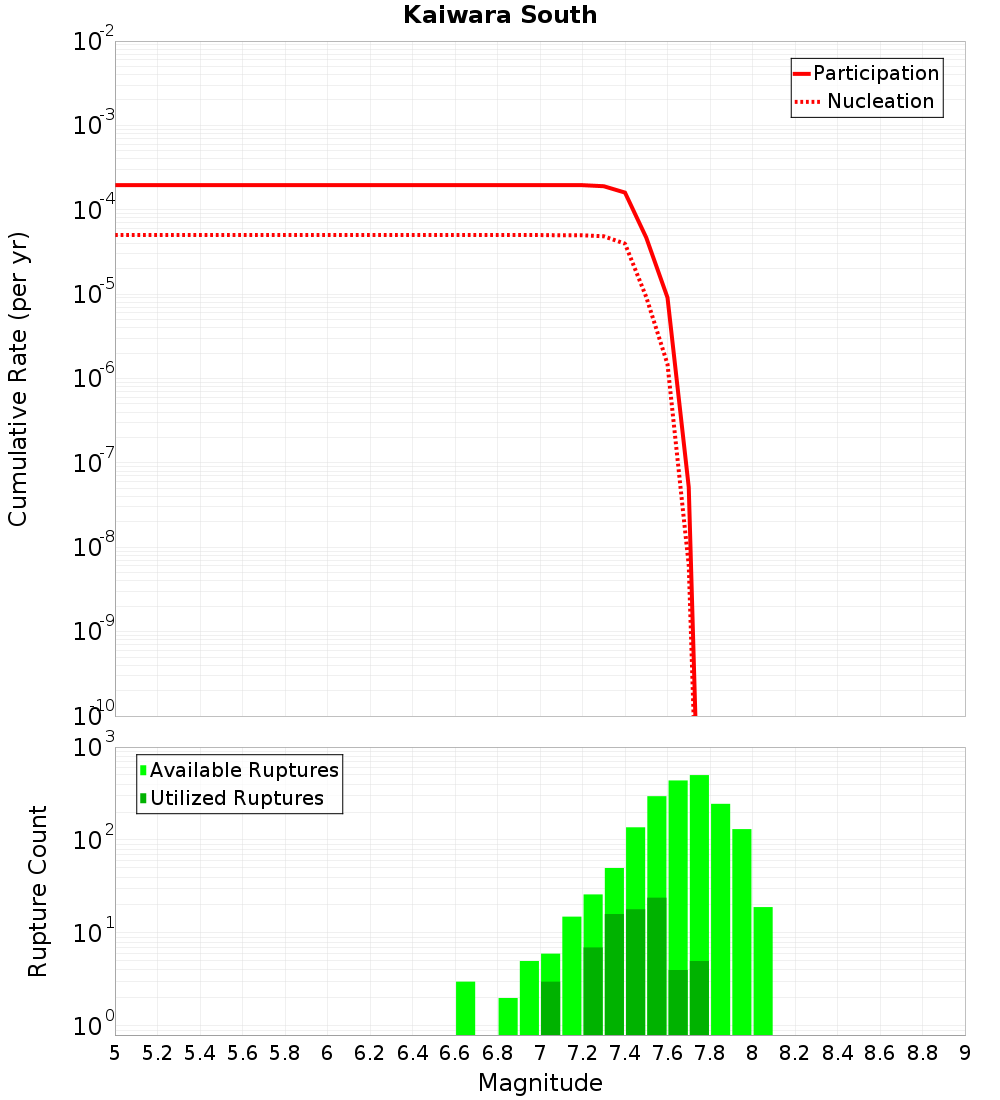

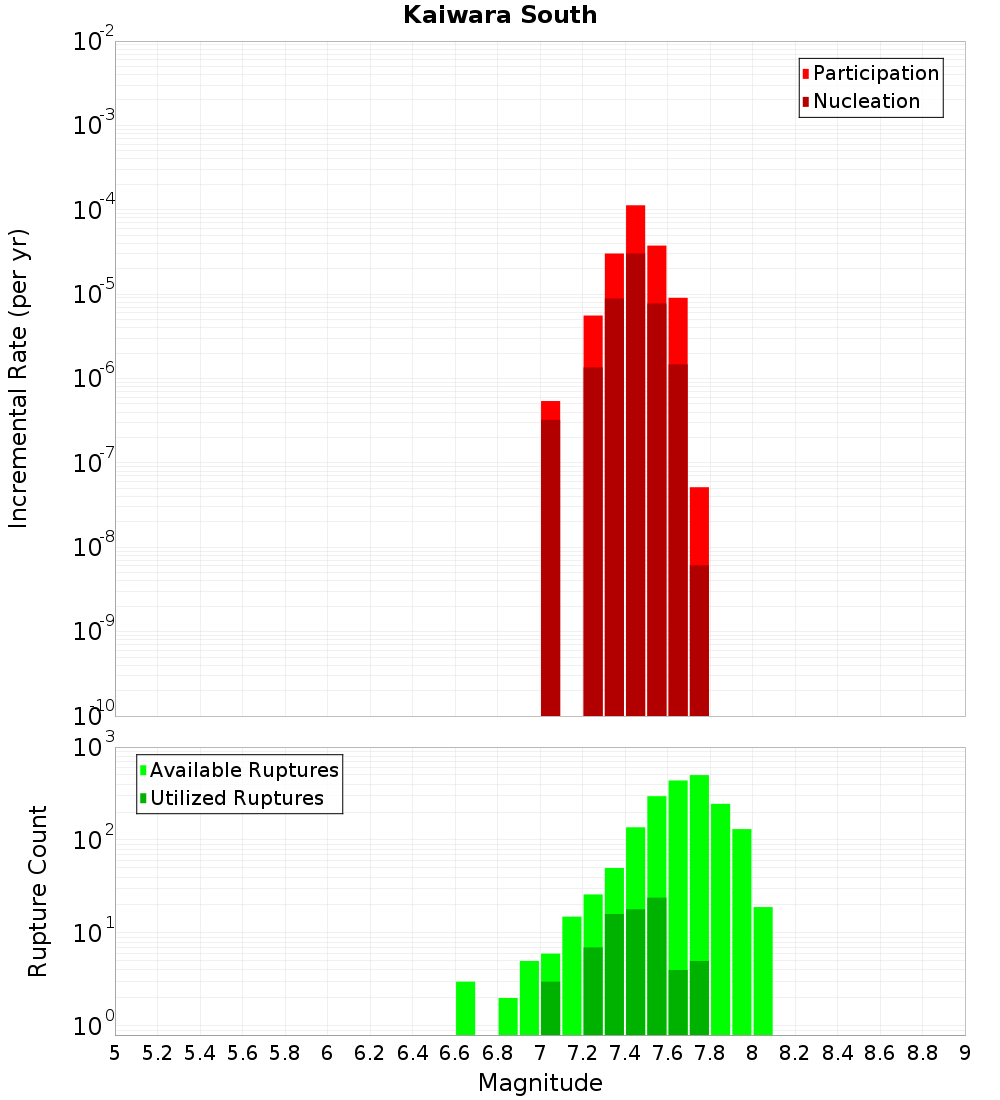

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

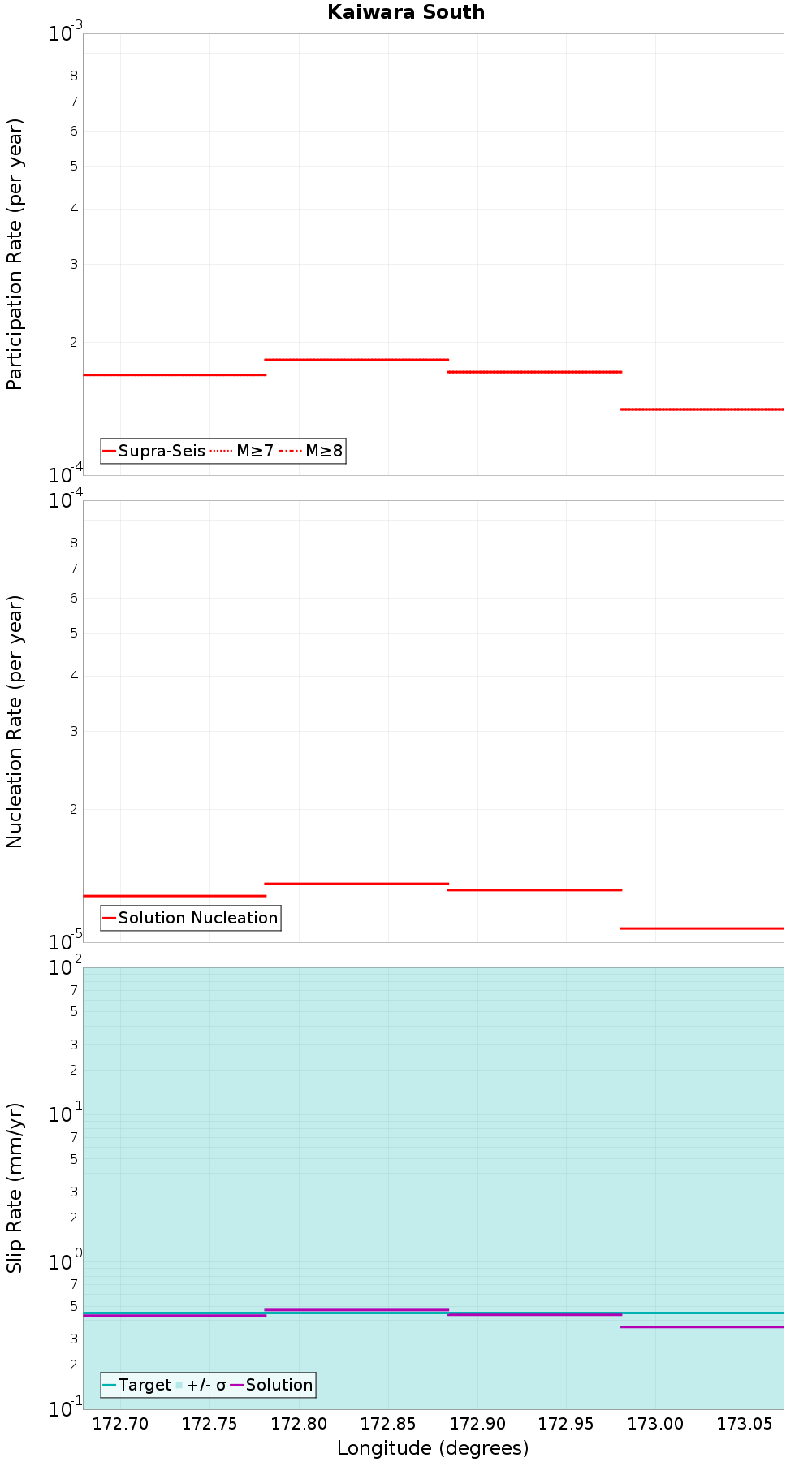

Along-Strike Values
Moment-Rates and b-Values

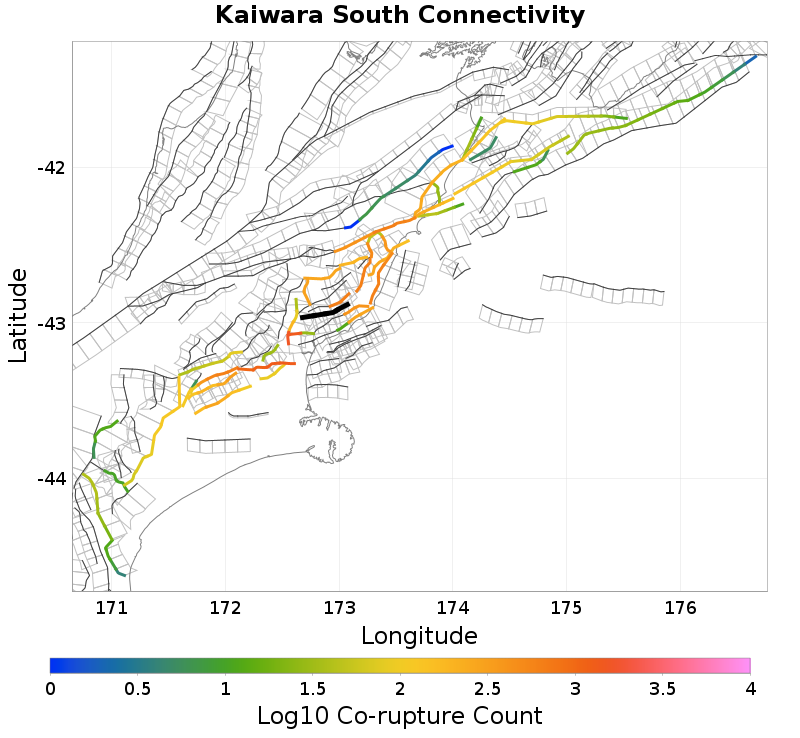

Connectivity
 |  |
|---|
Nearby Sections
Doctors, 1.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,561 |
| Co-rupture Rate | 7.718778E-5 |
Alexander, 2.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 655 |
| Co-rupture Rate | 3.0184548E-5 |
OmihiLwrHuru, 3.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 405 |
| Co-rupture Rate | 5.4352655E-5 |
Lowry, 3.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Boby Stream, 6.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,372 |
| Co-rupture Rate | 1.6259217E-5 |
AmberBlyth, 8.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 281 |
| Co-rupture Rate | 7.52174E-5 |
Balmoral, 8.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 301 |
| Co-rupture Rate | 3.63692E-5 |
Kaiwara North, 11.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 632 |
| Co-rupture Rate | 2.9614368E-5 |
Mt Arden, 12.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Leonard Mound, 12.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hurunui Peak, 12.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Virginia, 12.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pancake, 14.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzODAuMDM2WlRM | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
