Volkner 3 Details
| Property | Value |
|---|---|
| Rupture Count | 120 |
| Ruptures Above Sect Min Mag | 119 |
| Ruptures w/ Nonzero Rates | 52 |
| Magnitude Range | [6.79, 8.17] |
| Length Range | [17, 501] km |
| Total Rate | 4.8055328E-5 /yr |
| Multi-Fault Rate | 4.8055328E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 37 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

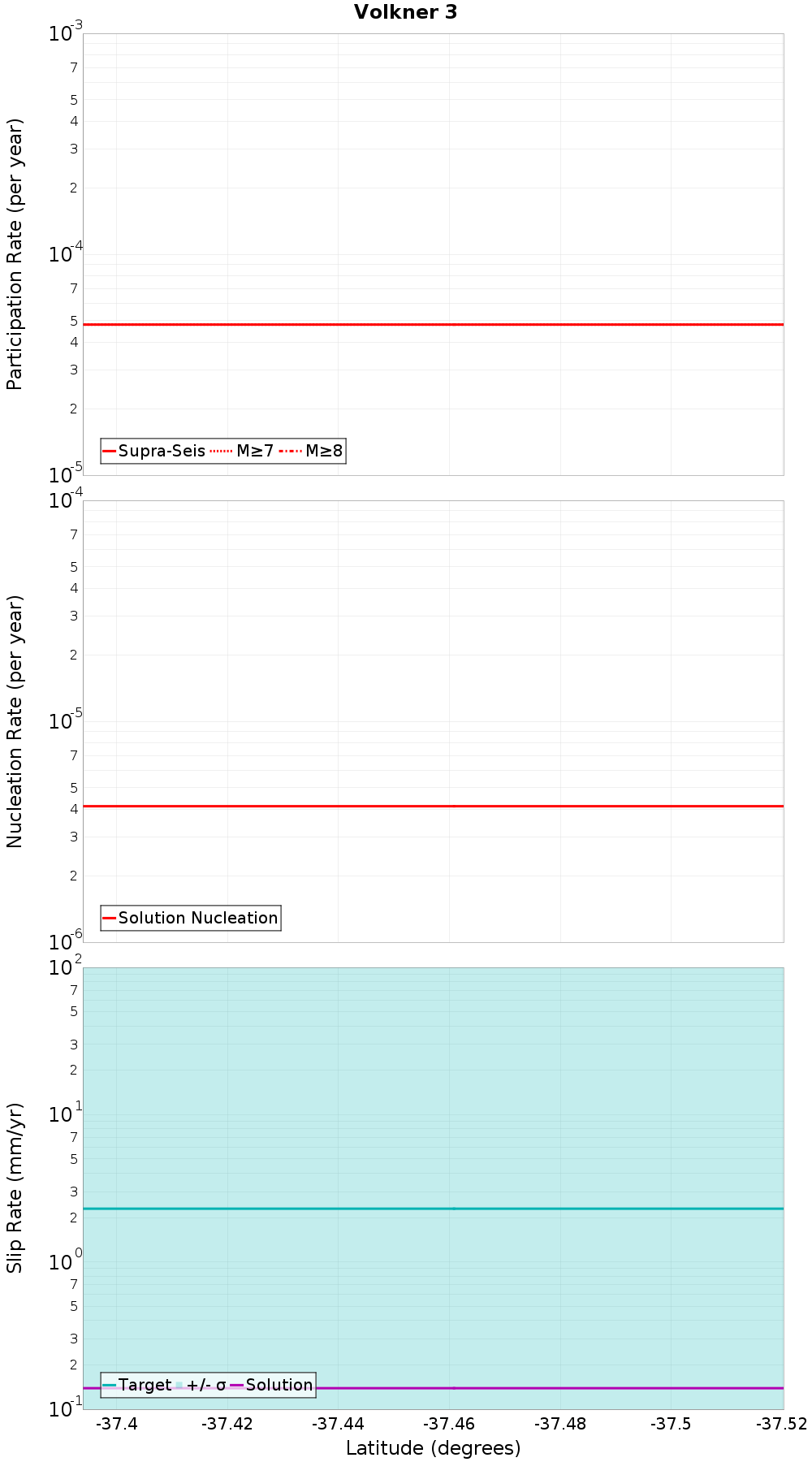

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Tuakana 6, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 46 |
| Co-rupture Rate | 3.444648E-5 |
Volkner 4, 1.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 74 |
| Co-rupture Rate | 1.3612742E-5 |
Whakaari 4, 1.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 35 |
| Co-rupture Rate | 1.22590545E-5 |
Te Arawa 1, 5.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 1.22590545E-5 |
Te Arawa 2, 6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.1996947E-8 |
Otara West 1, 8.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 6.1108576E-9 |
Calypso 2, 9.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 33 |
| Co-rupture Rate | 3.0986162E-6 |
Tuakana 7, 9.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10 |
| Co-rupture Rate | 1.5156394E-5 |
Tuatoru 1, 10.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuatoru 2, 12.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 7.231678E-9 |
Te Arawa 3, 12.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 1.22590545E-5 |
Otara West 2, 12.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAzOTIuMGJmSml1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 1.3113252E-5 |
