Sugarloaf Details

PropertyValue
Rupture Count849
Ruptures Above Sect Min Mag848
Ruptures w/ Nonzero Rates59
Magnitude Range[7.06, 8.33]
Length Range[24, 505] km
Total Rate4.9175516E-5 /yr
Multi-Fault Rate4.9175516E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults87

Table Of Contents

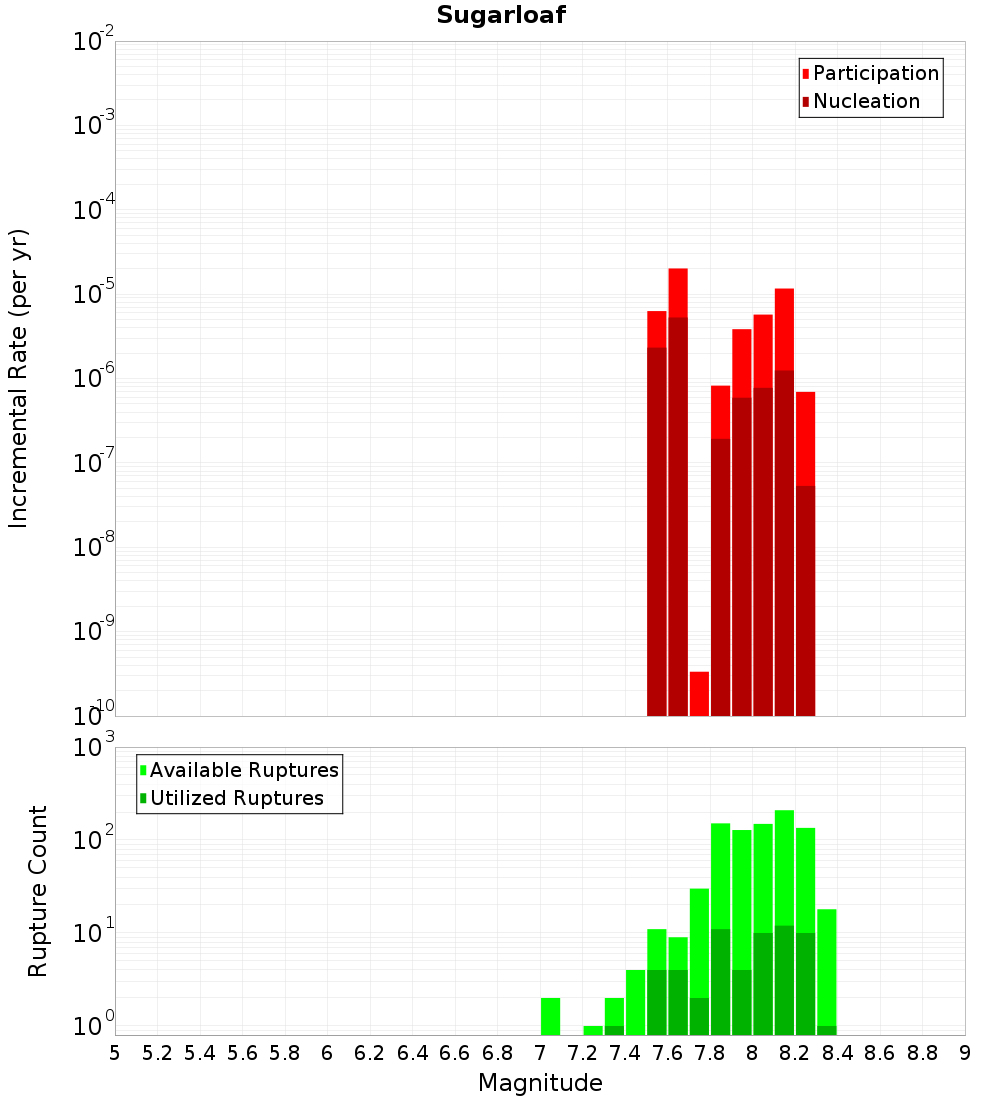

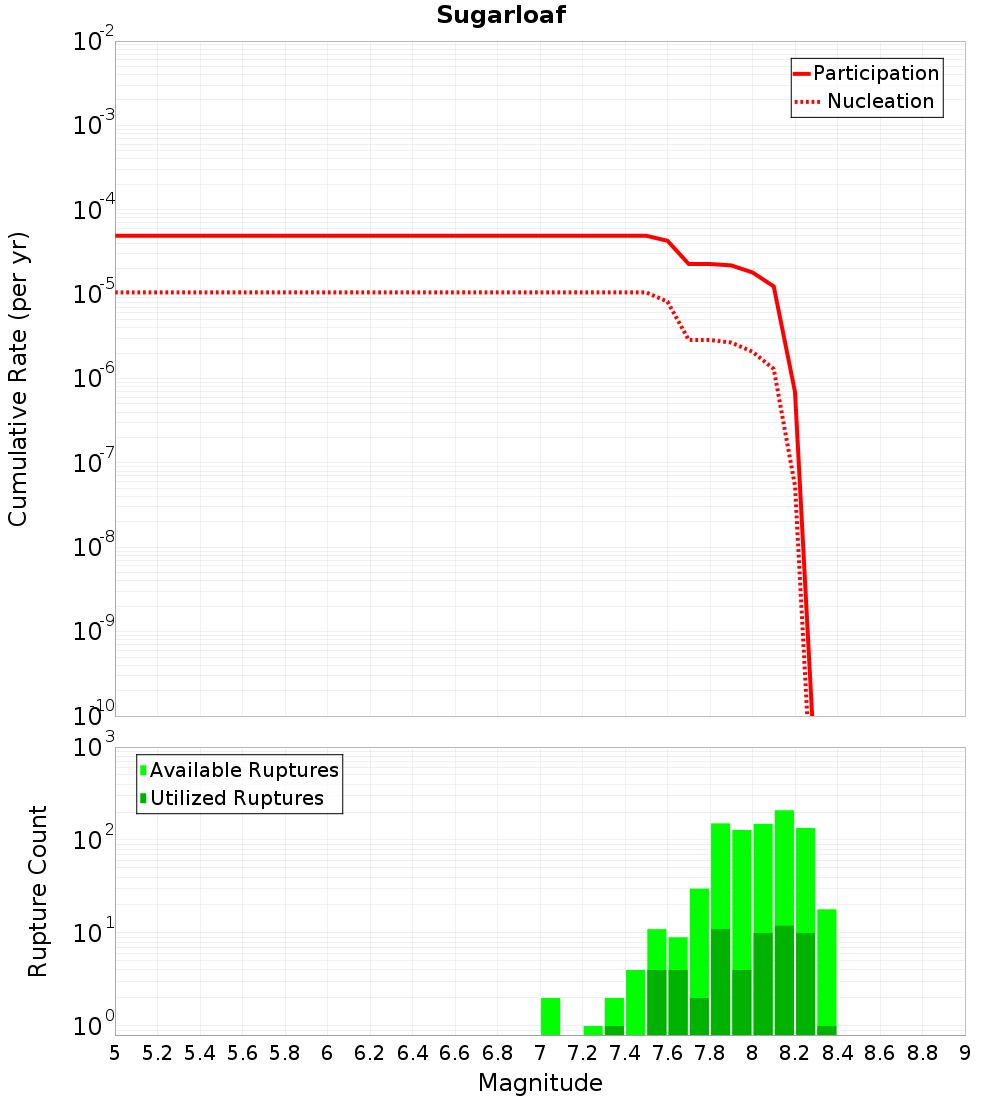

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

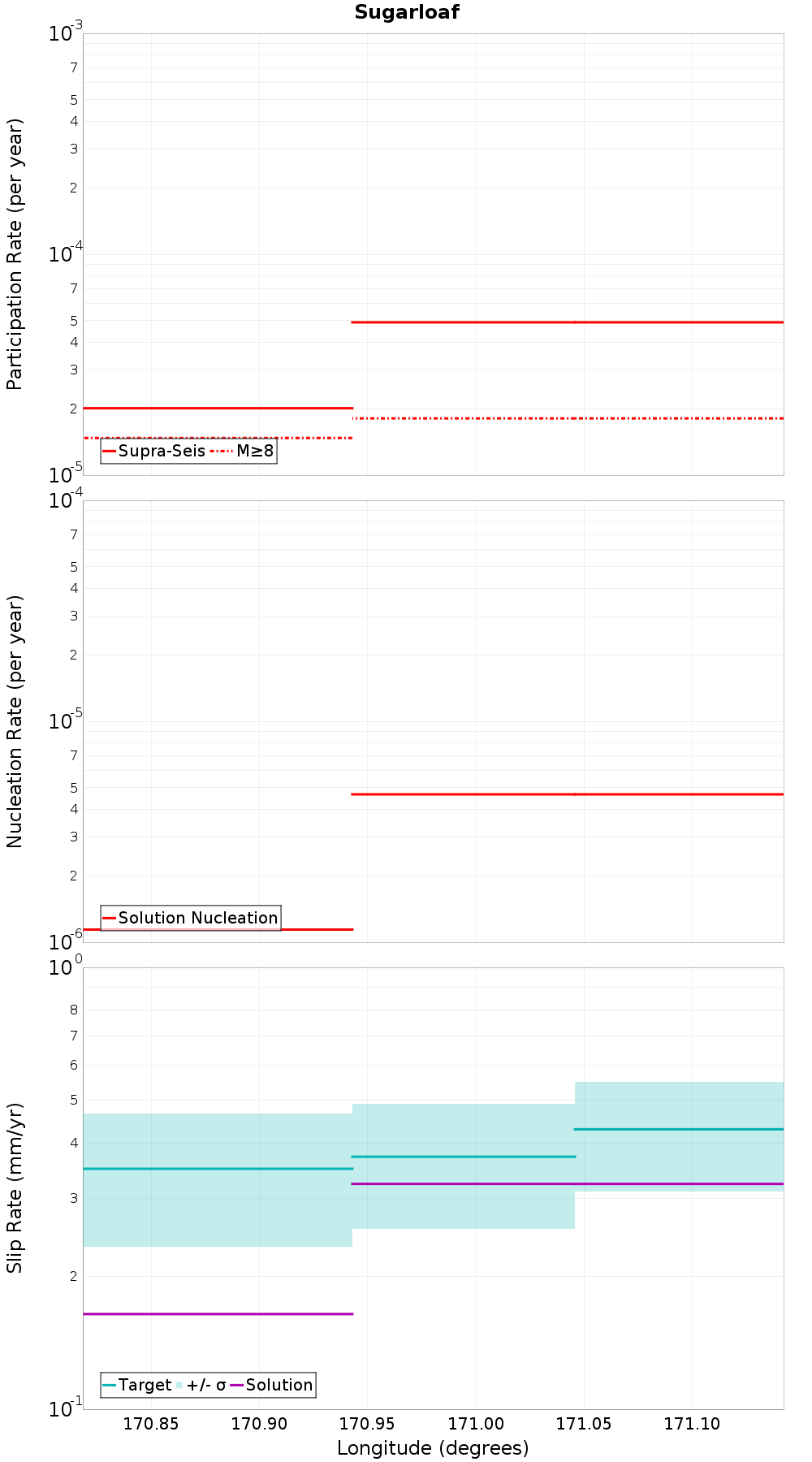

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Brothers, 0.22 km away
Opawa, 0.37 km away
Irishman Creek, 0.39 km away
Hutt Peel, 0.4 km away
Fox Peak, 0.68 km away
Rapuwai, 0.81 km away
Catherine, 2.57 km away
Ben McLeod, 4.06 km away
Edith, 8.41 km away
Coal Creek, 11.62 km away
Albury, 13.75 km away

Brothers, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MDMuMG5lTXBp
Connected?true
Directly Connected?true
Co-rupture Count18
Co-rupture Rate9.4170085E-9

Opawa, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MDMuMG5lTXBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Irishman Creek, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MDMuMG5lTXBp
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate0.0

Hutt Peel, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MDMuMG5lTXBp
Connected?true
Directly Connected?true
Co-rupture Count652
Co-rupture Rate2.2734299E-5

Fox Peak, 0.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MDMuMG5lTXBp
Connected?true
Directly Connected?true
Co-rupture Count175
Co-rupture Rate4.1195554E-12

Rapuwai, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MDMuMG5lTXBp
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate2.6431466E-5

Catherine, 2.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MDMuMG5lTXBp
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate2.7823206E-5

Ben McLeod, 4.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MDMuMG5lTXBp
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate2.9203278E-7

Edith, 8.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MDMuMG5lTXBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Coal Creek, 11.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MDMuMG5lTXBp
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate1.188153E-15

Albury, 13.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MDMuMG5lTXBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
