Alfredton South Details

Property	Value
Rupture Count	6,286
Ruptures Above Sect Min Mag	6,263
Ruptures w/ Nonzero Rates	92
Magnitude Range	[6.35, 8.47]
Length Range	[10, 1,083] km
Total Rate	2.3702631E-4 /yr
Multi-Fault Rate	2.3702631E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	102

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

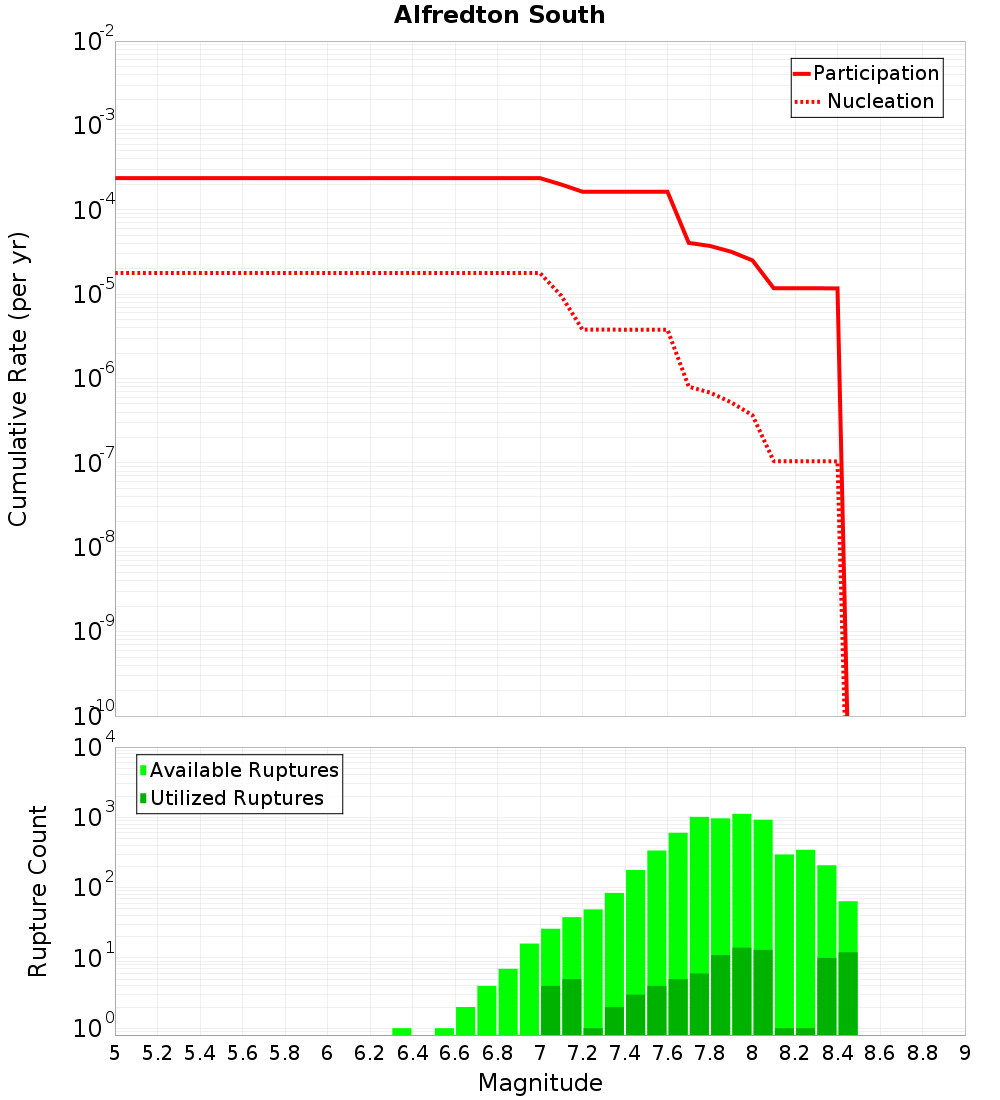

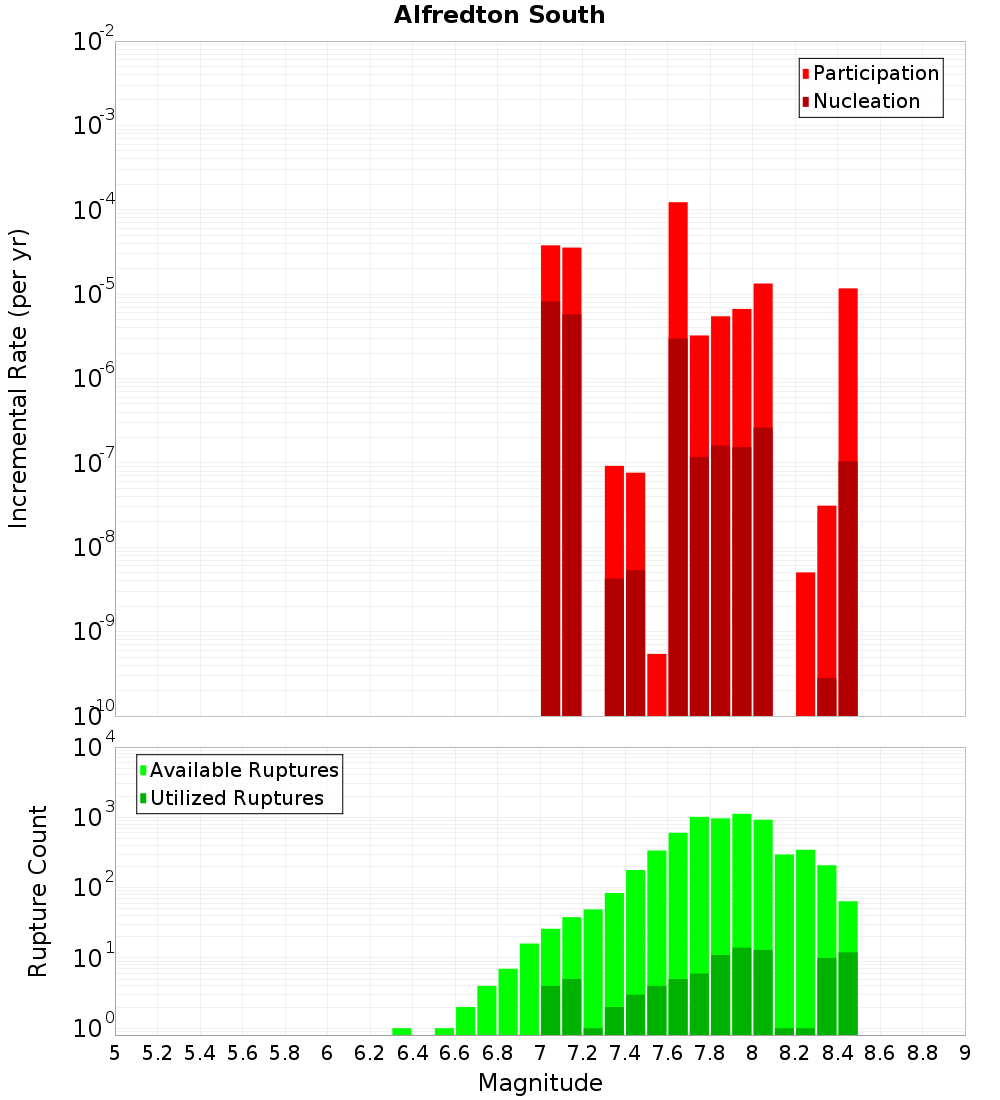

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

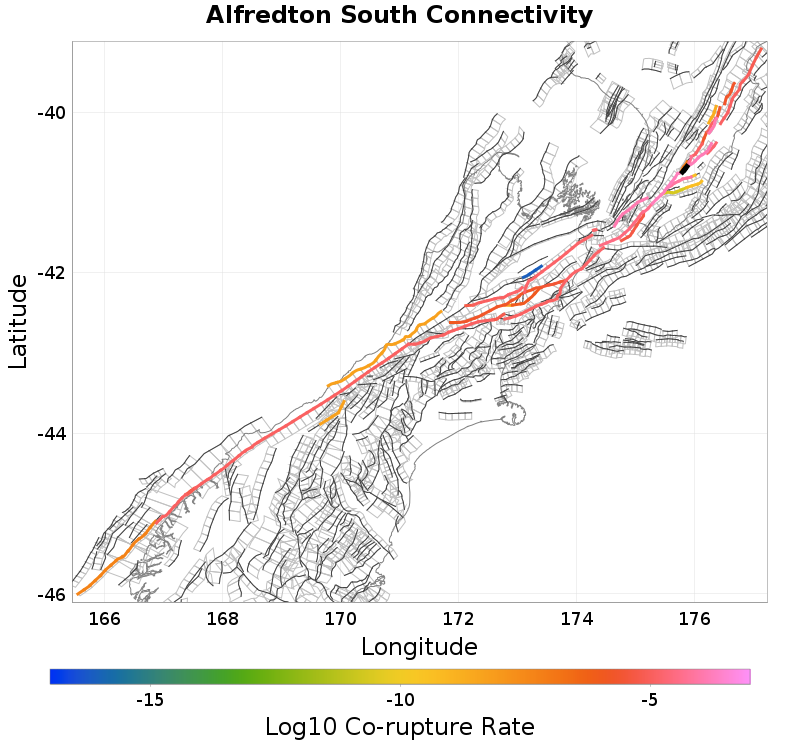

Connectivity

Nearby Sections

Fault Section
Saunders Road, 0 km away
Alfredton North, 0 km away
Dreyers Rock, 0 km away
Pa Valley, 0.06 km away
Wairarapa: 3, 7.46 km away
Mokonui Northeast, 9.5 km away
Mokonui Southwest, 9.66 km away

Saunders Road, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?	true
Directly Connected?	true
Co-rupture Count	2,970
Co-rupture Rate	1.4993011E-4

Alfredton North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?	true
Directly Connected?	true
Co-rupture Count	2,322
Co-rupture Rate	4.9225655E-5

Dreyers Rock, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?	true
Directly Connected?	true
Co-rupture Count	6,176
Co-rupture Rate	1.6344307E-4

Pa Valley, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?	true
Directly Connected?	true
Co-rupture Count	77
Co-rupture Rate	9.184108E-8

Wairarapa: 3, 7.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?	true
Directly Connected?	false
Co-rupture Count	6,161
Co-rupture Rate	1.6334913E-4

Mokonui Northeast, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?	true
Directly Connected?	true
Co-rupture Count	69
Co-rupture Rate	7.338284E-5

Mokonui Southwest, 9.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	7.338238E-5
