Hunter Valley Details

PropertyValue
Rupture Count15,416
Ruptures Above Sect Min Mag15,412
Ruptures w/ Nonzero Rates253
Magnitude Range[6.87, 8.43]
Length Range[22, 797] km
Total Rate1.138636E-4 /yr
Multi-Fault Rate1.13823735E-4 /yr (99.96%)
Directly-Connected Faults7
All Co-Rupturing Faults113

Table Of Contents

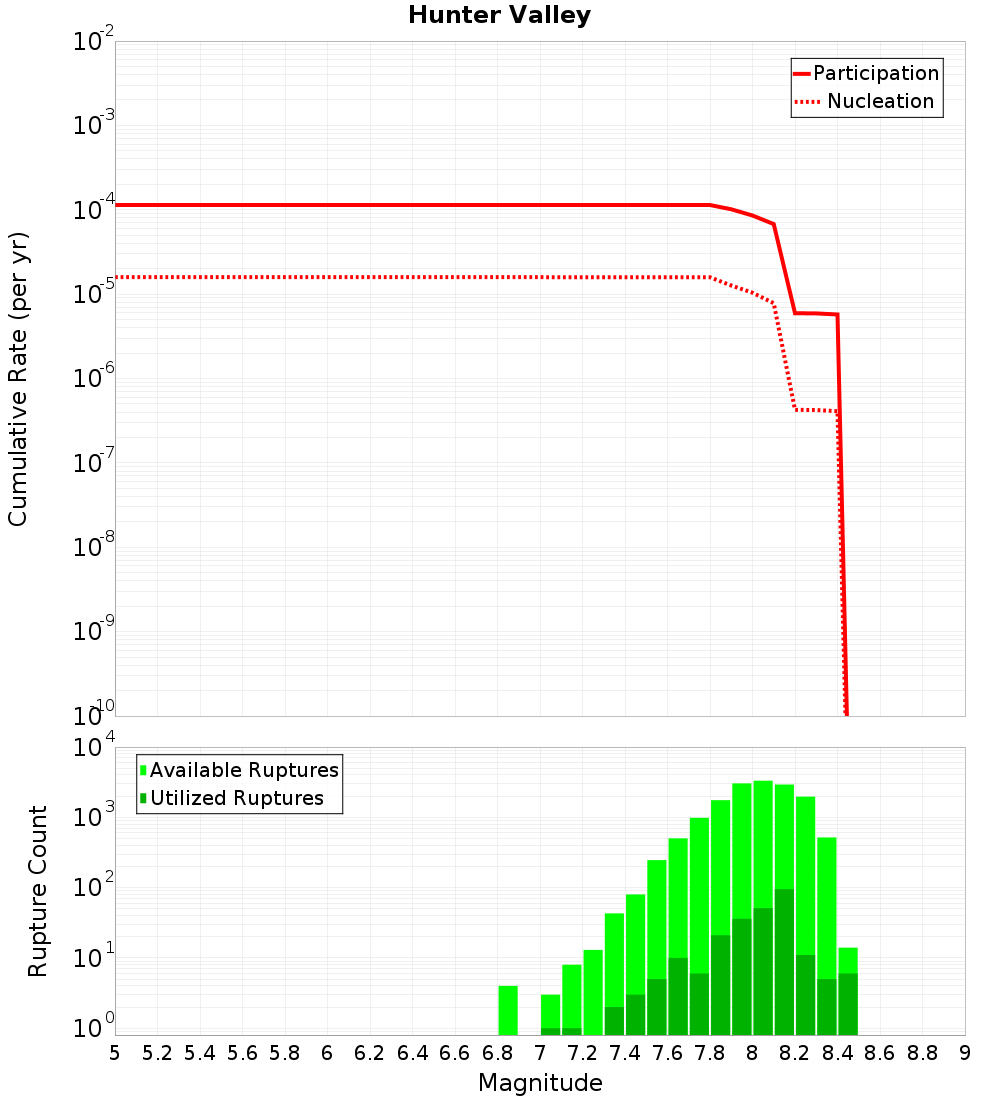

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

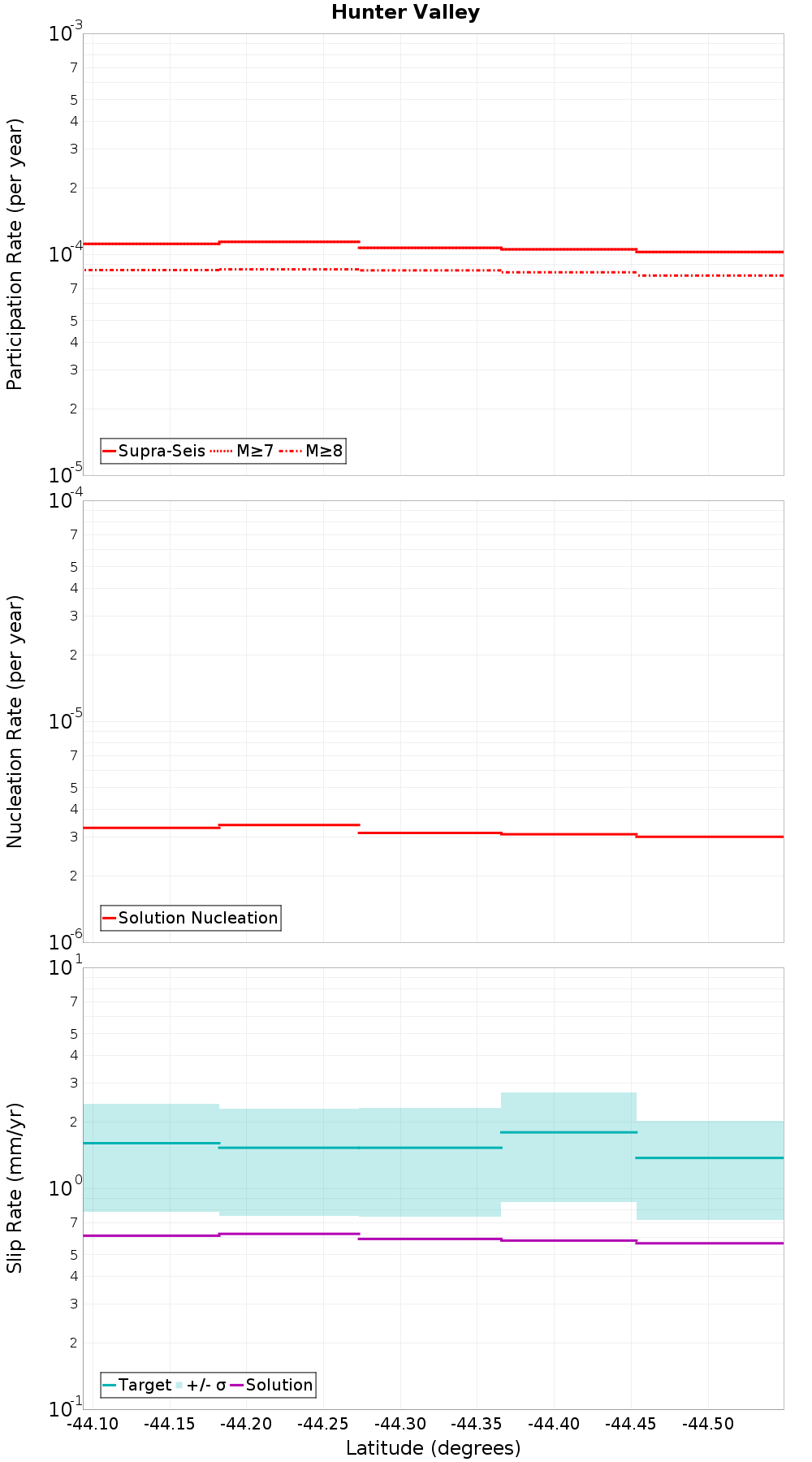

Along-Strike Values

(top)

Along-strike plot

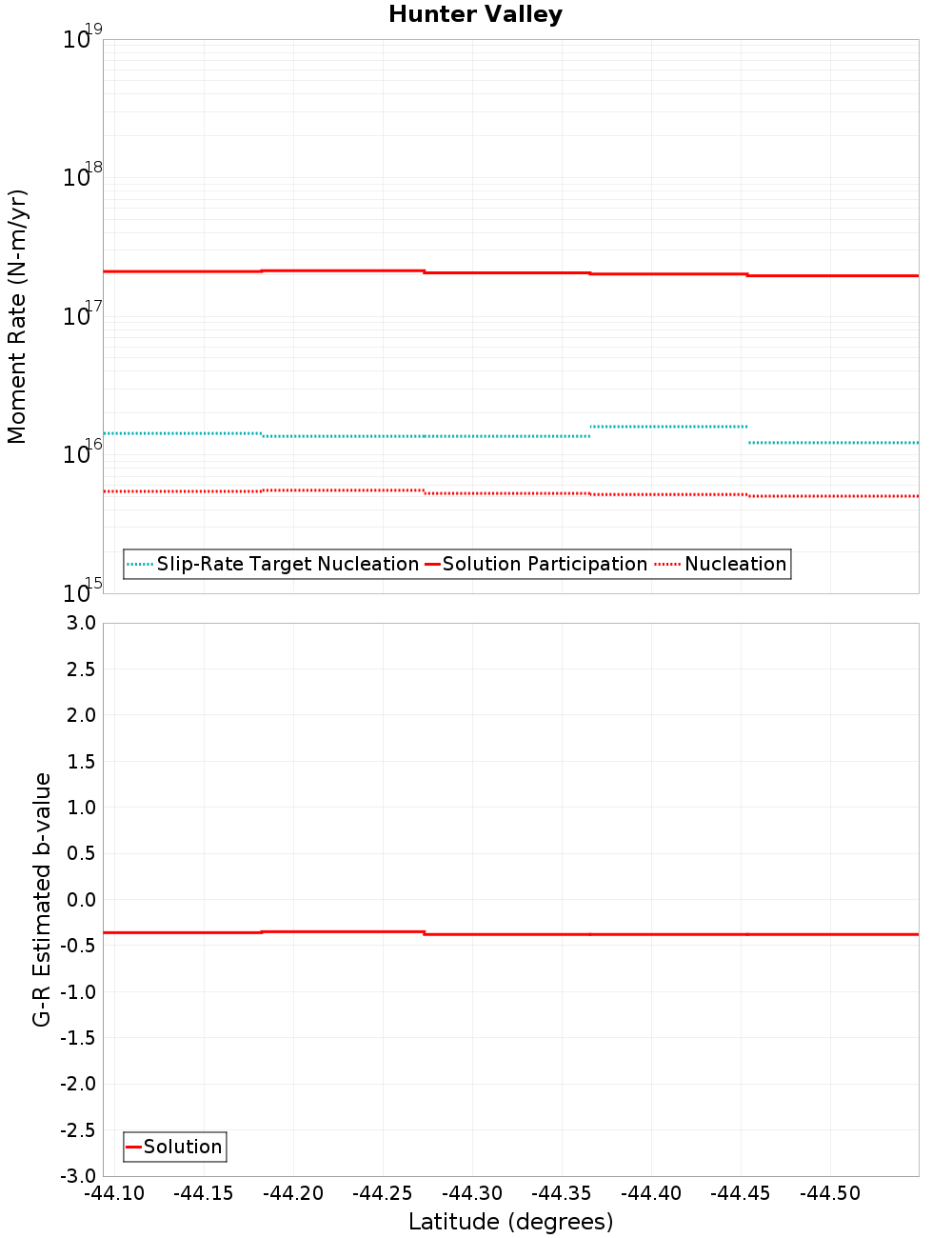

Moment-Rates and b-Values

(top)

Along-strike plot

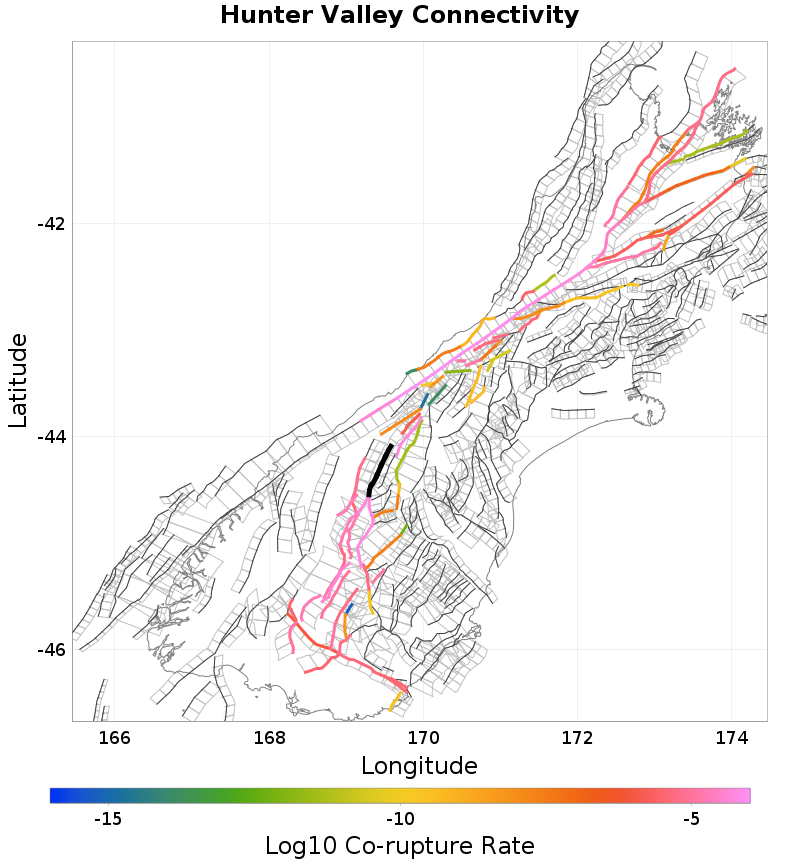

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wanaka, 0.26 km away
Cardrona - Hawea, 0.63 km away
Grandview, 1.98 km away
Timaru Creek, 4.93 km away
Dingle, 6.56 km away
Motatapu, 6.8 km away
Hopkins, 7.71 km away
Landsborough 2, 10.99 km away
Barrier Range, 14.29 km away
Alpine: Jacksons to Kaniere, 14.34 km away

Wanaka, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?true
Directly Connected?true
Co-rupture Count1,733
Co-rupture Rate6.9621046E-6

Cardrona - Hawea, 0.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?true
Directly Connected?true
Co-rupture Count7,461
Co-rupture Rate5.5173216E-5

Grandview, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?true
Directly Connected?true
Co-rupture Count4,448
Co-rupture Rate4.8729264E-5

Timaru Creek, 4.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?true
Directly Connected?true
Co-rupture Count144
Co-rupture Rate0.0

Dingle, 6.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?true
Directly Connected?true
Co-rupture Count206
Co-rupture Rate0.0

Motatapu, 6.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?true
Directly Connected?false
Co-rupture Count2,016
Co-rupture Rate1.749855E-5

Hopkins, 7.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?true
Directly Connected?true
Co-rupture Count6,689
Co-rupture Rate4.987878E-5

Landsborough 2, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate1.2887026E-8

Barrier Range, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?true
Directly Connected?false
Co-rupture Count150
Co-rupture Rate3.820892E-12

Alpine: Jacksons to Kaniere, 14.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MTguMGEyWlBx
Connected?true
Directly Connected?true
Co-rupture Count11,153
Co-rupture Rate9.035078E-5
