Mt White Details

Property	Value
Rupture Count	577
Ruptures Above Sect Min Mag	573
Ruptures w/ Nonzero Rates	51
Magnitude Range	[6.78, 7.86]
Length Range	[21, 247] km
Total Rate	5.1467483E-5 /yr
Multi-Fault Rate	5.1467483E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	25

Table Of Contents

Magnitude-Frequency Distribution

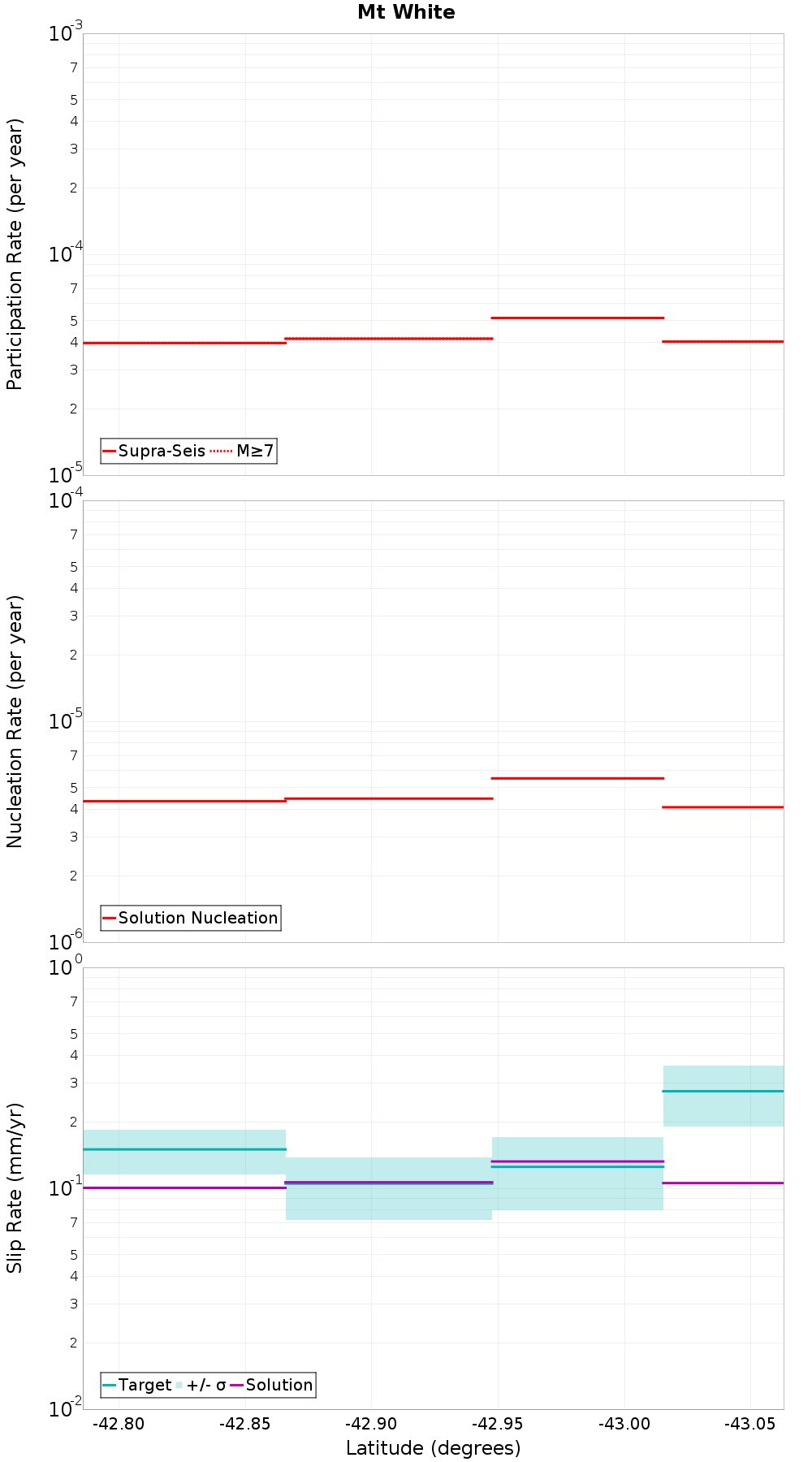

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

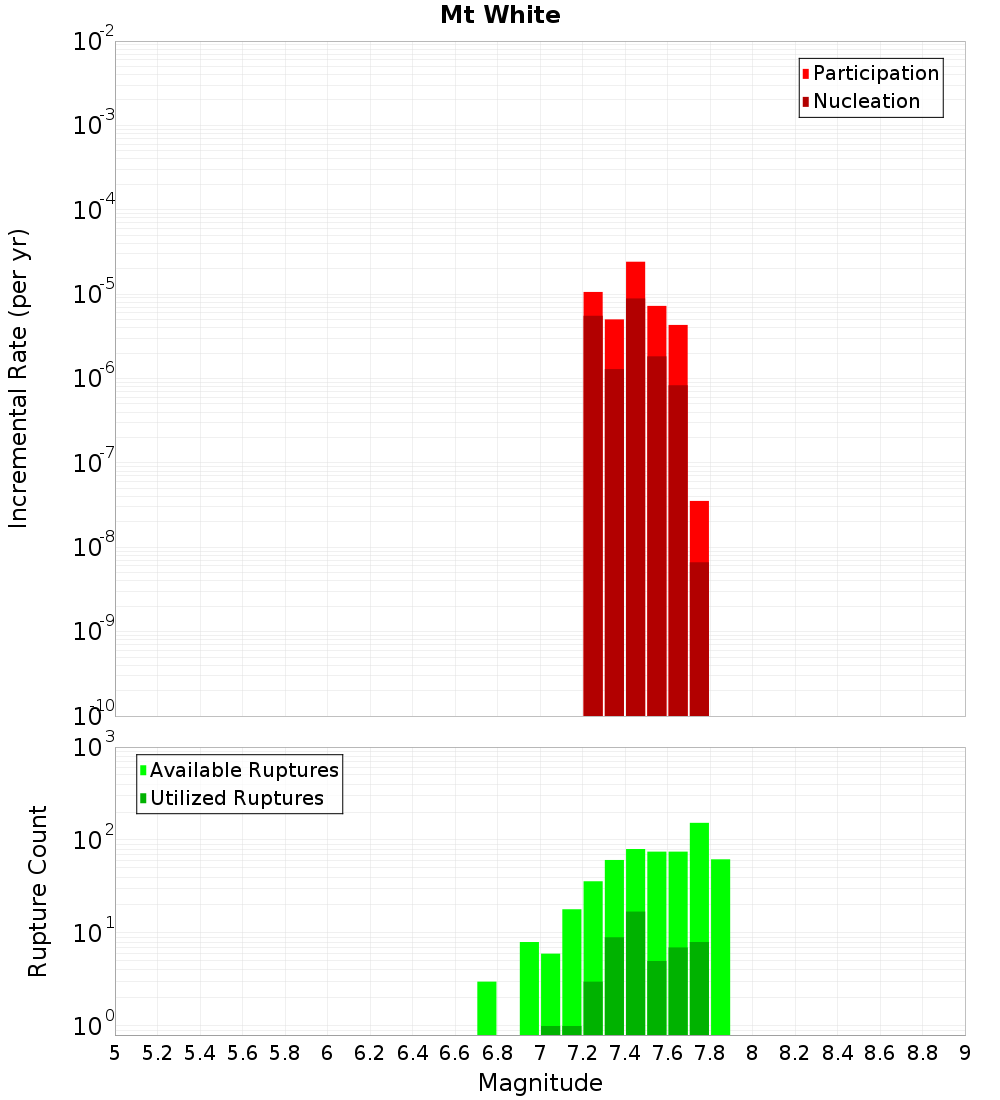

Magnitude-Frequency Distribution

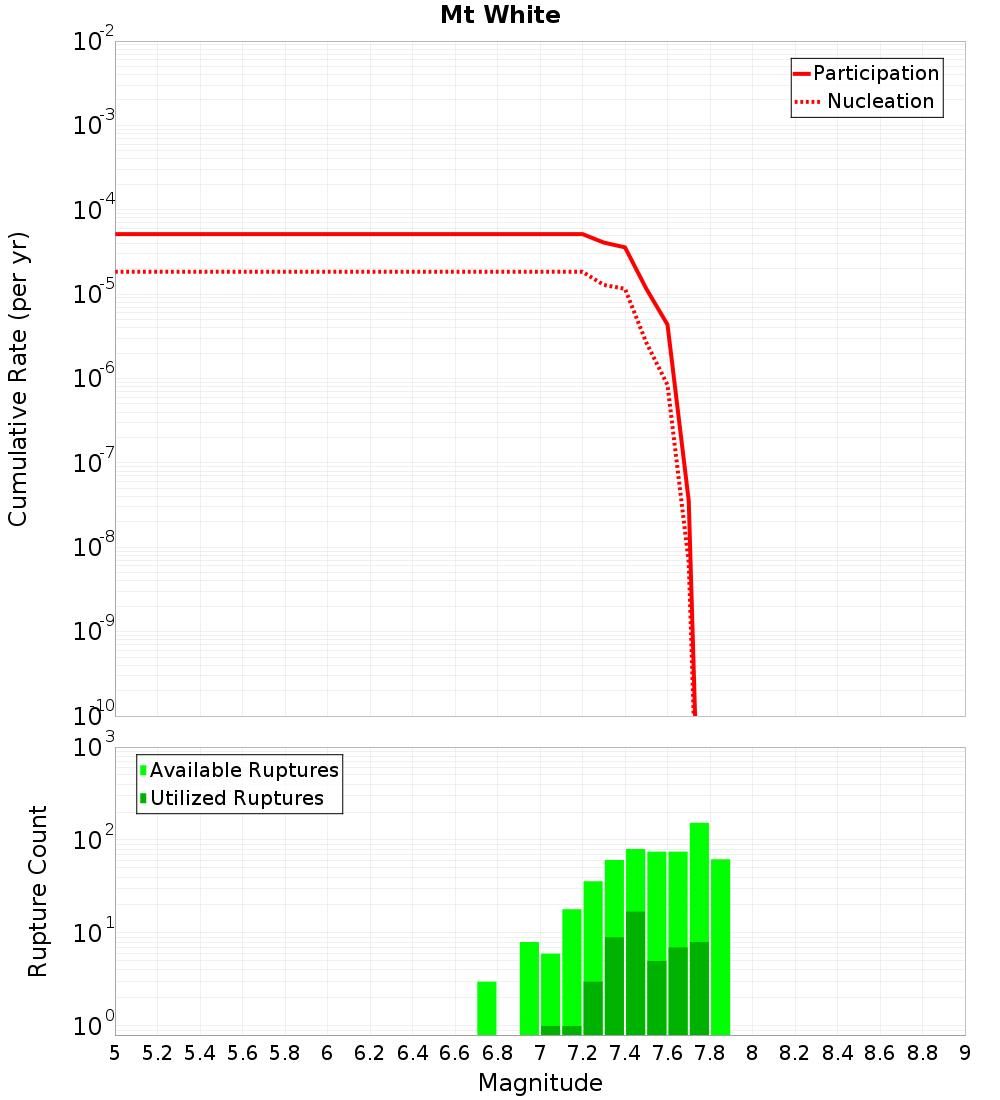

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Poulter, 0.32 km away
Sailor, 1.2 km away
Esk South, 5.23 km away
Harper, 6.24 km away
Cheeseman, 6.43 km away
Kakapo, 6.98 km away
Bruce, 10.34 km away
Esk North, 10.75 km away
Hope: Hope River, 12.41 km away
Hope: Taramakau, 12.87 km away
Hope: Hurunui, 13.57 km away
Pancake, 14.75 km away

Poulter, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	0.0

Sailor, 1.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	true
Directly Connected?	true
Co-rupture Count	362
Co-rupture Rate	1.691246E-5

Esk South, 5.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Harper, 6.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	true
Directly Connected?	false
Co-rupture Count	408
Co-rupture Rate	7.277659E-6

Cheeseman, 6.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	true
Directly Connected?	true
Co-rupture Count	313
Co-rupture Rate	4.434371E-5

Kakapo, 6.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Bruce, 10.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Esk North, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hope River, 12.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Taramakau, 12.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hurunui, 13.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pancake, 14.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjUuMHFxaVJw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
