Akitio Trough West Details

PropertyValue
Rupture Count24,378
Ruptures Above Sect Min Mag24,371
Ruptures w/ Nonzero Rates44
Magnitude Range[7.17, 8.58]
Length Range[27, 788] km
Total Rate7.0095746E-5 /yr
Multi-Fault Rate4.903299E-5 /yr (69.95%)
Directly-Connected Faults12
All Co-Rupturing Faults110

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

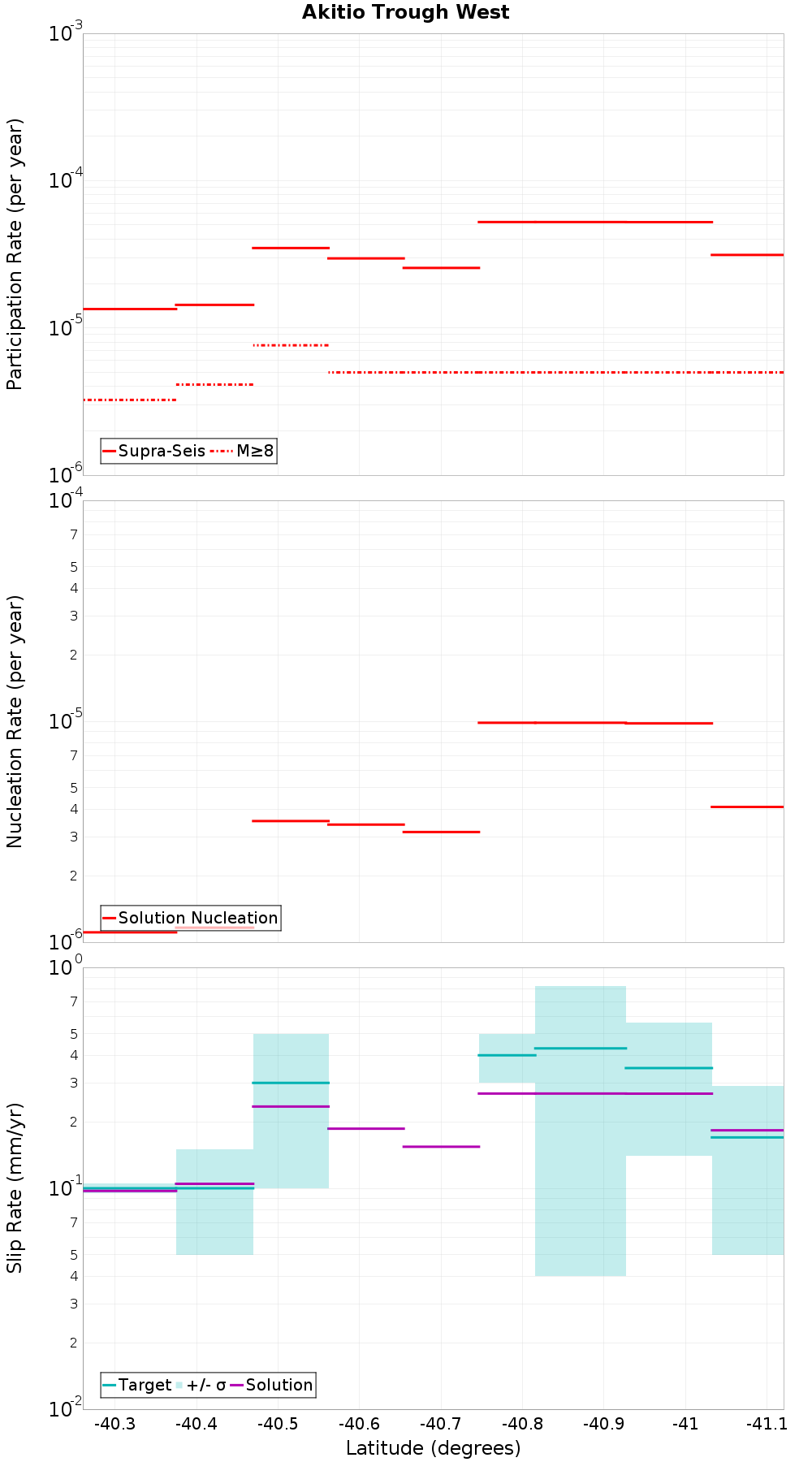

Along-Strike Values

(top)

Along-strike plot

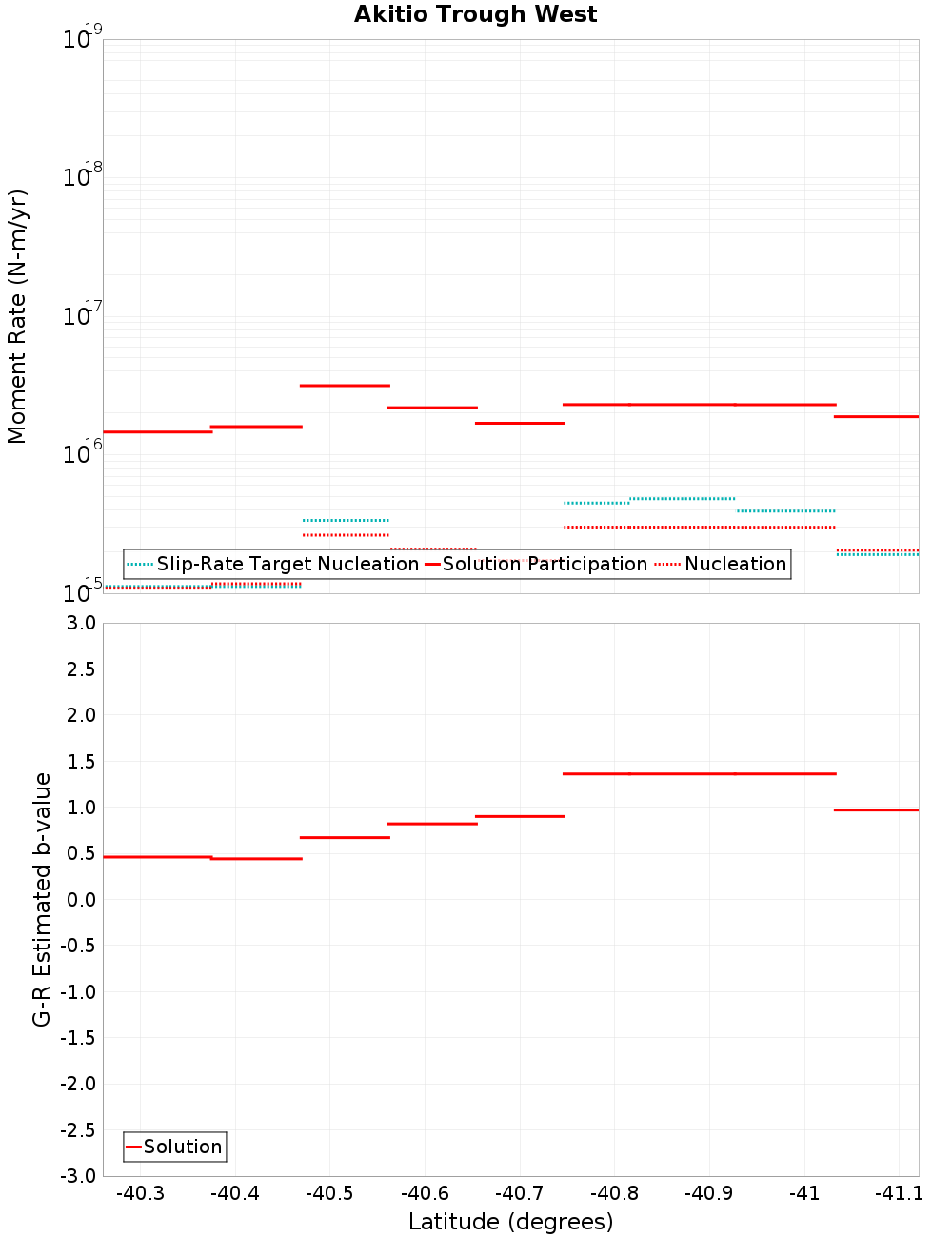

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Pukeroro Ridge, 0.93 km awayF14 - North, 8.79 km away
Rock Garden - Ritchie East, 1.16 km awayPorWest2 - PaoanuiRSouth, 10.35 km away
Aorangi Trough, 2.57 km awayBennett Knoll, 11.25 km away
Porangahau Northeast, 2.96 km awayF17 - South, 11.75 km away
Porangahau Ridge, 3.24 km awayBKSmt-North, 11.87 km away
Akitio Ridge, 3.45 km awayF16 - South, 12.01 km away
Paoanui Ridge North, 6.7 km awayUruti East - PorWest 1, 13.04 km away
Porangahau Basin, 7.99 km awayRitchie West 1, 13.23 km away
F16 - Central, 8.18 km awayF16 - North, 14.03 km away
Aorangi Ridge, 8.36 km away

Pukeroro Ridge, 0.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count14,453
Co-rupture Rate5.9825186E-7

Rock Garden - Ritchie East, 1.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count13,066
Co-rupture Rate3.4992113E-6

Aorangi Trough, 2.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count2,073
Co-rupture Rate2.7747472E-5

Porangahau Northeast, 2.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count3,665
Co-rupture Rate4.951648E-6

Porangahau Ridge, 3.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count3,950
Co-rupture Rate0.0

Akitio Ridge, 3.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count1,948
Co-rupture Rate4.5972793E-6

Paoanui Ridge North, 6.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count1,119
Co-rupture Rate4.951648E-6

Porangahau Basin, 7.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count1,846
Co-rupture Rate0.0

F16 - Central, 8.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count1,747
Co-rupture Rate0.0

Aorangi Ridge, 8.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count1,224
Co-rupture Rate5.5199603E-6

F14 - North, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

PorWest2 - PaoanuiRSouth, 10.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count719
Co-rupture Rate2.9375669E-12

Bennett Knoll, 11.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count531
Co-rupture Rate1.7772298E-5

F17 - South, 11.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count1,000
Co-rupture Rate5.557813E-6

BKSmt-North, 11.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

F16 - South, 12.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count435
Co-rupture Rate0.0

Uruti East - PorWest 1, 13.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count1,261
Co-rupture Rate0.0

Ritchie West 1, 13.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count655
Co-rupture Rate0.0

F16 - North, 14.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
