Balmoral Details

PropertyValue
Rupture Count2,186
Ruptures Above Sect Min Mag2,186
Ruptures w/ Nonzero Rates23
Magnitude Range[7.09, 8.32]
Length Range[20, 470] km
Total Rate2.2030175E-5 /yr
Multi-Fault Rate2.2030175E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults55

Table Of Contents

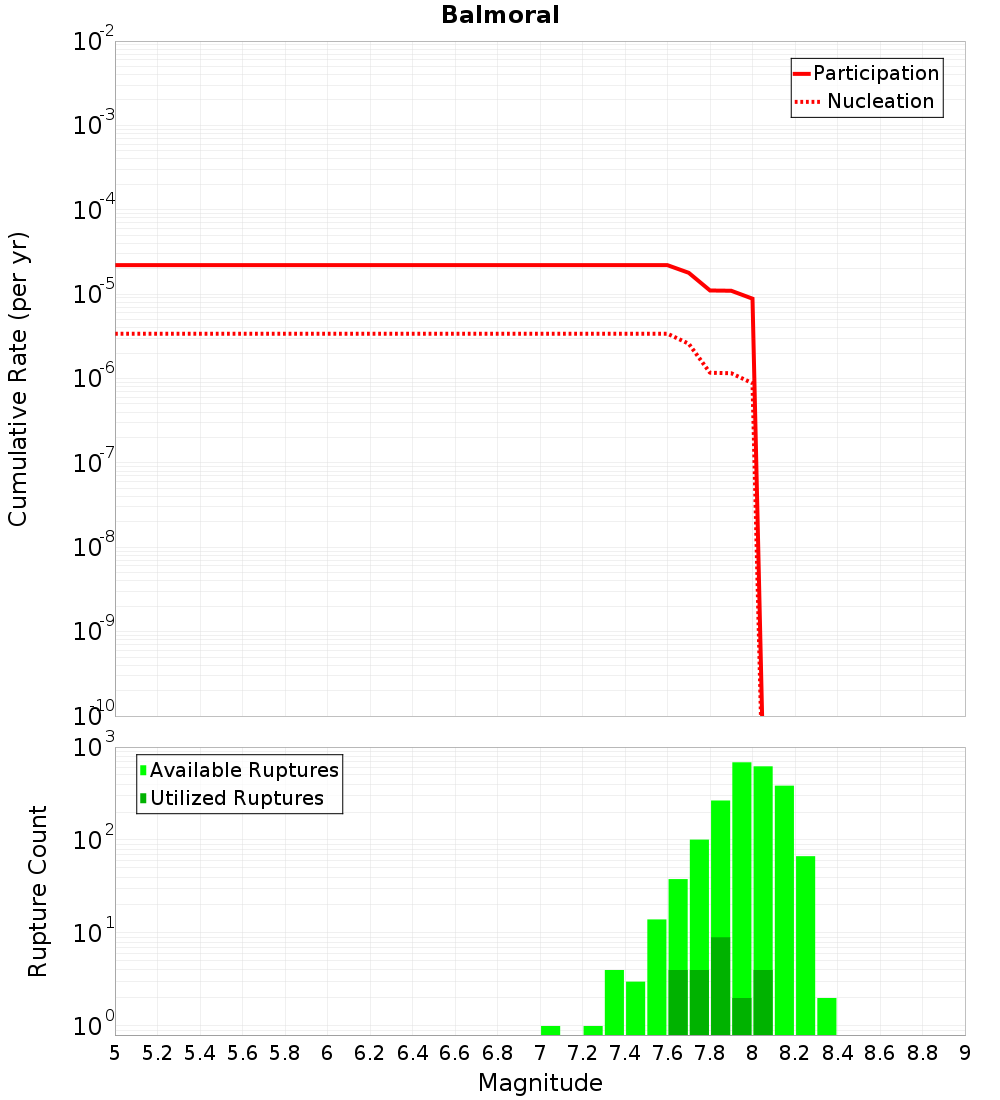

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

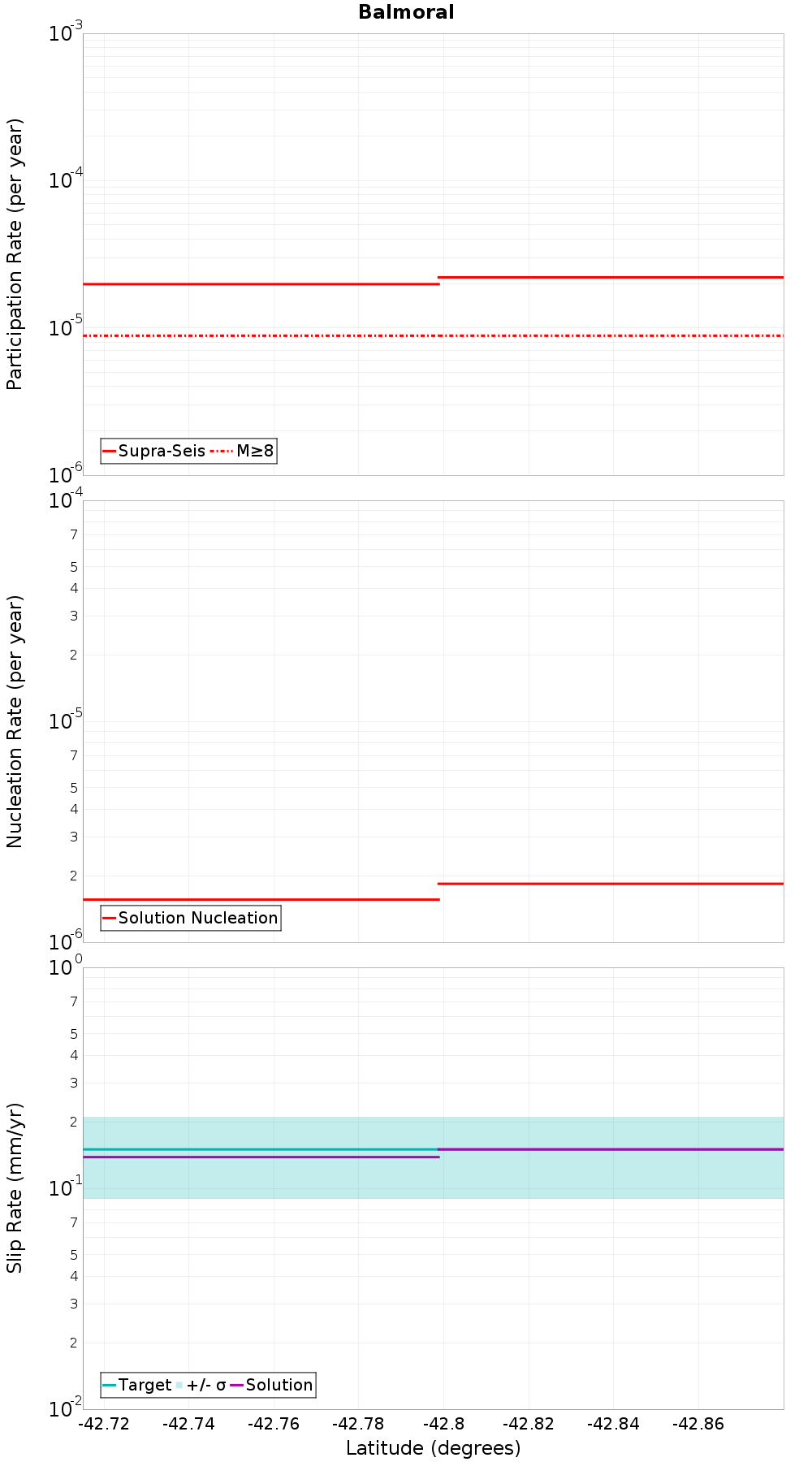

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mt Culverden, 0.1 km away
Doctors, 0.29 km away
Lowry, 0.6 km away
Hurunui Peak, 2.94 km away
Alexander, 3.99 km away
Virginia, 5.52 km away
Pancake, 7.4 km away
Kaiwara South, 7.55 km away
Leonard Mound, 11.2 km away
Esk North, 13.58 km away
Hope: Hamner SW, 14.75 km away
Mt Arden, 14.85 km away

Mt Culverden, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count2,035
Co-rupture Rate1.904518E-5

Doctors, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count728
Co-rupture Rate2.2223674E-6

Lowry, 0.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Alexander, 3.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Virginia, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count1,360
Co-rupture Rate2.2027776E-5

Pancake, 7.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 7.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leonard Mound, 11.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate7.157155E-6

Esk North, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count79
Co-rupture Rate8.833584E-6

Hope: Hamner SW, 14.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Arden, 14.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count965
Co-rupture Rate6.059112E-8
