Caswell 211 Details

Property	Value
Rupture Count	485
Ruptures Above Sect Min Mag	483
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.82, 8.39]
Length Range	[16, 552] km
Total Rate	8.9794834E-5 /yr
Multi-Fault Rate	8.9794834E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	20

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

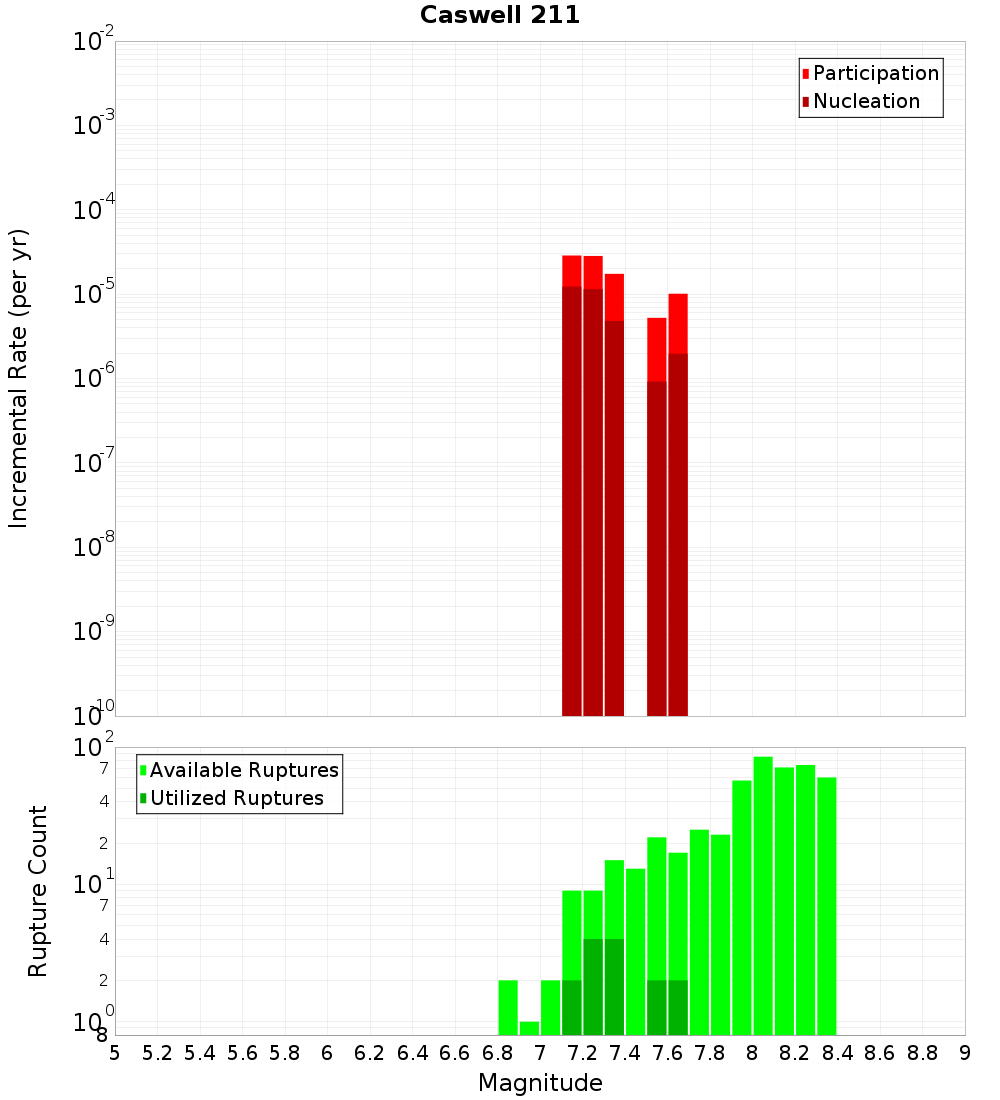

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

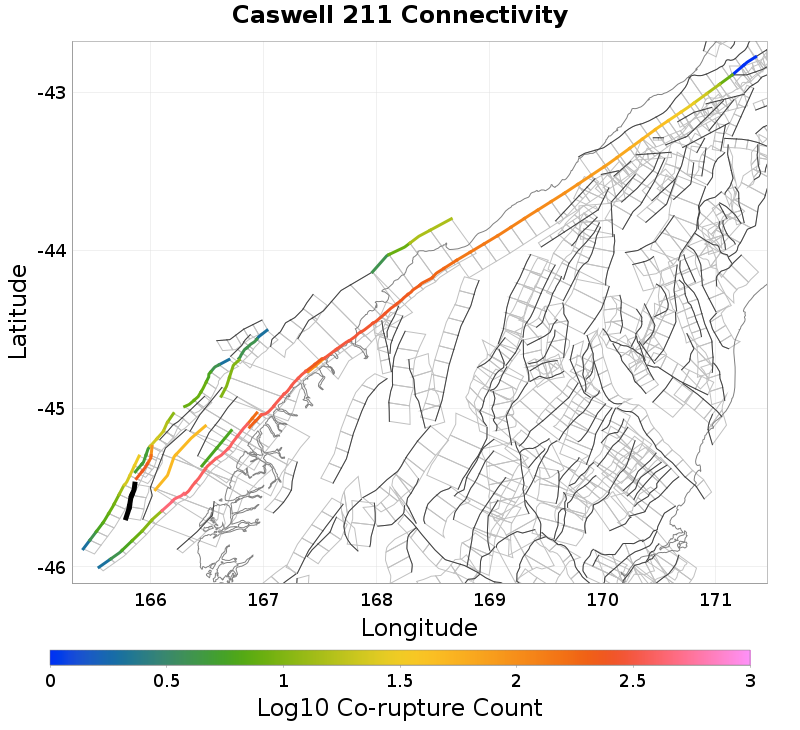

Connectivity

Nearby Sections

Fault Section
Caswell High 3, 1.97 km away
Caswell High 1, 4.72 km away
Caswell High 4, 6.17 km away
Alpine: Resolution - Five Fingers, 8.74 km away
South Wedge 5, 9.58 km away
South Wedge 3-6-10, 12.6 km away

Caswell High 3, 1.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?	true
Directly Connected?	true
Co-rupture Count	230
Co-rupture Rate	6.171439E-5

Caswell High 1, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?	true
Directly Connected?	true
Co-rupture Count	30
Co-rupture Rate	2.8080449E-5

Caswell High 4, 6.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	5.7769237E-5

Alpine: Resolution - Five Fingers, 8.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?	true
Directly Connected?	true
Co-rupture Count	444
Co-rupture Rate	0.0

South Wedge 5, 9.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

South Wedge 3-6-10, 12.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?	true
Directly Connected?	false
Co-rupture Count	48
Co-rupture Rate	0.0
