Hump Ridge Details
| Property | Value |
|---|---|
| Rupture Count | 206 |
| Ruptures Above Sect Min Mag | 201 |
| Ruptures w/ Nonzero Rates | 22 |
| Magnitude Range | [7.03, 8.29] |
| Length Range | [22, 373] km |
| Total Rate | 1.6104369E-4 /yr |
| Multi-Fault Rate | 1.6103071E-4 /yr (99.99%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

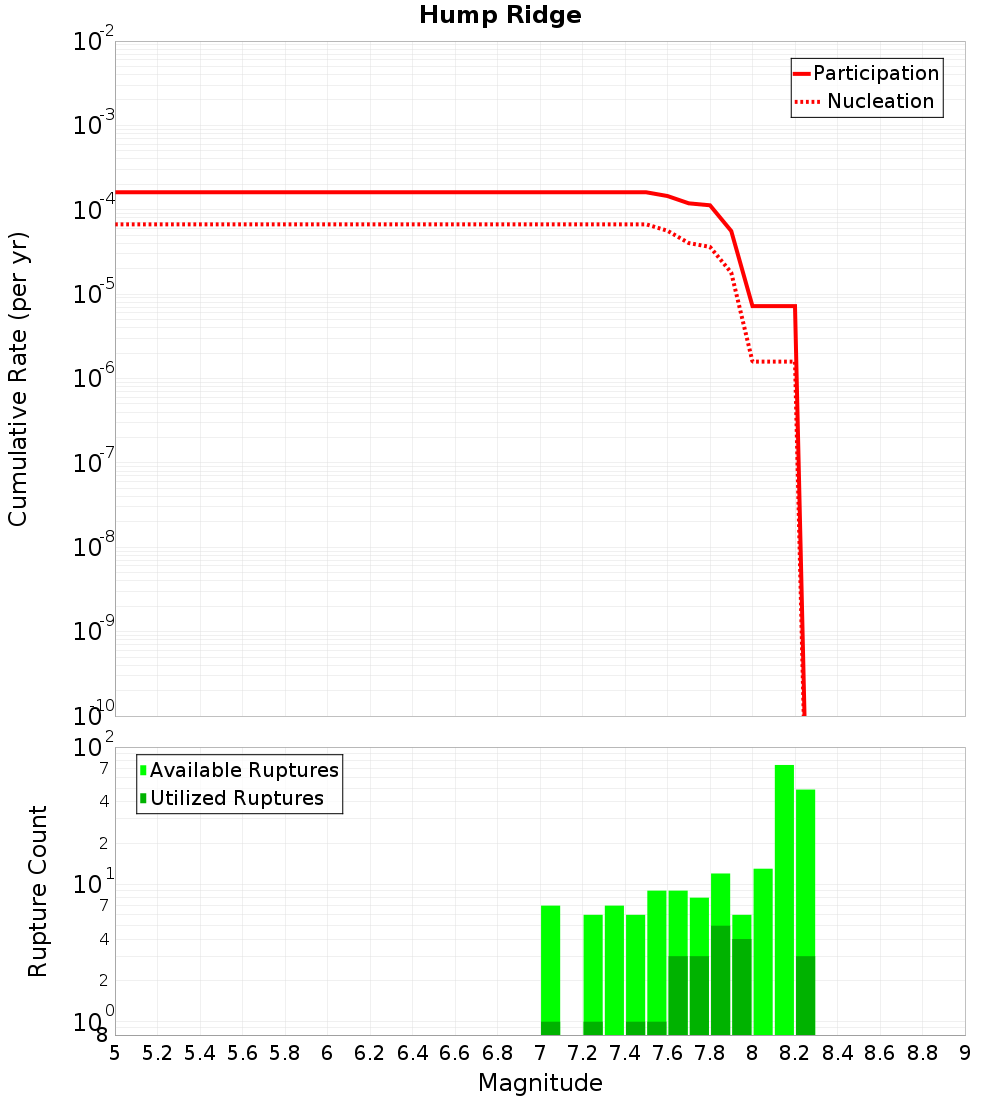

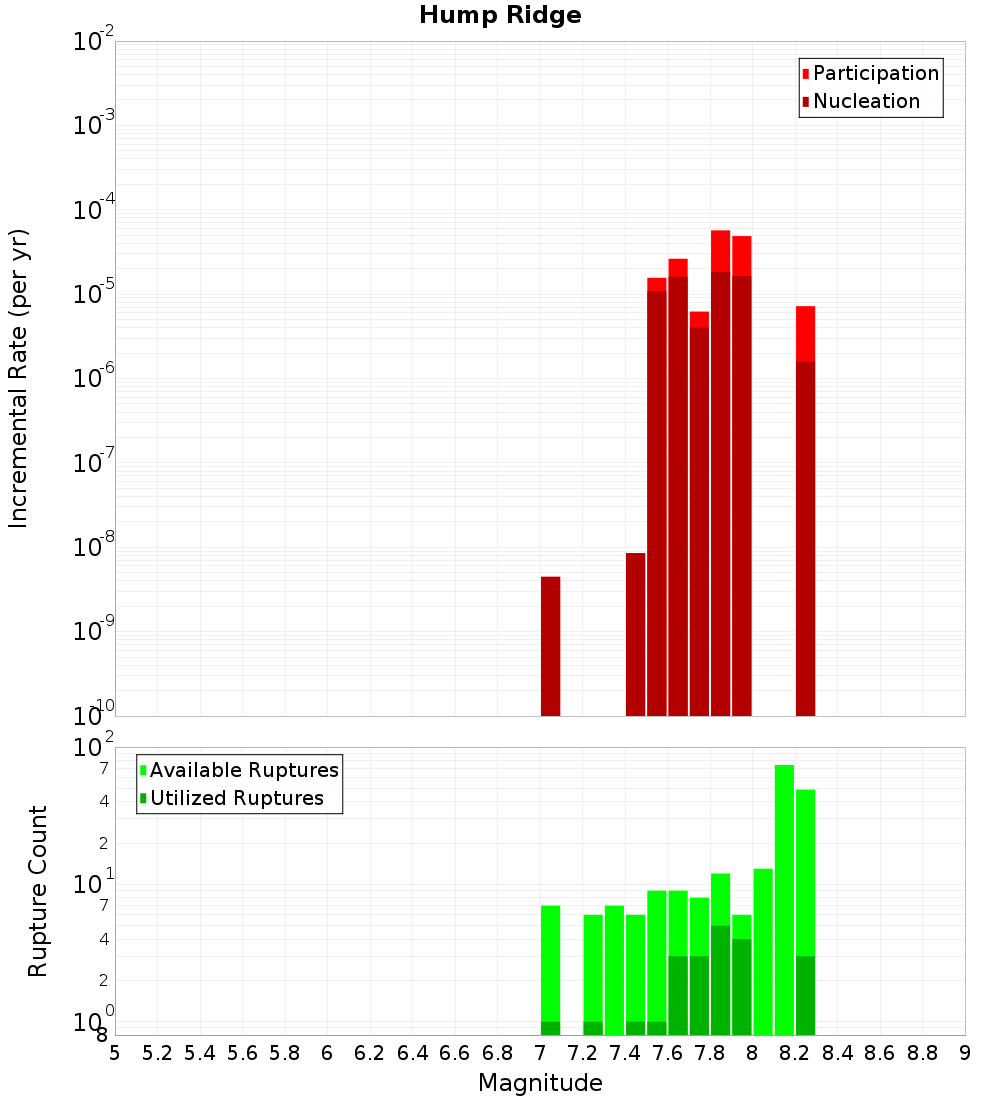

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

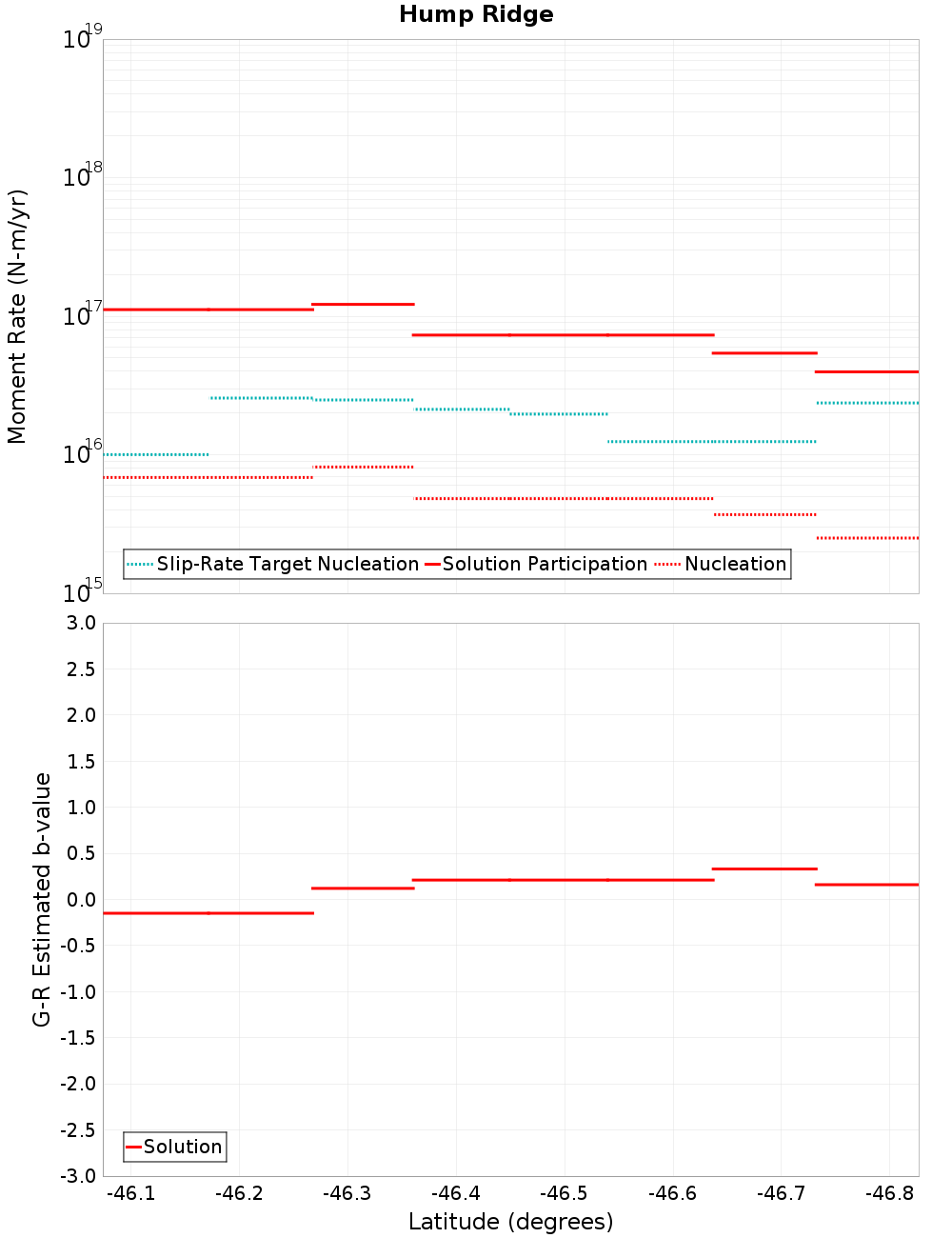

Moment-Rates and b-Values

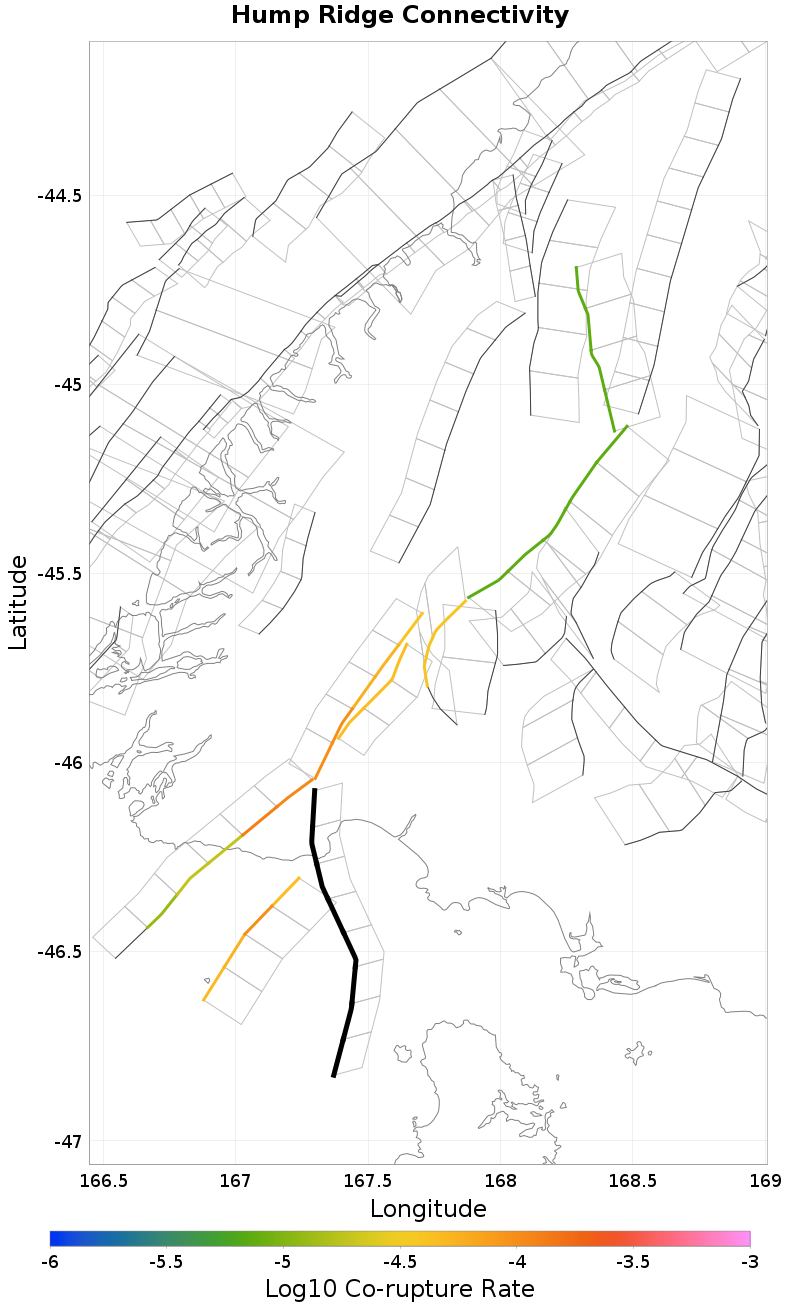

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: South, 3.03 km away |
| Hauroko: North, 3.59 km away |
| Solander, 5.34 km away |
| Monowai, 10.25 km away |
Hauroko: South, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 171 |
| Co-rupture Rate | 1.2702715E-4 |
Hauroko: North, 3.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 154 |
| Co-rupture Rate | 1.0059053E-4 |
Solander, 5.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 26 |
| Co-rupture Rate | 9.848553E-5 |
Monowai, 10.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 47 |
| Co-rupture Rate | 4.3988985E-5 |
