Ohena 3 Details

PropertyValue
Rupture Count68
Ruptures Above Sect Min Mag67
Ruptures w/ Nonzero Rates68
Magnitude Range[7.13, 7.85]
Length Range[23, 128] km
Total Rate1.4455098E-4 /yr
Multi-Fault Rate1.3986973E-4 /yr (96.76%)
Directly-Connected Faults6
All Co-Rupturing Faults11

Table Of Contents

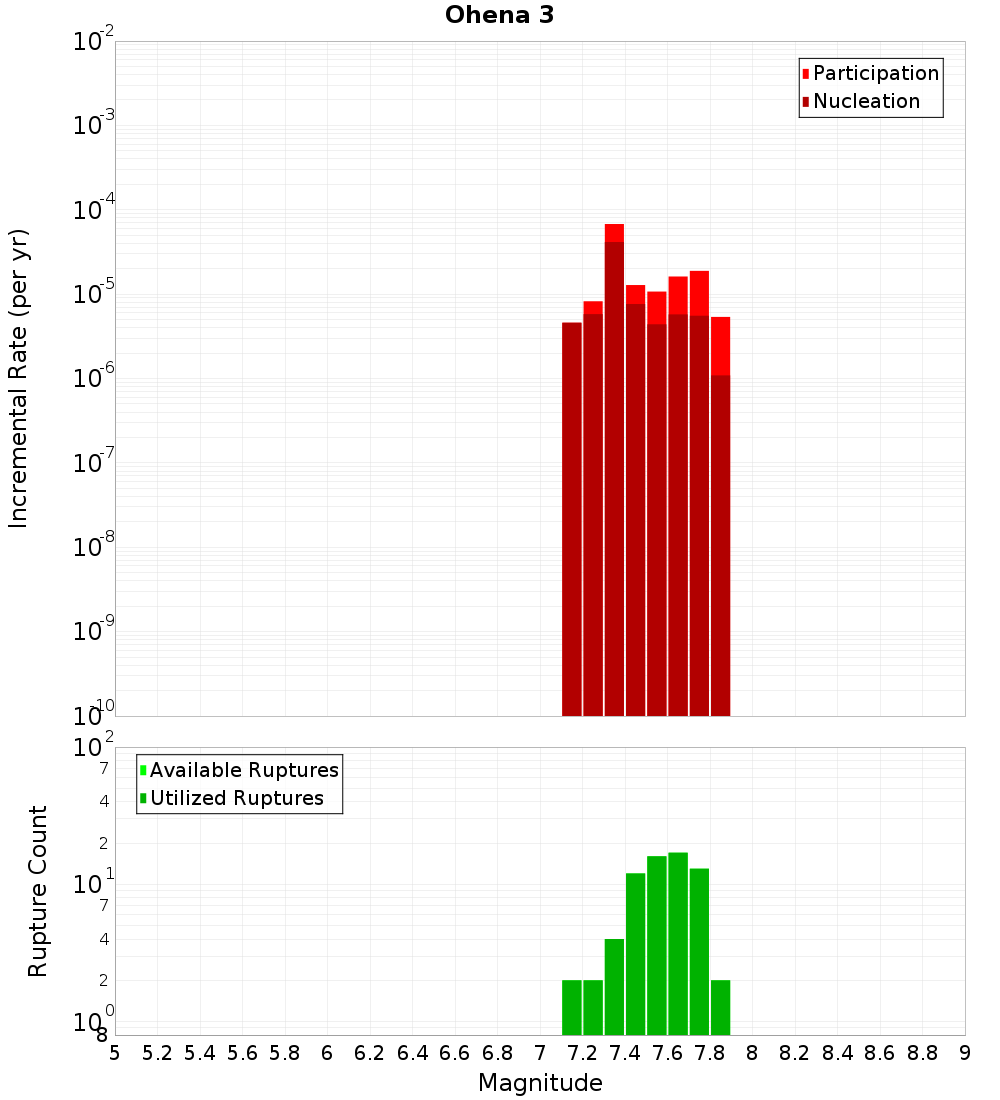

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

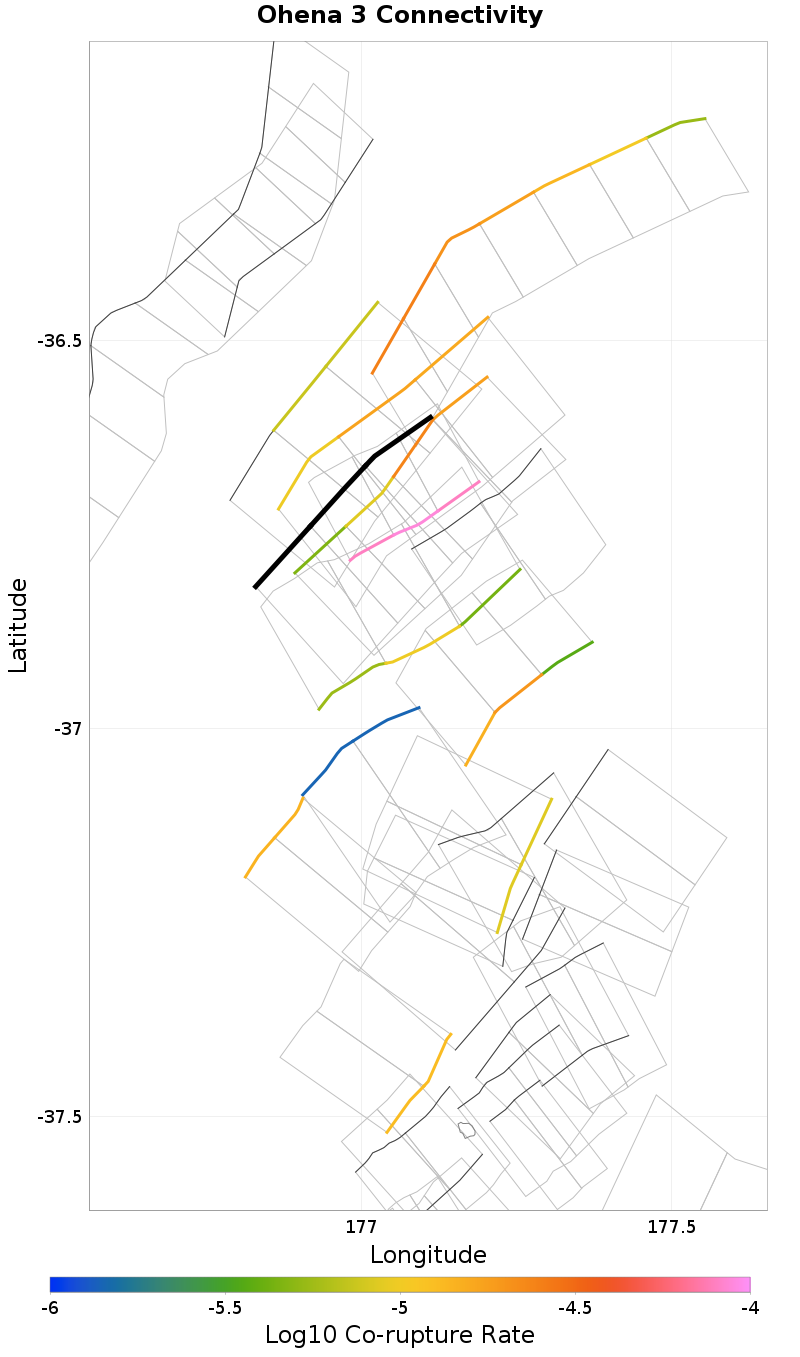

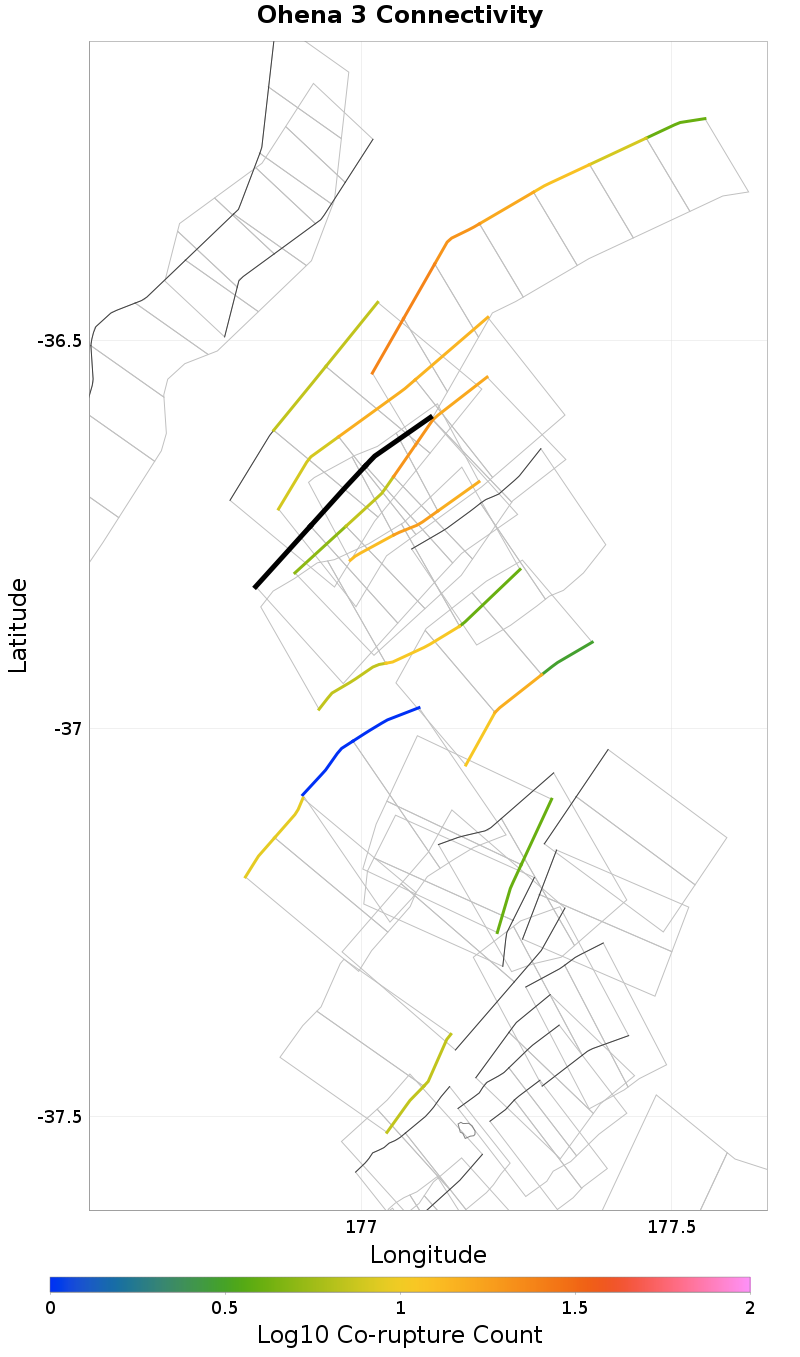

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tauranga Trough West 2, 0.08 km away
Ngatoro South 5, 0.25 km away
Ohena 2, 0.49 km away
Ohena 4, 3.91 km away
Tauranga Trough East 2, 5.27 km away
Ngatoro West 1, 7.61 km away
Ohena 5, 8.41 km away
Ngatoro South 2, 9.72 km away
Otara West 2, 13.23 km away

Tauranga Trough West 2, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate9.73488E-6

Ngatoro South 5, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count18
Co-rupture Rate8.7826455E-5

Ohena 2, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate2.4655308E-5

Ohena 4, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate1.7112809E-5

Tauranga Trough East 2, 5.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate1.9681254E-5

Ngatoro West 1, 7.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate2.5020792E-5

Ohena 5, 8.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate7.3336178E-6

Ngatoro South 2, 9.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 2, 13.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate8.586887E-6
