Patoka - Rangiora Details

PropertyValue
Rupture Count4,645
Ruptures Above Sect Min Mag4,642
Ruptures w/ Nonzero Rates96
Magnitude Range[7.01, 8.44]
Length Range[22, 605] km
Total Rate9.3271636E-5 /yr
Multi-Fault Rate9.3271636E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults84

Table Of Contents

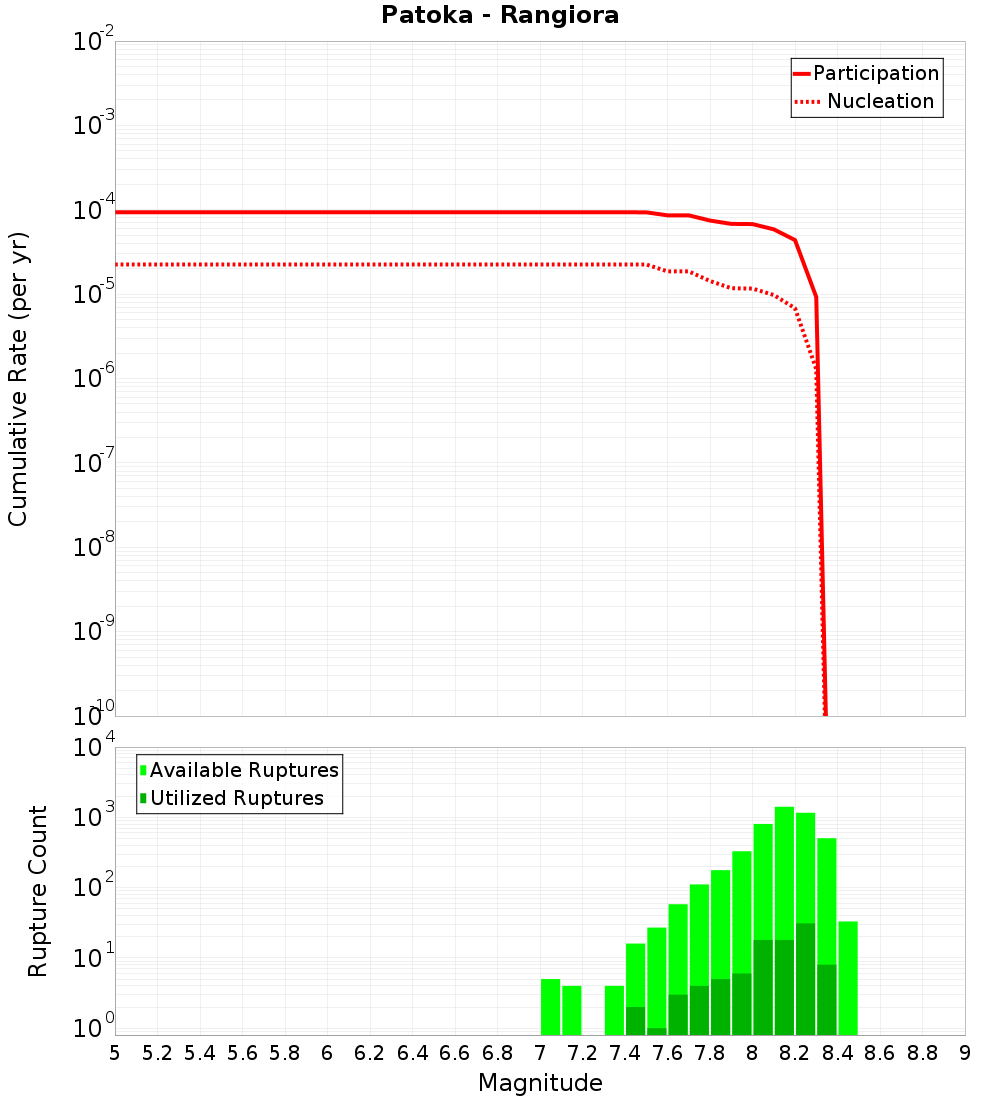

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

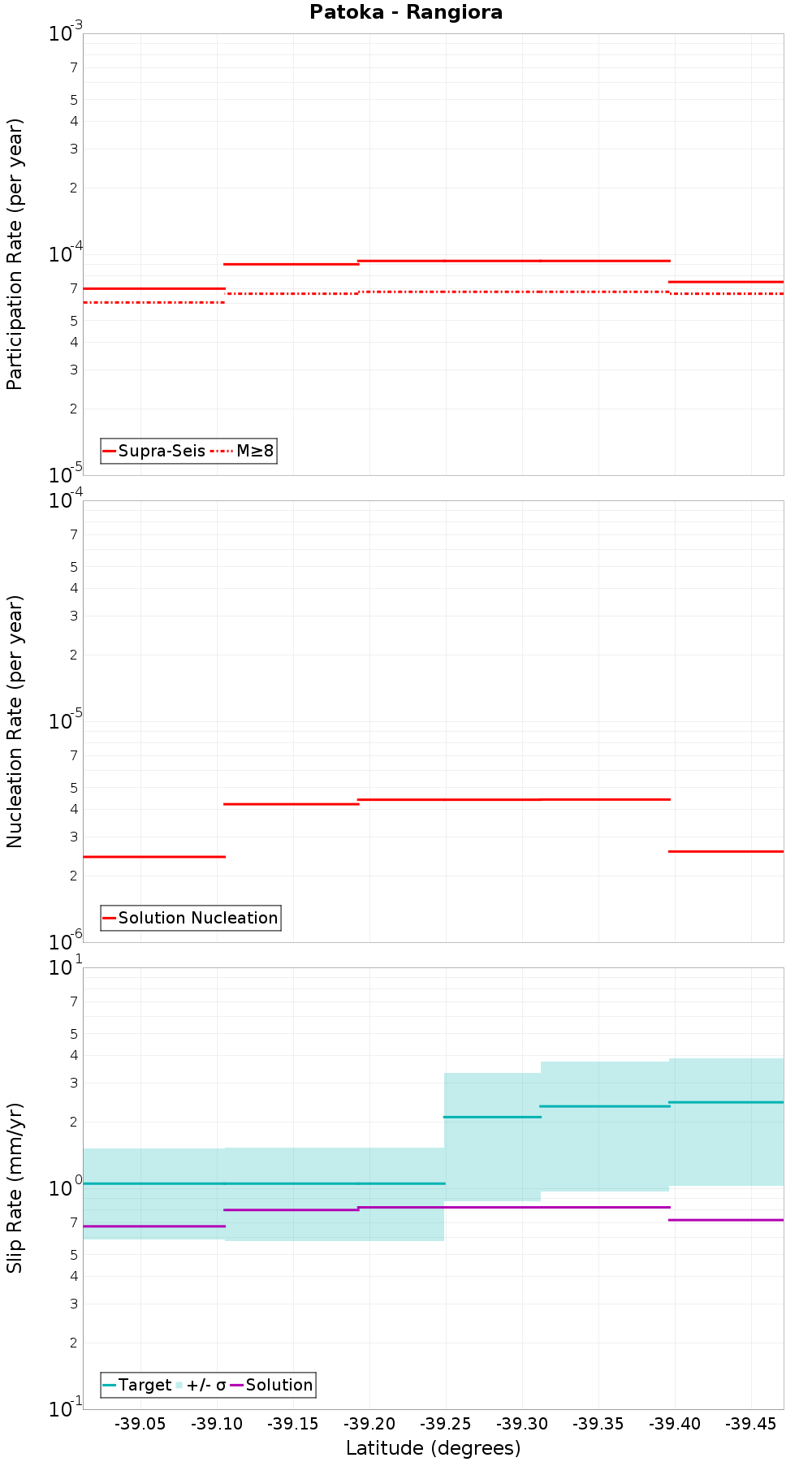

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: North, 0.38 km away
Awanui, 3.5 km away
Mohaka: South, 5.52 km away
Ruahine: North, 6.53 km away
Waiotahi: South, 7.73 km away
Waimana: South, 10.75 km away
Whakatane: South, 12.37 km away
Ruahine: Central, 12.67 km away
Hawke Bay 1, 13.16 km away
Wakarara, 14.99 km away

Mohaka: North, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count1,990
Co-rupture Rate4.795965E-5

Awanui, 3.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count213
Co-rupture Rate1.8424551E-5

Mohaka: South, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count4,930
Co-rupture Rate8.305602E-5

Ruahine: North, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count94
Co-rupture Rate2.1776586E-11

Waiotahi: South, 7.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate0.0

Waimana: South, 10.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count946
Co-rupture Rate2.5397385E-5

Whakatane: South, 12.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count941
Co-rupture Rate2.2562266E-5

Ruahine: Central, 12.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 1, 13.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Wakarara, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
