Rangitikei Offshore 1 Details

PropertyValue
Rupture Count137
Ruptures Above Sect Min Mag137
Ruptures w/ Nonzero Rates14
Magnitude Range[7.25, 8.14]
Length Range[29, 285] km
Total Rate4.5667908E-5 /yr
Multi-Fault Rate4.5667908E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults22

Table Of Contents

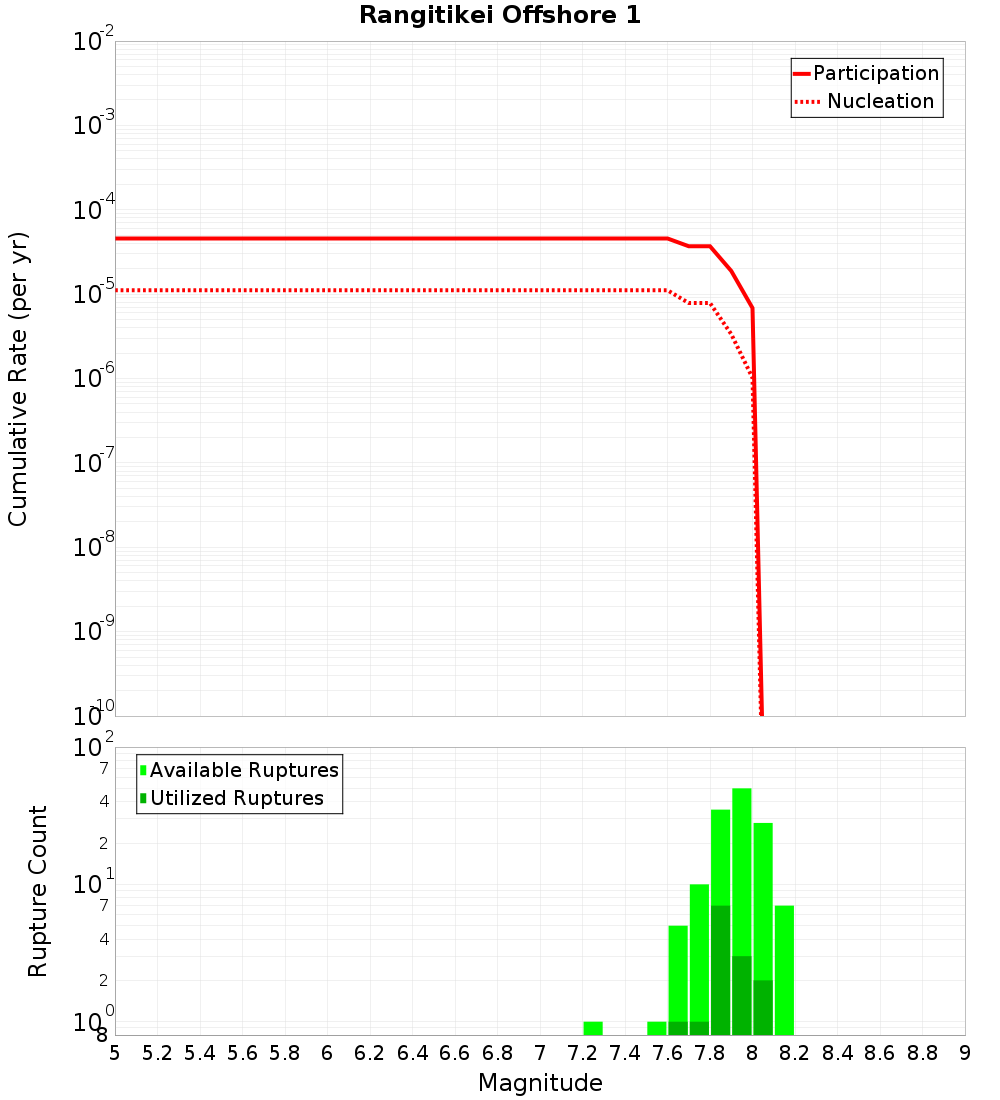

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

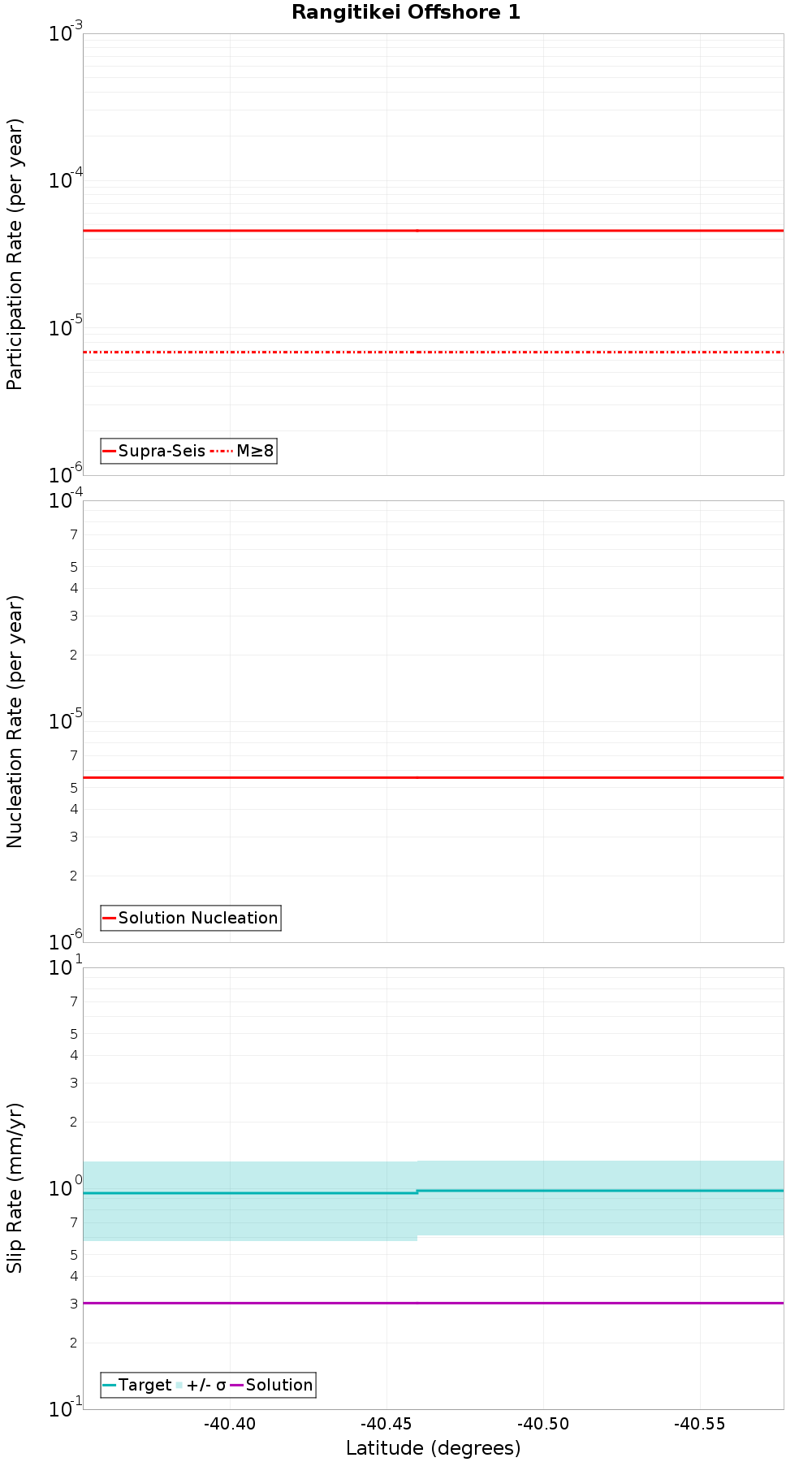

Along-Strike Values

(top)

Along-strike plot

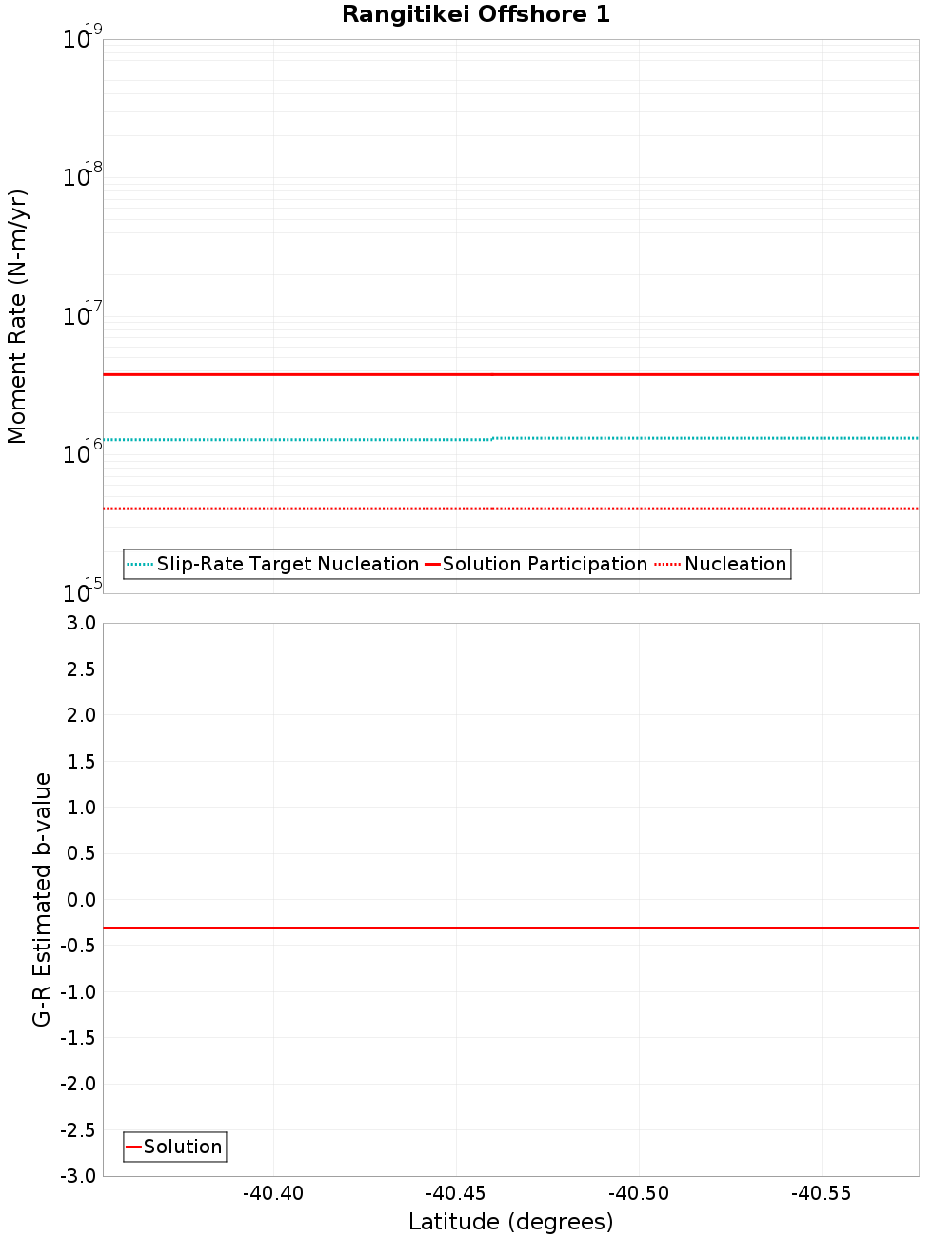

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Levin Anticline, 0.17 km away
Otaheke North, 0.19 km away
Himatangi, 0.21 km away
Poroutawhao, 0.41 km away
Onepoto, 0.76 km away
Fisherman 3, 2.73 km away
Mt Stewart, 8.25 km away
Mascarin, 9.57 km away
Northern Ohariu, 12.12 km away
Leedstown, 14.34 km away

Levin Anticline, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke North, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count110
Co-rupture Rate2.8123384E-5

Himatangi, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.8913865E-5

Poroutawhao, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Onepoto, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count57
Co-rupture Rate2.1621134E-5

Fisherman 3, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.957103E-5

Mt Stewart, 8.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mascarin, 9.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 12.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leedstown, 14.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.0855783E-5
