Te Rapa 1 Details
| Property | Value |
|---|---|
| Rupture Count | 53,266 |
| Ruptures Above Sect Min Mag | 53,264 |
| Ruptures w/ Nonzero Rates | 100 |
| Magnitude Range | [6.67, 8.66] |
| Length Range | [15, 1,076] km |
| Total Rate | 1.0757229E-4 /yr |
| Multi-Fault Rate | 1.0757229E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 198 |
Table Of Contents

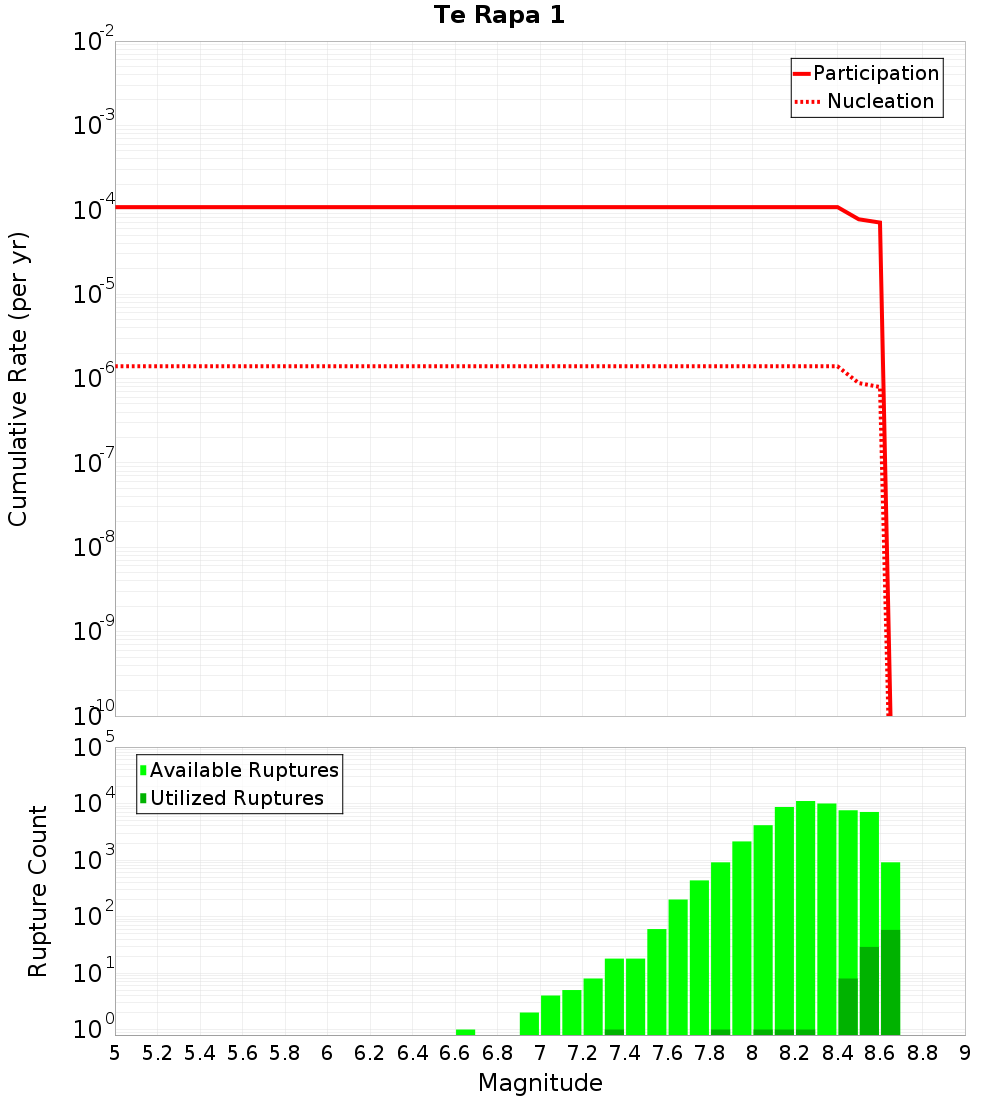

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hope: Te Rapa, 0 km away |
| Te Rapa 2, 0 km away |
| Upper Slope, 0.13 km away |
| Kekerengu Bank, 3.06 km away |
| Campbell Bank, 3.6 km away |
| Wharanui, 5.8 km away |
| Chancet, 8.16 km away |
Hope: Te Rapa, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 52,761 |
| Co-rupture Rate | 1.0757229E-4 |
Te Rapa 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 50,202 |
| Co-rupture Rate | 7.7969824E-5 |
Upper Slope, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Kekerengu Bank, 3.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 118 |
| Co-rupture Rate | 0.0 |
Campbell Bank, 3.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Wharanui, 5.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Chancet, 8.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 1.7657338E-10 |
