Upper Kowhai - Manakau Details

PropertyValue
Rupture Count3,137
Ruptures Above Sect Min Mag3,134
Ruptures w/ Nonzero Rates88
Magnitude Range[6.64, 8.61]
Length Range[13, 837] km
Total Rate2.1670634E-4 /yr
Multi-Fault Rate2.1670634E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults170

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

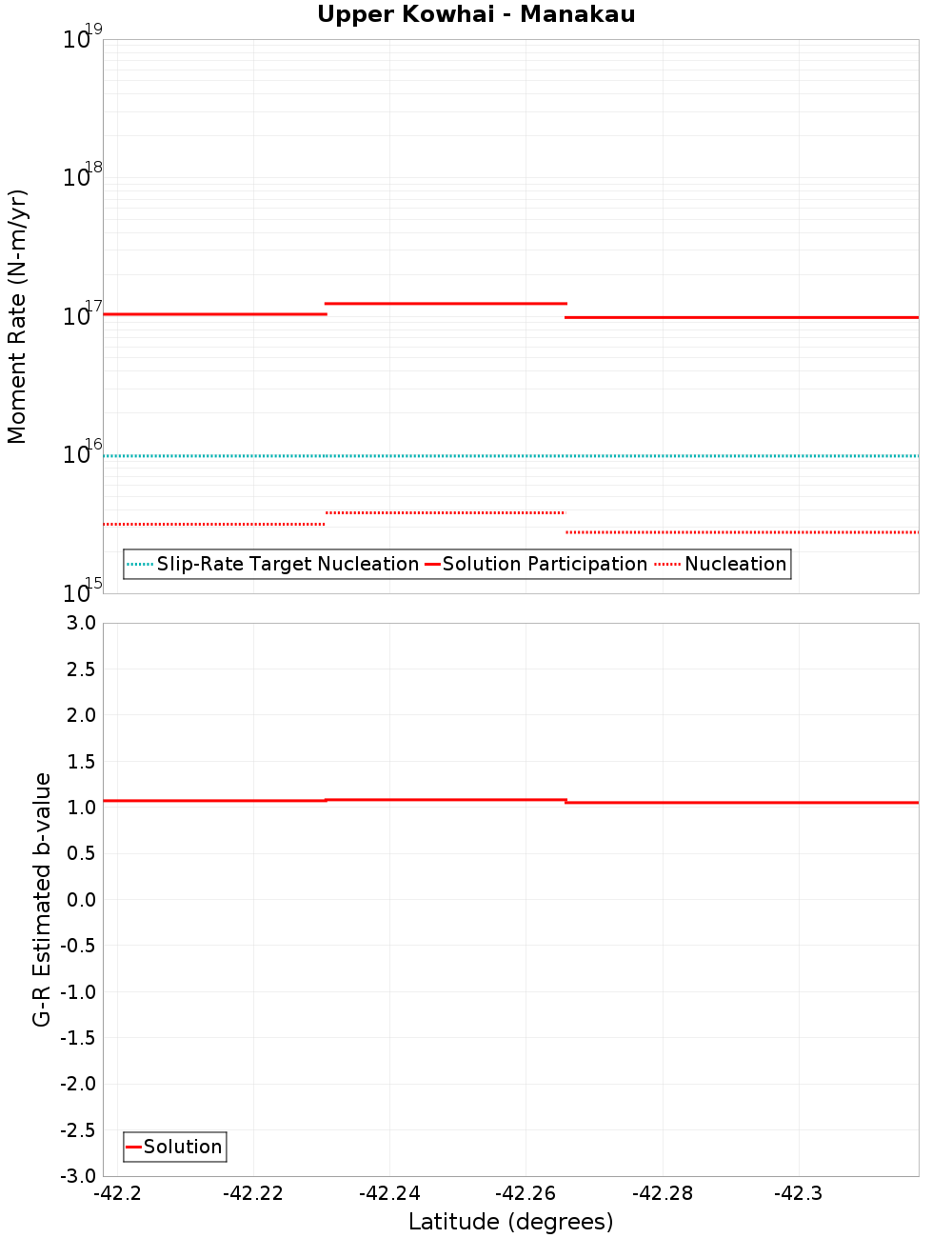

Moment-Rates and b-Values

(top)

Along-strike plot

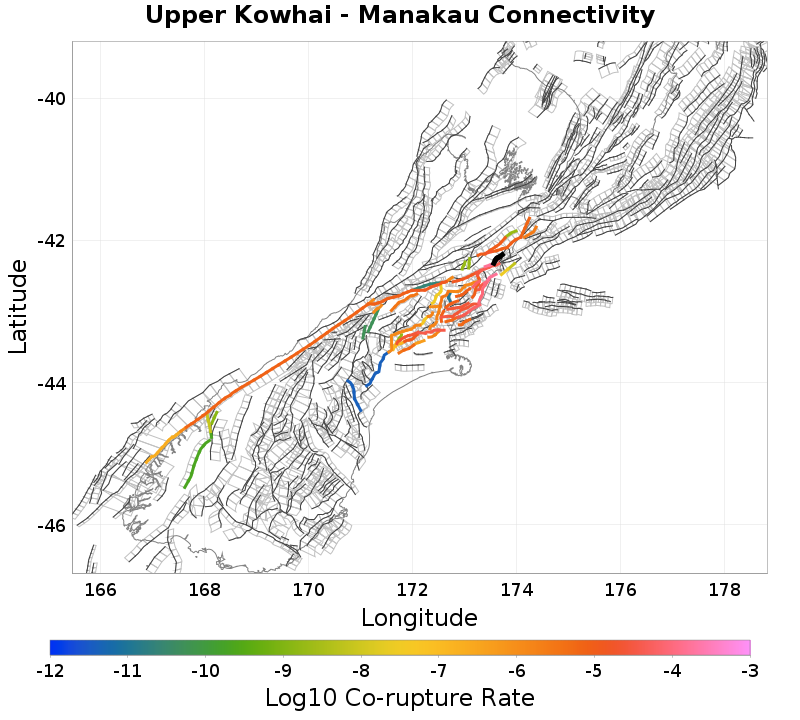

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kowhai, 0.06 km away
Hope: Conway, 0.14 km away
Jordan, 0.2 km away
Offshore Splay Thrust, 0.29 km away
Hope: Seaward, 0.41 km away
Papatea, 0.59 km away
Kaikoura 2, 2.18 km away
Kaikoura - Mangamaunu, 3.98 km away
Fidget, 8.84 km away
Hundalee, 9 km away
Kekerengu 1, 13.39 km away

Kowhai, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count641
Co-rupture Rate1.6601152E-4

Hope: Conway, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count1,491
Co-rupture Rate4.0975017E-5

Jordan, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Offshore Splay Thrust, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count592
Co-rupture Rate2.8377453E-8

Hope: Seaward, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Papatea, 0.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaikoura 2, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaikoura - Mangamaunu, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fidget, 8.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count711
Co-rupture Rate1.8788749E-5

Hundalee, 9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count648
Co-rupture Rate1.5694257E-4

Kekerengu 1, 13.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count682
Co-rupture Rate9.103686E-6
