Whitemans Valley Details

PropertyValue
Rupture Count6,494
Ruptures Above Sect Min Mag6,492
Ruptures w/ Nonzero Rates22
Magnitude Range[6.93, 8.56]
Length Range[18, 823] km
Total Rate6.2359926E-5 /yr
Multi-Fault Rate6.2359926E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults158

Table Of Contents

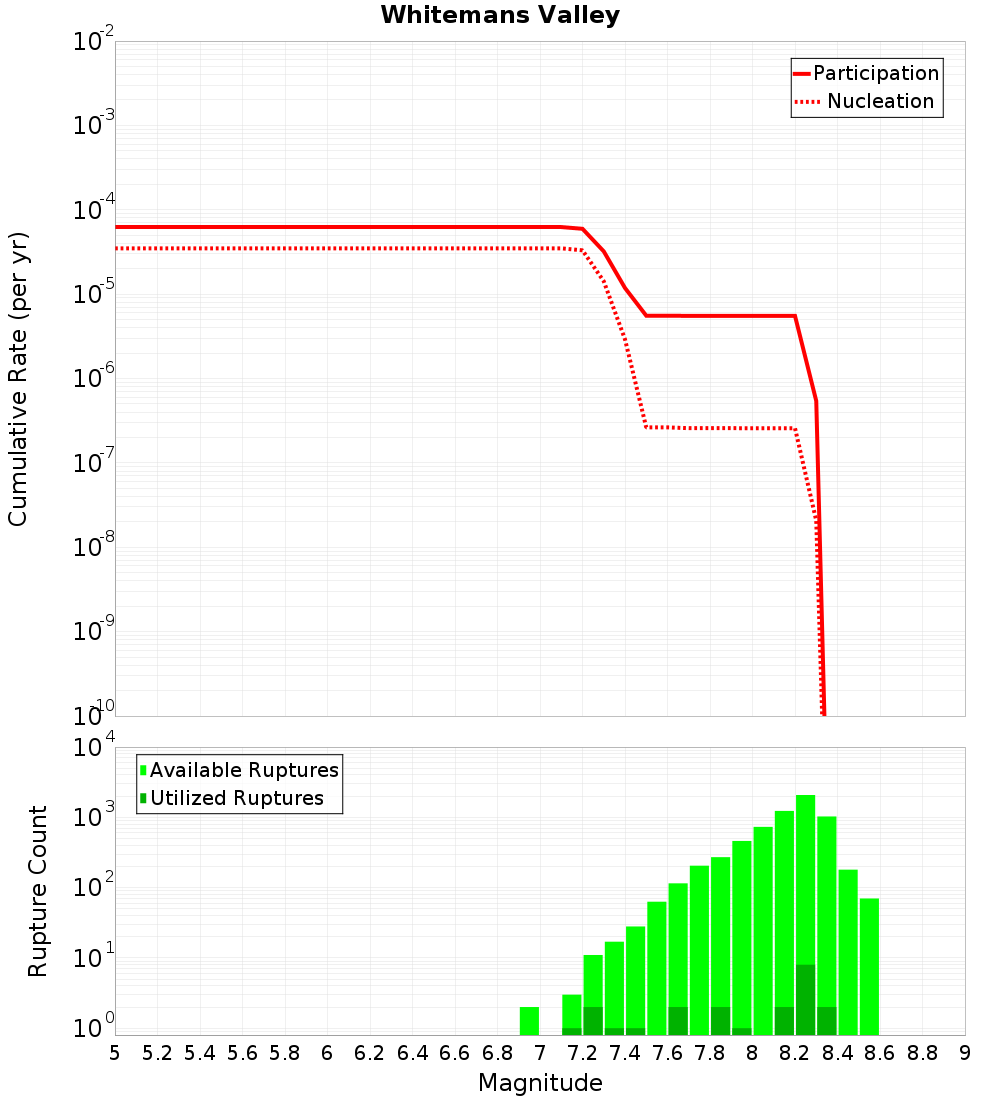

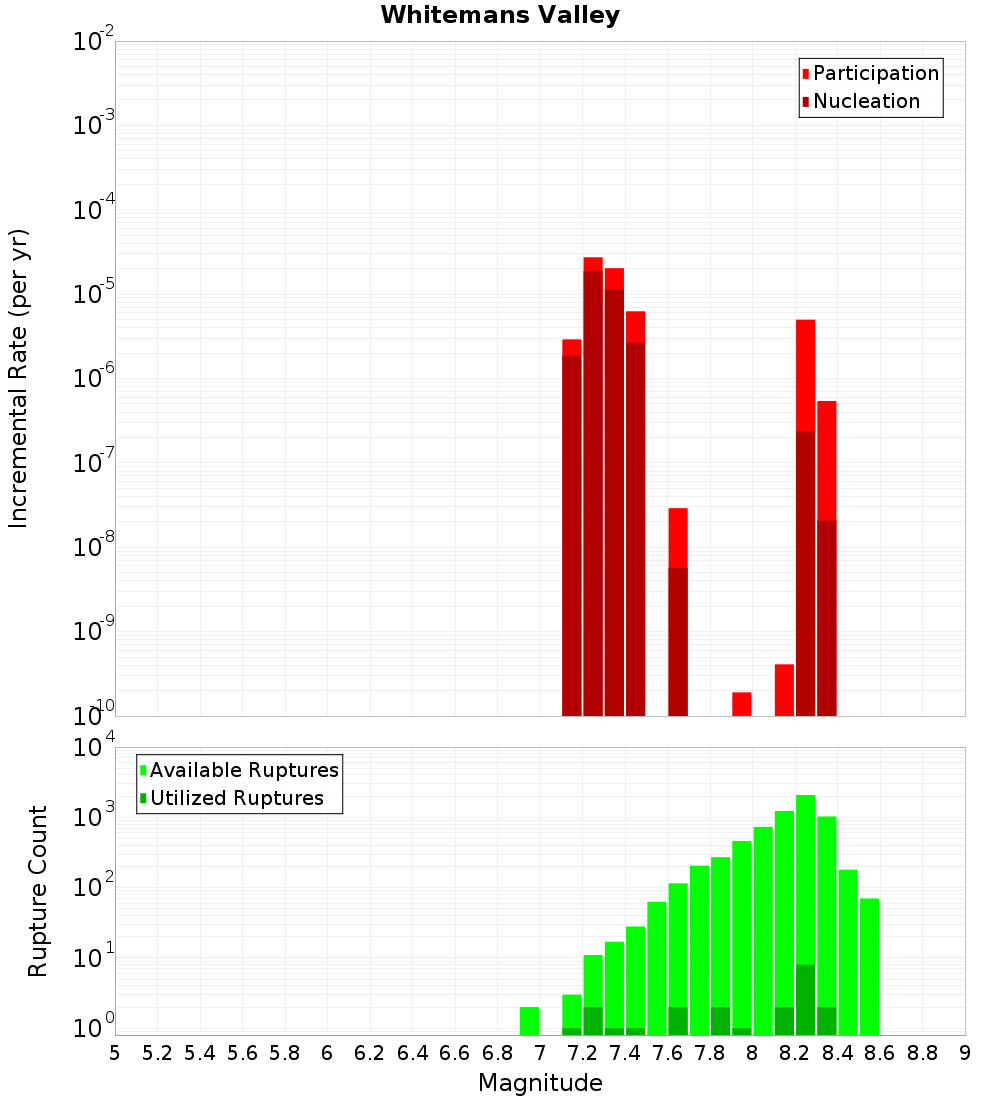

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

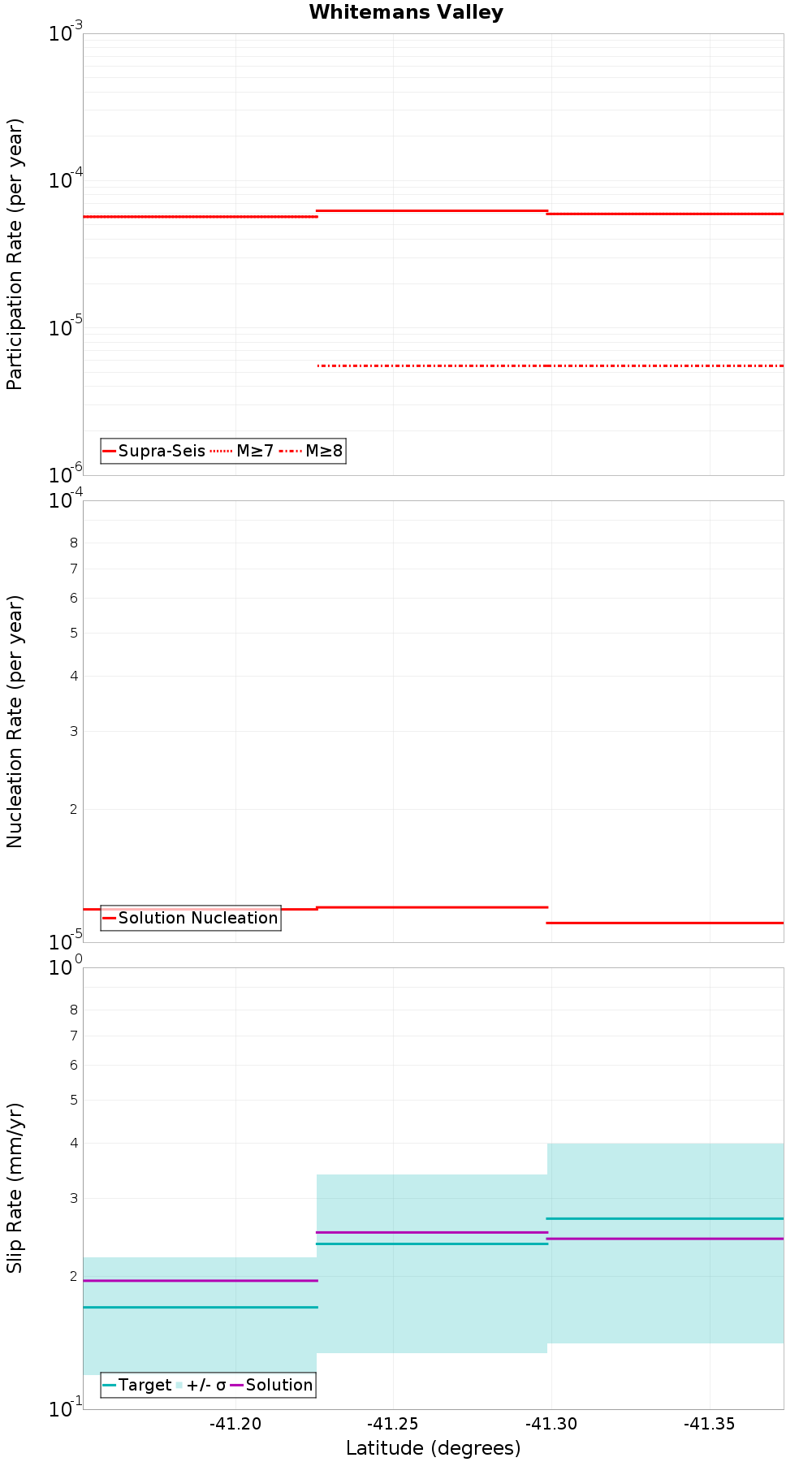

Along-Strike Values

(top)

Along-strike plot

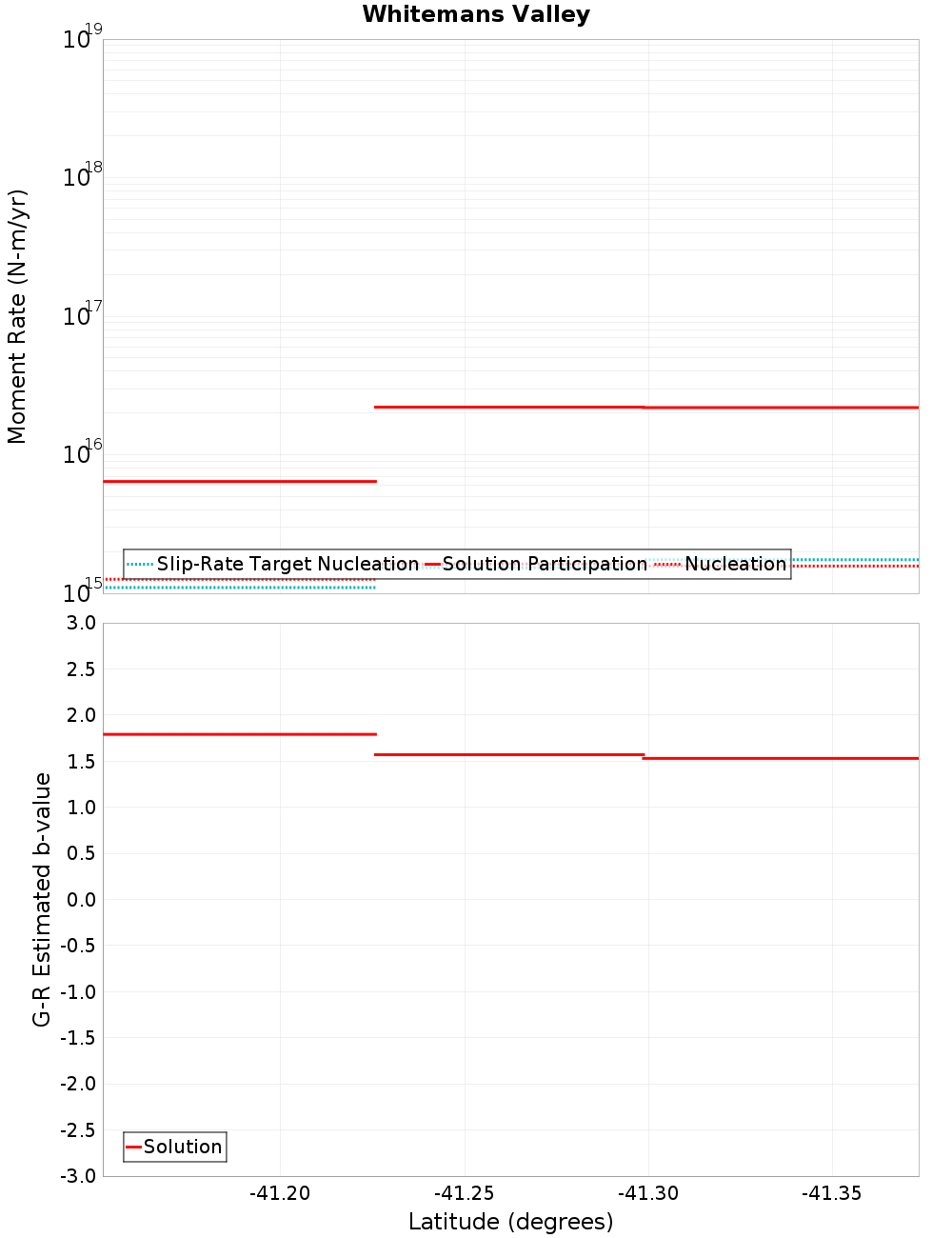

Moment-Rates and b-Values

(top)

Along-strike plot

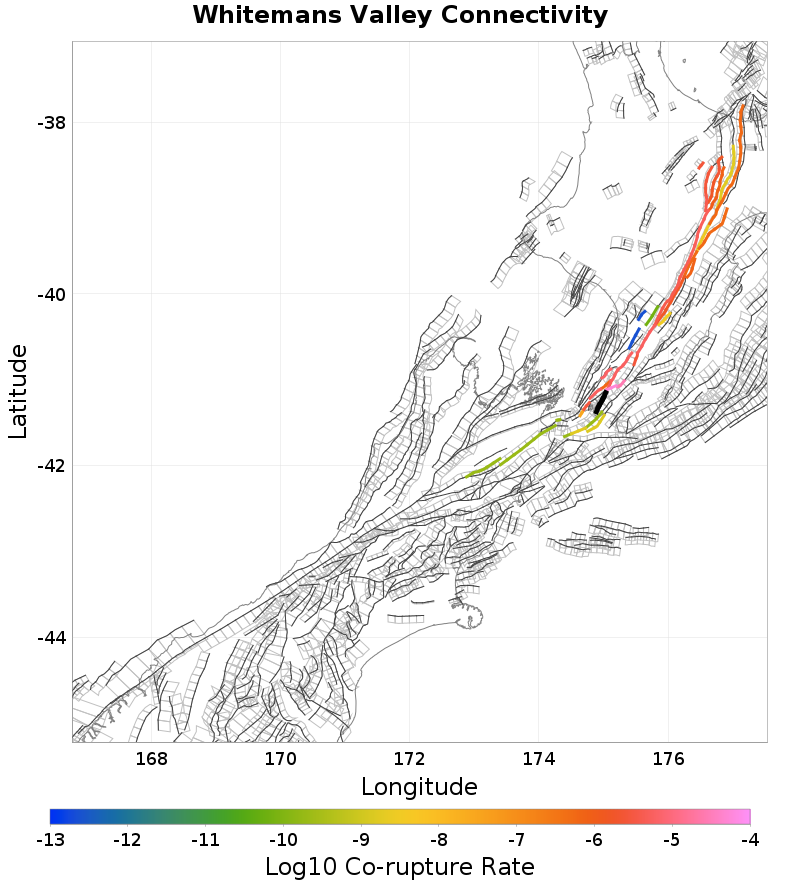

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington Hutt Valley: 4, 0.1 km away
Moonshine, 0.21 km away
Aotea - Evans Bay, 0.53 km away
Wellington Hutt Valley: 3, 1.34 km away
Wellington Hutt Valley: 5, 2.4 km away
Ohariu, 2.44 km away
Akatarawa, 3.02 km away
Wharekauhau, 3.06 km away
Wairarapa: 1, 5.26 km away
Pukerua - Shepherds Gully: 3, 6.28 km away
Wellington Hutt Valley: 2, 8.92 km away
Pukerua - Shepherds Gully: 2, 9.43 km away
Pukerua - Shepherds Gully: 1, 9.81 km away
Wairarapa: 2, 10.22 km away
Gibbs, 12.14 km away

Wellington Hutt Valley: 4, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Moonshine, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count2,029
Co-rupture Rate5.5467485E-6

Aotea - Evans Bay, 0.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count38
Co-rupture Rate2.93961E-6

Wellington Hutt Valley: 5, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count1,412
Co-rupture Rate5.38965E-5

Ohariu, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count219
Co-rupture Rate0.0

Akatarawa, 3.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count2,231
Co-rupture Rate4.9795135E-6

Wharekauhau, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count1,211
Co-rupture Rate1.4915974E-9

Wairarapa: 1, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?true
Co-rupture Count810
Co-rupture Rate1.9067288E-10

Pukerua - Shepherds Gully: 3, 6.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 8.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate2.9156546E-8

Pukerua - Shepherds Gully: 2, 9.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 1, 9.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 2, 10.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count74
Co-rupture Rate0.0

Gibbs, 12.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjcuMEhLRUpp
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate6.2654985E-6
