Kekerengu 1 Details

PropertyValue
Rupture Count123,954
Ruptures Above Sect Min Mag123,951
Ruptures w/ Nonzero Rates554
Magnitude Range[6.75, 8.57]
Length Range[18, 1,083] km
Total Rate5.1364506E-4 /yr
Multi-Fault Rate5.1364506E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults294

Table Of Contents

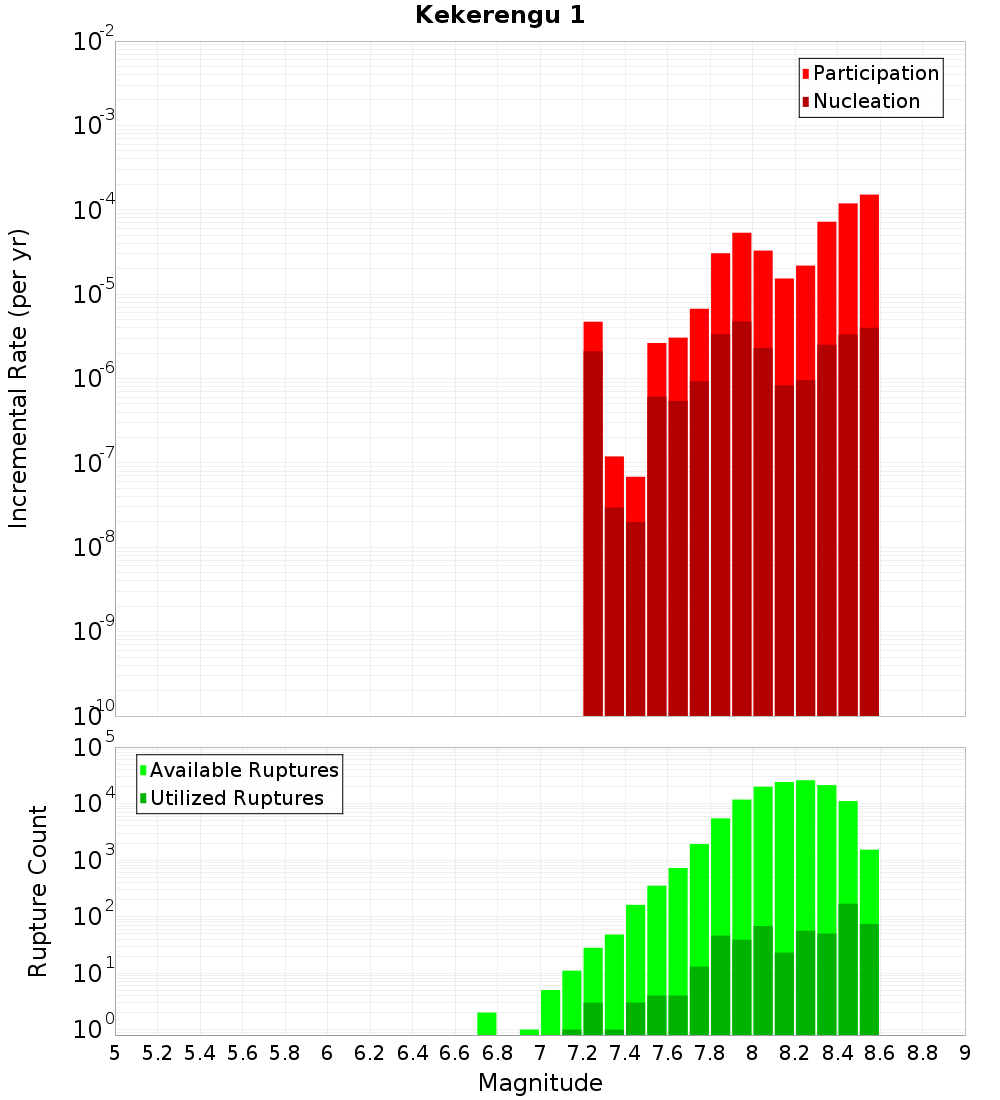

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Papatea, 0 km away
Fidget, 0 km away
Jordan, 0 km away
London Hill, 0 km away
Needles, 0 km away
Needles East 2, 4.78 km away
Chancet, 7.4 km away
Clarence: Northeast, 10.43 km away
Offshore Splay Thrust, 11.54 km away
Upper Kowhai - Manakau, 13.39 km away

Papatea, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjguMGJDYlNS
Connected?true
Directly Connected?true
Co-rupture Count29,541
Co-rupture Rate4.786705E-5

Fidget, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjguMGJDYlNS
Connected?true
Directly Connected?true
Co-rupture Count43,590
Co-rupture Rate1.2897345E-4

Jordan, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjguMGJDYlNS
Connected?true
Directly Connected?true
Co-rupture Count46,703
Co-rupture Rate3.3196705E-4

London Hill, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjguMGJDYlNS
Connected?true
Directly Connected?true
Co-rupture Count4,628
Co-rupture Rate8.2052946E-5

Needles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjguMGJDYlNS
Connected?true
Directly Connected?true
Co-rupture Count110,881
Co-rupture Rate4.1435534E-4

Needles East 2, 4.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjguMGJDYlNS
Connected?true
Directly Connected?true
Co-rupture Count2,601
Co-rupture Rate3.9070324E-5

Chancet, 7.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjguMGJDYlNS
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate0.0

Clarence: Northeast, 10.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjguMGJDYlNS
Connected?true
Directly Connected?true
Co-rupture Count995
Co-rupture Rate1.8046205E-6

Offshore Splay Thrust, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjguMGJDYlNS
Connected?true
Directly Connected?false
Co-rupture Count8,205
Co-rupture Rate1.680448E-5

Upper Kowhai - Manakau, 13.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0MjguMGJDYlNS
Connected?true
Directly Connected?false
Co-rupture Count682
Co-rupture Rate7.560914E-11
