Alpine: Nancy Details

Property	Value
Rupture Count	38,231
Ruptures Above Sect Min Mag	38,230
Ruptures w/ Nonzero Rates	37
Magnitude Range	[6.65, 8.57]
Length Range	[12, 1,083] km
Total Rate	1.4552752E-4 /yr
Multi-Fault Rate	1.4552752E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	196

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

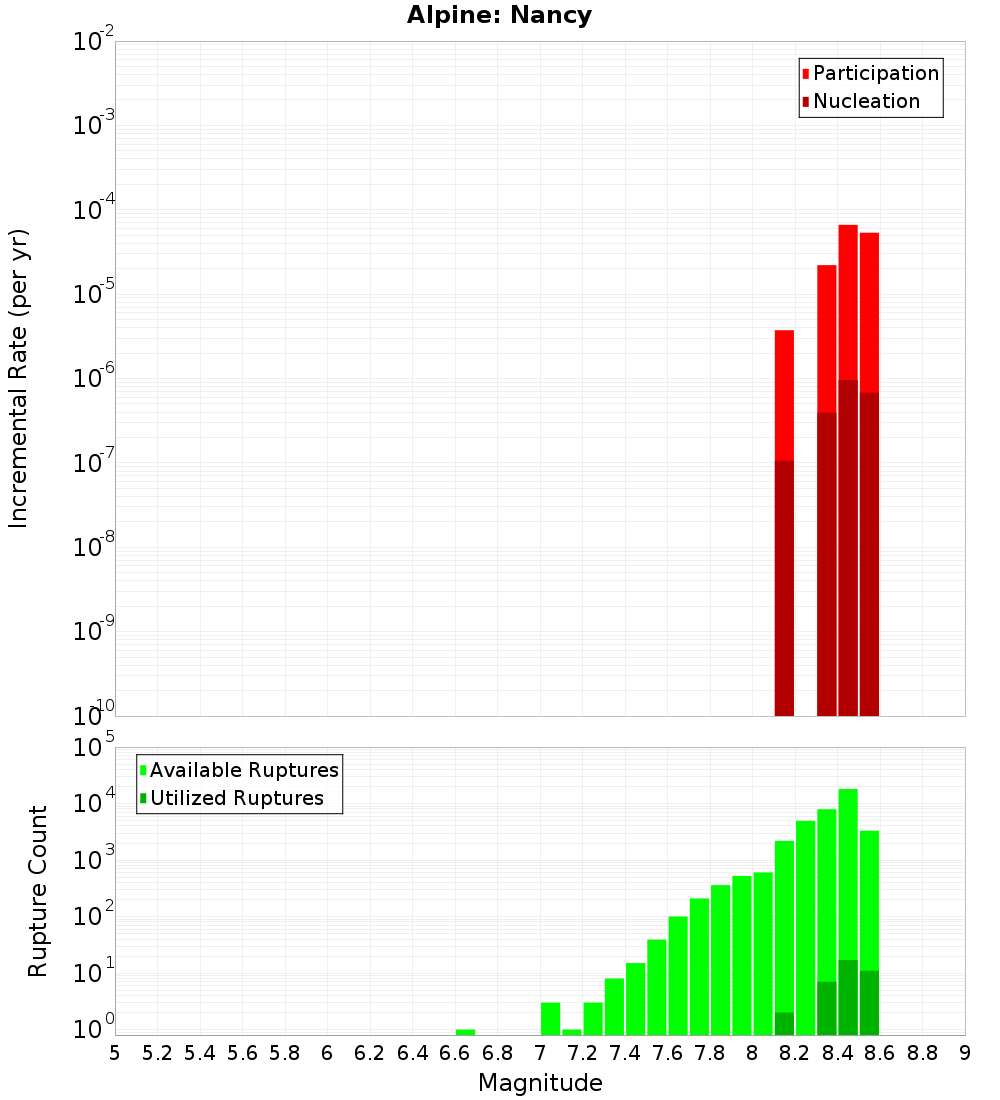

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Caswell, 0 km away
South Wedge 2, 0.05 km away
Central Wedge 4 - South Wedge 411, 0.36 km away
Alpine: Resolution - Charles, 2.58 km away
Alpine: Resolution - Dagg, 2.58 km away
Central Wedge 1 & 2 & 3, 3.29 km away
South Wedge 1, 8.89 km away

Alpine: Caswell, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq
Connected?	true
Directly Connected?	true
Co-rupture Count	37,899
Co-rupture Rate	1.4552752E-4

South Wedge 2, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Central Wedge 4 - South Wedge 411, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Resolution - Charles, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq
Connected?	true
Directly Connected?	false
Co-rupture Count	704
Co-rupture Rate	0.0

Alpine: Resolution - Dagg, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq
Connected?	true
Directly Connected?	true
Co-rupture Count	33,707
Co-rupture Rate	4.3362776E-5

Central Wedge 1 & 2 & 3, 3.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq
Connected?	true
Directly Connected?	true
Co-rupture Count	515
Co-rupture Rate	0.0

South Wedge 1, 8.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq
Connected?	true
Directly Connected?	false
Co-rupture Count	322
Co-rupture Rate	0.0
