Goodger Details
| Property | Value |
|---|---|
| Rupture Count | 2,986 |
| Ruptures Above Sect Min Mag | 2,985 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.92, 8.43] |
| Length Range | [21, 656] km |
| Total Rate | 7.0404334E-5 /yr |
| Multi-Fault Rate | 7.0404334E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 66 |
Table Of Contents

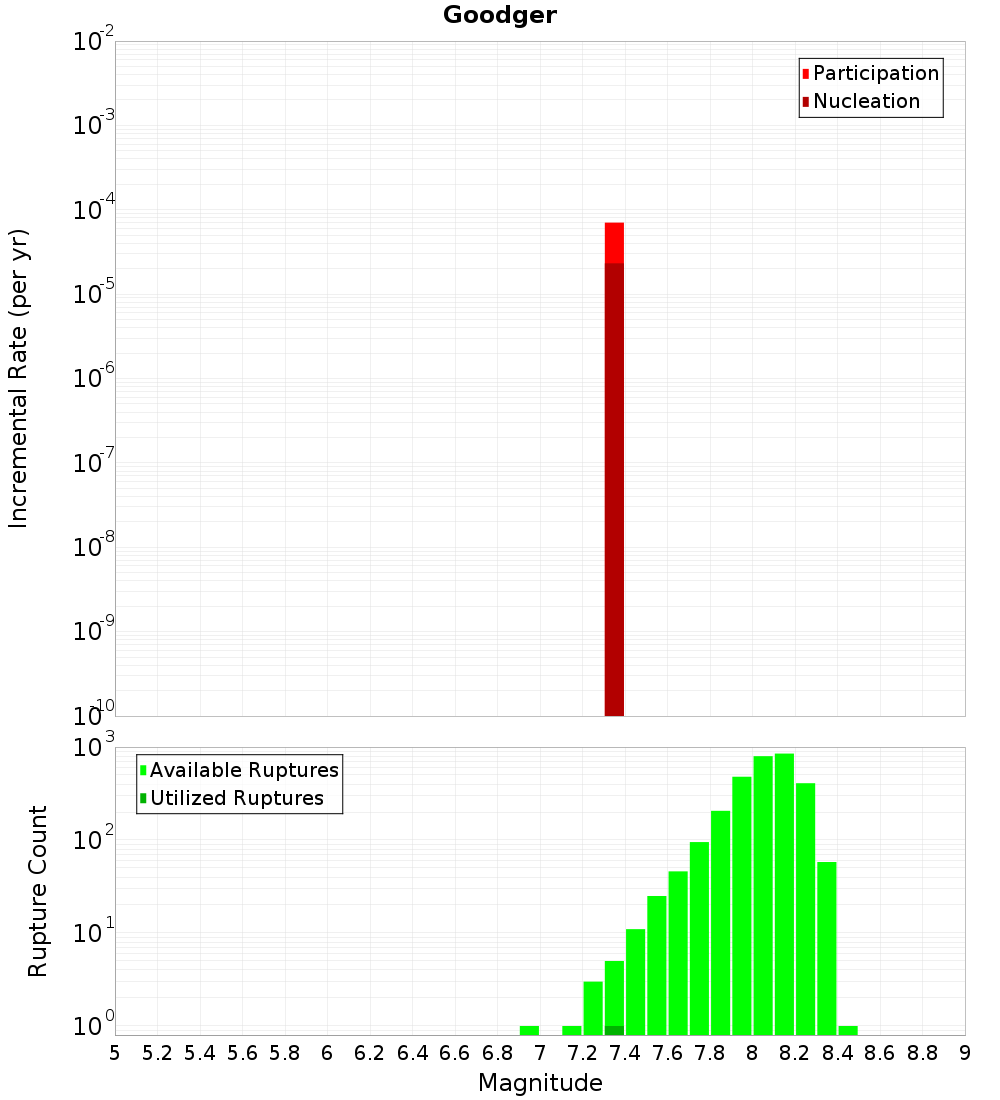

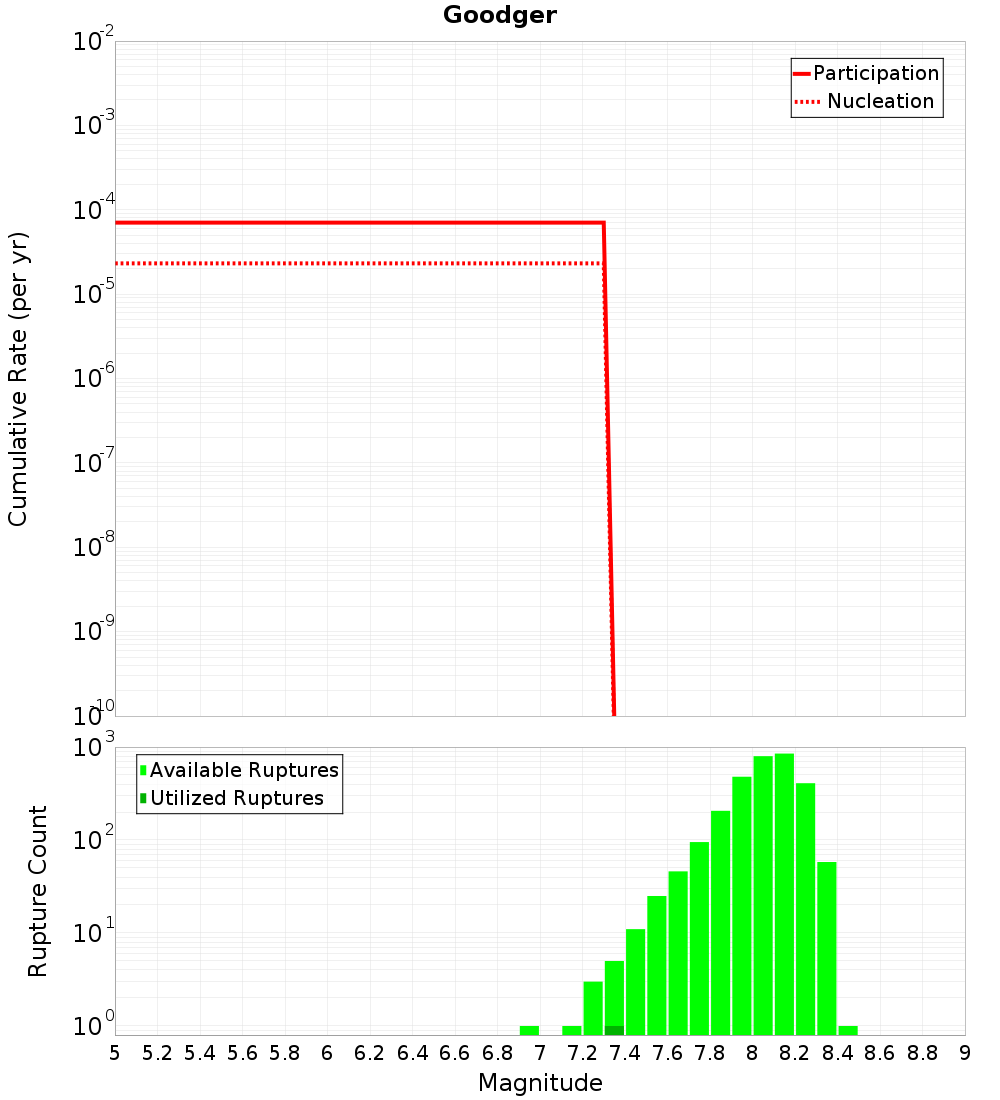

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

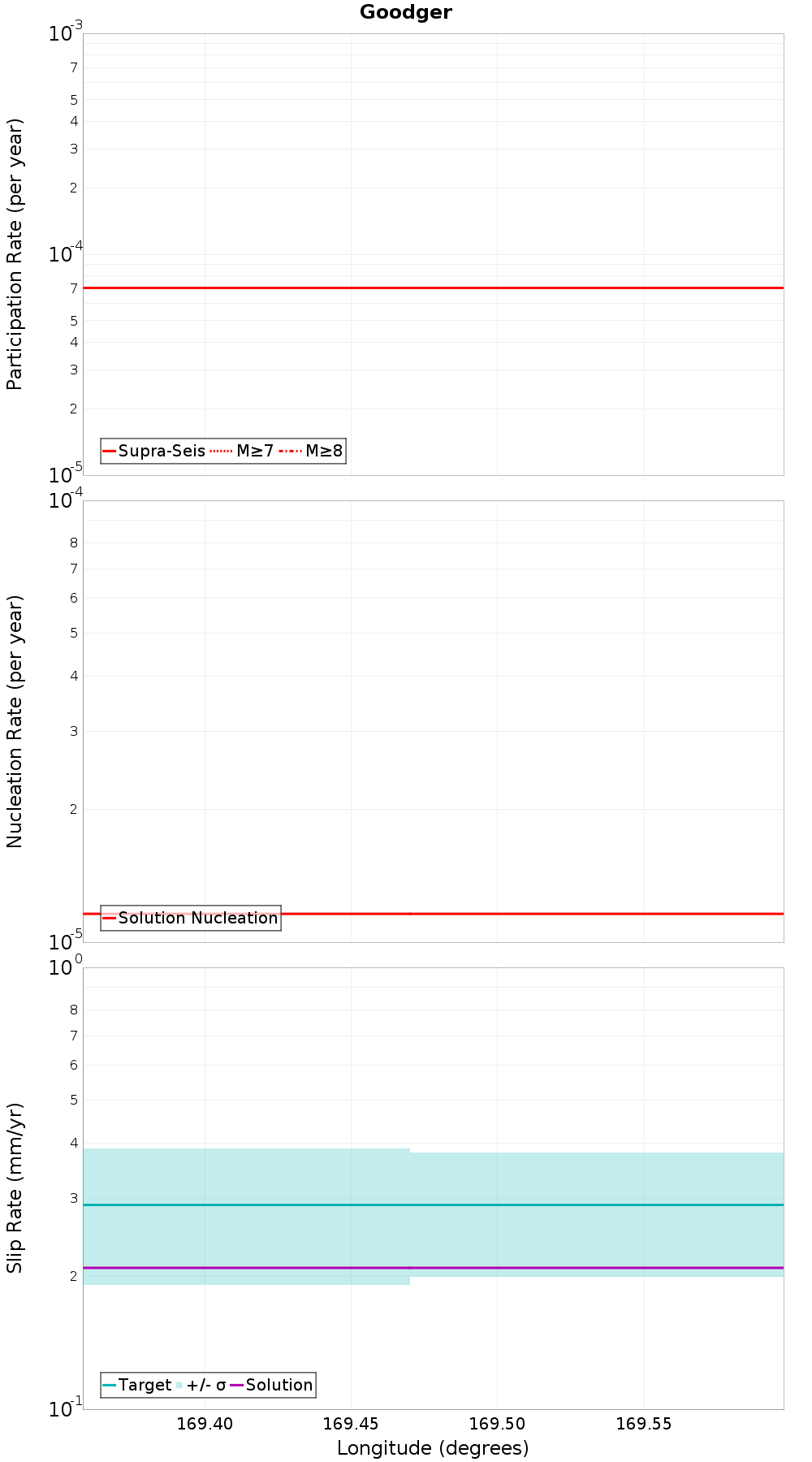

Along-Strike Values

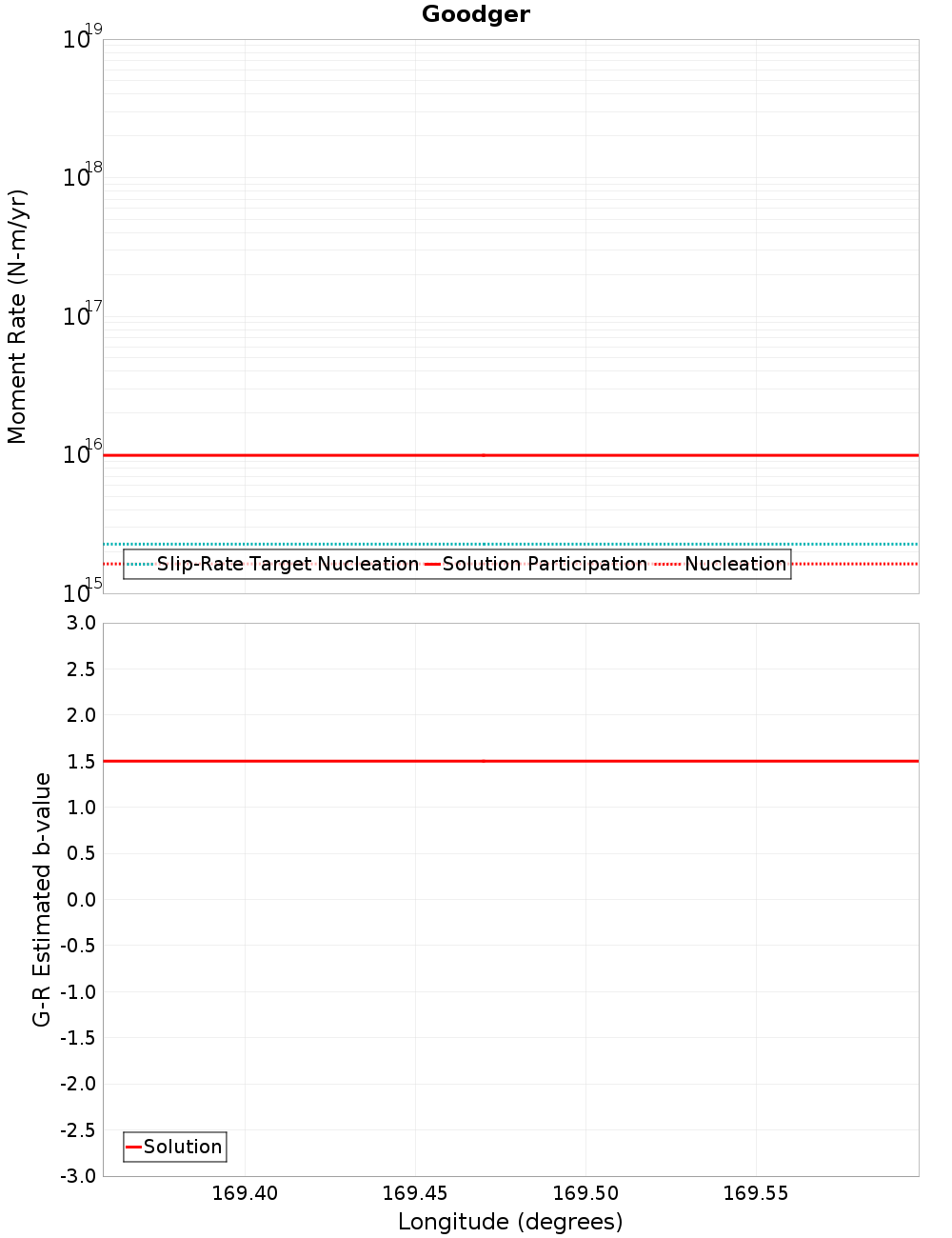

Moment-Rates and b-Values

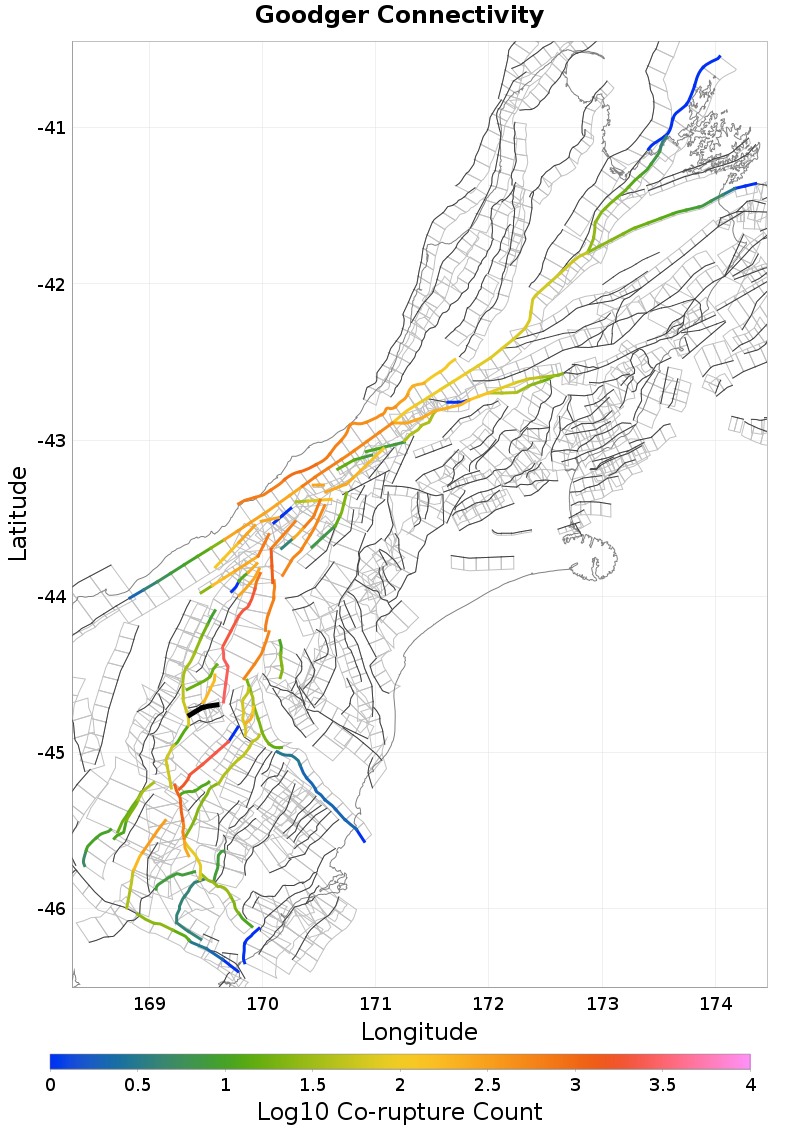

Connectivity
 |  |
|---|
Nearby Sections
Cluden, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Grandview, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 66 |
| Co-rupture Rate | 0.0 |
Dunstan, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,226 |
| Co-rupture Rate | 7.0404334E-5 |
Lindis River, 2.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 184 |
| Co-rupture Rate | 0.0 |
Dromedary, 3.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,665 |
| Co-rupture Rate | 0.0 |
Raggedy - Blackstone, 4.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 48 |
| Co-rupture Rate | 0.0 |
Rocks Creek, 5.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 220 |
| Co-rupture Rate | 7.0404334E-5 |
Pisa, 7.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 58 |
| Co-rupture Rate | 0.0 |
Blue Lake, 9.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Paddys Ridge, 11.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Garibaldi, 14.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDAuMFdNcVRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
