Hauroko: South Details
| Property | Value |
|---|---|
| Rupture Count | 857 |
| Ruptures Above Sect Min Mag | 853 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [7.04, 8.58] |
| Length Range | [26, 964] km |
| Total Rate | 2.1789154E-5 /yr |
| Multi-Fault Rate | 2.1789154E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 26 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

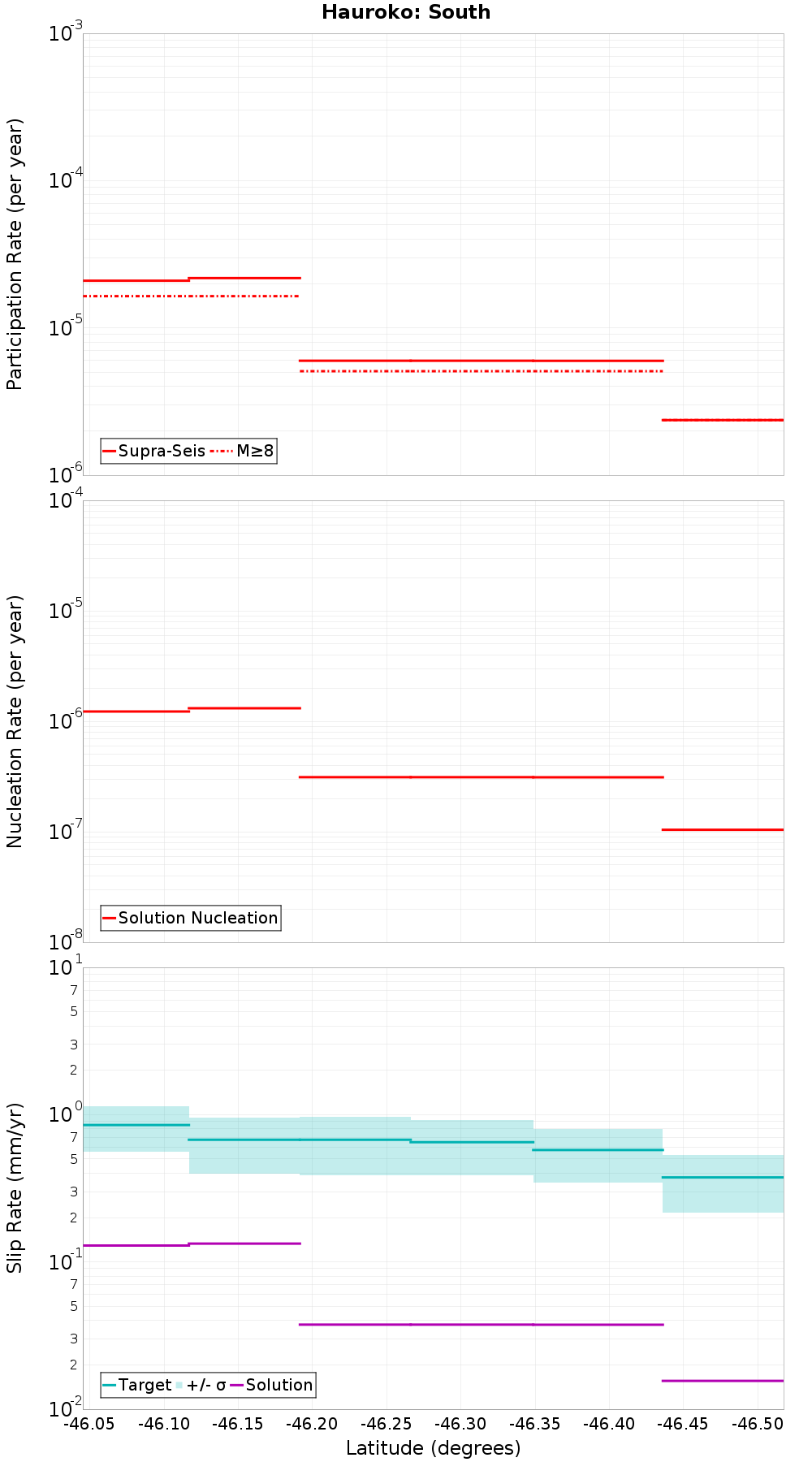

Along-Strike Values
Moment-Rates and b-Values

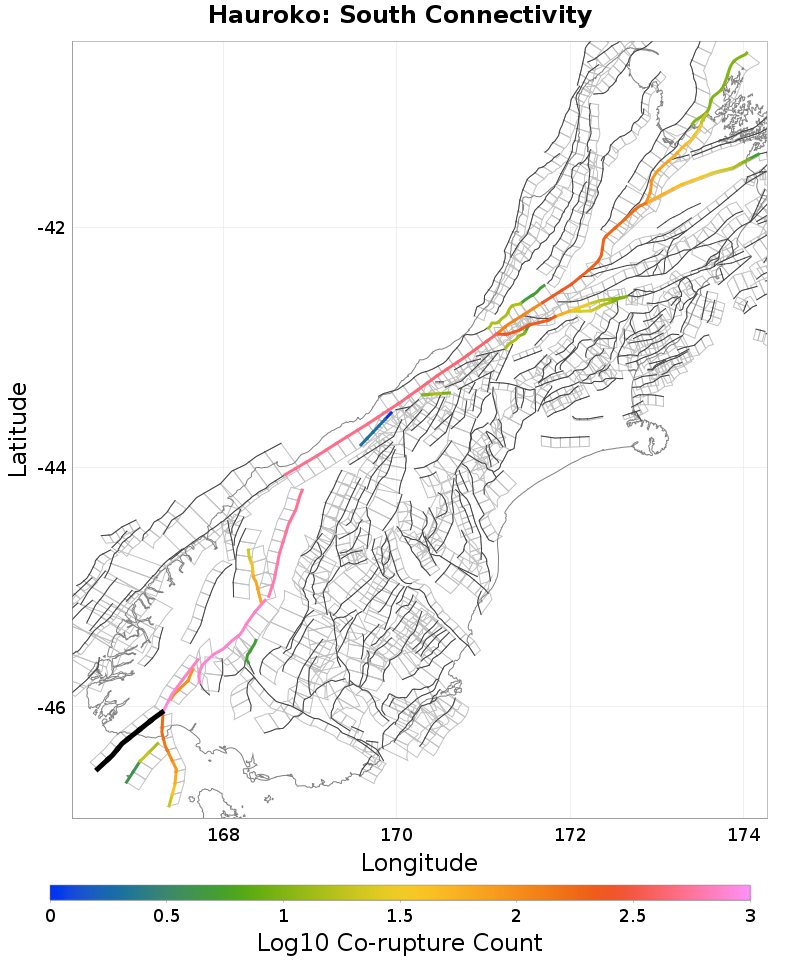

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: North, 0.32 km away |
| Hump Ridge, 3.03 km away |
| Monowai, 14.37 km away |
Hauroko: North, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuMFIyenQ2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 825 |
| Co-rupture Rate | 1.8439965E-5 |
Hump Ridge, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuMFIyenQ2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 171 |
| Co-rupture Rate | 1.6706988E-5 |
Monowai, 14.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuMFIyenQ2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 97 |
| Co-rupture Rate | 1.0807315E-5 |
