Gibbs Details

PropertyValue
Rupture Count4,248
Ruptures Above Sect Min Mag4,242
Ruptures w/ Nonzero Rates6
Magnitude Range[6.67, 8.21]
Length Range[17, 582] km
Total Rate7.254017E-5 /yr
Multi-Fault Rate7.254017E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults83

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

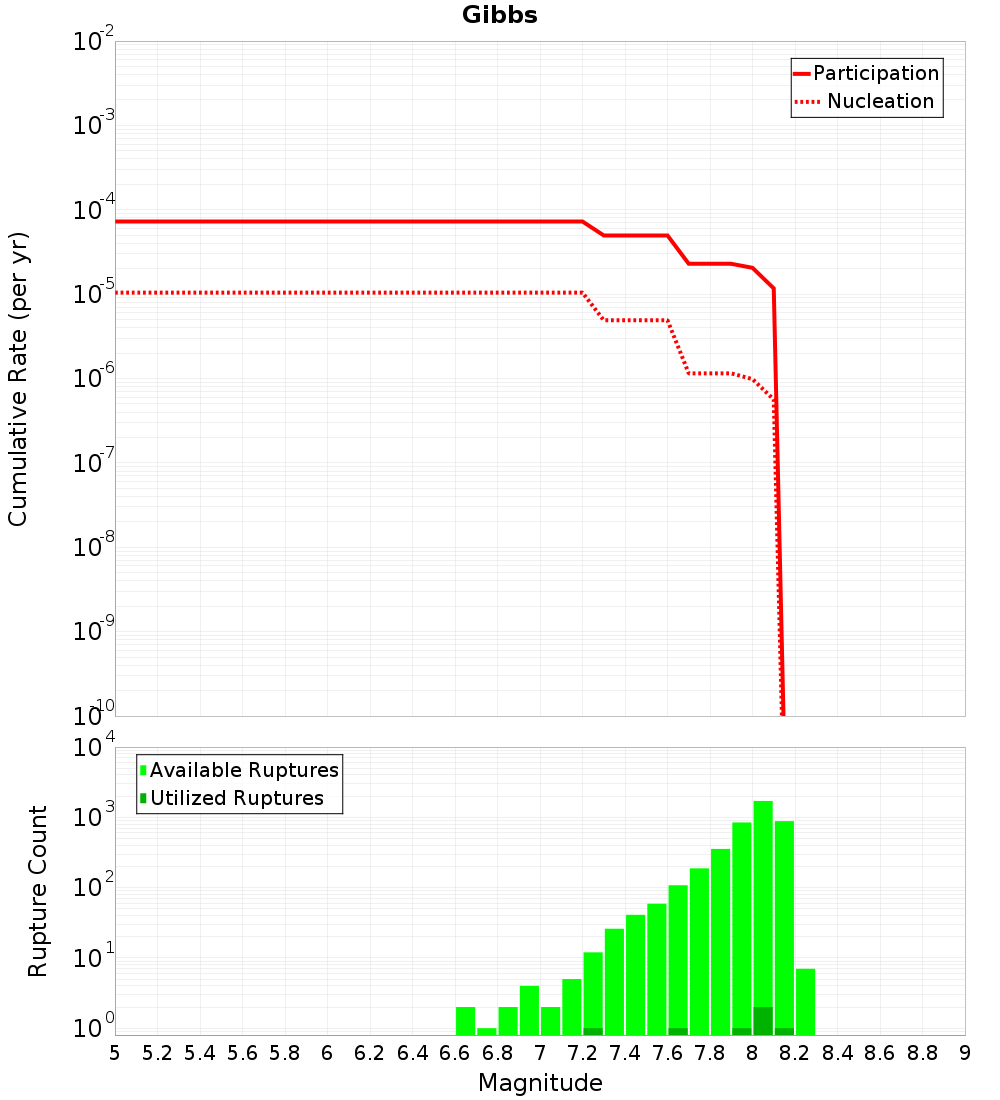

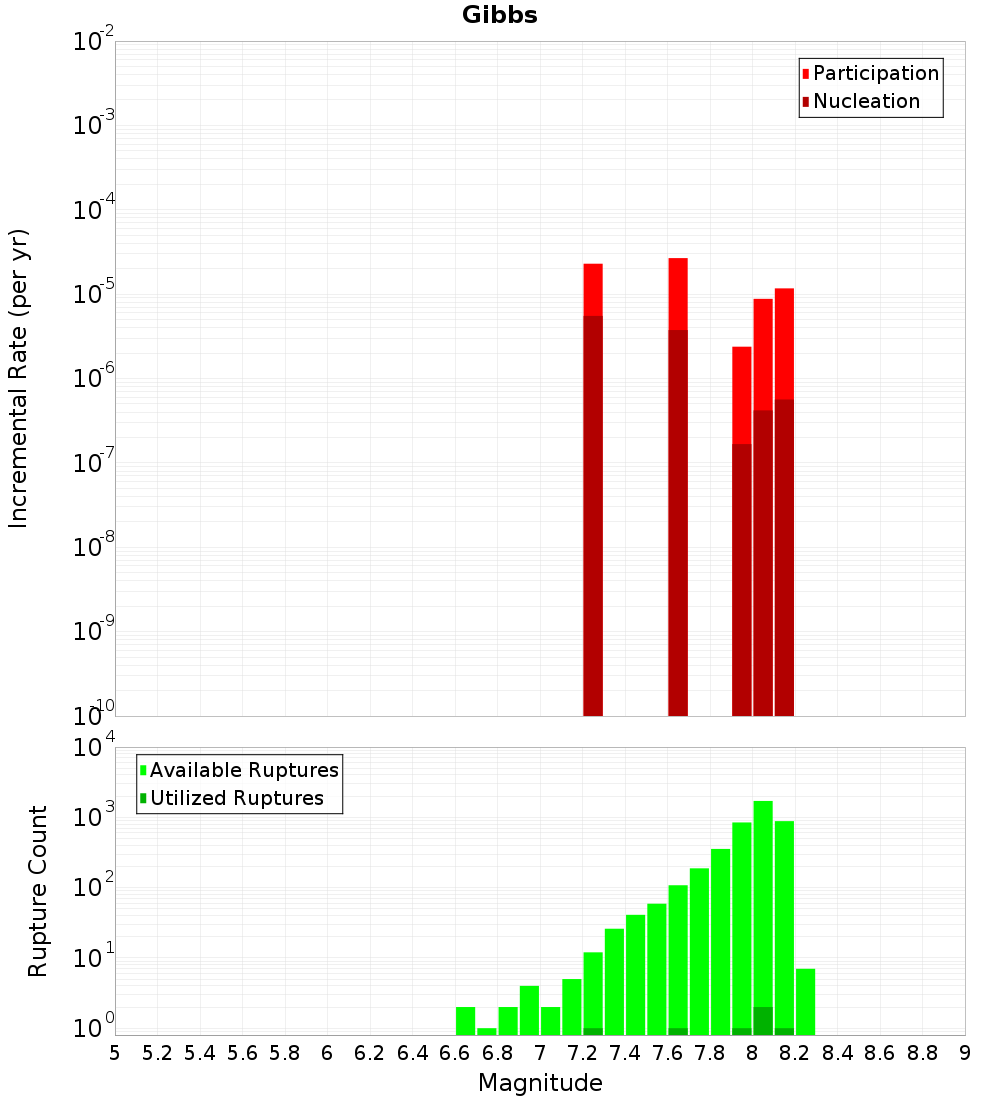

Incremental PlotCumulative Plot

Along-Strike Values

(top)

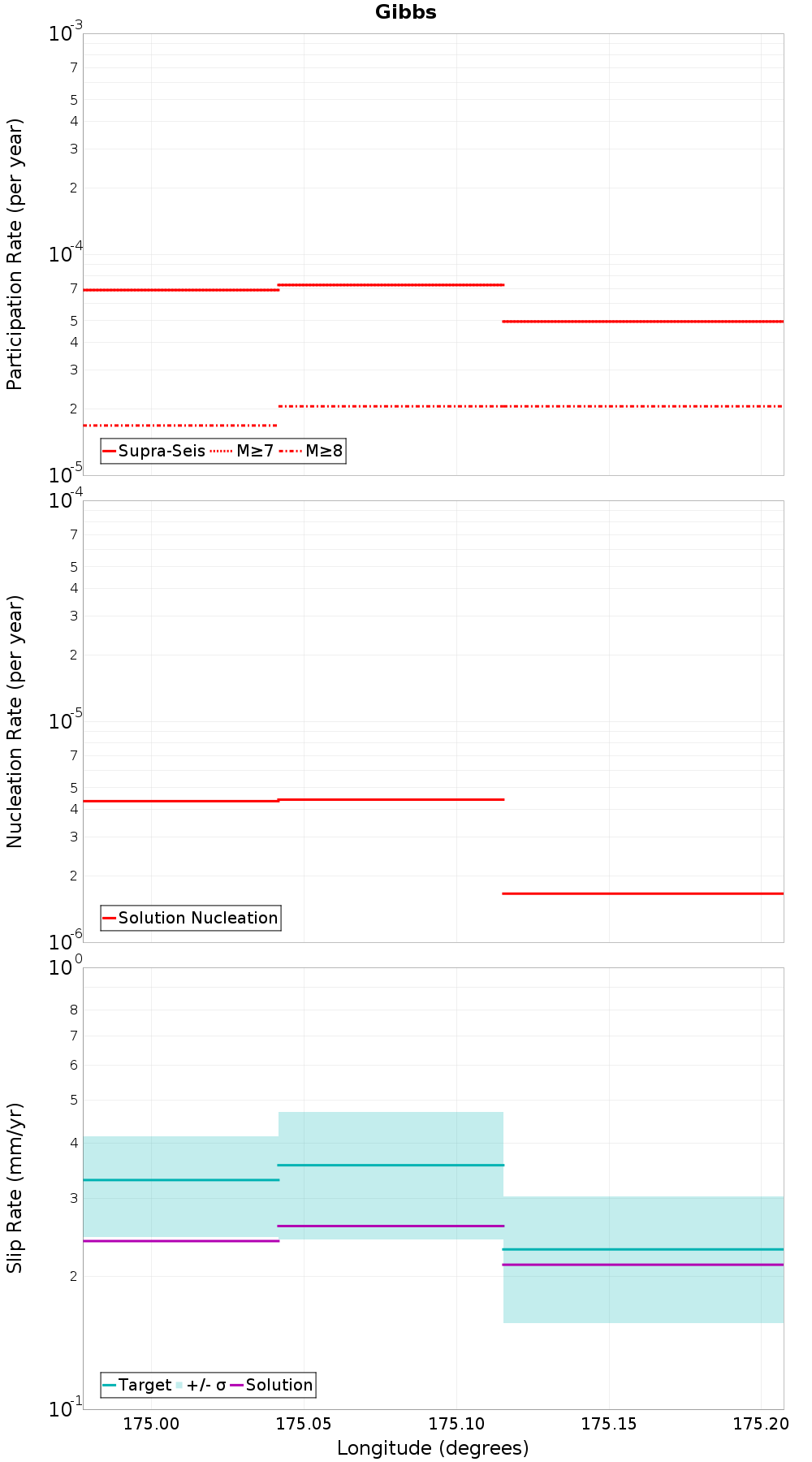

Along-strike plot

Moment-Rates and b-Values

(top)

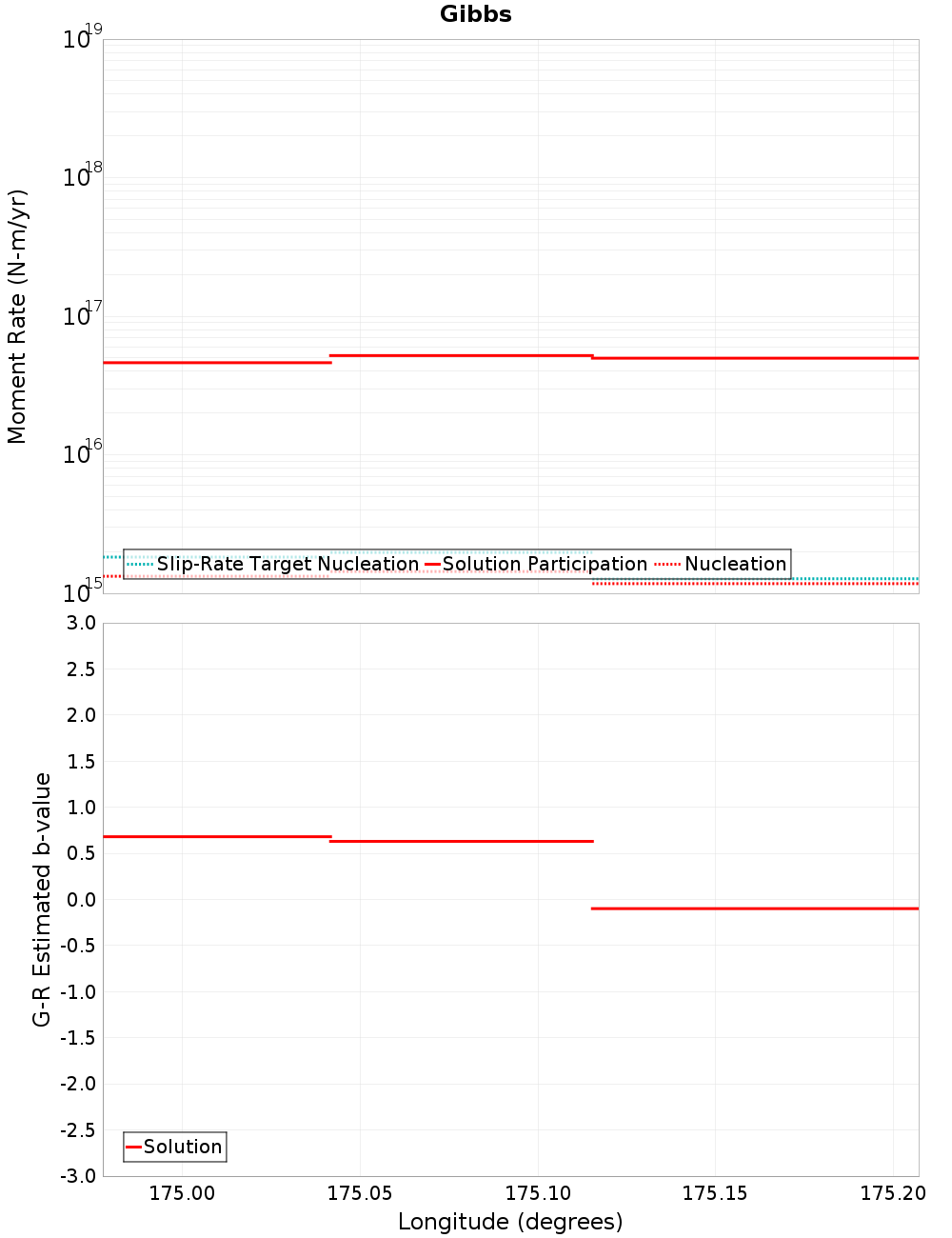

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohariu, 0.17 km awayWellington: Tararua 1, 8.5 km away
Akatarawa, 0.24 km awayOtaheke South, 10.99 km away
Otaki Forks: 2, 0.29 km awayWhitemans Valley, 12.14 km away
Otaki Forks: 1, 0.31 km awayWairarapa: 2, 13.94 km away
Moonshine, 2.15 km awayPoroutawhao, 13.97 km away
Wellington: Tararua 2, 5.55 km awayWairarapa: 3, 14.18 km away
Northern Ohariu, 6.81 km awayWellington Hutt Valley: 4, 14.45 km away
Wellington: Tararua 3, 6.86 km awayWharekauhau, 14.76 km away
Pukerua - Shepherds Gully: 3, 7.94 km awayOtaheke North, 14.97 km away

Ohariu, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate0.0

Akatarawa, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Otaki Forks: 2, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?true
Co-rupture Count3,665
Co-rupture Rate2.2877659E-5

Otaki Forks: 1, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?true
Co-rupture Count18
Co-rupture Rate0.0

Moonshine, 2.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

Wellington: Tararua 2, 5.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?true
Co-rupture Count814
Co-rupture Rate4.9662507E-5

Northern Ohariu, 6.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?false
Co-rupture Count284
Co-rupture Rate0.0

Wellington: Tararua 3, 6.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?false
Co-rupture Count1,330
Co-rupture Rate2.9109297E-5

Pukerua - Shepherds Gully: 3, 7.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 1, 8.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?true
Co-rupture Count1,091
Co-rupture Rate4.9662507E-5

Otaheke South, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whitemans Valley, 12.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate2.2936192E-5

Wairarapa: 2, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Poroutawhao, 13.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Wairarapa: 3, 14.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 4, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Otaheke North, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NDYuNXpvM1pD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
