Mohaka: South Details

Property	Value
Rupture Count	70,707
Ruptures Above Sect Min Mag	70,701
Ruptures w/ Nonzero Rates	1,583
Magnitude Range	[7.08, 8.71]
Length Range	[25, 1,132] km
Total Rate	5.2887335E-4 /yr
Multi-Fault Rate	5.2869704E-4 /yr (99.97%)
Directly-Connected Faults	11
All Co-Rupturing Faults	130

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

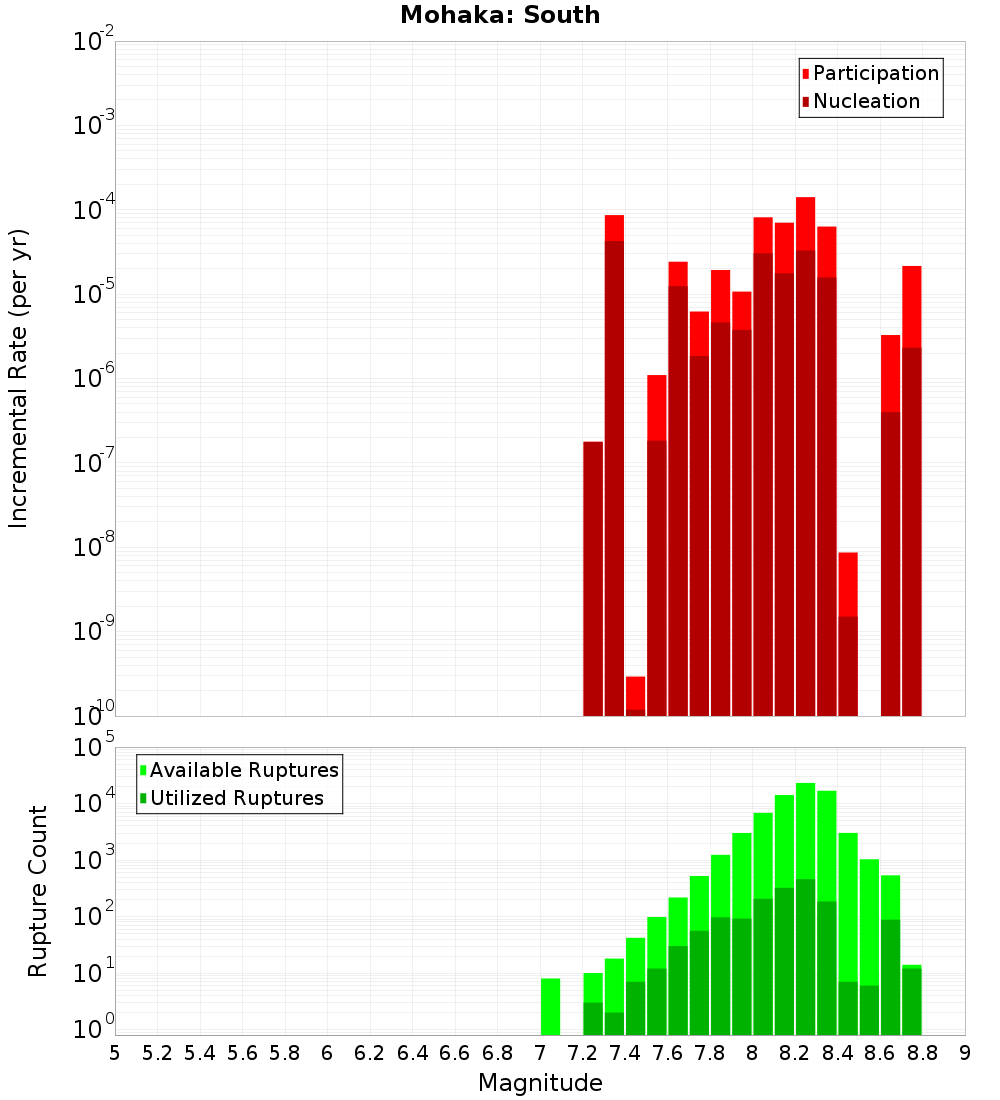

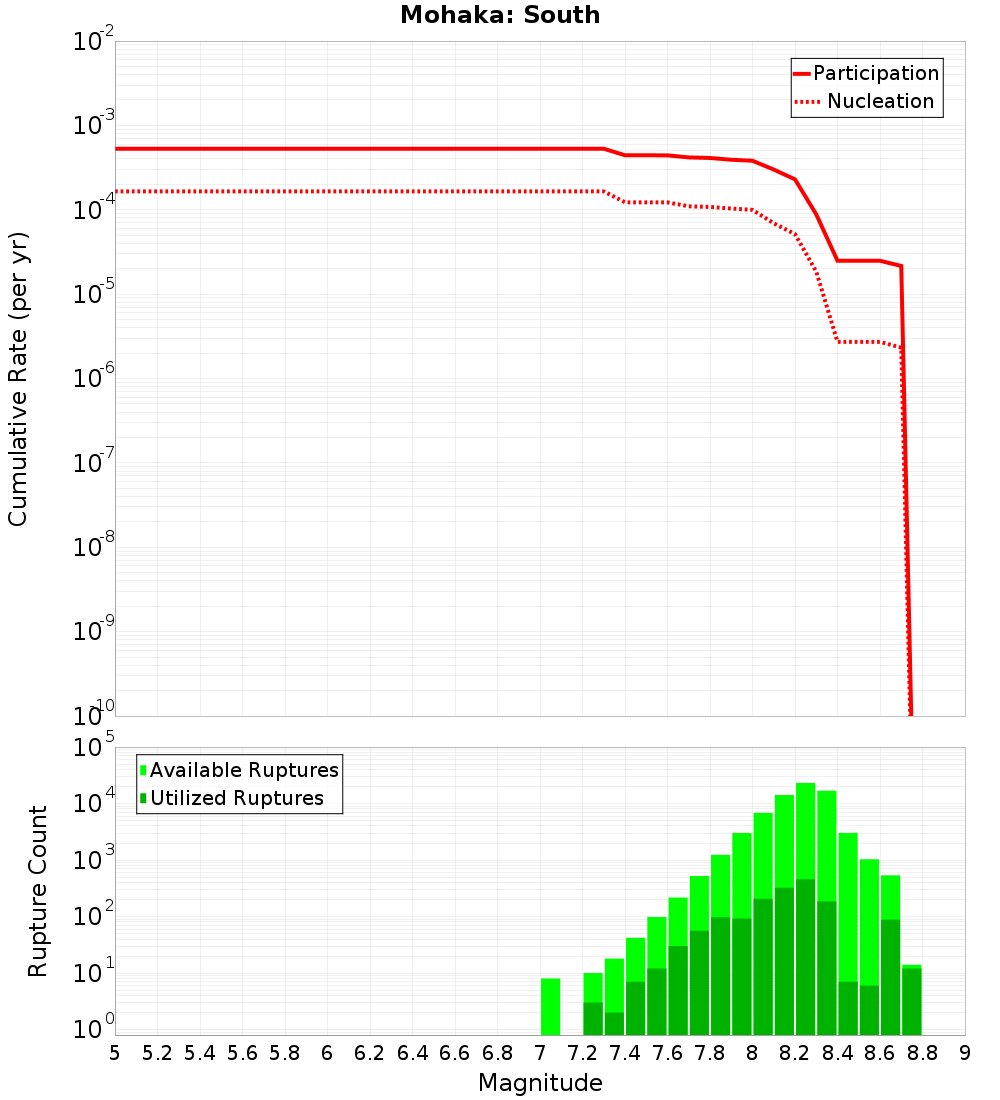

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Wellington: Pahiatua, 0 km away	Ruahine: North, 4.35 km away
Ruahine: South, 0 km away	Patoka - Rangiora, 5.52 km away
Mohaka: North, 0 km away	Ruataniwha, 6.61 km away
Wakarara, 0.06 km away	Maunga, 9.06 km away
Rangefront, 0.18 km away	Pohangina, 9.44 km away
Woodville, 0.4 km away	Awanui, 12.72 km away
Ruahine: Central, 2.68 km away	Tokomaru, 14.29 km away
Pahiatua, 4.27 km away	Te Heka, 14.96 km away

Wellington: Pahiatua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	true
Co-rupture Count	60,952
Co-rupture Rate	3.8386206E-4

Ruahine: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	true
Co-rupture Count	9,685
Co-rupture Rate	1.0346636E-4

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	true
Co-rupture Count	43,100
Co-rupture Rate	2.2393999E-4

Wakarara, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,925
Co-rupture Rate	3.4800396E-5

Rangefront, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	true
Co-rupture Count	6,520
Co-rupture Rate	5.2025596E-5

Woodville, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	true
Co-rupture Count	6,344
Co-rupture Rate	2.5390264E-5

Ruahine: Central, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	true
Co-rupture Count	6,819
Co-rupture Rate	4.5351768E-5

Pahiatua, 4.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,399
Co-rupture Rate	1.1220415E-5

Ruahine: North, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	true
Co-rupture Count	18,065
Co-rupture Rate	1.2035586E-4

Patoka - Rangiora, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	true
Co-rupture Count	4,456
Co-rupture Rate	1.1794024E-4

Ruataniwha, 6.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,203
Co-rupture Rate	4.318499E-5

Maunga, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	false
Co-rupture Count	591
Co-rupture Rate	3.2540287E-5

Pohangina, 9.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	false
Co-rupture Count	183
Co-rupture Rate	1.1891591E-16

Awanui, 12.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	false
Co-rupture Count	129
Co-rupture Rate	2.1734267E-16

Tokomaru, 14.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	true
Directly Connected?	false
Co-rupture Count	710
Co-rupture Rate	2.0304069E-5

Te Heka, 14.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NTEuMGVmUmd0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
