Alpine: George to Jacksons Details

Property	Value
Rupture Count	118,125
Ruptures Above Sect Min Mag	118,116
Ruptures w/ Nonzero Rates	3,536
Magnitude Range	[6.96, 8.68]
Length Range	[21, 1,083] km
Total Rate	6.243577E-4 /yr
Multi-Fault Rate	3.6330207E-4 /yr (58.19%)
Directly-Connected Faults	7
All Co-Rupturing Faults	211

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

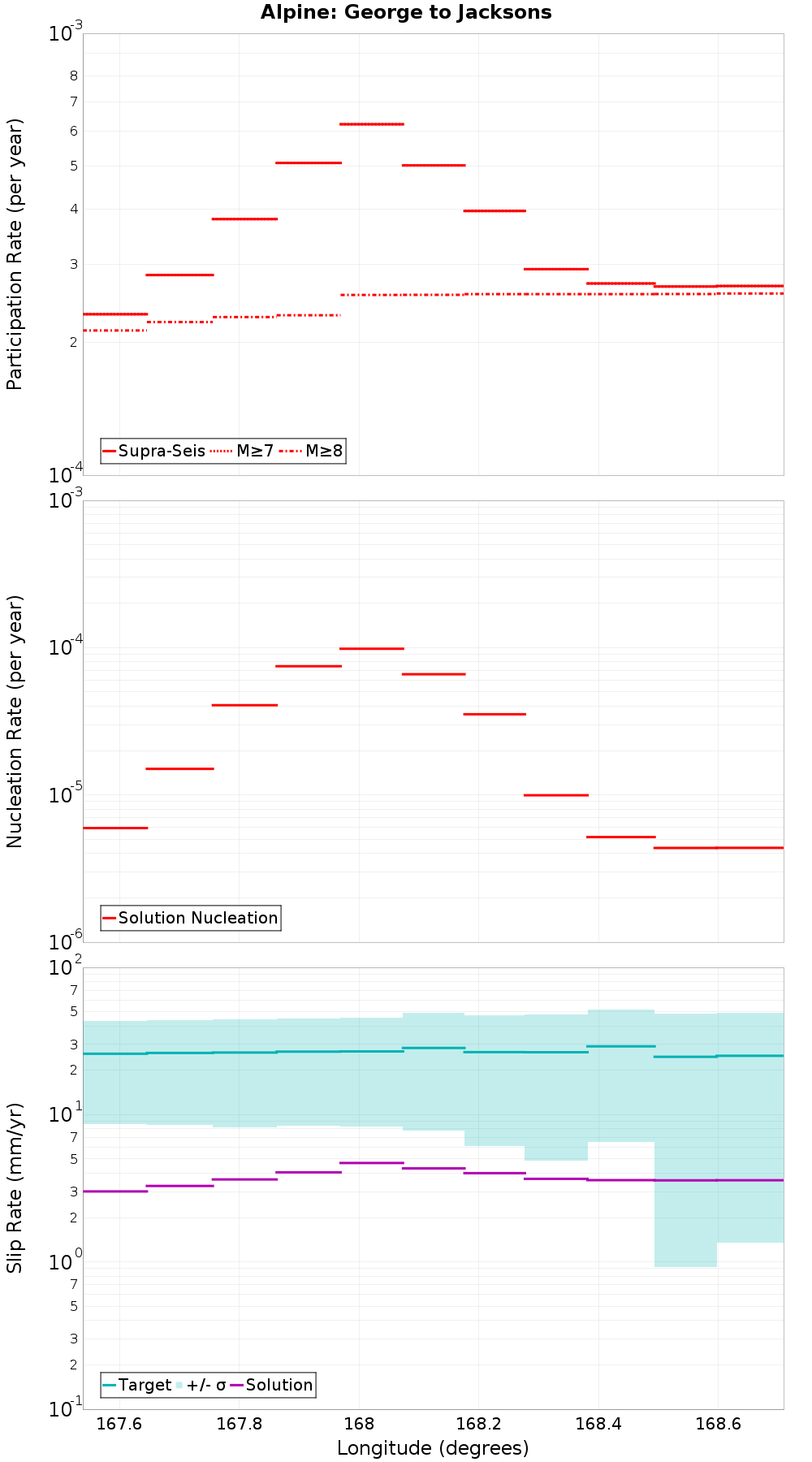

Along-Strike Values

Moment-Rates and b-Values

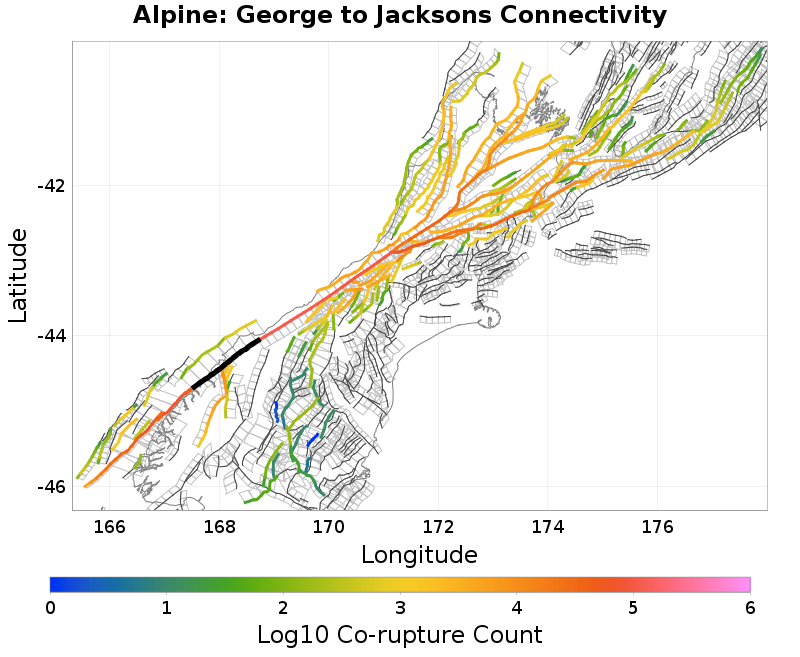

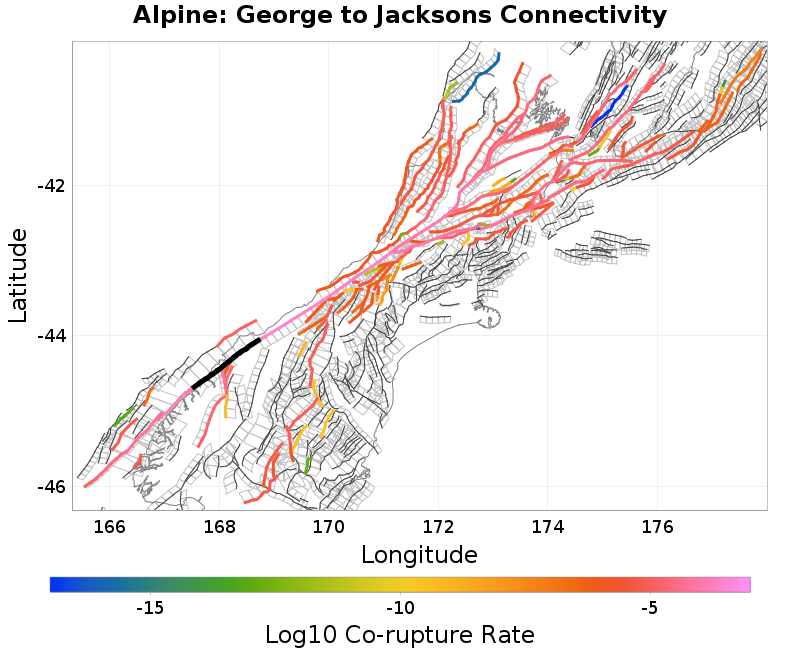

Connectivity

Nearby Sections

Fault Section
Alpine: George seaward, 0 km away
Alpine: Jacksons to Kaniere, 0 km away
Alpine: George landward, 0 km away
Hollyford, 0.11 km away
Skippers, 0.12 km away
Madagascar, 0.19 km away
Darran, 0.27 km away
Barn, 0.78 km away
Moonlight North, 9.42 km away

Alpine: George seaward, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?	true
Directly Connected?	true
Co-rupture Count	40,145
Co-rupture Rate	1.16303614E-4

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?	true
Directly Connected?	true
Co-rupture Count	115,597
Co-rupture Rate	2.5503975E-4

Alpine: George landward, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?	true
Directly Connected?	true
Co-rupture Count	41,451
Co-rupture Rate	9.062443E-5

Hollyford, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?	true
Directly Connected?	true
Co-rupture Count	1,257
Co-rupture Rate	3.6930924E-5

Skippers, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?	true
Directly Connected?	true
Co-rupture Count	1,683
Co-rupture Rate	7.21874E-7

Madagascar, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?	true
Directly Connected?	false
Co-rupture Count	236
Co-rupture Rate	0.0

Darran, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?	true
Directly Connected?	true
Co-rupture Count	9,073
Co-rupture Rate	8.220663E-5

Barn, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?	true
Directly Connected?	true
Co-rupture Count	687
Co-rupture Rate	1.2837135E-5

Moonlight North, 9.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
