Dry River - Huangarua: 1 Details

PropertyValue
Rupture Count3,082
Ruptures Above Sect Min Mag3,071
Ruptures w/ Nonzero Rates184
Magnitude Range[6.72, 8.45]
Length Range[16, 612] km
Total Rate8.8427274E-5 /yr
Multi-Fault Rate8.838939E-5 /yr (99.96%)
Directly-Connected Faults7
All Co-Rupturing Faults97

Table Of Contents

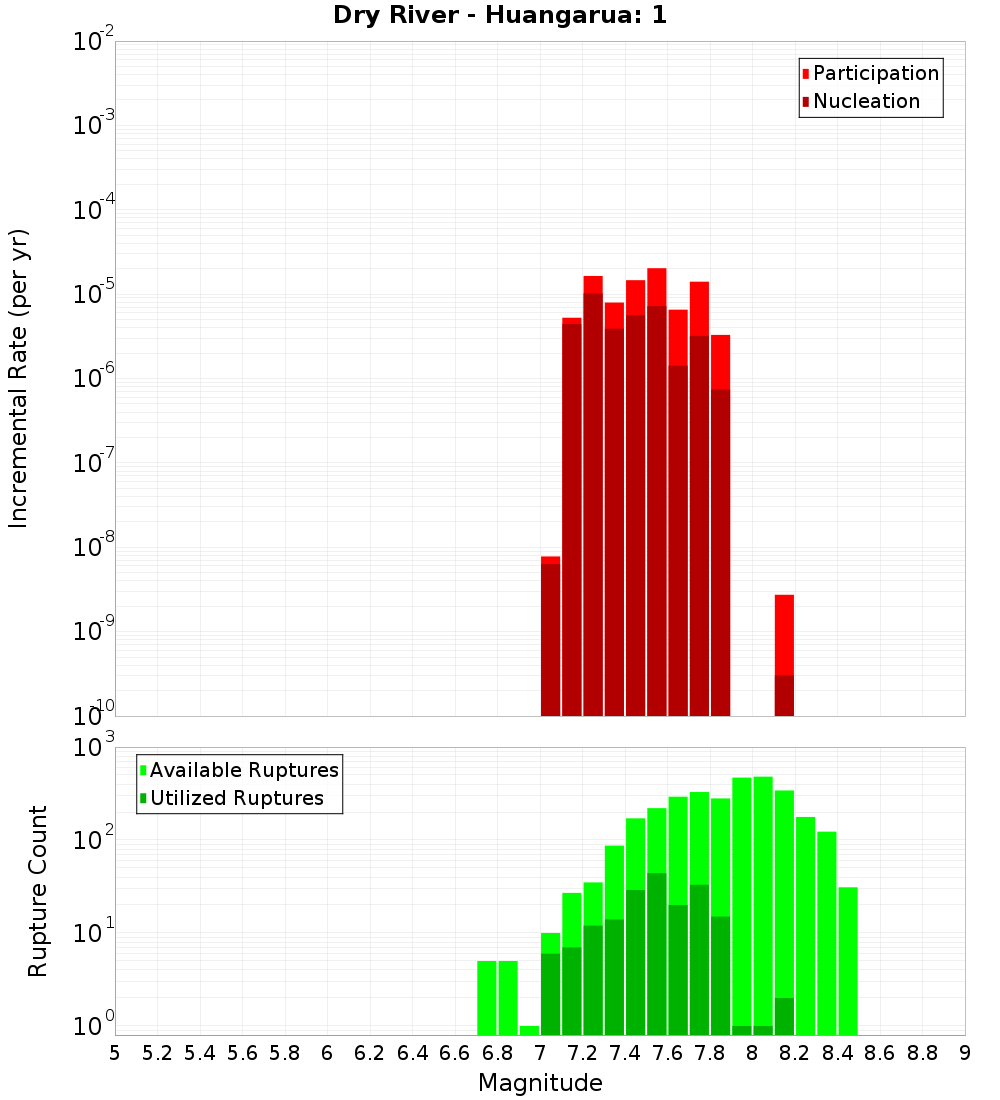

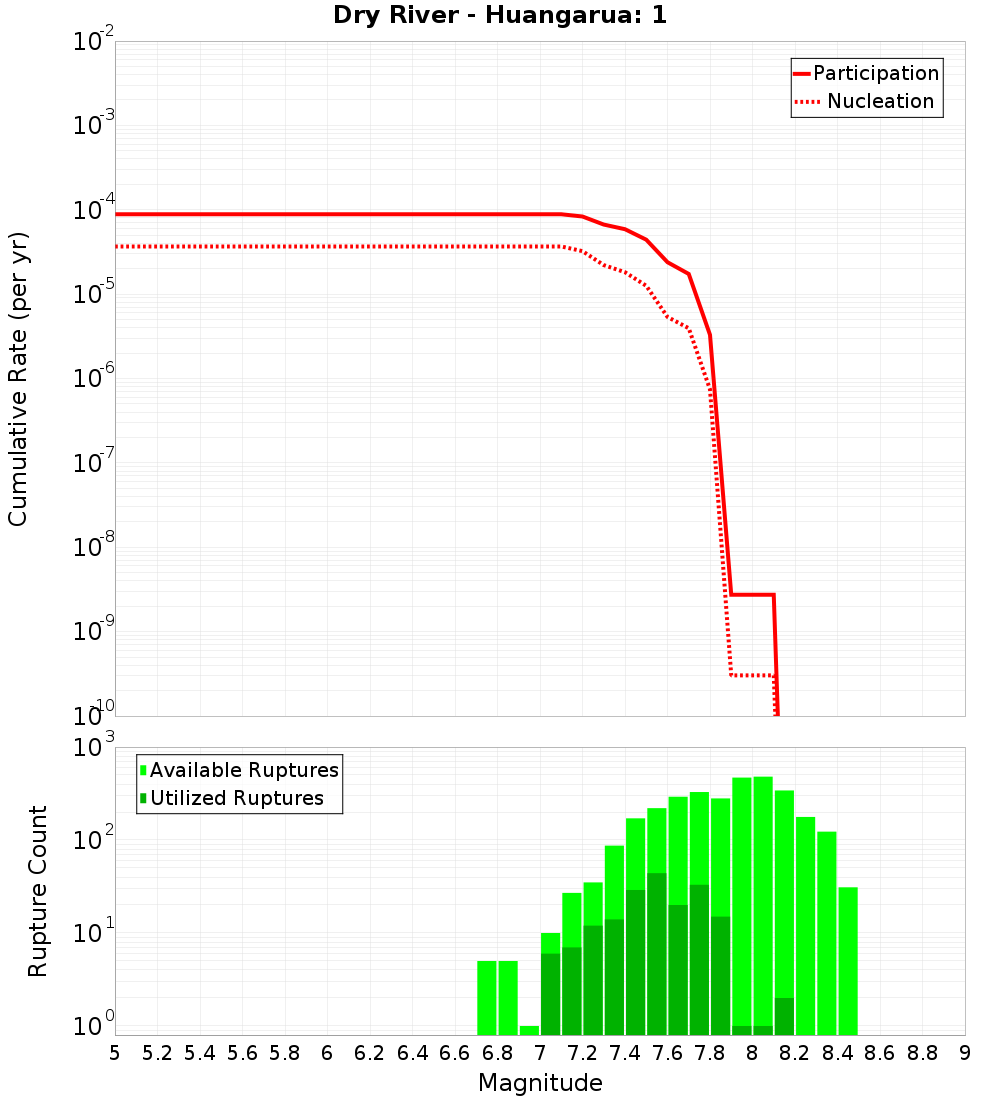

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

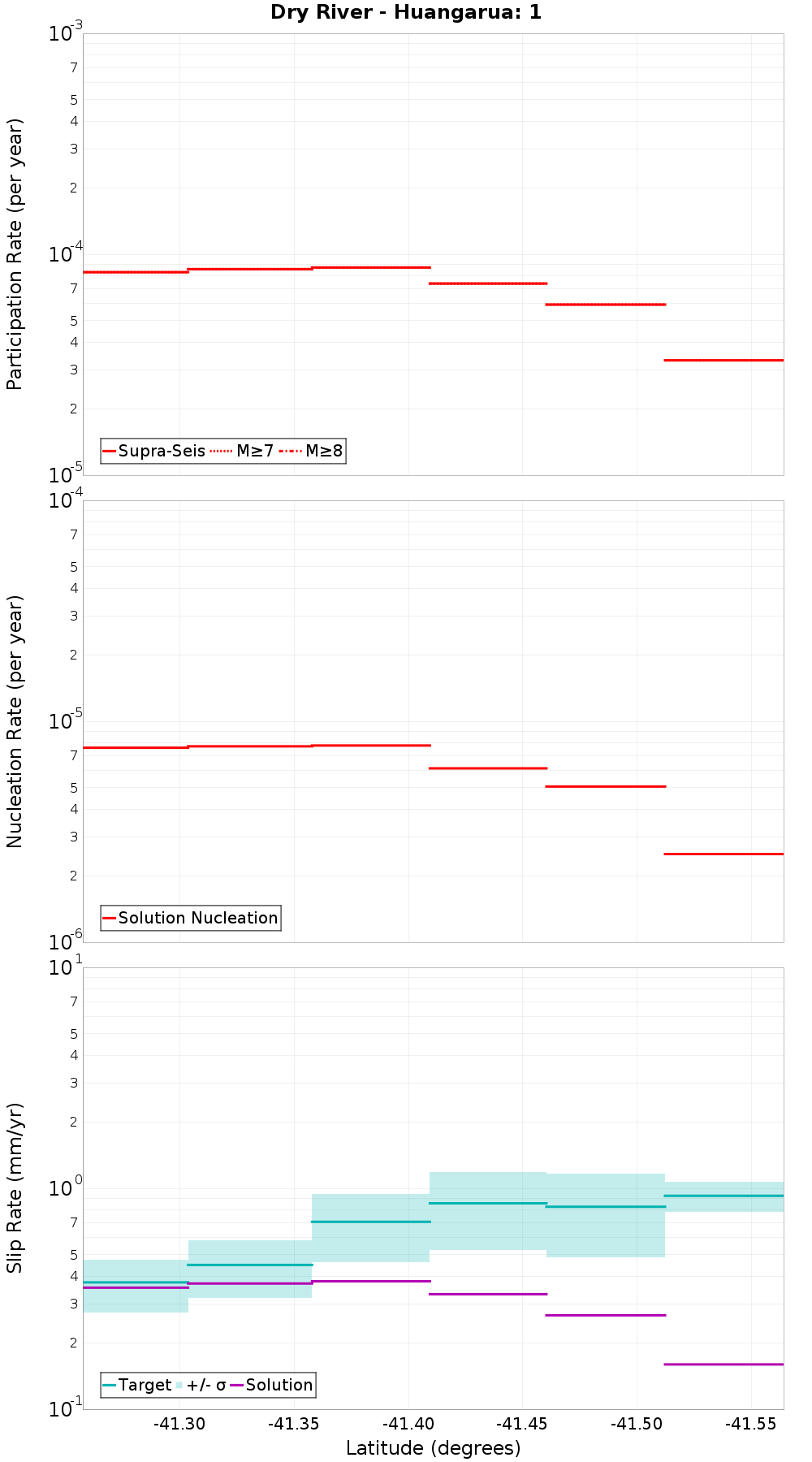

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

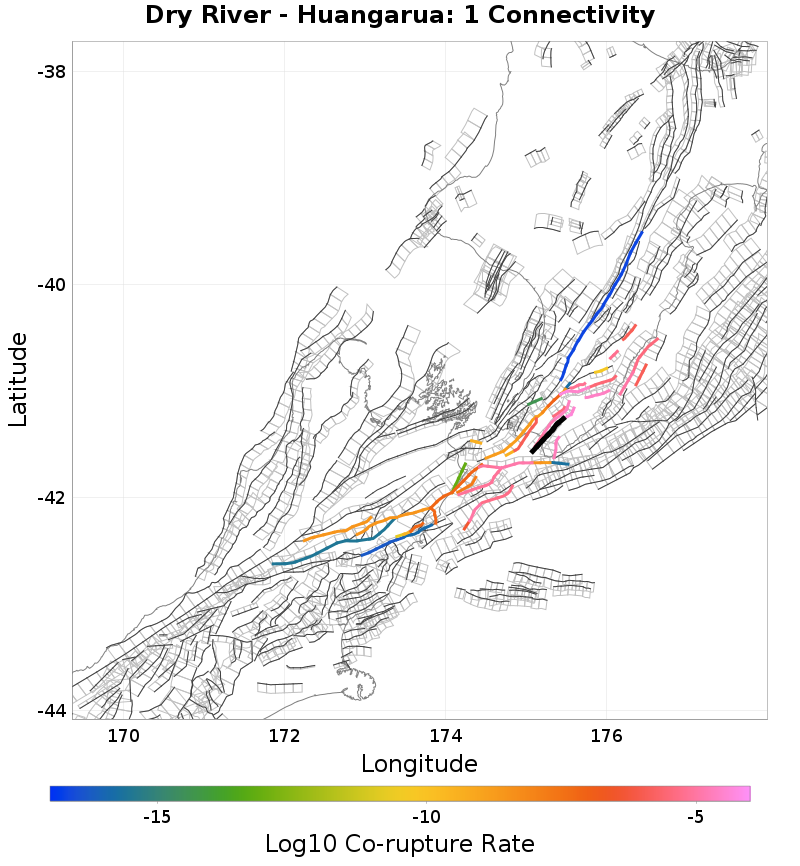

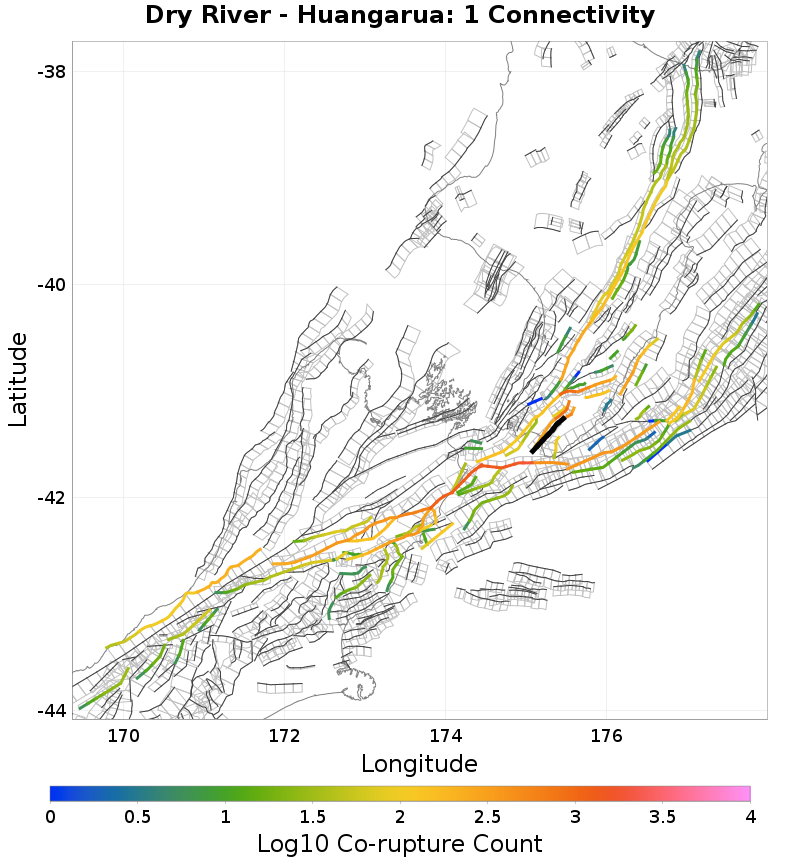

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dry River - Huangarua: 2, 0.11 km away
Otaraia, 0.38 km away
Ngapotiki, 3.58 km away
Martinborough, 4.4 km away
Bidwill, 7.05 km away
Dry River - Huangarua: 3, 7.07 km away
BooBoo, 10.86 km away
Palliser - Kaiwhata, 11.83 km away
Wharekauhau, 12.89 km away
Opouawe - Uruti, 14.3 km away

Dry River - Huangarua: 2, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count581
Co-rupture Rate4.2579726E-5

Otaraia, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count309
Co-rupture Rate1.6250291E-5

Ngapotiki, 3.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count92
Co-rupture Rate2.1167387E-5

Martinborough, 4.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count862
Co-rupture Rate2.1262196E-5

Bidwill, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?false
Co-rupture Count88
Co-rupture Rate3.4611537E-6

Dry River - Huangarua: 3, 7.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count294
Co-rupture Rate3.2955442E-5

BooBoo, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count1,877
Co-rupture Rate1.1943531E-5

Palliser - Kaiwhata, 11.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate1.1373056E-6

Opouawe - Uruti, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?false
Co-rupture Count388
Co-rupture Rate0.0
