Rangefront Details

PropertyValue
Rupture Count6,988
Ruptures Above Sect Min Mag6,986
Ruptures w/ Nonzero Rates140
Magnitude Range[7.04, 8.52]
Length Range[21, 697] km
Total Rate3.850785E-5 /yr
Multi-Fault Rate3.8506663E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults96

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

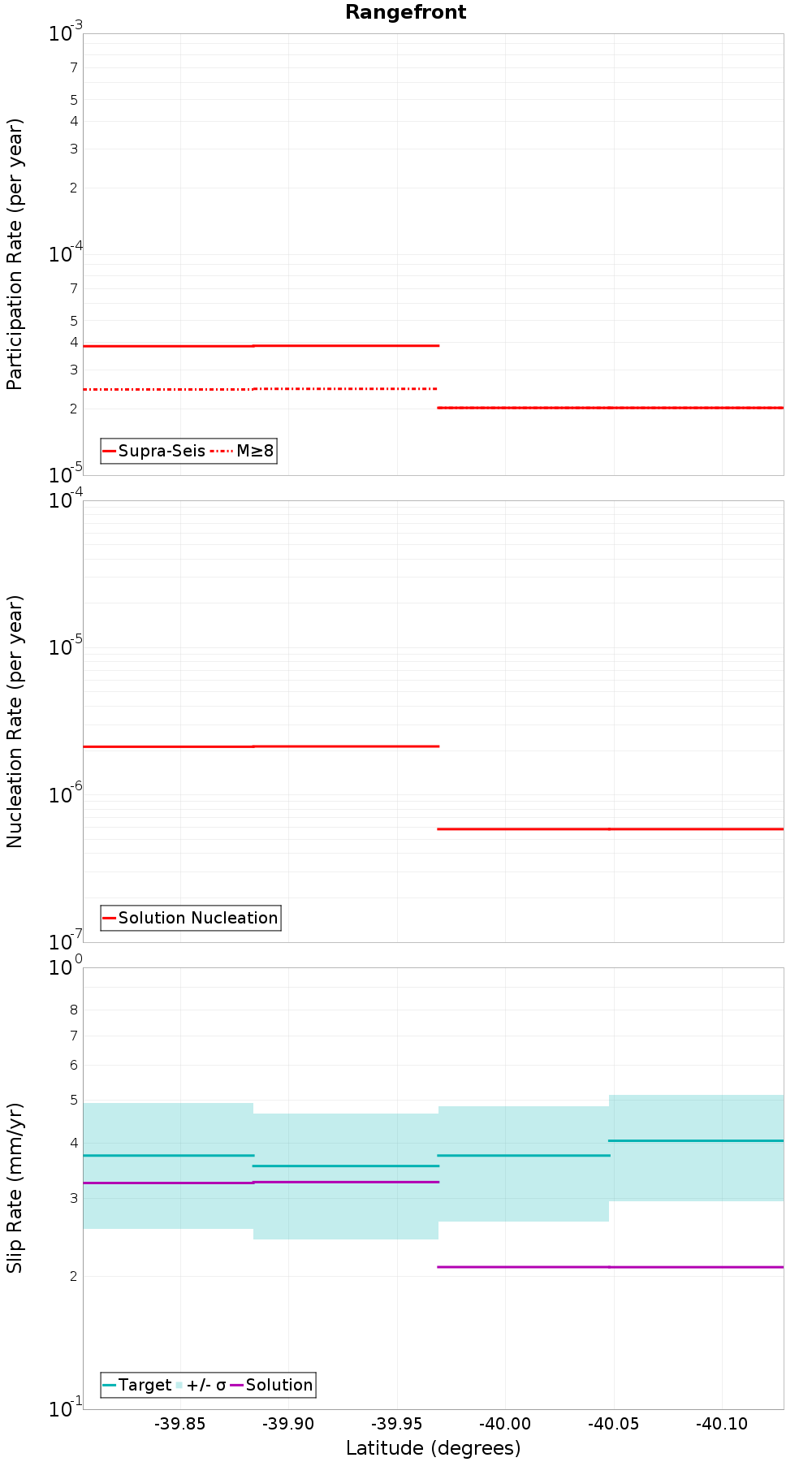

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wakarara, 0 km away
Ruahine: Central, 0.14 km away
Mohaka: South, 0.18 km away
Ruahine: South, 0.22 km away
Ruataniwha, 8.95 km away
Pahiatua, 9.78 km away
Maunga, 10.16 km away
Woodville, 10.91 km away
Pohangina, 12.41 km away

Wakarara, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count267
Co-rupture Rate1.1162784E-5

Ruahine: Central, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count941
Co-rupture Rate2.9952287E-6

Mohaka: South, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count10,027
Co-rupture Rate4.3223532E-5

Ruahine: South, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count664
Co-rupture Rate9.4066434E-7

Ruataniwha, 8.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?true
Co-rupture Count467
Co-rupture Rate1.8328326E-5

Pahiatua, 9.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?false
Co-rupture Count212
Co-rupture Rate1.5565422E-5

Maunga, 10.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?false
Co-rupture Count218
Co-rupture Rate1.831928E-5

Woodville, 10.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?true
Directly Connected?false
Co-rupture Count216
Co-rupture Rate4.5104443E-6

Pohangina, 12.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0NjIuMEhhRGhX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
