Te Arawa 3 Details

PropertyValue
Rupture Count867
Ruptures Above Sect Min Mag866
Ruptures w/ Nonzero Rates134
Magnitude Range[6.89, 8.37]
Length Range[13, 506] km
Total Rate8.04404E-5 /yr
Multi-Fault Rate8.04404E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults43

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

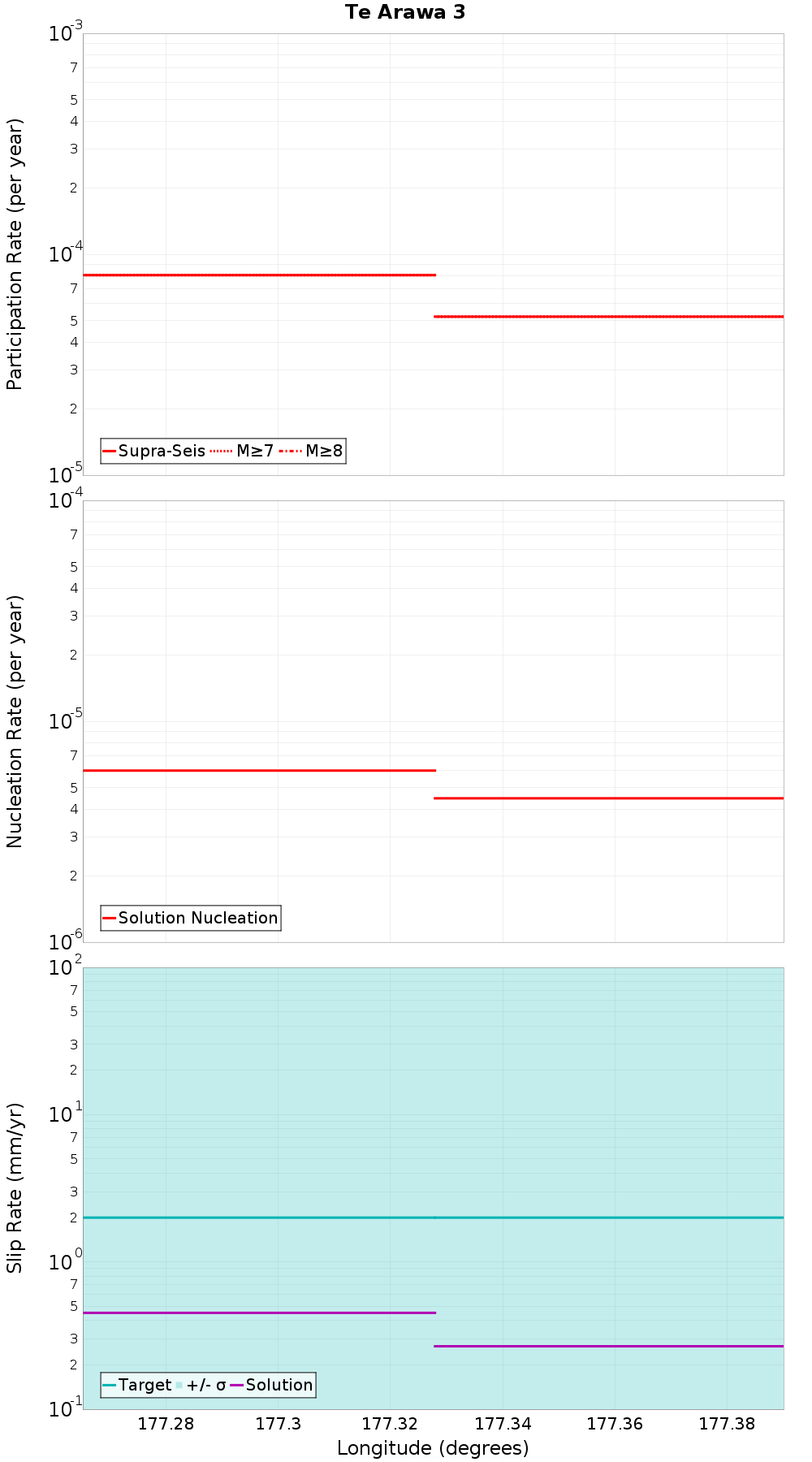

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.11 km away
Te Arawa 2, 1.67 km away
Volkner 4, 1.79 km away
Hariki, 3.21 km away
Otara West 1, 4.41 km away
Otara East 1, 5.22 km away
Te Arawa 1, 5.29 km away
Otara West 2, 8.79 km away
Tuatoru 1, 9.82 km away
Volkner 3, 12.62 km away
Otara East 2, 13.29 km away
Whakaari 4, 14.7 km away

Tuatoru 2, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?true
Directly Connected?false
Co-rupture Count43
Co-rupture Rate4.6061268E-7

Te Arawa 2, 1.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate3.2286633E-7

Volkner 4, 1.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate2.172718E-5

Hariki, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate8.179422E-7

Otara West 1, 4.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?true
Directly Connected?true
Co-rupture Count223
Co-rupture Rate2.9441766E-5

Te Arawa 1, 5.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?true
Directly Connected?true
Co-rupture Count797
Co-rupture Rate7.9299585E-5

Otara West 2, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 9.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate1.6125517E-7

Volkner 3, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate2.1688587E-5

Otara East 2, 13.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?true
Directly Connected?false
Co-rupture Count64
Co-rupture Rate5.3536896E-6

Whakaari 4, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE0OTguMHVmZjM1
Connected?true
Directly Connected?false
Co-rupture Count498
Co-rupture Rate3.354529E-5
