Tauranga Trough East 2 Details

PropertyValue
Rupture Count76
Ruptures Above Sect Min Mag74
Ruptures w/ Nonzero Rates31
Magnitude Range[6.92, 7.85]
Length Range[17, 126] km
Total Rate9.411777E-5 /yr
Multi-Fault Rate2.468652E-7 /yr (0.26%)
Directly-Connected Faults6
All Co-Rupturing Faults12

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

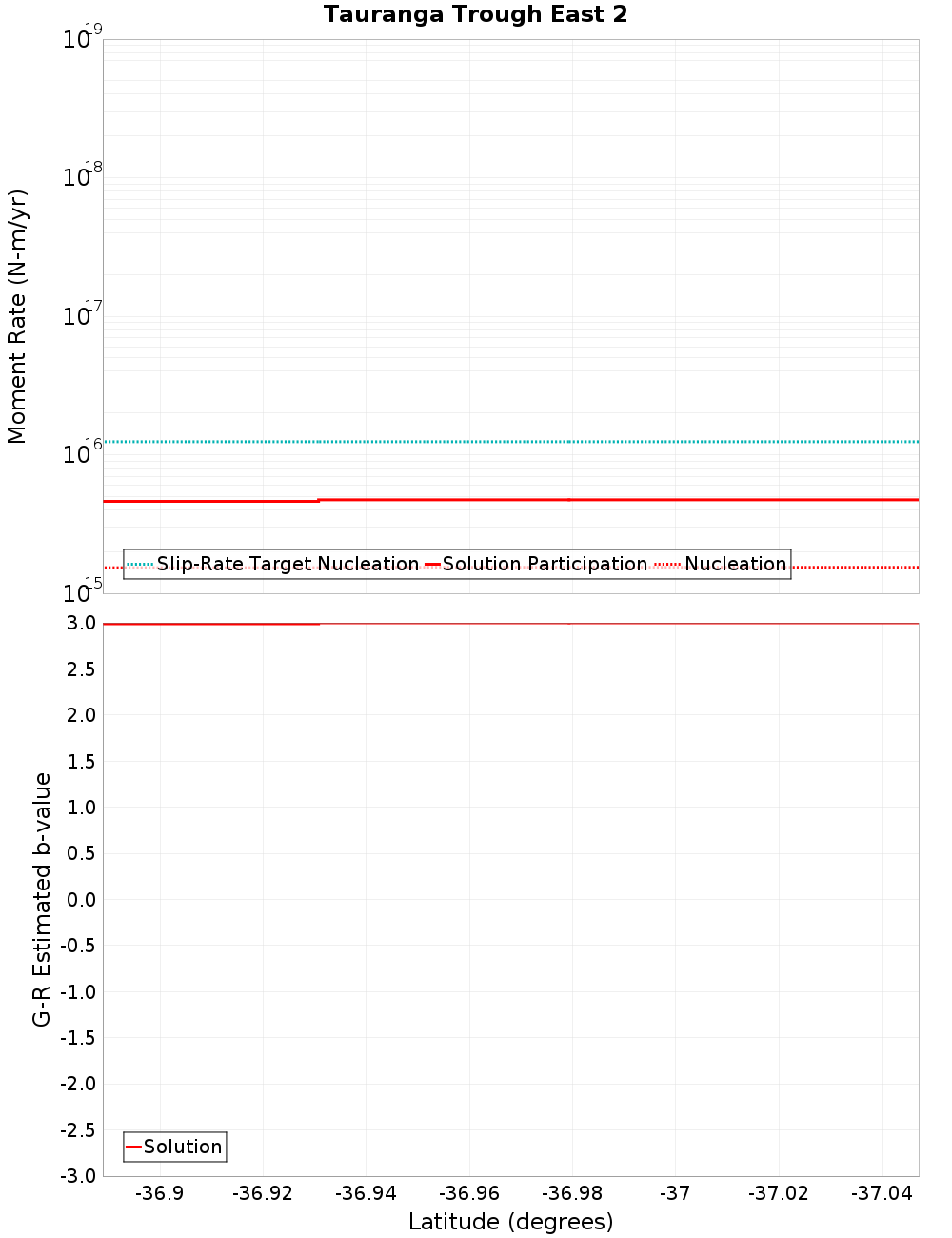

Moment-Rates and b-Values

(top)

Along-strike plot

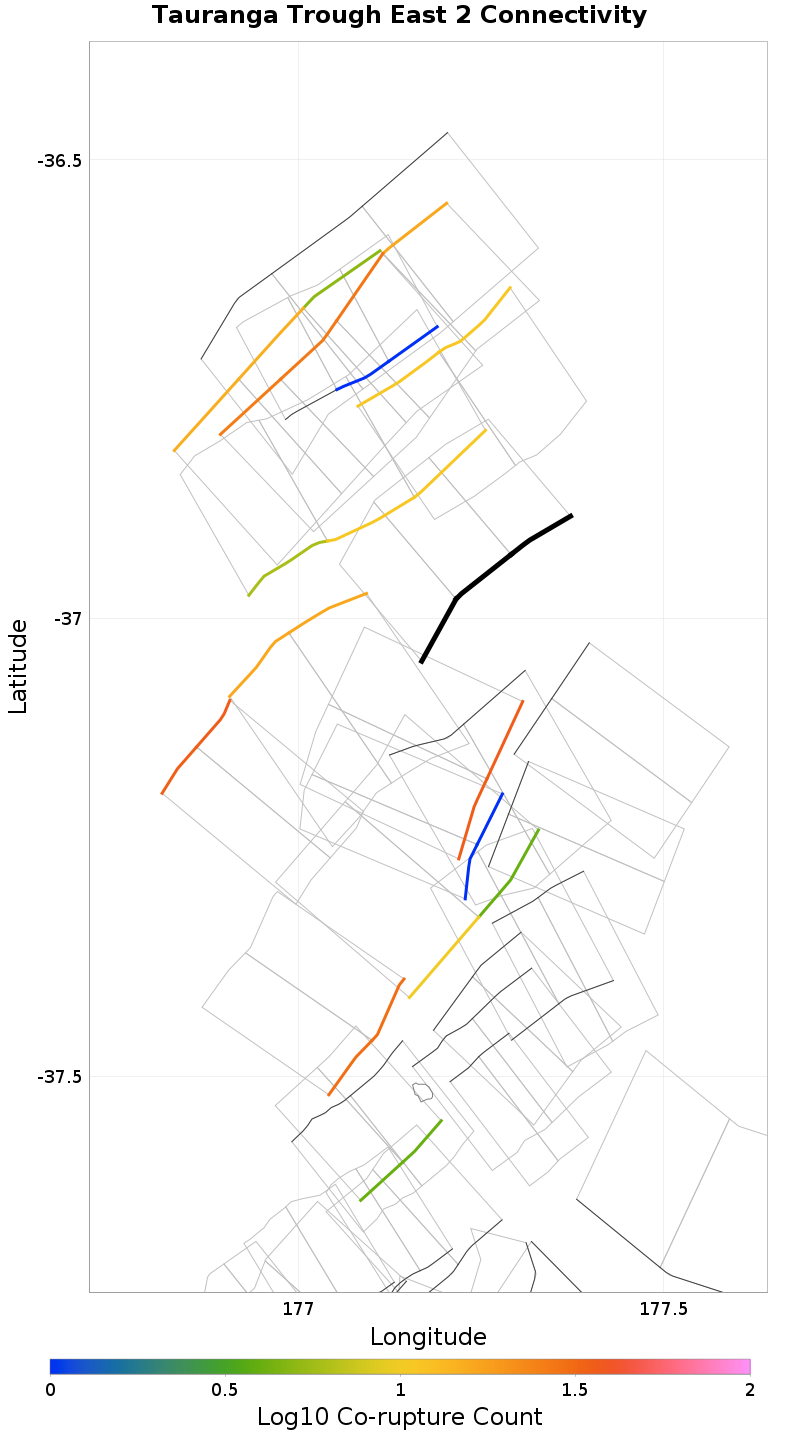

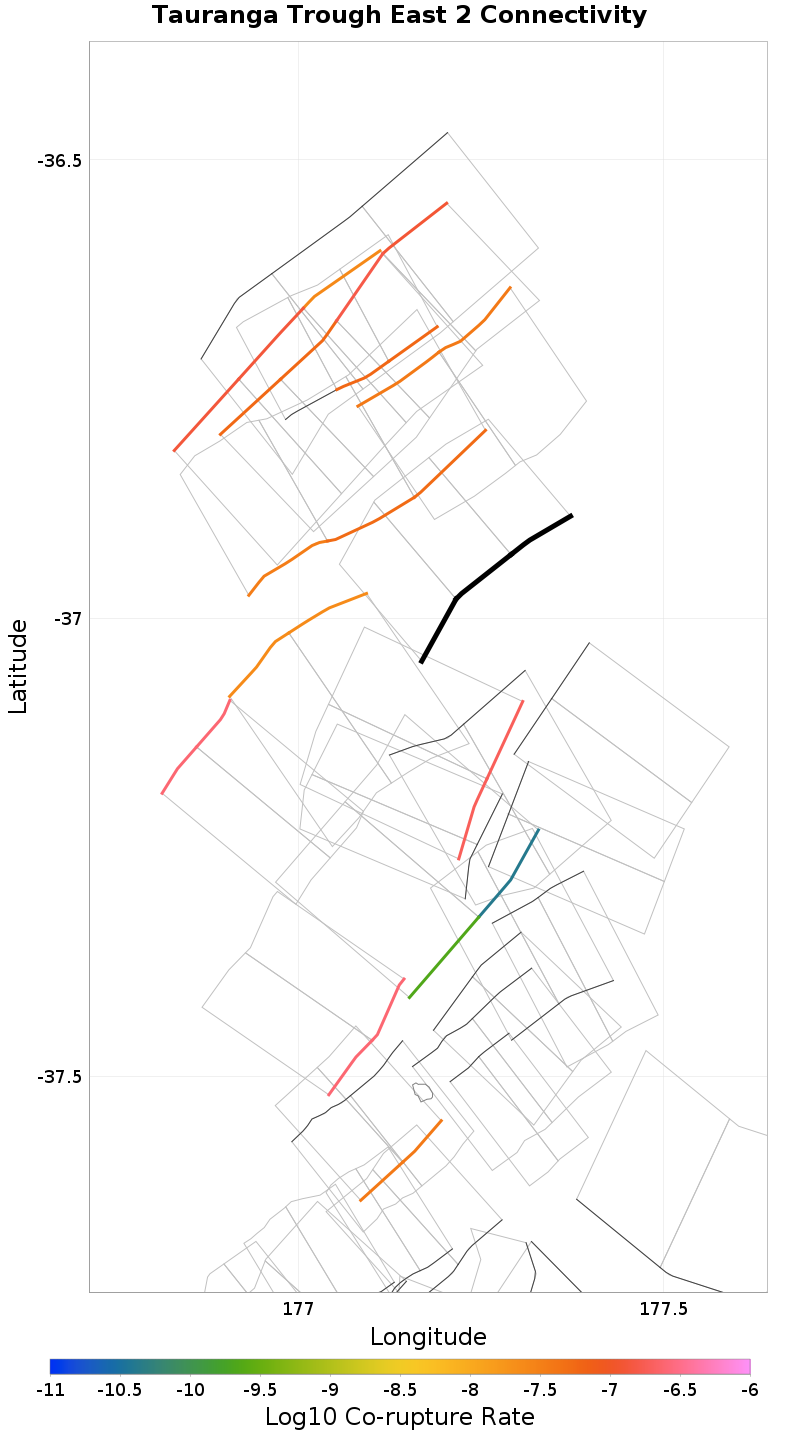

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ngatoro South 2, 0.25 km away
Tuakana 7, 0.69 km away
Ohena 2, 2.52 km away
Ohena 3, 5.27 km away
Otara West 3, 9.11 km away
Tauranga Trough West 2, 9.68 km away
Otara West 2, 9.83 km away
Ohena 4, 10.64 km away
Otara East 2, 14.3 km away

Ngatoro South 2, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE1MzAuMFRQbXRT
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate3.688856E-8

Tuakana 7, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE1MzAuMFRQbXRT
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate2.3218549E-8

Ohena 2, 2.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE1MzAuMFRQbXRT
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate1.5782176E-7

Ohena 3, 5.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE1MzAuMFRQbXRT
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate1.3306834E-7

Otara West 3, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE1MzAuMFRQbXRT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tauranga Trough West 2, 9.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE1MzAuMFRQbXRT
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate5.300655E-8

Otara West 2, 9.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE1MzAuMFRQbXRT
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate1.8853032E-7

Ohena 4, 10.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE1MzAuMFRQbXRT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 2, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE1MzAuMFRQbXRT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
