Wellington: Pahiatua Details

PropertyValue
Rupture Count77,042
Ruptures Above Sect Min Mag77,039
Ruptures w/ Nonzero Rates492
Magnitude Range[6.92, 8.61]
Length Range[21, 1,132] km
Total Rate4.5518446E-4 /yr
Multi-Fault Rate4.5311026E-4 /yr (99.54%)
Directly-Connected Faults8
All Co-Rupturing Faults140

Table Of Contents

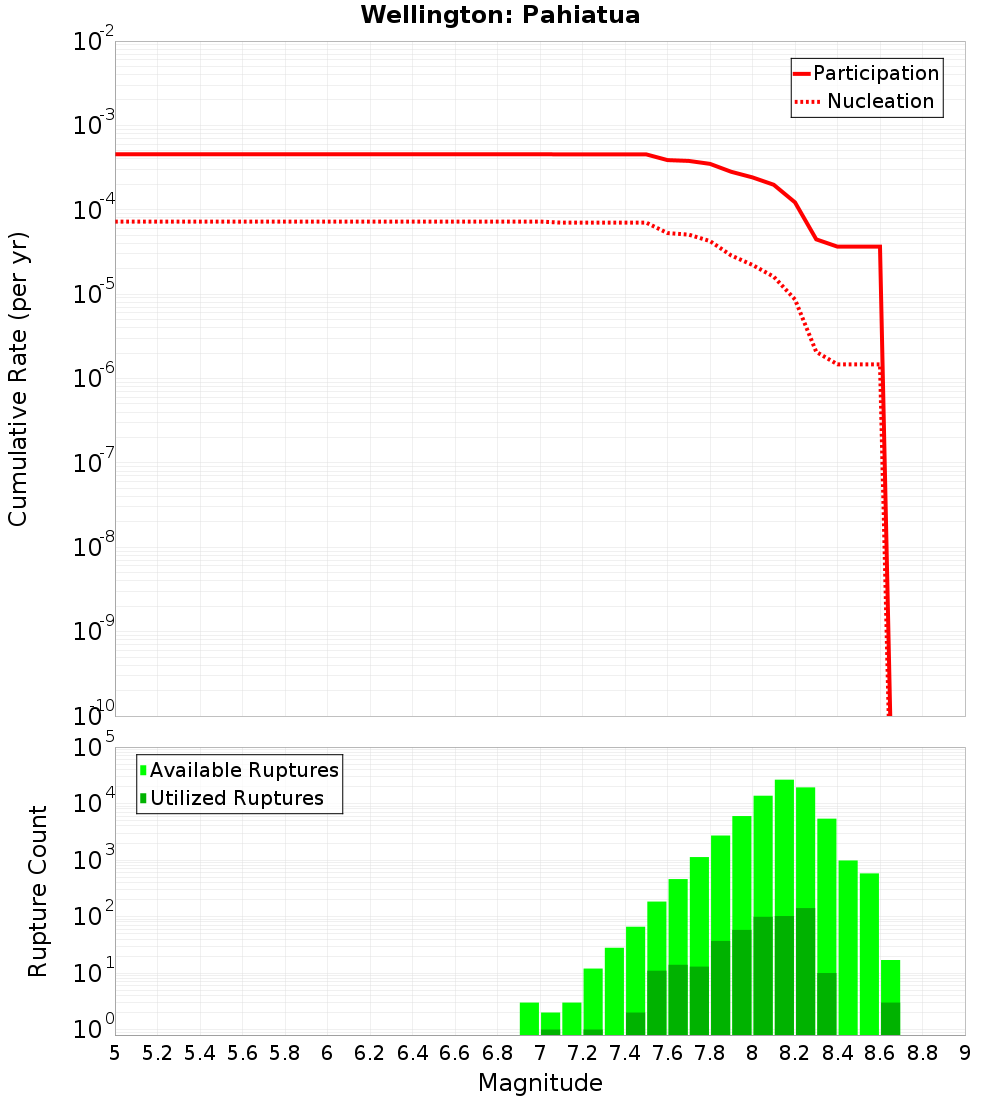

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

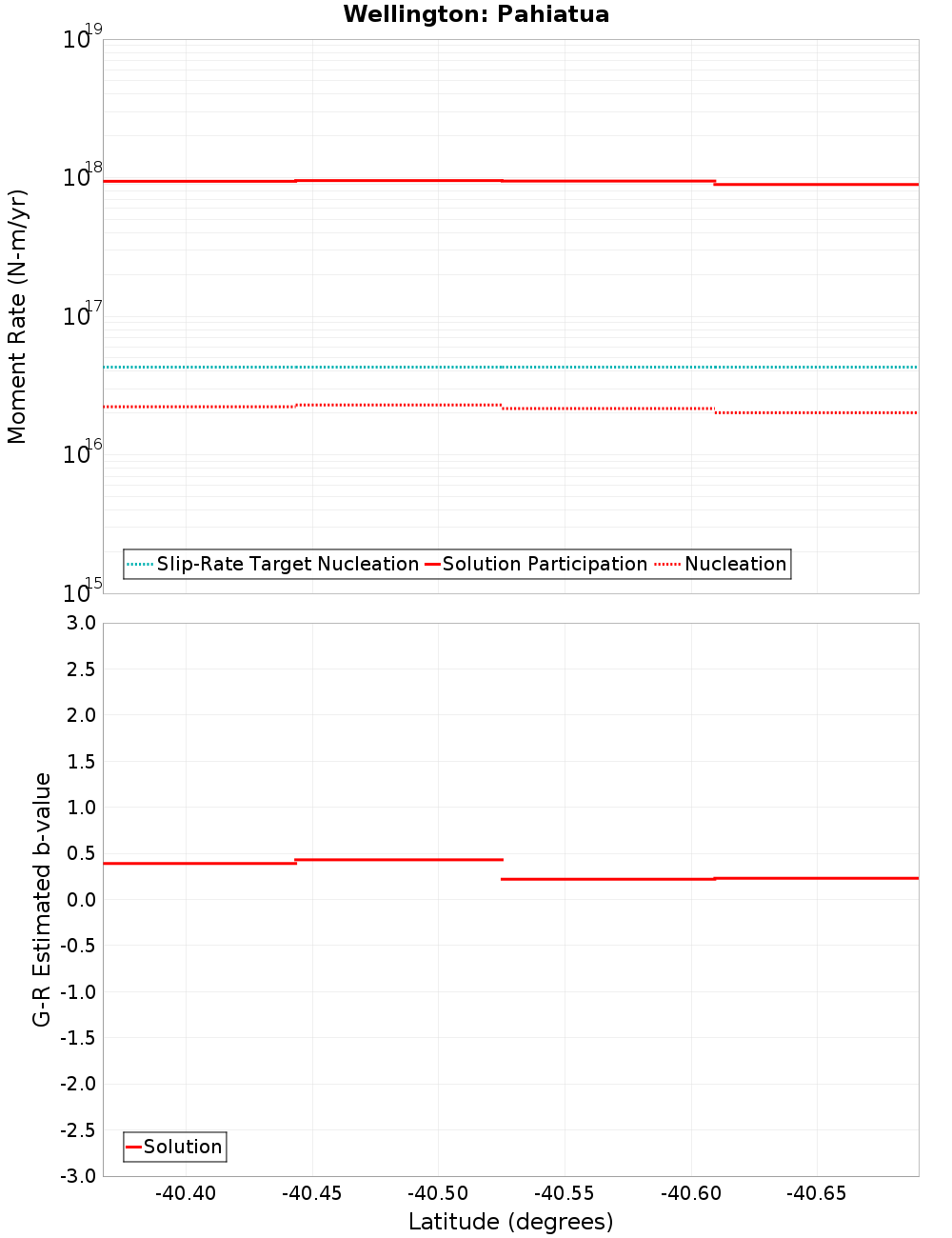

Moment-Rates and b-Values

(top)

Along-strike plot

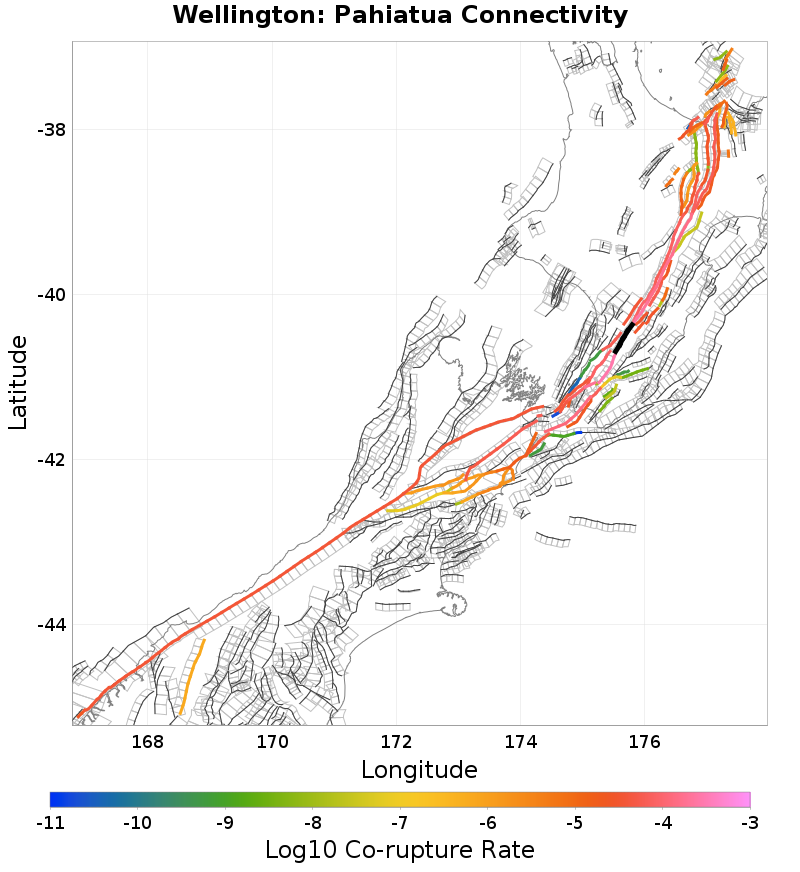

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: South, 0 km away
Ruahine: South, 0 km away
Wellington: Tararua 3, 0.03 km away
Tokomaru, 0.13 km away
Northern Ohariu, 2.46 km away
Otaki Forks: 2, 4.69 km away
Woodville, 5.06 km away
Pahiatua, 5.58 km away
Pohangina, 9.35 km away
Wairarapa: 3, 13.85 km away

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDAuMHdiN2M3
Connected?true
Directly Connected?true
Co-rupture Count60,352
Co-rupture Rate3.1165508E-4

Ruahine: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDAuMHdiN2M3
Connected?true
Directly Connected?true
Co-rupture Count24,389
Co-rupture Rate1.2266656E-4

Wellington: Tararua 3, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDAuMHdiN2M3
Connected?true
Directly Connected?true
Co-rupture Count49,026
Co-rupture Rate2.816269E-4

Tokomaru, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDAuMHdiN2M3
Connected?true
Directly Connected?true
Co-rupture Count300
Co-rupture Rate0.0

Northern Ohariu, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDAuMHdiN2M3
Connected?true
Directly Connected?true
Co-rupture Count6,802
Co-rupture Rate6.123524E-5

Otaki Forks: 2, 4.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDAuMHdiN2M3
Connected?true
Directly Connected?true
Co-rupture Count20,110
Co-rupture Rate8.401562E-5

Woodville, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDAuMHdiN2M3
Connected?true
Directly Connected?true
Co-rupture Count5,229
Co-rupture Rate3.0360054E-5

Pahiatua, 5.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDAuMHdiN2M3
Connected?true
Directly Connected?false
Co-rupture Count237
Co-rupture Rate3.0505373E-5

Pohangina, 9.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDAuMHdiN2M3
Connected?true
Directly Connected?true
Co-rupture Count1,227
Co-rupture Rate3.9060335E-5

Wairarapa: 3, 13.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDAuMHdiN2M3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
