Maungati Details

Property	Value
Rupture Count	844
Ruptures Above Sect Min Mag	839
Ruptures w/ Nonzero Rates	22
Magnitude Range	[6.77, 8.35]
Length Range	[16, 538] km
Total Rate	1.2681265E-5 /yr
Multi-Fault Rate	1.2681265E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	60

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

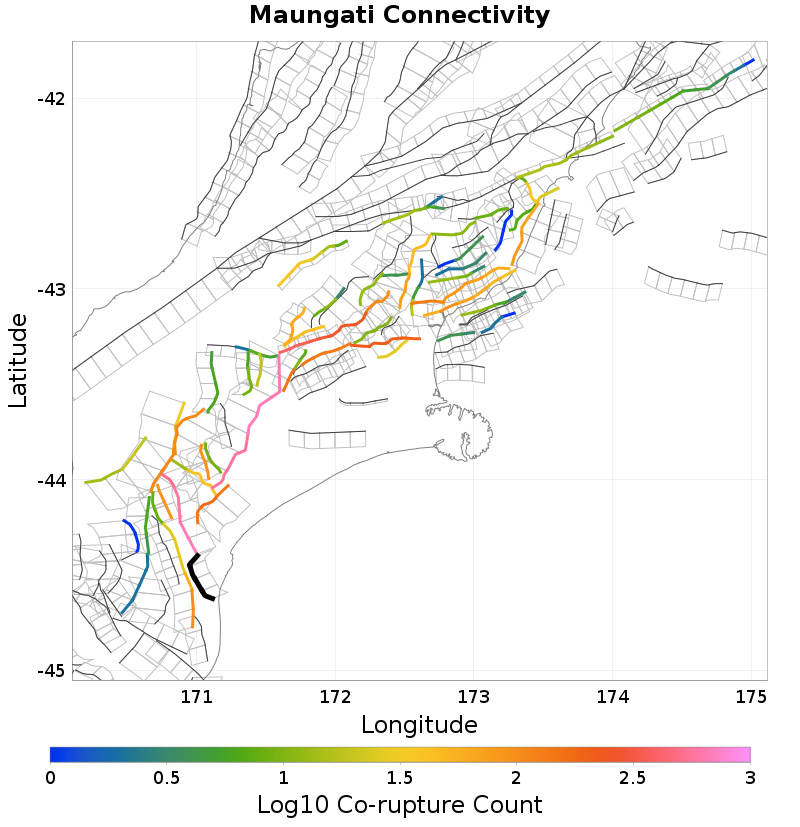

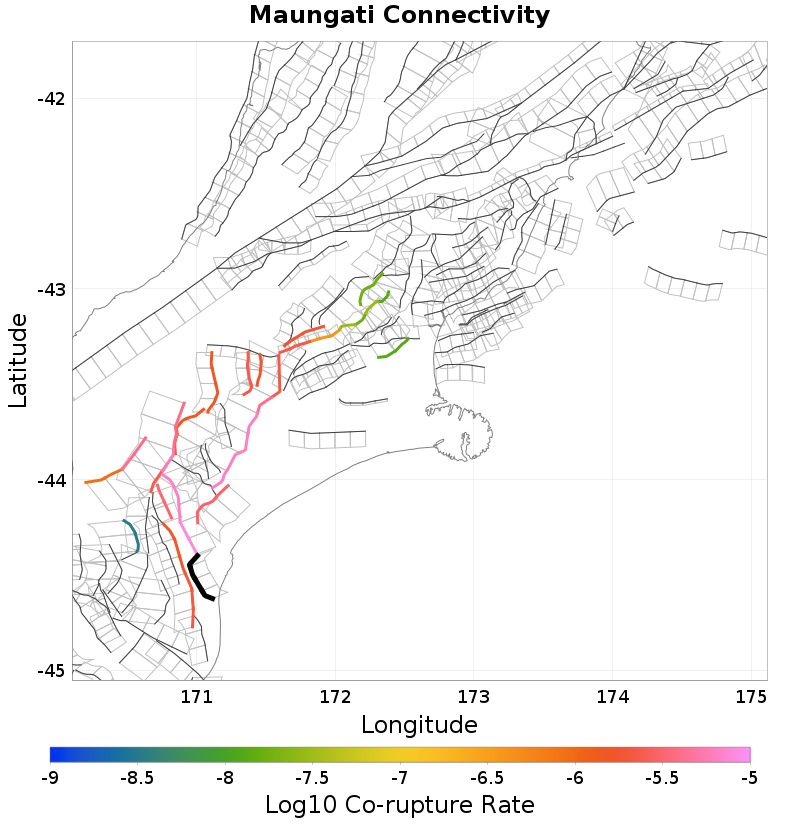

Connectivity
- Nearby Sections

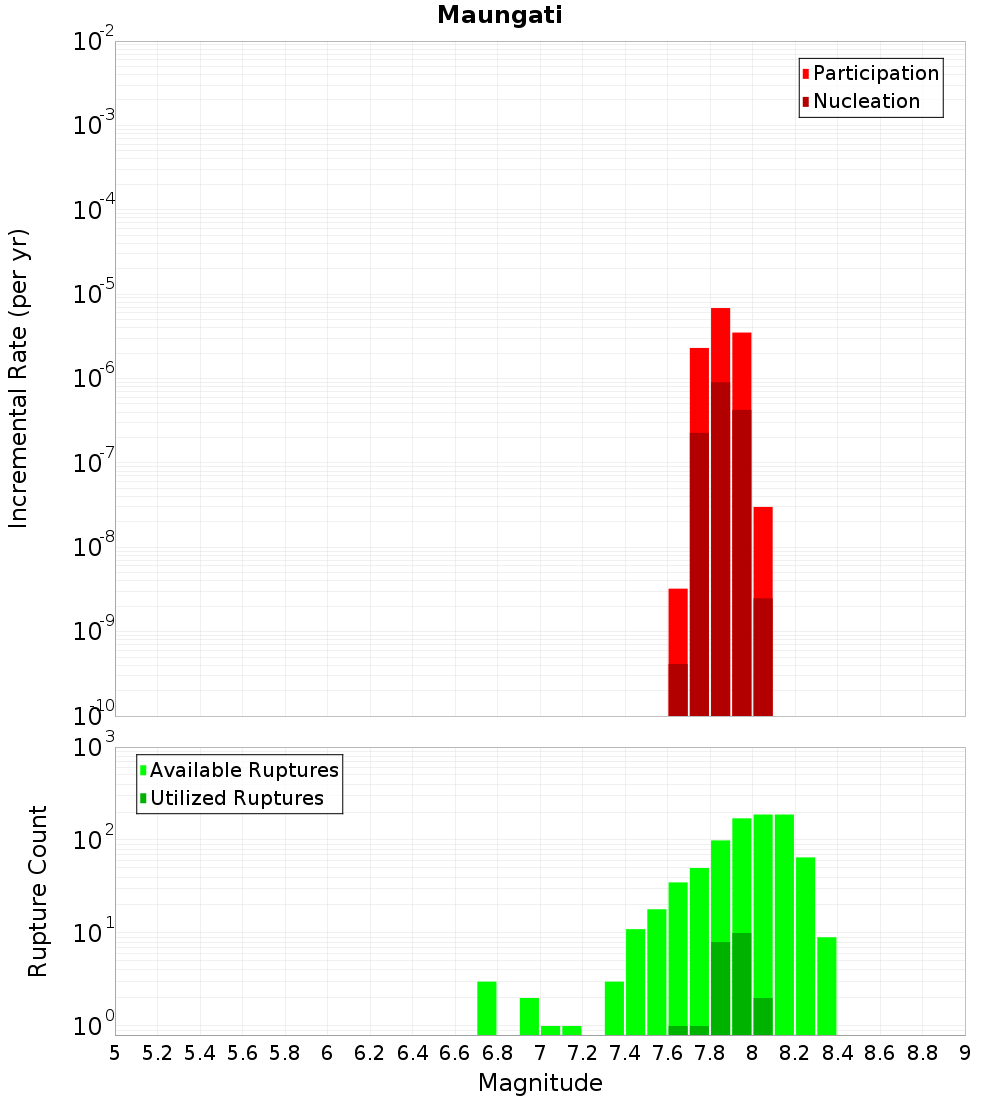

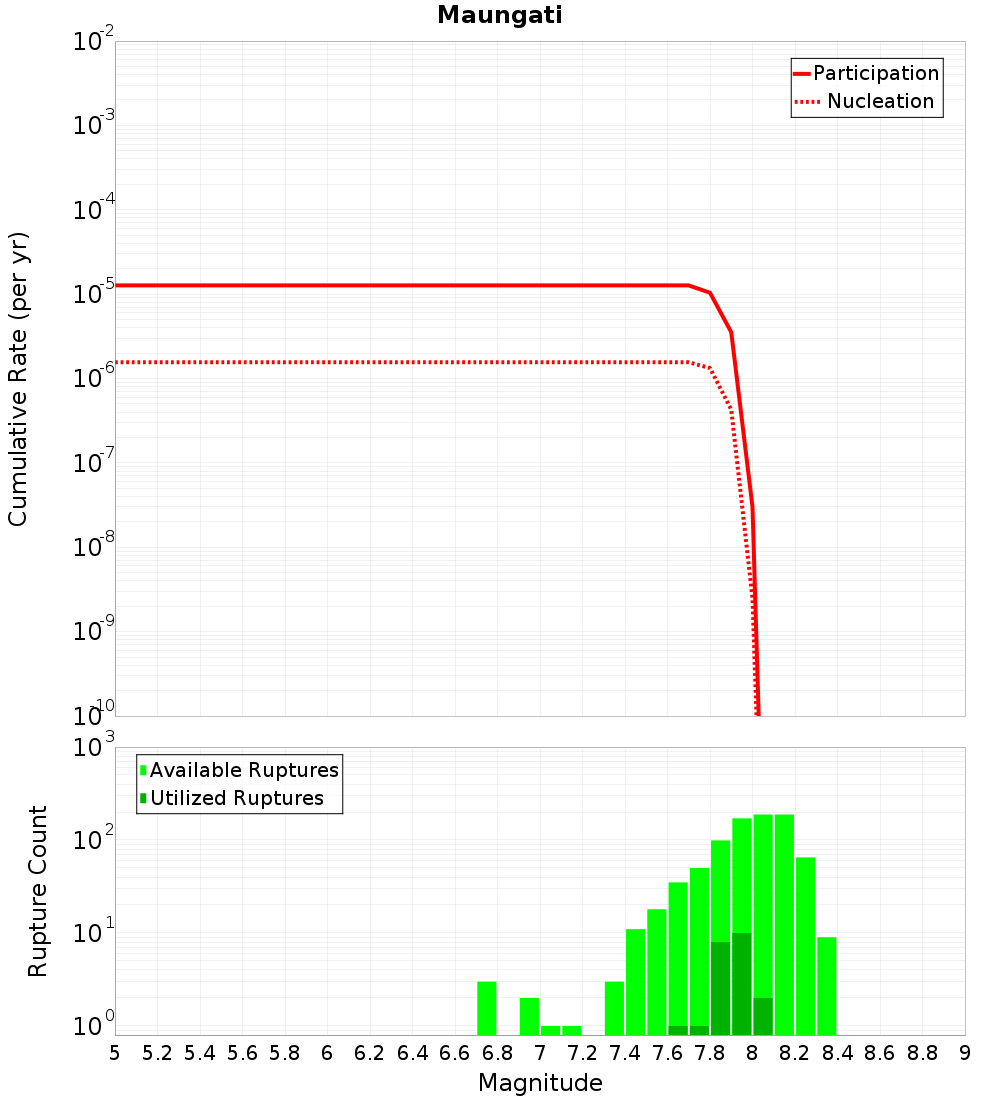

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Brothers, 0.81 km away
Hunters, 3.56 km away
Rapuwai, 6.24 km away
Chamberlain, 8.42 km away
Waimate, 13.4 km away

Brothers, 0.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDYuMFFwOVpy
Connected?	true
Directly Connected?	true
Co-rupture Count	696
Co-rupture Rate	7.988433E-6

Hunters, 3.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDYuMFFwOVpy
Connected?	true
Directly Connected?	true
Co-rupture Count	102
Co-rupture Rate	2.1110438E-6

Rapuwai, 6.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDYuMFFwOVpy
Connected?	true
Directly Connected?	true
Co-rupture Count	173
Co-rupture Rate	2.9738242E-6

Chamberlain, 8.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDYuMFFwOVpy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimate, 13.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MDYuMFFwOVpy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
