Alpine: Caswell Details

Property	Value
Rupture Count	36,924
Ruptures Above Sect Min Mag	36,920
Ruptures w/ Nonzero Rates	1,363
Magnitude Range	[7.01, 8.71]
Length Range	[22, 1,129] km
Total Rate	9.277108E-4 /yr
Multi-Fault Rate	9.277108E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	127

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

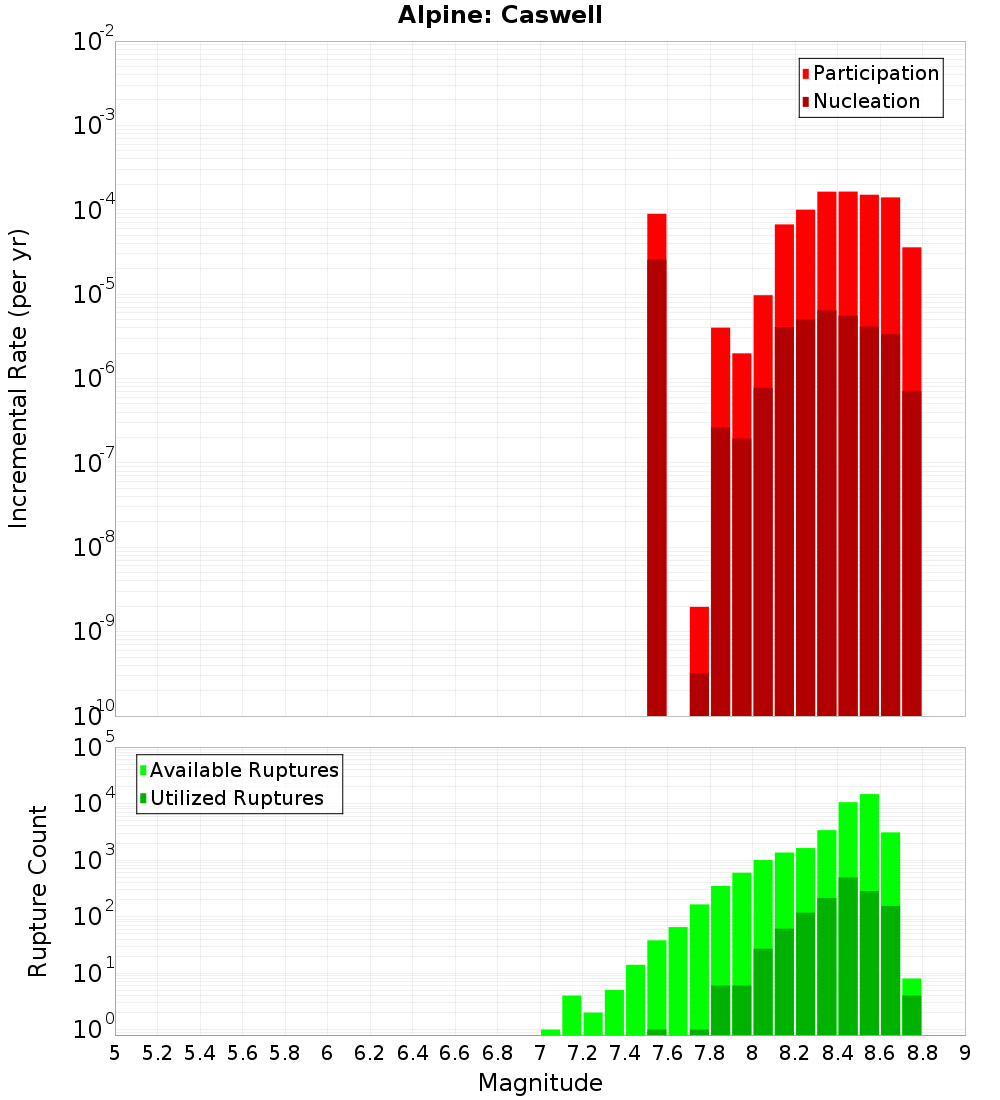

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

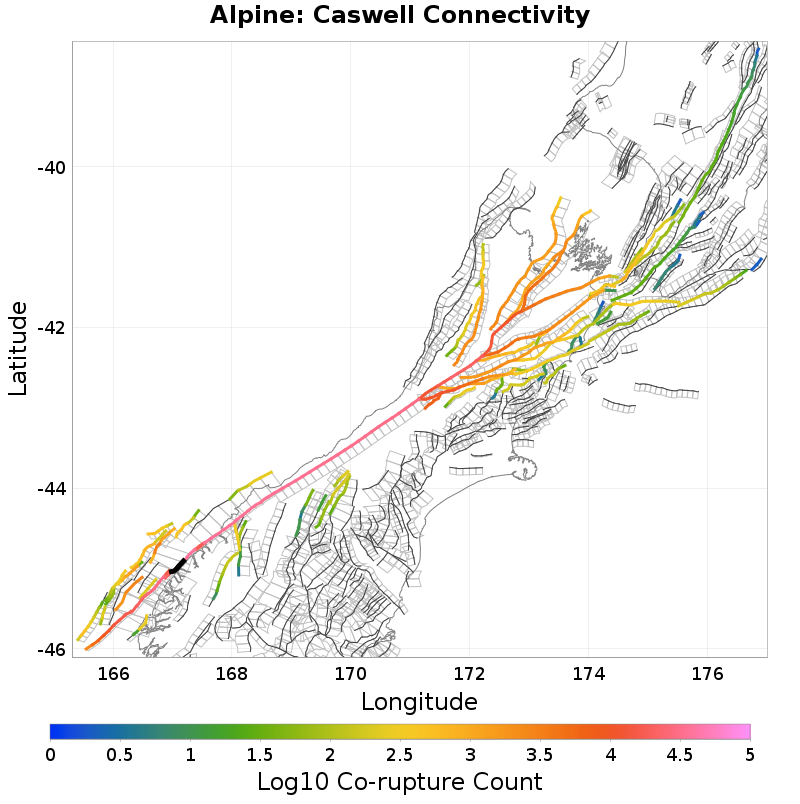

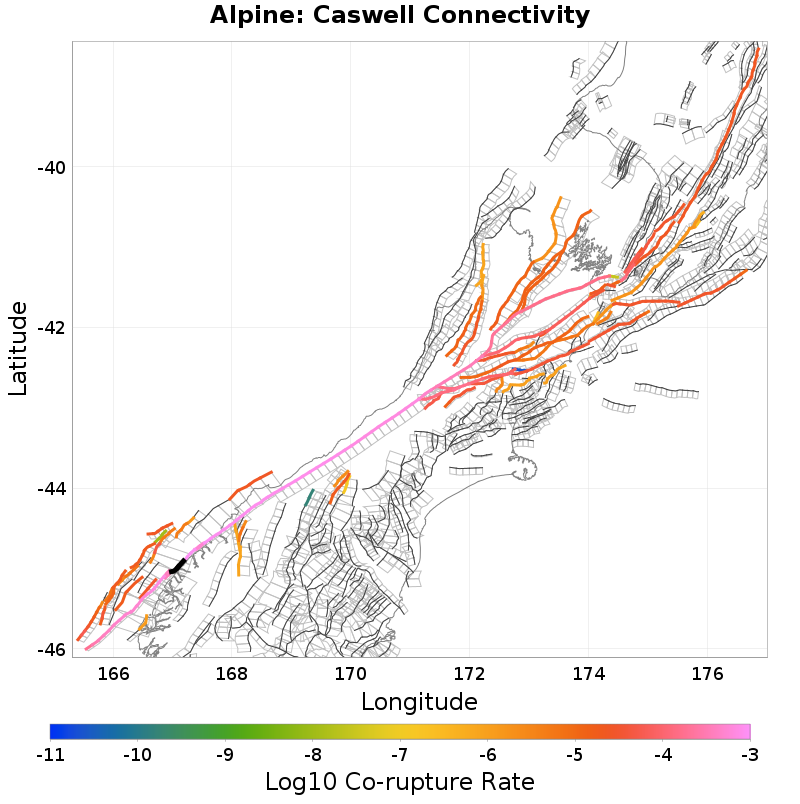

Connectivity

Nearby Sections

Fault Section
Alpine: Nancy, 0 km away
Alpine: Caswell - South George, 0 km away
Central Wedge 1 & 2 & 3, 0.16 km away
South Wedge 2, 0.28 km away
Central Wedge 4 - South Wedge 411, 0.31 km away
Alpine: Resolution - Charles, 3.34 km away
Alpine: Resolution - Dagg, 11.23 km away

Alpine: Nancy, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MTIuMFFWbzlV
Connected?	true
Directly Connected?	true
Co-rupture Count	19,719
Co-rupture Rate	3.5563295E-4

Alpine: Caswell - South George, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MTIuMFFWbzlV
Connected?	true
Directly Connected?	true
Co-rupture Count	36,420
Co-rupture Rate	9.2770875E-4

Central Wedge 1 & 2 & 3, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MTIuMFFWbzlV
Connected?	true
Directly Connected?	true
Co-rupture Count	3,279
Co-rupture Rate	4.7569967E-5

South Wedge 2, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MTIuMFFWbzlV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Central Wedge 4 - South Wedge 411, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MTIuMFFWbzlV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Resolution - Charles, 3.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MTIuMFFWbzlV
Connected?	true
Directly Connected?	true
Co-rupture Count	13,047
Co-rupture Rate	3.8053977E-4

Alpine: Resolution - Dagg, 11.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MTIuMFFWbzlV
Connected?	true
Directly Connected?	false
Co-rupture Count	29,837
Co-rupture Rate	6.8877486E-4
